LED Module

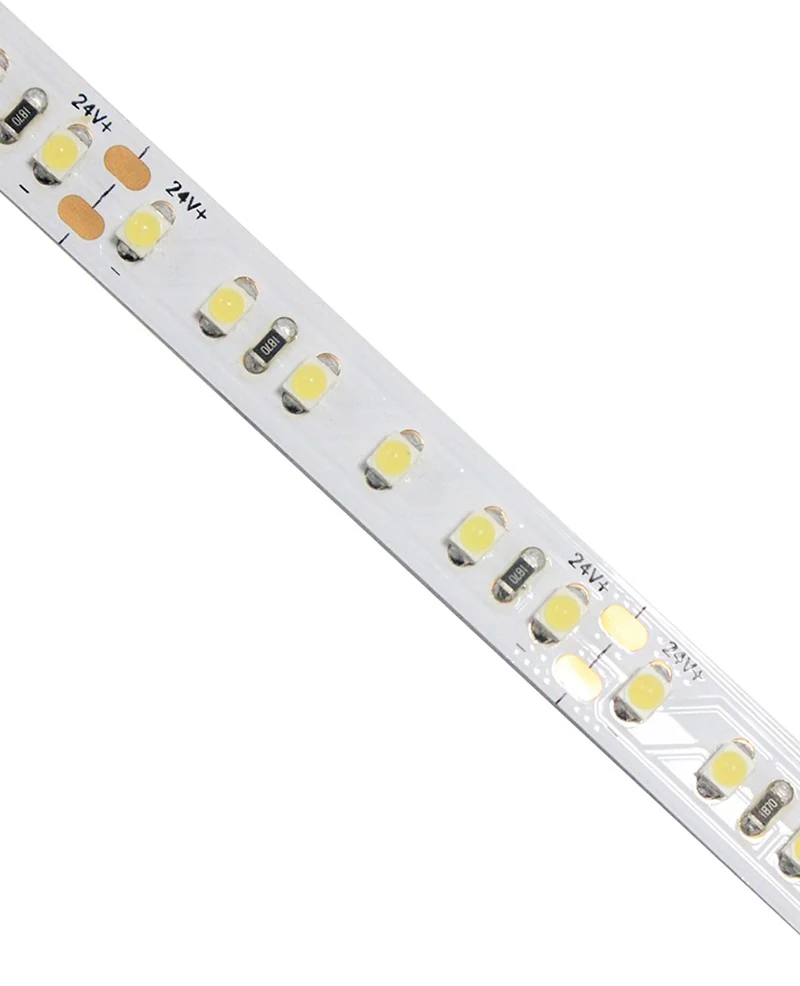

2835 Wall Wash Strip Light With 60 Degree Lens Angle
2835 strip with a 60 degree lens so light lands on the wall instead of spilling
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
A 2835 strip fitted with a 60 degree lens, sold specifically as a wall wash product. An ordinary strip throws roughly 120 degrees and wastes most of that on the ceiling and the floor; a 60 degree lens puts the light where it is wanted. The build is IP20 constant voltage with CRI 80 or 90 and an SDCM below 3, so a long indoor wash stays even in colour.
Key Benefits
Why Buyers Choose This Build
60 degree lens concentrates the output onto the wall rather than spilling it across the room
SDCM below 3 keeps the colour even along a long wash where differences are obvious
CRI 80 or 90 options for retail and gallery surfaces
Constant voltage build, so it works with ordinary strip drivers
Application
Where It Fits And What It Fixes
Who It Is For
- Retail and gallery shopfitters
- Interior lighting installers building indoor wall washes
- Display and shelving manufacturers
Problems It Solves
- Indoor wall washes where an unlensed strip lights the ceiling more than the wall
- Long runs where colour differences between sections show up on a plain wall
- Schemes that need wall wash performance without moving to a sealed neon body
Application Scenarios
- Indoor wall wash lighting
- Retail feature walls
- Gallery and display surfaces
- Shelving back panels
Technical Features
- 2835 LED package with lens
- 60 degree luminous angle
- CRI 80 or 90
- SDCM below 3
- CCT 2700K to 6500K
- Constant voltage
- IP20
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- LED Package
- 2835
- Luminous Angle
- 60 degrees
- CRI
- 80 or 90
- SDCM
- Below 3
- CCT
- 2700K to 6500K
- Drive
- Constant voltage
- Ingress Protection
- IP20
- Application
- Wall wash lighting
Part Number Table
| Product Model | LED Package | CRI | SDCM | CCT | Luminous Angle | Drive | Ingress Protection |
|---|---|---|---|---|---|---|---|
| RL-FV2410120283510-8XX-60 | 2835 | 80 / 90 | Below 3 | 2700-6500K | 60 degrees | Constant voltage | IP20 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier
- 2835 LED package
- 60 degree optical lens
Manufacturing Process
- Solder paste printing
- SMT placement
- Reflow soldering
- Lens fitting and alignment
- Lit inspection
- Reeling and packing
Quality Control
- Incoming LED binning to SDCM 3
- Lens alignment check
- Full reel lit inspection
- Colour consistency sorting
Certifications
- CE
- RoHS
Customisation Options
- Lens angle selection
- CRI and CCT selection
- LED density and reel length
- Cut length and connector
Comparison
How It Compares With Other Products In The Range
Compared With Wall Washer Strip Light Multi Angle Lens Series
An IP67 wall washer with several beam angles and higher output for exposed positions
Compared With Wall Wash Strip TPU Half Tube Gluing
A TPU half tube build that adds mechanical protection to the lensed strip
Use Guide
Specifying And Installing It Correctly
- Set the mounting distance from the wall to suit the 60 degree beam, not by eye
- Order the whole wash from one batch so the SDCM 3 binning holds across the run
- Keep this IP20 build indoors and dry
Related Products
Other Products Worth Comparing
LED Module
LED Strip Light 2216
High density 2216 strip from 600 to 2100 LEDs per reel, up to 9600 lm/m
View Specifications →
LED Module
LED Strip Light 5050
5050 package strip across white, RGB, RGBW and RGBWW with IP20 or IP67
View Specifications →
LED Module
LED Strip Light 2110 700LED
700 LEDs per metre on the 2110 package, 3500 per reel, for a genuinely seamless line
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Installation Guide
Wall Washer Beam Angles And Mounting Distance
A wall washer is only as good as the relationship between its beam angle, its offset from the wall and the height it has to cover. Get that wrong and no amount of output fixes it.
Read The Guide →FAQ
2835 Strip Wall Wash Light With 60 Degree Angle FAQ
What beam angle does the lens give?
60 degrees.
How tight is the colour consistency?
SDCM below 3.
Is it waterproof?
No, this build is IP20. For wet or outdoor positions use the IP67 wall washer strip.
Are other angles available?
Lens angle is a customised option, and the IP67 wall washer series lists 15, 30, 60 and 30 x 45 degrees.
Request A Quote For 2835 Strip Wall Wash Light With 60 Degree Angle
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
