LED Module

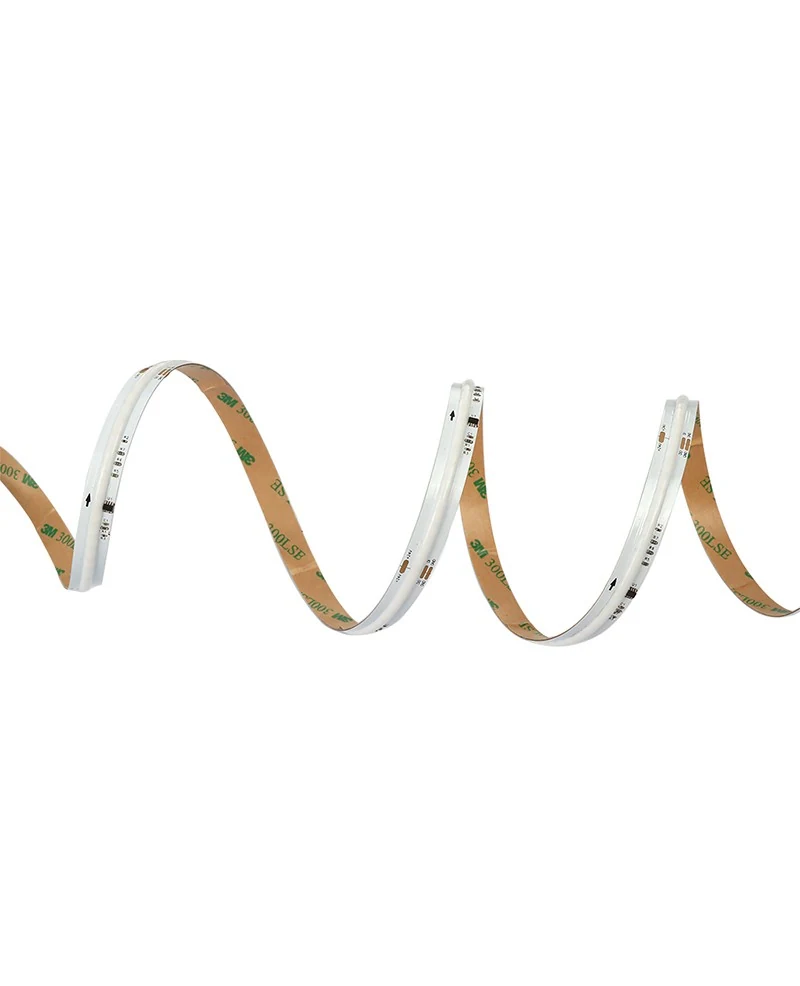

SPI Addressable COB Chasing Strip Light
Addressable SPI control on a continuous COB line for chasing effects without visible dots
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
SPI addressable control applied to a COB strip. Most chasing strips show the effect as a row of individual points moving along the run; on a COB line the movement reads as light travelling along a continuous band. That is the difference between a decorative effect that looks like a light strip and one that looks like architecture. Specified for residential, shopping mall, corridor, commercial and decorative use.
Key Benefits
Why Buyers Choose This Build
Chasing and sequenced effects on a continuous line rather than a row of visible points
SPI addressable control gives per segment effects from a standard controller
Suits exposed architectural detail where the strip itself is on show
Same COB construction as the dual colour strip, so profiles and diffusers are shared
Application
Where It Fits And What It Fixes
Who It Is For
- Architectural and entertainment lighting installers
- Retail and hospitality shopfitters using dynamic effects
- Display builders needing sequenced lighting
Problems It Solves
- Effect lighting where the dot pattern of an addressable strip breaks the illusion
- Architectural details that need motion without looking like a consumer product
- Schemes mixing static and dynamic runs that want one strip construction throughout
Application Scenarios
- Residential feature lighting
- Shopping malls
- Corridors
- Commercial interiors
- Decorative and effect lighting
Technical Features
- COB SPI chasing strip light
- SPI addressable control
- Continuous phosphor emitting line
- Segment level effects
- Flexible strip format
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Light Source
- COB continuous phosphor line
- Control
- SPI addressable
- Format
- Flexible strip
- Application
- Residential, shopping mall, corridor, commercial, decoration lighting
- Detailed Electrical Specification
- Confirmed per order
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier with control IC
- COB LED with continuous phosphor coating
Manufacturing Process
- Die bonding
- Control IC placement
- Phosphor coating along the strip
- Curing
- Addressable sequence test
- Reeling and packing
Quality Control
- Incoming die and IC inspection
- Addressable sequence verification
- Colour consistency check along the line
- Full reel lit inspection
Certifications
- CE
- RoHS
Customisation Options
- Pixel pitch and segment length
- Strip width and density
- Controller and protocol matching
- Cut length and connector
Comparison
How It Compares With Other Products In The Range
Compared With COB Strip Dual Color
The same COB construction for tunable white rather than addressable effects
Compared With Neon Strip DMX SPI Media Ribbon IP67 1020
An encapsulated neon body with 10 pixels per metre for exposed outdoor pixel runs
Use Guide
Specifying And Installing It Correctly
- Confirm the controller protocol and the pixel pitch before ordering
- Keep data runs short or use a repeater, as SPI is sensitive to line length
- Plan the segment length around the effect, since it sets the resolution of the chase
Related Products
Other Products Worth Comparing
LED Module
Magnetic Light Energy Saving Solution
Magnet mounted 24V bar that installs without drilling and comes off for cleaning
View Specifications →
LED Module
DC Module High Efficiency 24V Linear
600 x 24 mm 24V board reaching 200 lm/W for panels, linears, troffers and wall lights
View Specifications →
LED Module
2835 Strip Wall Wash Light With 60 Degree Angle
2835 strip with a 60 degree lens so light lands on the wall instead of spilling
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Automotive Ambient Lighting
Ambient lines inside a vehicle interior have to be thin, follow compound curves and show no visible dots at arm's length.
Read More →
Comparison Article
DMX512 vs SPI Control For LED Strips
Both protocols drive addressable LED product, but they behave very differently over distance and in mixed installations. Choosing the wrong one is expensive to correct on site.
Read The Guide →FAQ
COB Strip SPI Chasing Strip Light FAQ
What control protocol does it use?
SPI addressable control.
Why use COB for a chasing effect?
The continuous phosphor line makes the movement read as travelling light rather than a row of moving dots.
Can it be used outdoors?
This build is specified for interior applications. For exposed outdoor pixel runs use the DMX and SPI media ribbon neon strips.
What pixel pitch is available?
Pixel pitch and segment length are set as a customised option.
Request A Quote For COB Strip SPI Chasing Strip Light
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
