DOB Module Standard Series 5W And 10W With 10 mm Emitter

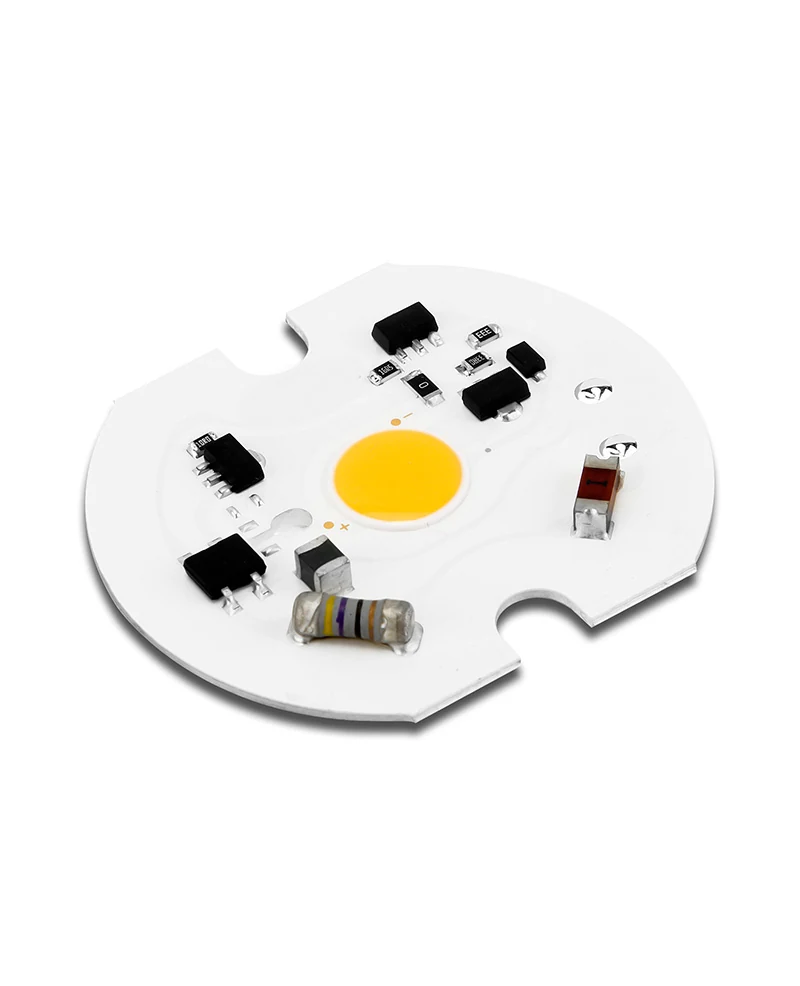

40 x 36 mm driver on board module with a 10 mm emitter for spots and pendants
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
A compact driver on board module, 40 x 36 mm overall with the light concentrated into a 10 mm emitting area. That small source is what a spot or pendant reflector needs to form a clean beam. It accepts either 120V or 230V, holds a 0.95 power factor and 100 lm/W, and removes the driver from a fitting far too small to hold one.
Key Benefits
Why Buyers Choose This Build
10 mm emitter area lets a reflector form a clean beam, which a spread out board cannot do
Dual 120V and 230V acceptance means one part number covers both market voltages
40 x 36 mm overall size fits spot and pendant heads with no driver cavity
0.95 power factor and 100 lm/W in a driverless package
Application
Where It Fits And What It Fixes
Who It Is For
- Spot light and pendant manufacturers
- Track lighting brands
- OEM buyers who need one board across 120V and 230V markets
Problems It Solves
- Spot and pendant heads with no room for a driver
- Beam quality problems caused by a large, diffuse source behind a reflector
- Ranges that need separate 120V and 230V versions of the same fitting
Application Scenarios
- Downlights
- Ceiling lights
- Spot lights
- Pendant lights
Technical Features
- DOB module standard series
- 120V and 230V input
- 5W and 10W builds
- Power factor 0.95
- Efficiency 100 lm/W
- CRI 80
- CCT 2700K to 6500K
- 10 mm emitter area on a 40 x 36 mm board
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Input Voltage
- 120V or 230V AC
- Power
- 5W and 10W
- Power Factor
- 0.95
- Efficiency
- 100 lm/W
- CRI
- 80
- CCT
- 2700K to 6500K
- Emitter Area
- 10 mm diameter
- Board Size
- 40 x 36 mm
Part Number Table
| Part Number | Power (W) | Input Voltage (V) | Power Factor | Efficiency (lm/W) | CRI | CCT (K) | Emitter Area | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| LK4036-10-A05-M**-80 | 5 | 120V / 230V | 0.95 | 100 | 80 | 2700-6500 | Diameter 10 mm | 40 x 36 |
| LK4036-10-A10-M**-80 | 10 | 120V / 230V | 0.95 | 100 | 80 | 2700-6500 | Diameter 10 mm | 40 x 36 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Compact aluminium or FR4 board
- Concentrated LED emitter array
- Integrated AC drive circuit
Manufacturing Process
- Solder paste printing
- SMT placement
- Reflow soldering
- High voltage safety test
- Lit ageing
- Packing
Quality Control
- Incoming LED inspection
- High voltage insulation test
- Lit test of every board
- Colour consistency sorting
- Ageing run
Certifications
- CE
- RoHS
Customisation Options
- Wattage selection
- CCT selection
- Emitter area variant
- Lead and connector configuration
Comparison
How It Compares With Other Products In The Range
Compared With DOB Module Standard 54 x 72 mm
The larger DOB board covers 40W to 60W with a 20 mm emitter
Compared With AC Module Triac Dimming
A round dimmable AC board for downlights rather than a spot emitter
Use Guide
Specifying And Installing It Correctly
- Set the reflector focal position against the 10 mm emitter, not the 40 mm board
- Confirm the market voltage on the order even though both are accepted
- Provide a metal path from the board to the fitting body for heat
Related Products
Other Products Worth Comparing
LED Module
AC Module Triac Dimming Round Series
Round 70, 100 and 180 mm boards on 230V with triac dimming built in
View Specifications →
LED Module
DOB Module Standard 40W to 60W
54 x 72 mm driver on board module at 40W to 60W with a 20 mm emitter
View Specifications →
LED Module
AC Module Low Flicker Round Series
120V round boards designed for low flicker, in 70, 100 and 180 mm with a CRI 90 option
View Specifications →FAQ
AC Module Standard DOB 40 x 36 mm FAQ
How large is the emitting area?
10 mm diameter on a 40 x 36 mm board.
Does it work on both 120V and 230V?
Yes, both are listed for the same part numbers.
What wattages are available?
5W and 10W.
Is a higher wattage DOB available?
Yes, the 54 x 72 mm DOB Module Standard covers 40W, 50W and 60W.
Request A Quote For AC Module Standard DOB 40 x 36 mm
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
