230V Triac Dimming AC Round LED Module 70 mm To 180 mm
Round 70, 100 and 180 mm boards on 230V with triac dimming built in
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
Round AC boards in 70, 100 and 180 mm diameters that dim from an ordinary triac wall dimmer, with no separate dimmable driver in the fitting. All three hold 110 lm/W and a 0.95 power factor. For a downlight brand this is the cheapest route to a dimmable range that works with the dimmers already on the wall in a refurbishment.
Key Benefits
Why Buyers Choose This Build
Dims from a standard triac wall dimmer, so refurbishments keep the existing dimmer
No dimmable driver in the fitting, which removes the usual cost and compatibility problem
Three diameters cover a downlight family from 70 mm to 180 mm on one circuit design
Steady 110 lm/W and 0.95 power factor across all three sizes
Application
Where It Fits And What It Fixes
Who It Is For
- Downlight and ceiling fitting manufacturers with a dimmable range
- Hospitality and residential lighting brands
- Distributors supplying refurbishment projects with existing dimmers
Problems It Solves
- Refurbishments where the wall dimmer stays but the fittings change
- Dimmable ranges made expensive by the dimmable driver
- Downlight families that need matched dimming behaviour across several apertures
Application Scenarios
- Dimmable downlights
- Ceiling lights
- Hotel and residential rooms
- Refurbishment with existing triac dimmers
Technical Features
- Triac dimming AC round series
- 230V direct input
- Power factor 0.95
- Efficiency 110 lm/W
- CRI 80
- CCT 2700K to 6500K
- Diameters of 70, 100 and 180 mm
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Input Voltage
- 230V AC
- Dimming
- Triac
- Power
- 16W and 23W
- Power Factor
- 0.95
- Efficiency
- 110 lm/W
- CRI
- 80
- CCT
- 2700K to 6500K
- Diameters
- 70 / 100 / 180 mm
Part Number Table

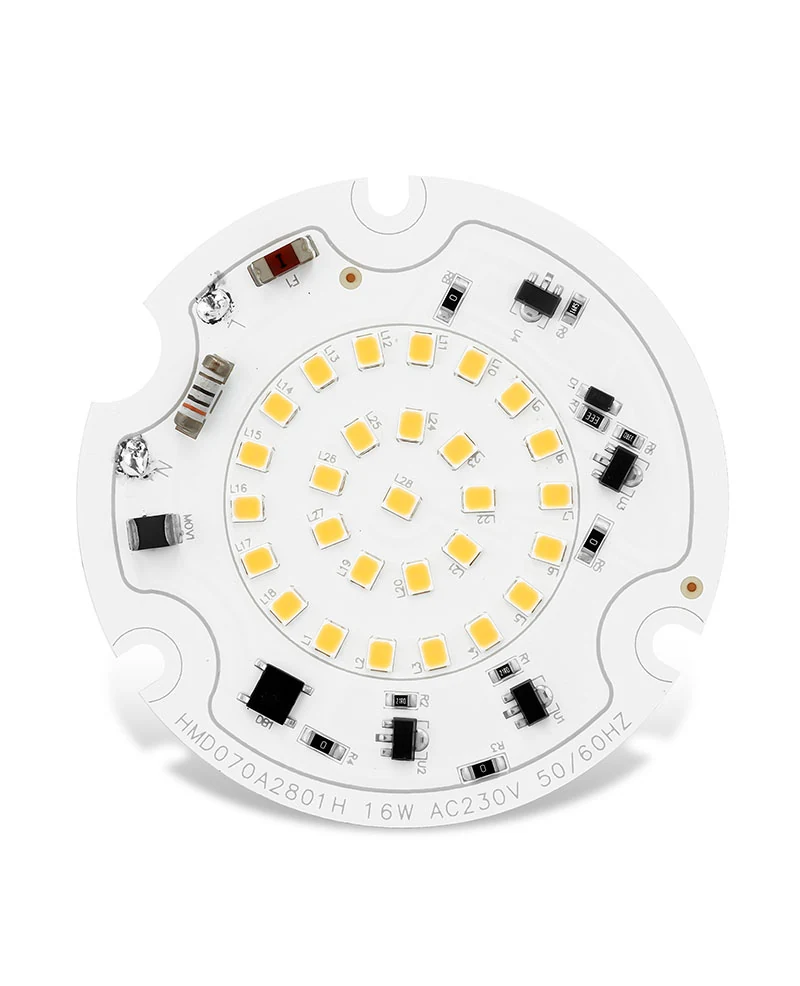

| Part Number | Power (W) | Input Voltage (V) | Power Factor | Efficiency (lm/W) | CRI | CCT (K) | LED | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| LK-HMD070A2801H016-8**TB | 16 | 230V | 0.95 | 110 | 80 | 2700-6500 | 28 pcs 2835 | Diameter 70 mm |
| LK-HMD100A2802H016-8**TB | 16 | 230V | 0.95 | 110 | 80 | 2700-6500 | 56 pcs 2835 | Diameter 100 mm |
| LK-HMD180A2802H023-8**TB | 23 | 230V | 0.95 | 110 | 80 | 2700-6500 | 56 pcs 2835 | Diameter 180 mm |
Manufacturing
How It Is Made Checked And Customised
Materials
- Round aluminium or FR4 board
- 2835 LED package
- Integrated triac dimming AC circuit
Manufacturing Process
- Solder paste printing
- SMT placement
- Reflow soldering
- Dimming curve verification
- High voltage safety test
- Lit ageing
- Packing
Quality Control
- Incoming LED inspection
- Dimming test against reference triac dimmers
- High voltage insulation test
- Lit test of every board
- Ageing run
Certifications
- CE
- RoHS
Customisation Options
- Board diameter and LED count
- CCT selection
- Dimming curve tuning
- Connector and lead length
Comparison
How It Compares With Other Products In The Range
Compared With AC Module Low Flicker
The low flicker round series targets flicker performance on 120V rather than triac dimming
Compared With Linear Module 230V
A non dimmable linear AC board for shallow rectangular fittings
Use Guide
Specifying And Installing It Correctly
- Confirm the dimmer model on site, as triac dimmers vary in minimum load and cut angle
- Do not mix dimmable and non dimmable modules on one dimmer circuit
- Check the dim to level required by the project before committing to triac rather than 0-10V
