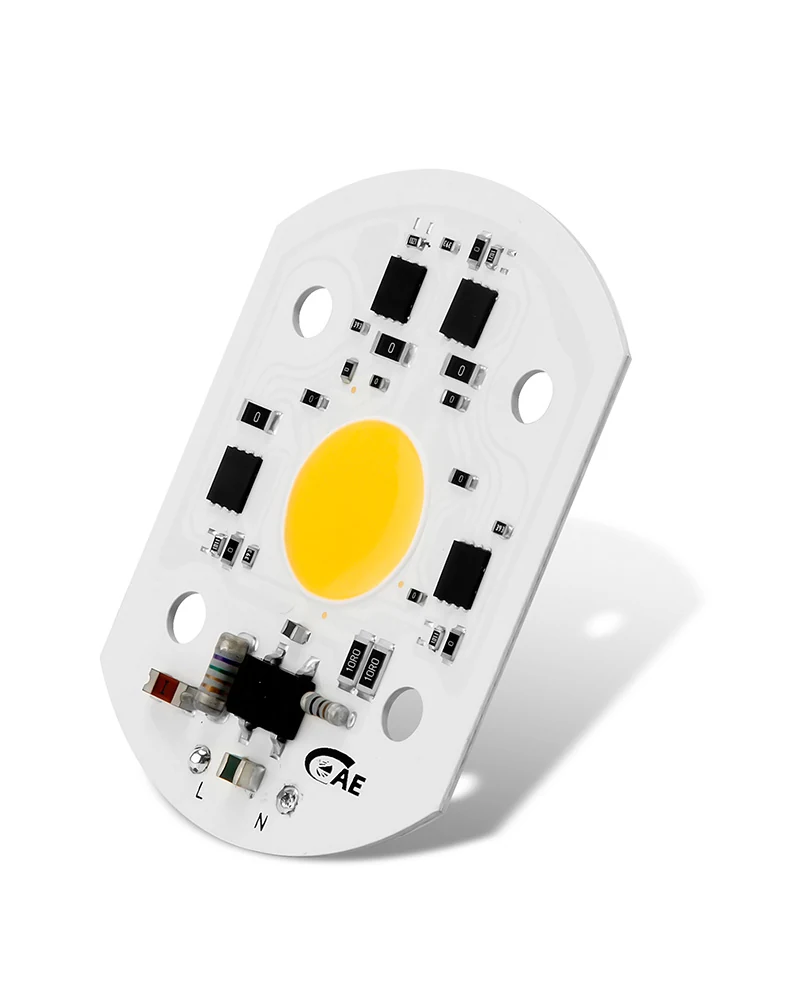

DOB Module Standard 40W to 60W product photograph

LED Module

DOB Module Standard Series 40W 50W 60W With 20 mm Emitter

Name: DOB Module Standard 40W to 60W
Brand: LUK Technology

54 x 72 mm driver on board module at 40W to 60W with a 20 mm emitter

LED Module AC Module Indoor Lighting Outdoor Lighting

Request A Quote Request A Sample

Email [email protected] or call and WeChat 0086-15986651902

Product Overview

What This Product Is And Who It Is For

The high output driver on board module: 54 x 72 mm carrying 40W, 50W or 60W into a 20 mm emitting area, on 120V or 230V with no external driver. This is the board for high bay, large spot and outdoor pendant fittings that need real output from a small source and have no space or appetite for a separate driver.

Key Benefits

Why Buyers Choose This Build

Up to 60W with no external driver, which is unusual at this power level

20 mm emitter keeps the source small enough for a deep reflector at high wattage

One board covers 120V and 230V, so a fitting ships to both markets unchanged

0.95 power factor and 100 lm/W held across all three wattages

Application

Where It Fits And What It Fixes

Who It Is For

High bay and large spot light manufacturers
Outdoor and industrial pendant makers
OEM brands consolidating 120V and 230V versions

Problems It Solves

High output fittings where the driver box dictates the size of the housing
Large spot and high bay optics that need a compact source at 40W and above
Ranges duplicated across two mains voltages

Application Scenarios

Downlights
Ceiling lights
Spot lights
Pendant lights
High bay fittings

Technical Features

DOB module standard series
40W, 50W and 60W builds
120V and 230V input
Power factor 0.95
Efficiency 100 lm/W
CRI 80
CCT 2700K to 6500K
20 mm emitter area on a 54 x 72 mm board

Specifications

Specification Table

Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.

Input Voltage: 120V or 230V AC
Power: 40W / 50W / 60W
Power Factor: 0.95
Efficiency: 100 lm/W
CRI: 80
CCT: 2700K to 6500K
Emitter Area: 20 mm diameter
Board Size: 54 x 72 mm

Part Number Table

Part Number	Power (W)	Input Voltage (V)	Power Factor	Efficiency (lm/W)	CRI	CCT (K)	Emitter Area	Dimension (mm)
LK5472-20-A40-M**-80	40	120V / 230V	0.95	100	80	2700-6500	Diameter 20 mm	54 x 72
LK5472-20-A50-M**-80	50	120V / 230V	0.95	100	80	2700-6500	Diameter 20 mm	54 x 72
LK5472-20-A60-M**-80	60	120V / 230V	0.95	100	80	2700-6500	Diameter 20 mm	54 x 72

Manufacturing

How It Is Made Checked And Customised

Materials

Aluminium or FR4 board
Concentrated high power LED array
Integrated AC drive circuit

Manufacturing Process

Solder paste printing
SMT placement
Reflow soldering
High voltage safety test
Thermal verification
Lit ageing
Packing

Quality Control

Incoming LED inspection
High voltage insulation test
Thermal check under load
Lit test of every board
Ageing run

Certifications

CE
RoHS

Customisation Options

Wattage selection
CCT selection
Emitter area variant
Lead and connector configuration

Comparison

How It Compares With Other Products In The Range

Compared With AC Module Standard DOB 40 x 36 mm

The smaller DOB board covers 5W and 10W with a 10 mm emitter

Compared With COB Flood Light 400W IP66

A finished outdoor luminaire rather than a board for a fitting maker

Use Guide

Specifying And Installing It Correctly

Design the heatsink for the full 60W even if the first build is 40W, so one housing covers the range
Keep the emitter at the reflector focal point, as the 20 mm source is what sets the beam quality
Do not run the board without the heatsink attached, even for a bench test
