LED Module
TPU Half Tube Flexible Wall Wash Strip At 12W Per Metre
Lensed wall wash strip in a glued TPU half tube, 12W per metre in white, RGB and SPI
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For

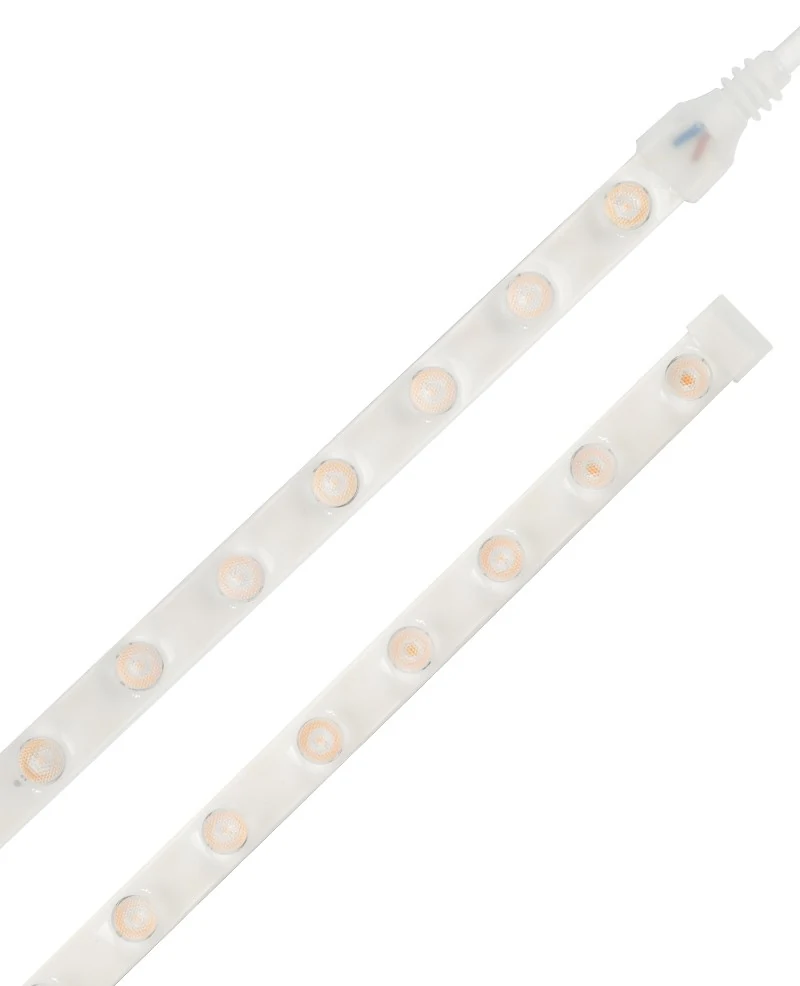

A wall wash strip protected by a TPU half tube bonded over the board. The half tube keeps the optics exposed while shielding the electronics, which is the compromise you want where a fully encapsulated body would soften the beam. It runs 12W per metre at 24V with 36 LEDs per metre, and is built in single colour, dual colour, RGB and SPI versions with lens angles from 15 degrees to 60 by 30 by 45 degrees.
Key Benefits
Why Buyers Choose This Build
TPU half tube protects the circuit while leaving the lens optics unobstructed
12W per metre across every colour build, so the power budget does not change with colour choice
Lens angles from 15 to 60 degrees let one product cover narrow grazing and wide washing
SPI build available for addressable wall wash effects
Application
Where It Fits And What It Fixes
Who It Is For
- Architectural lighting installers
- Facade and feature wall contractors
- Decorative lighting brands sourcing a protected wall wash strip
Problems It Solves
- Wall wash runs that need physical protection without losing beam control
- Schemes mixing white and colour sections that must draw the same power per metre
- Grazing details that need a tighter beam than a standard 60 degree lens gives
Application Scenarios
- Feature wall grazing
- Facade wall wash
- Decorative architectural detail
- Exterior and interior wall lighting
Technical Features
- TPU half tube gluing construction
- Flexible wall wash light
- 36 LEDs per metre
- 12W per metre at 24V
- Single colour, dual colour, RGB and SPI builds
- Lens angles of 15, 30, 60, 15 x 45 and 30 x 45 degrees
- CRI 80 or 90 and SDCM below 3 on white builds
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Construction
- TPU half tube gluing
- Voltage
- 24V constant voltage
- Power
- 12W per metre
- LED Density
- 36 per metre
- LED Packages
- 2835, 3030CW and 3030RGB
- Lens Angles
- 15, 30, 60, 15 x 45 and 30 x 45 degrees
- CRI
- 80 or 90 on white builds
- SDCM
- Below 3 on white builds
- Flux
- 1000 to 1100 lm/m white, 510 lm/m RGB
Part Number Table
| Product Model | LED Package | CRI | SDCM | CCT | Luminous Angle | Drive | Voltage | LEDs Per Metre | Efficiency | Flux Per Metre | Power Per Metre |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LK-FV2412036283512-XXX-WWWA1405 | 2835 | 80 / 90 | Below 3 | 2700-6500K | 15 degrees | Constant voltage | 24V | 36 | 100-110 lm/W | 1000-1100 lm/m | 12W/m |
| LK-FV2412036283512-8CW-WWWA1405 | 3030CW | 80 / 90 | Below 3 | 2700K + 6500K | 30 degrees | Constant voltage | 24V | 36 | 100-110 lm/W | 1000-1100 lm/m | 12W/m |
| LK-FV2420042303020-RGB-WWWA1405 | 3030RGB | - | - | R 620-630nm, G 520-530nm, B 465-475nm | 60 / 15 x 45 / 30 x 45 degrees | Constant voltage | 24V | 36 | R 15 lm/W, G 85 lm/W, B 30 lm/W | 510 lm/m | 12W/m |
| LK-FV2420036303020-SPI-WWWA1405 | 3030RGB | - | - | R 620-630nm, G 520-530nm, B 465-475nm | 60 / 15 x 45 / 30 x 45 degrees | Constant voltage | 24V | 36 | R 15 lm/W, G 85 lm/W, B 30 lm/W | 510 lm/m | 12W/m |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier
- 2835 and 3030 LED packages
- Optical lens array
- TPU half tube bonded over the board
Manufacturing Process
- SMT placement
- Reflow soldering
- Lens fitting
- TPU half tube gluing
- Lit inspection
- Reeling and packing
Quality Control
- Incoming LED binning to SDCM 3
- Lens alignment check
- Bond line inspection on the TPU tube
- Full reel lit inspection
Certifications
- CE
- RoHS
Customisation Options
- Lens angle selection
- Colour build including RGB and SPI
- LED density and cut length
- Connector and lead configuration
Comparison
How It Compares With Other Products In The Range
Compared With Wall Washer Strip Light High Efficiency Lens Series
A fully sealed IP67 build at 20W per metre with higher output
Compared With 2835 Strip Wall Wash Light With 60 Degree Angle
A bare IP20 lensed strip for dry indoor runs at lower cost
Use Guide
Specifying And Installing It Correctly
- Choose 15 degrees for grazing close to the wall and 60 degrees for washing from a distance
- Confirm the drive is constant voltage 24V before ordering controllers
- Support the strip along the TPU tube rather than clipping onto the lens
Related Products
Other Products Worth Comparing
LED Module
Wall Washer Strip Light Multi Angle Lens Series
IP67 wall washer across white, dual colour, RGB, SPI and DMX512 with five beam angles
View Specifications →
Outdoor Lighting
LED Street Light 100W to 200W
Roadway luminaire in three wattage steps with an IP65 sealed housing
View Specifications →
Outdoor Lighting
LED Street Light 100W to 300W
Four wattage steps up to 300W with an IP65 or IP66 sealed outdoor body
View Specifications →FAQ
Wall Wash Strip TPU Half Tube Gluing FAQ
What does the TPU half tube do?
It bonds over the board to protect the circuit while leaving the lens optics exposed, so the beam is not softened.
What power does it draw?
12W per metre on every build, white and colour alike.
Which lens angles are available?
15, 30, 60, 15 x 45 and 30 x 45 degrees depending on the build.
Is an addressable version available?
Yes, the SPI build uses the 3030RGB package.
Request A Quote For Wall Wash Strip TPU Half Tube Gluing
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
