DC Module
DC Module High Efficiency 24V Linear
600 x 24 mm 24V board reaching 200 lm/W for panels, linears, troffers and wall lights
View Specifications →
Product Category
DC Module Products
DC modules run from an external low voltage driver, which is what allows the very high efficacy figures this range reaches. Boards run from 70 x 24 mm up to 560 x 24 mm and 260 x 260 mm square, in single colour and tunable white, with CRI 80, 90 and 98 builds.
The Range
5 Products In DC Module
Low voltage linear and square boards from 1.5W to 40W reaching 207 lm/W
DC Module
DC Module Square Module White
260 x 260 mm square board with 84 LEDs, reaching 200 lm/W across the CCT range
View Specifications →
DC Module
DC Module Square Module Dual Color
One 260 x 260 mm board carrying 2700K, 5700K and the mixed setting at 12W
View Specifications →
DC Module

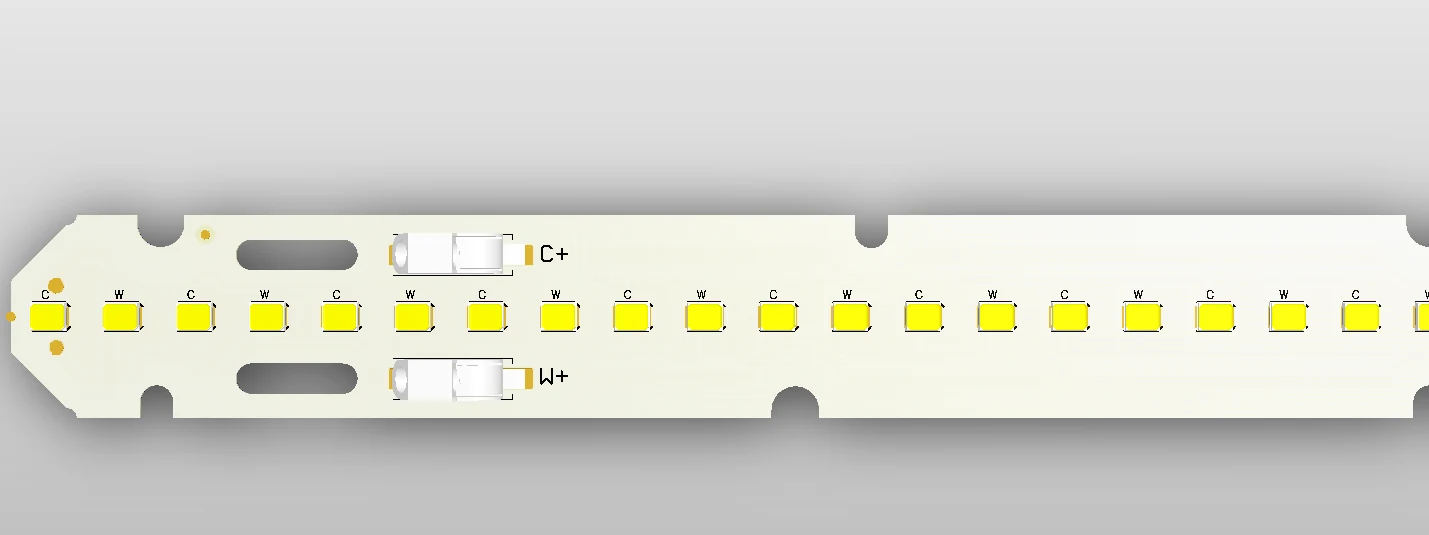

DC Module Tunable White 24V Series
500 x 24 mm dual channel board at 20W in CRI 80, 90 and 98
View Specifications →
DC Module
DC Module Linear High Efficiency Series
Seven board sizes from 70 x 24 mm to 560 x 40 mm holding 160 lm/W and above
View Specifications →Who This Category Is For
- Panel, troffer and linear luminaire manufacturers
- Downlight and ceiling fitting makers
- Shelf and display lighting manufacturers
Problems It Solves
- Fitting families where the small sizes are the inefficient ones
- Square apertures lit by round or linear boards
- High CRI options that force a different driver and thermal design
- Efficacy targets that cannot be met without adding board area
Core Advantages
- Up to 207 lm/W on the 280 x 40 mm board
- Seven board sizes on one electrical platform
- CRI 80, 90 and 98 builds
- Single colour and tunable white
Application Scenarios
- Panel lights
- Linear lights
- Troffers
- Wall lights
- Square downlights
Industries
Where DC Module Is Used
The industry pages set out the constraints these products are specified against.
Commercial And Office Lighting
People sit under office lighting for eight hours, and increasingly there is a camera in the room.
Read More →Related Categories
Other Parts Of The Range
Most projects draw on more than one category.
Cooler LED Module
Lighting engines specified for refrigerated display cases and cold rooms
7 products →
FAQ
DC Module Questions
What is the highest efficacy in this category?
207 lm/W on the 280 x 40 mm DC linear module.
Is tunable white available?
Yes, in both linear 500 x 24 mm and square 260 x 260 mm formats.
How small do the boards go?
70 x 24 mm at 1.5W, still at 160 lm/W.
Ask For The DC Module Specification Sheet
Part number tables, efficacy, CRI, CCT, dimensions and IP ratings for every product in this category.
