Product Overview
What This Product Is And Who It Is For

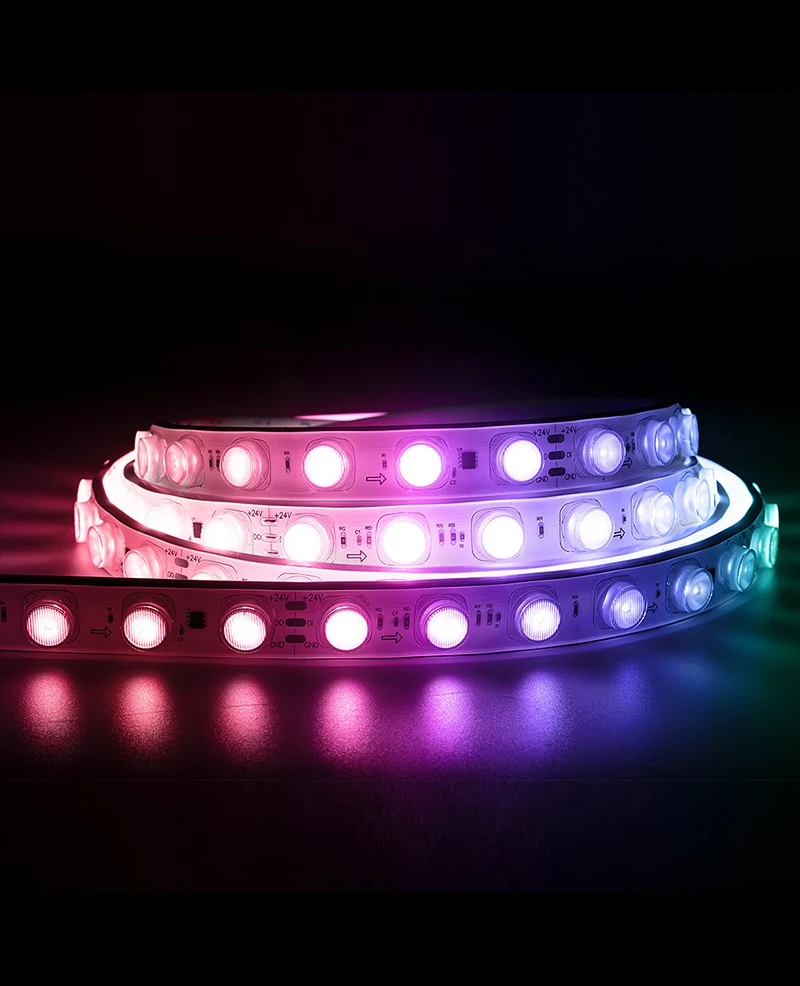

The full angle and control range of the IP67 wall washer platform. Beyond the white builds it adds 3030RGB in RGB, SPI and DMX512 versions and a 5050RGBW DMX build, so one detail on a building can be static white in one section and pixel controlled in another with the same physical product. Beam angles run from 15 degrees through to 35 x 65 degrees, and there is a constant current IC build for longer runs.
Key Benefits
Why Buyers Choose This Build
White, RGB, SPI and DMX512 on one physical platform, so mixed schemes look identical
Five beam angle families from 15 degrees to 35 x 65 degrees
A constant current IC build holds brightness over longer runs than plain constant voltage
IP67 with a flexible body that can be bent and disassembled
Application
Where It Fits And What It Fixes
Who It Is For
- Architectural and facade lighting contractors
- Entertainment and media facade integrators
- Specifiers combining static and pixel controlled sections
Problems It Solves
- Facades mixing static and dynamic sections that must look the same when unlit
- Long runs where constant voltage brightness falls off before the end of the run
- Projects that need DMX512 control without moving to a rigid bar fixture
Application Scenarios
- Facade wall wash
- Media and dynamic facades
- Exterior architectural features
- Decorative outdoor structures
Technical Features
- Lens with different light emitting angle selections
- Wall washing effect optimised
- Flexible, can be bent and disassembled
- Waterproof design reaching IP67
- White, dual colour, RGB, SPI and DMX512 builds
- Constant current IC build available
- 48V DMX512 build available
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Ingress Protection
- IP67
- Voltage
- 24V, with a 48V DMX512 build
- Power
- 14W to 20W per metre
- Colour Builds
- White, dual colour, RGB, SPI and DMX512
- LED Packages
- 2835, 3030CW, 3030RGB and 5050RGBW
- Beam Angles
- 15, 30, 35, 60, 30 x 45, 35 x 65 and 25P20 degrees
- CRI
- 80 or 90 on white builds
- SDCM
- Below 3 on white builds
Part Number Table
| Product Model | LED Package | CRI | SDCM | CCT | Luminous Angle | Drive | Voltage | LEDs Per Metre | Efficiency | Flux Per Metre | Power Per Metre |
|---|---|---|---|---|---|---|---|---|---|---|---|
| LK-FV2420042303020-RGB-WWWA2205 | 3030RGB | - | - | R 620-630nm, G 520-530nm, B 465-475nm | - | Constant voltage | 24V | 42 | R 15, G 85, B 30 lm/W | 800 lm/m | 20W/m |
| LK-FV2420036303020-SPI-WWWA2205 | 3030RGB | - | - | R 620-630nm, G 520-530nm, B 465-475nm | - | Constant voltage | 24V | 36 | R 15, G 85, B 30 lm/W | 600 lm/m | 14W/m |
| LK-FV2420036303020-DMX-WWWA2205 | 3030RGB | - | - | R 620-630nm, G 520-530nm, B 465-475nm | - | Constant voltage | 24V | 36 | R 15, G 85, B 30 lm/W | 750 lm/m | 18W/m |
| LK-FV2420036505020-DMX-WWWA2205 | 5050RGBW | - | - | R 620-630nm, G 520-530nm, B 465-475nm | 30 / 35 / 60 / 30 x 45 / 35 x 65 degrees | Constant voltage | 24V | 36 | R 23, G 51, B 13, W 58 lm/W | 550 lm/m | 20W/m |
| LK-FC2420042283520-8XX-WWWA2205 | 2835 | 80 / 90 | Below 3 | 2700-6500K | 15 / 30 / 60 / 30 x 45 / 25P20 degrees | Constant voltage IC | 24V | 48 | 110-120 lm/W | 2200-2400 lm/m | 20W/m |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier
- 2835, 3030 and 5050 LED packages
- Optical lens array
- IP67 waterproof encapsulation
Manufacturing Process
- SMT placement
- Control IC placement on SPI and DMX builds
- Reflow soldering
- Lens fitting
- IP67 encapsulation
- Addressing and sequence test
- Reeling
Quality Control
- Incoming LED and IC inspection
- Lens alignment check
- IP67 immersion verification
- Addressable sequence verification
- Full reel lit inspection
Certifications
- CE
- RoHS
Customisation Options
- Control protocol selection
- Beam angle selection
- LED density and cut length
- Connector and lead configuration
Comparison
How It Compares With Other Products In The Range
Compared With Wall Washer Strip Light High Efficiency Lens Series
The same IP67 platform tuned for maximum white output at up to 3000 lm/m
Compared With Wall Washer Neon Strip 3D Bending
A neon body that bends in any direction and washes over 3 to 5 metres
Use Guide
Specifying And Installing It Correctly
- Use the constant current IC build for long continuous runs where brightness drop off would show
- Match the DMX or SPI build to the controller already specified for the project
- Pick the beam angle from the mounting offset, then confirm with a mock up on the real surface
Related Products
Other Products Worth Comparing
LED Module
Wall Washer Strip Light High Efficiency Lens Series
IP67 wall washer built around a high efficiency 2835 lens solution, up to 3000 lm/m
View Specifications →
Outdoor Lighting
LED Street Light 100W to 200W
Roadway luminaire in three wattage steps with an IP65 sealed housing
View Specifications →
Outdoor Lighting
LED Street Light 100W to 300W
Four wattage steps up to 300W with an IP65 or IP66 sealed outdoor body
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Architectural Facade Lighting
A facade installation is permanent, exposed and seen from a distance.
Read More →
Comparison Article
DMX512 vs SPI Control For LED Strips
Both protocols drive addressable LED product, but they behave very differently over distance and in mixed installations. Choosing the wrong one is expensive to correct on site.
Read The Guide →
Installation Guide
Wall Washer Beam Angles And Mounting Distance
A wall washer is only as good as the relationship between its beam angle, its offset from the wall and the height it has to cover. Get that wrong and no amount of output fixes it.
Read The Guide →FAQ
Wall Washer Strip Light Multi Angle Lens Series FAQ
Which control protocols are available?
Constant voltage white, RGB, SPI and DMX512, including a 48V DMX512 build.
What beam angles can I choose?
15, 30, 35, 60, 30 x 45, 35 x 65 and 25P20 degrees depending on the build.
Why choose the constant current IC build?
It holds brightness along a longer run than plain constant voltage.
What is the ingress protection?
IP67 on all builds in this series.
