Solution
LED Component Supply
We have our own sub-brand factory producing LED components, which can be designed according to a customer specific request. For a module or strip customer that means the emitter is part of the design conversation rather than a constraint handed down from the open market.
Process
Every Stage And The Problem It Solves
A project is a sequence of problems. This is the order they arrive in and what we do about each one.
01
Specify The Emitter
The problem: Open market packages force the board design to work around whatever bin is available.
How we handle it: Package size, colour point, CRI grade and drive characteristics are specified as part of the project.
02
Match The Board
The problem: An emitter chosen in isolation can make the board thermally or electrically awkward.
How we handle it: Emitter and board are designed together, which is how the range reaches 207 lm/W on a 280 x 40 mm board.
03
Control The Colour Point
The problem: Bin drift between production runs is what makes a second order look different from the first.
How we handle it: Components are produced and binned to the project specification rather than bought against a general bin code.
04
Hold Supply Continuity
The problem: A discontinued package means a redesign, not a substitution.
How we handle it: Producing the component in house keeps the specification available for repeat orders.
05
Integrate Into The Product
The problem: The component only matters once it is in a finished module, strip or luminaire.
How we handle it: The same components feed the module, strip, neon flex and luminaire lines across the range.
Products
Products This Solution Draws On
Cooler LED Module
Strip Light 2835 Energy Saving Solution
24V 5 m reels from 300 to 800 LEDs, CRI above 90, IP20 or IP67
View Specifications →
LED Module
LED Strip Light 2110 700LED
700 LEDs per metre on the 2110 package, 3500 per reel, for a genuinely seamless line
View Specifications →
LED Module
DC Module Tunable White 24V Series
500 x 24 mm dual channel board at 20W in CRI 80, 90 and 98
View Specifications →
LED Module
LED Strip Light 5050
5050 package strip across white, RGB, RGBW and RGBWW with IP20 or IP67
View Specifications →Other Solutions
Other Ways Into The Range
Energy Saving Cooler Lighting
In a refrigerated case, every watt of lighting is a watt the compressor has to remove again.
See The Process →
Custom Neon Flex And Wall Washer
Neon flex and wall washers are chosen on three things that rarely appear together: which way the body bends, how short it can be cut, and whether there is a lens controlling the beam.
See The Process →FAQ
LED Component Supply FAQ
Do you manufacture your own LED components?
Yes, through our own sub-brand factory, and they can be designed to a customer specific request.
Which LED packages are used across the range?

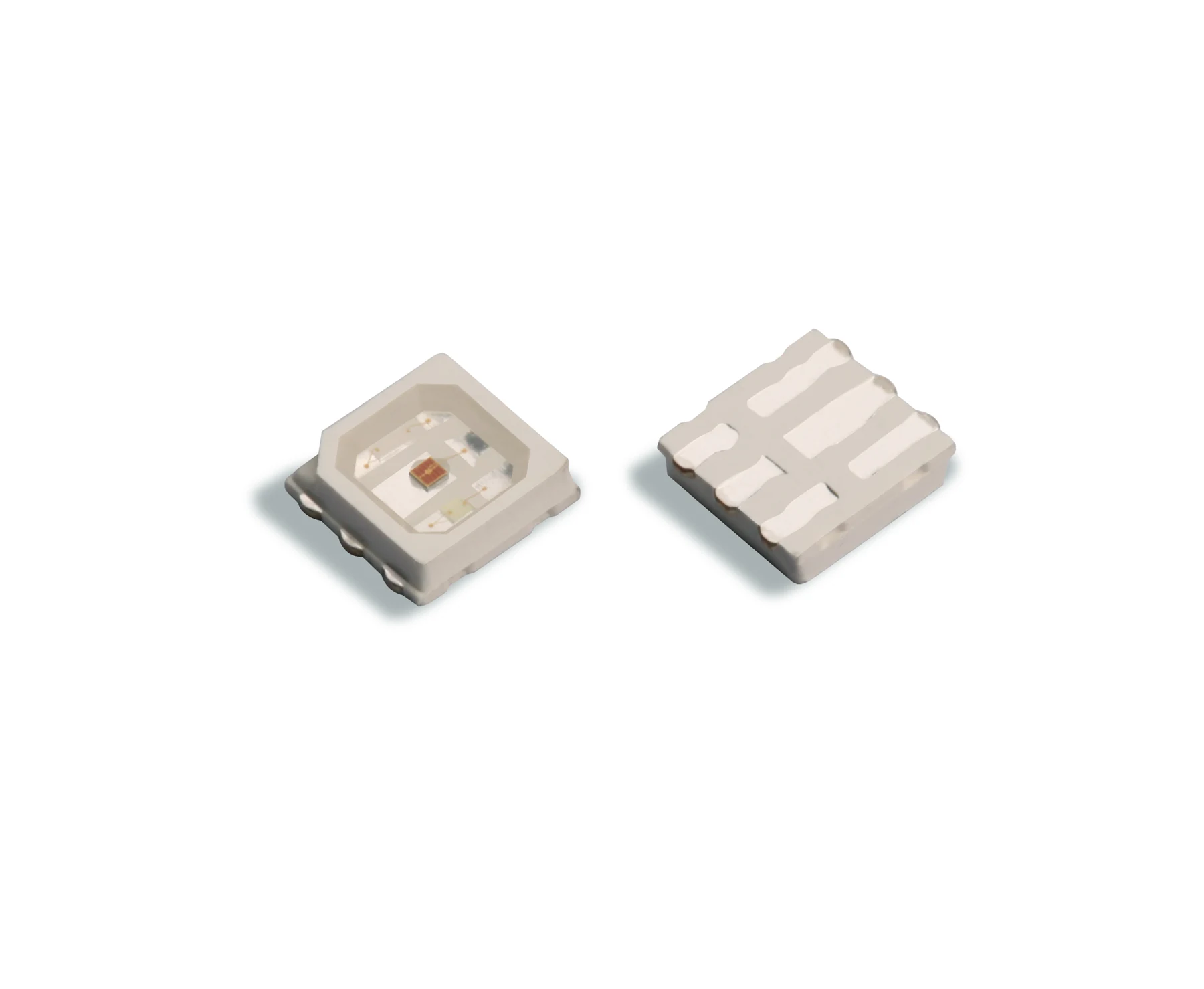

2110, 2216, 2835, 3030, 3535 and 5050, plus COB.
Can a specific colour point be held across repeat orders?
Producing the component in house is what makes that practical. Confirm the requirement with the enquiry.
Start With The Constraint Not The Catalogue
Send the fitting, the profile or the room. We will work back from it to a specification you can put into a submittal.
