LED Module

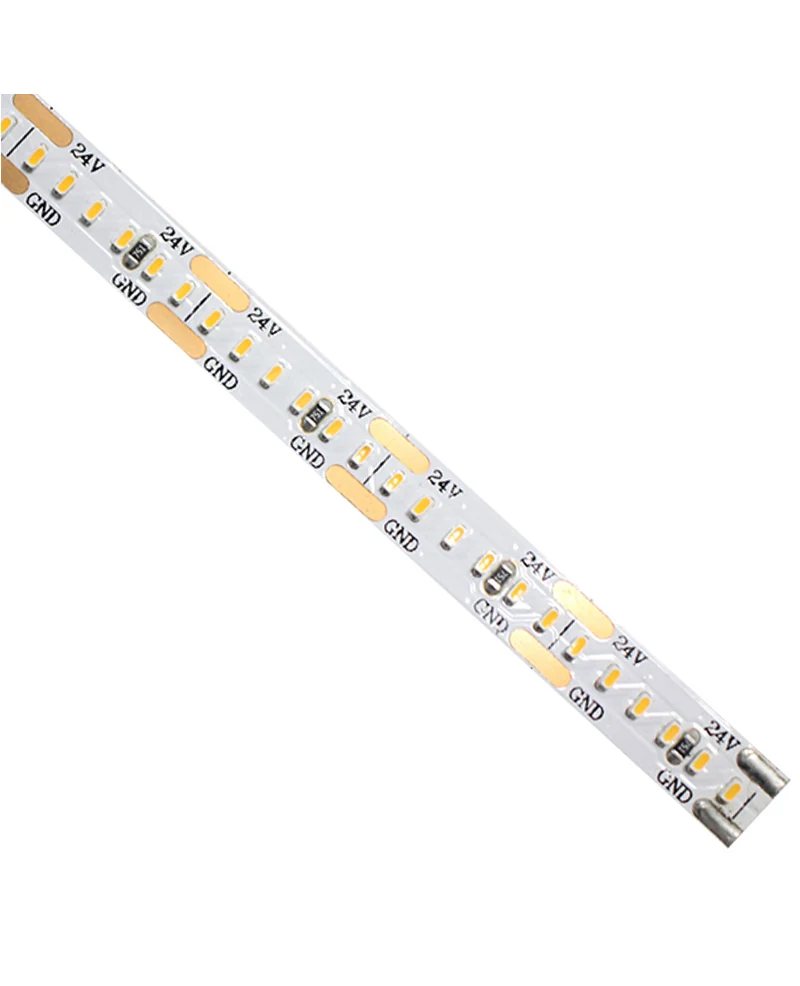

2110 LED Strip Light With 1500 LEDs Per Reel At 90 lm/W
300 LEDs per metre on the 2110 package for accent brightness with no visible dots
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
The lower density 2110 build: 300 LEDs per metre, 1500 per reel, 60W at 24V and 1100 lm/m. It keeps the seamless look of the 2110 package while halving the power and the brightness of the 700 LED version, which is what accent coves, shelf under-lighting and residential detailing actually need. Efficiency stays at 90 lm/W and CRI above 90.
Key Benefits
Why Buyers Choose This Build
Seamless 2110 appearance at half the power of the 700 LED build
1100 lm/m suits accent and detail lighting without over lighting the space
0.5 A per reel allows long runs on a modest driver
CRI above 90 and 90 lm/W match the higher density build
Application
Where It Fits And What It Fixes
Who It Is For
- Furniture and cabinet lighting makers
- Hospitality and residential shopfitters
- Display builders adding accent detail
Problems It Solves
- Accent runs where a high output strip has to be dimmed permanently to look right
- Residential and hospitality detailing that must be dot free but not bright
- Long runs limited by driver current rather than by light level
Application Scenarios
- Accent cove lighting
- Under shelf and under cabinet detail
- Residential and hospitality detailing
- Display case edge lighting
Technical Features
- 2110 LED package
- 300 LEDs per metre and 1500 per reel
- 60W per reel at 24V
- Flux 1100 lm/m
- Efficiency 90 lm/W
- CRI above 90
- Current 0.5 A per reel
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- LED Package
- 2110
- LED Density
- 300 per metre
- LED Count
- 1500 per reel
- Voltage
- 24V
- Power
- 60W per reel
- Current
- 0.5 A
- Flux
- 1100 lm/m
- Efficiency
- 90 lm/W
- CCT
- 2700K to 6500K
- CRI
- Above 90
- Ingress Protection
- IP20
Part Number Table
| Part Number | Length (mm/reel) | Power (W/reel) | LEDs (pcs/reel) | Voltage (V) | Current (A) | Flux (lm/m) | Efficiency (lm/W) | CCT | Ingress Protection | CRI |
|---|---|---|---|---|---|---|---|---|---|---|
| LK-F2408300IP202110 | 5000 | 60 | 1500 | 24 | 0.5 | 1100 | 90 | 2700-6500 | IP20 | >90 |
| LK-F2410300IP202110 | 5000 | 60 | 1500 | 24 | 0.5 | 1100 | 90 | 2700-6500 | IP20 | >90 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Flexible FPC carrier
- 2110 small package LED
Manufacturing Process
- Solder paste printing
- High density SMT placement
- Reflow soldering
- Lit inspection
- Reeling and packing
Quality Control
- Incoming LED binning
- Automated optical inspection
- Full reel lit inspection
- Colour consistency sorting
Certifications
- CE
- RoHS
Customisation Options
- LED density and reel length
- CCT and CRI selection
- Strip width
- Cut length and connector
Comparison
How It Compares With Other Products In The Range
Compared With LED Strip Light 2110 700LED
Doubles the density and the output where a brighter seamless line is needed
Compared With LED Strip Light 2216
A brighter high density option reaching 9600 lm/m when accent level is not enough
Use Guide
Specifying And Installing It Correctly
- Use this build where the strip is decorative rather than functional lighting
- At 0.5 A per reel several reels can share one driver, within the driver rating
- Still mount in an aluminium profile, as 60W over 5 m needs a heat path
Related Products
Other Products Worth Comparing
LED Module
2835 Strip Wall Wash Light With 60 Degree Angle
2835 strip with a 60 degree lens so light lands on the wall instead of spilling
View Specifications →
LED Module
LED Strip Light 2216
High density 2216 strip from 600 to 2100 LEDs per reel, up to 9600 lm/m
View Specifications →
LED Module
LED Strip Light 5050
5050 package strip across white, RGB, RGBW and RGBWW with IP20 or IP67
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Supermarket And Retail Display
Retail lighting is seen close up and judged on the merchandise, not on the fixture.
Read More →
Residential Cabinet And Wardrobe
Cabinet and wardrobe lighting is a detail, and details are looked at closely.
Read More →
Product Guide
LED Strip Density And Cut Length Explained
LED density decides how the strip looks; cut length decides how much of it you waste. Both are set by the package, and both are worth checking before the profile is ordered.
Read The Guide →FAQ
LED Strip Light 2110 300LED FAQ
How does this differ from the 700 LED version?
Half the LED density and roughly half the power and output, with the same efficiency and CRI.
What is the output per metre?
1100 lm/m.
What current does a reel draw?
0.5 A at 24V.
Is it dot free?
At 300 LEDs per metre on the 2110 package the line reads as continuous behind a normal diffuser.
Request A Quote For LED Strip Light 2110 300LED
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
