Cooler LED Module
DC Linear Module Standard for Cooler Application
600 x 24 mm 24V linear board tuned for refrigerated display cases
View Specifications →
Solution

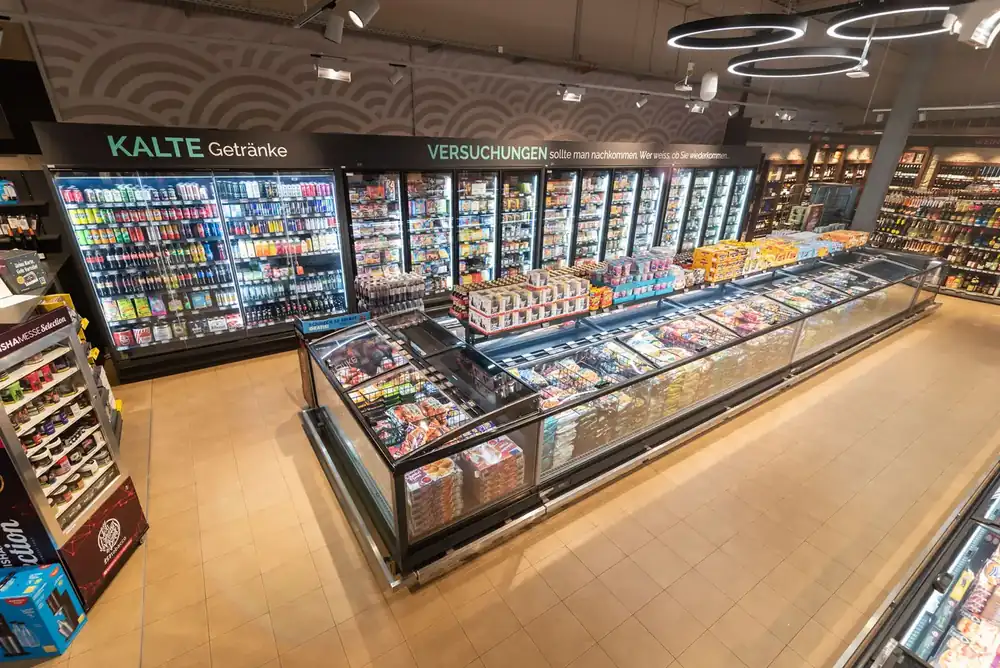

Energy Saving Cooler Lighting
In a refrigerated case, every watt of lighting is a watt the compressor has to remove again. Energy saving in cold display is therefore worth roughly twice what it is worth in an ambient space, and it is the case LUK builds its cooler range around.
Process
Every Stage And The Problem It Solves
A project is a sequence of problems. This is the order they arrive in and what we do about each one.
01
Audit The Existing Case
The problem: Fluorescent or early LED case lighting is often drawing far more than the light level requires.
How we handle it: We start from the case dimensions, the existing lighting load and the light level actually needed at the shelf.
02
Select The Engine
The problem: Efficacy and colour rendering pull against each other, and cold display needs both.
How we handle it: The cooler module range publishes CRI 80, 90 and 98 builds with the efficacy stated for each, so the trade-off is made deliberately.
03
Fit The Existing Case
The problem: A retrofit that requires drilling the liner is not a retrofit.
How we handle it: Magnetic bars mount without drilling and lift off for cleaning; rigid boards are sized to the existing extrusion.
04
Protect Against The Environment
The problem: Condensation and daily cleaning kill lighting that was never rated for it.
How we handle it: IP67 strip and neon flex builds are used where water can reach the lighting, and the magnetic bar is rated to minus 20 degrees Celsius.
05
Hold Consistency Across The Fleet
The problem: A refit done case by case ends up with visibly different colour along an aisle.
How we handle it: Boards are binned and matched so cases fitted months apart still look like one installation.
06
Verify And Document
The problem: A saving that cannot be measured will not be approved twice.
How we handle it: Part numbers, wattage per metre and efficacy are published per build so the before and after load can be documented.
Products
Products This Solution Draws On
Cooler LED Module
DC Module Standard for Cooler Lighting Tunable White
Dual channel 2700K and 6500K boards in 140, 280 and 560 mm with CRI 80, 90 or 98
View Specifications →
LED Module
Magnetic Light Energy Saving Solution
Magnet mounted 24V bar that installs without drilling and comes off for cleaning
View Specifications →
Cooler LED Module
Strip Light 2835 Energy Saving Solution
24V 5 m reels from 300 to 800 LEDs, CRI above 90, IP20 or IP67
View Specifications →
Cooler LED Module
Neon Strip Multiple Beam Angle For Cooler Application
Lensed neon flex at 120 LEDs per metre and 10W per metre with a 25 degree beam
View Specifications →Other Solutions
Other Ways Into The Range
Custom Neon Flex And Wall Washer
Neon flex and wall washers are chosen on three things that rarely appear together: which way the body bends, how short it can be cut, and whether there is a lens controlling the beam.
See The Process →
LED Component Supply
We have our own sub-brand factory producing LED components, which can be designed according to a customer specific request.
See The Process →FAQ
Energy Saving Cooler Lighting FAQ
Why does lighting load matter more in a cooler?
Heat from the lighting is inside the refrigerated envelope, so the plant has to remove it again.
What is the most efficient cooler module?
The 84 LED build of the 24V cooler linear module, at 200 lm/W.
Can a case be retrofitted without drilling?
Yes, using the magnetic light.
Start With The Constraint Not The Catalogue
Send the fitting, the profile or the room. We will work back from it to a specification you can put into a submittal.
