LED Module

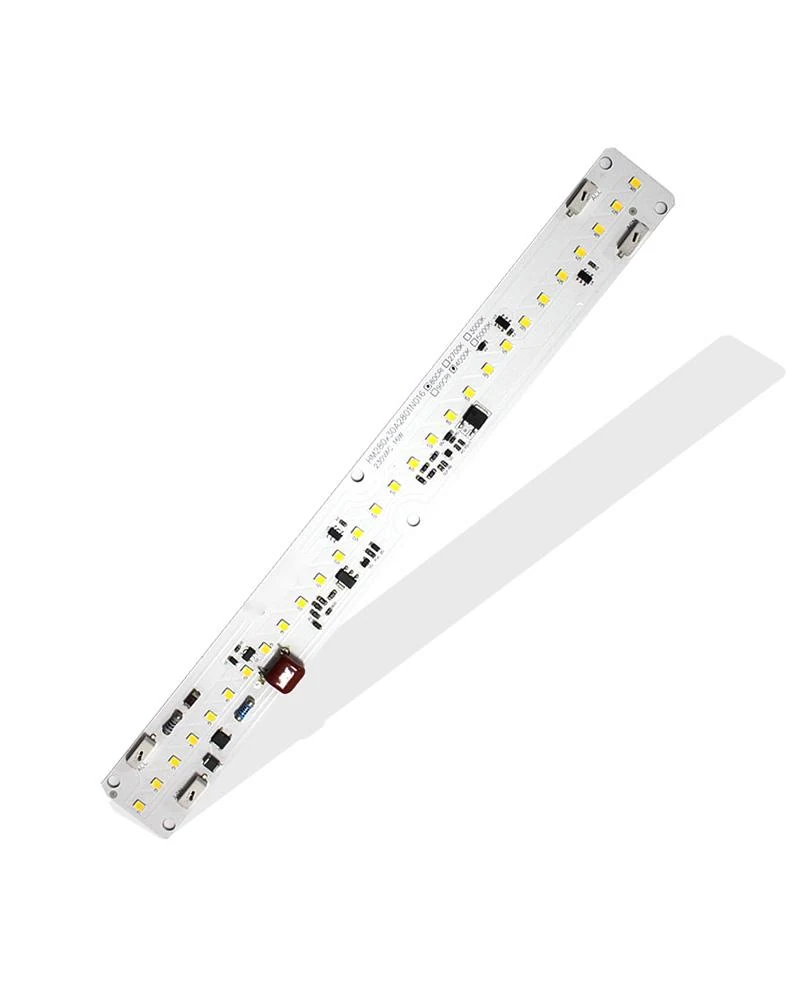

230V AC Linear LED Module For Downlights And Ceiling Lights
280 x 30 mm board running straight off 230V with a 0.95 power factor and no external driver
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
A 280 x 30 mm linear board that runs directly on 230V mains, so the fitting needs no separate driver box, no driver cavity and no driver to replace in five years. Two builds cover 9W and 16W at 100 to 120 lm/W with a 0.95 power factor. It is the simplest way to turn a shallow ceiling or downlight housing into a finished product.
Key Benefits
Why Buyers Choose This Build
No external driver, which removes a component, a wiring step and a common failure point
0.95 power factor keeps a large installed base within utility requirements
Shallow 280 x 30 mm board fits housings too thin for a driver compartment
Two wattages on one footprint, so one housing covers both outputs
Application
Where It Fits And What It Fixes
Who It Is For
- Downlight and ceiling light manufacturers
- Shelf and display fitting makers working in shallow profiles
- OEM brands simplifying their bill of materials
Problems It Solves
- Slim ceiling fittings with no room for a driver box
- Assemblies where driver wiring is the slowest step on the line
- Installations where driver failures dominate warranty returns
Application Scenarios
- Downlights
- Ceiling lights
- Shallow surface fittings
- Shelf lighting profiles
Technical Features
- 230V AC direct input
- Power factor 0.95
- 9W and 16W builds
- Efficiency 100 to 120 lm/W
- CRI 80
- CCT 2700K to 5700K
- 280 x 30 mm board
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Input Voltage
- 230V AC
- Power
- 9W and 16W
- Power Factor
- 0.95
- Efficiency
- 100 to 120 lm/W
- CRI
- 80
- CCT
- 2700K to 5700K
- Board Size
- 280 x 30 mm
- LED Package
- 28 pcs 2835
Part Number Table
| Part Number | Power (W) | Input Voltage (V) | Power Factor | Efficiency (lm/W) | CRI | CCT (K) | LED | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| LK-HM280x30A2801H009-8**TB | 9 | 230 | 0.95 | 110-120 | 80 | 2700-5700 | 28 pcs 2835 | 280 x 30 |
| LK-HM280x30A2801H016-8**TB | 16 | 230 | 0.95 | 100-110 | 80 | 2700-5700 | 28 pcs 2835 | 280 x 30 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Aluminium or FR4 board
- 2835 LED package
- Integrated AC drive circuit
Manufacturing Process
- Solder paste printing
- SMT placement
- Reflow soldering
- High voltage safety test
- Automated optical inspection
- Lit ageing
- Packing
Quality Control
- Incoming LED inspection
- High voltage insulation test
- Power factor measurement
- Lit test of every board
- Ageing run
Certifications
- CE
- RoHS
Customisation Options
- Board length and LED count
- CCT selection
- Input voltage variant
- Connector and lead length
Comparison
How It Compares With Other Products In The Range
Compared With AC Module Triac Dimming
A round AC board that adds triac dimming for wall dimmer compatibility
Compared With DC Module High Efficiency
A 24V board reaching 200 lm/W when an external driver is acceptable
Use Guide
Specifying And Installing It Correctly
- Treat the board as a live mains part and design the fitting insulation accordingly
- Do not attempt to dim this build from a wall dimmer, use the triac dimming AC module instead
- Keep the board on a thermally conductive back plate over its full length
Related Products
Other Products Worth Comparing
LED Module
AC Module Standard DOB 40 x 36 mm
40 x 36 mm driver on board module with a 10 mm emitter for spots and pendants
View Specifications →
LED Module
DOB Module Standard 40W to 60W
54 x 72 mm driver on board module at 40W to 60W with a 20 mm emitter
View Specifications →
LED Module
AC Module Low Flicker Round Series
120V round boards designed for low flicker, in 70, 100 and 180 mm with a CRI 90 option
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Commercial And Office Lighting
People sit under office lighting for eight hours, and increasingly there is a camera in the room.
Read More →
Comparison Article
AC Module vs DC Module Which To Use
The choice between a driver on board AC module and a low voltage DC module decides the shape of the fitting, its efficacy ceiling and where it will fail first.
Read The Guide →FAQ
Linear Module 230V FAQ
Does it need a driver?
No. The board runs directly from 230V AC.
What power factor does it hold?
0.95 on both builds.
Is it dimmable?
Not this build. The AC Module Triac Dimming series is the dimmable option.
What efficacy should I expect?
110 to 120 lm/W at 9W and 100 to 110 lm/W at 16W.
Request A Quote For Linear Module 230V
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
