LED Module

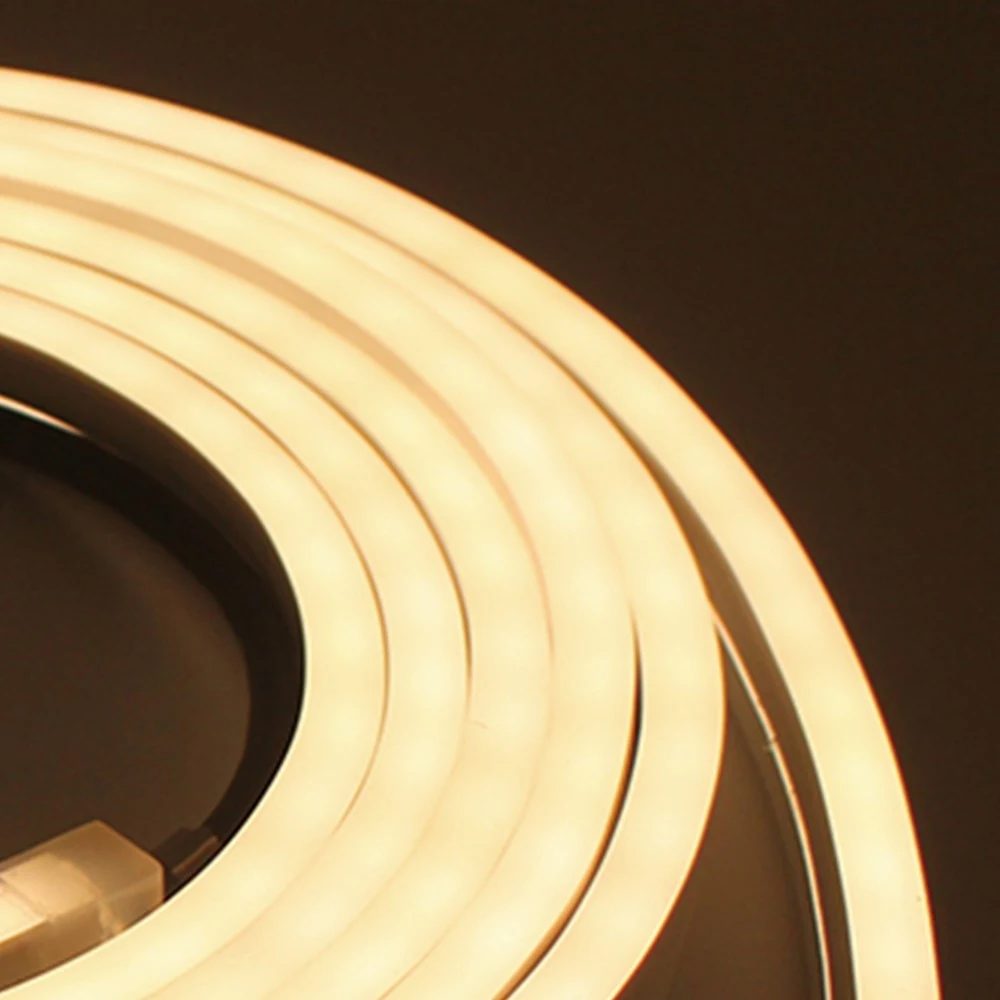

DMX And SPI Media Ribbon Side Bend Neon Flex In Three Body Sizes
Side bend pixel ribbon in 15 x 15, 12 x 12 and 10 x 20 mm with SPI or DMX control
Email [email protected] or call and WeChat 0086-15986651902
Product Overview
What This Product Is And Who It Is For
The side bending version of the media ribbon, offered in three body sizes so the pixel run can fit the channel instead of the channel being built around the fixture. Control is SPI or DMX, the electrical build matches the 1516 ribbon at 10 pixels per metre, and it carries CE, UL and RoHS with a 3 or 5 year warranty option. It is specified for landscape lighting and indoor or outdoor decorative work.
Key Benefits
Why Buyers Choose This Build
Three body sizes at 15 x 15, 12 x 12 and 10 x 20 mm fit existing channels without rework
Side bending lets a pixel run follow a horizontal curve
SPI or DMX control with the same 10 pixels per metre resolution
CE, UL and RoHS certificates with a 3 or 5 year warranty option
Application
Where It Fits And What It Fixes
Who It Is For
- Landscape and facade lighting contractors
- Media facade integrators working to existing channel details
- Specifiers who need UL listed exterior pixel product
Problems It Solves
- Pixel runs that have to follow a horizontal curve where a top bend ribbon kinks
- Channels already fabricated to a size the standard ribbon does not match
- Specifications that require UL as well as CE on an exterior pixel product
Application Scenarios
- Landscape lighting
- Indoor and outdoor decorative pixel runs
- Curved facade details
- Event and entertainment structures
Technical Features
- DMX and SPI media ribbon
- Side bend neon flex
- Body dimensions 15 x 15, 12 x 12 and 10 x 20 mm
- SPI or DMX control
- 10 pixels per metre
- Warranty 3 years or 5 years optional
- Certificates CE, UL and RoHS
Specifications
Specification Table
Figures below are the published specification for this build. Where a value is set per order it is stated as such rather than estimated.
- Body Dimensions
- 15 x 15 mm, 12 x 12 mm or 10 x 20 mm
- Bending Direction
- Side bend
- Ingress Protection
- IP67
- Voltage
- 24V
- Power
- 12W to 14.4W per metre
- Pixels
- 10 per metre
- Control
- SPI or DMX
- Warranty
- 3 years or 5 years optional
- Certificates
- CE, UL, RoHS
Part Number Table
| Part Number | LEDs Per Metre | Voltage | Current | Power | Efficiency | Flux | CRI | CCT | PCB | Cut | Protection | Control | Pixels Per Metre |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LK-FL2415167-827-60-DMX | 60 | 24 | 0.5 | 12 | 50 | 600 | 80 | 2700 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-830-60-DMX | 60 | 24 | 0.5 | 12 | 55 | 660 | 80 | 3000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-840-60-DMX | 60 | 24 | 0.5 | 12 | 60 | 720 | 80 | 4000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-860-60-DMX | 60 | 24 | 0.5 | 12 | 60 | 720 | 80 | 6000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-DW-120-DMX | 120 | 24 | 0.6 | 14.4 | 60 | 850 | 80 | 2700-6000 | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-RGB-60-DMX | 60 | 24 | 0.6 | 14.4 | 25 | 360 | - | RGB | 12 | 100 | IP67 | DMX-AB | 10 |
| LK-FL2415167-RGBW-60-DMX | 60 | 24 | 0.6 | 14.4 | 30 | 430 | 80 | 2700-6000 | 12 | 100 | IP67 | DMX-AB | 10 |
Manufacturing
How It Is Made Checked And Customised
Materials
- Extruded silicone neon body in three sections
- 2835 and 5050 LED packages
- Pixel control IC
- 12 mm FPC carrier
Manufacturing Process
- SMT placement
- Pixel IC placement
- Reflow soldering
- Silicone extrusion to the ordered section
- IP67 verification
- Pixel address test
- Reeling
Quality Control
- Incoming LED and IC inspection
- Section dimension check
- Pixel addressing verification
- IP67 immersion verification
- Lit inspection
Certifications
- CE
- UL
- RoHS
Customisation Options
- Body dimension
- Control protocol
- Colour temperature or colour build
- Warranty term
Comparison
How It Compares With Other Products In The Range
Compared With Neon Strip DMX SPI Media Ribbon IP67 1516
The same electrical build in a single 15 x 16 mm body
Compared With Neon Strip Slim Digital Neon Flex Strip Light
A slimmer 6 x 14 mm body when pixel resolution matters less than section size
Use Guide
Specifying And Installing It Correctly
- Measure the channel before choosing between 15 x 15, 12 x 12 and 10 x 20 mm
- Confirm SPI or DMX with the control contractor before the order is placed
- Keep the bend in the side direction, as this body is not a 3D bending product
Related Products
Other Products Worth Comparing
LED Module
Neon Strip DMX SPI Media Ribbon IP67 1516
Pixel controlled media ribbon at 10 pixels per metre in DMX and SPI, IP67
View Specifications →
LED Module
Neon Strip Slim Digital Neon Flex Strip Light
The slim neon body at 6 x 14 mm and 8 x 16 mm, up to 140 LEDs per metre
View Specifications →
Cooler LED Module
Neon Strip Side Bending Digital Neon Flex
Side bending neon flex in two body sizes, single colour through to DMX RGBW
View Specifications →Go Deeper
Industry Pages And Guides That Cover This Product
Architectural Facade Lighting
A facade installation is permanent, exposed and seen from a distance.
Read More →
Comparison Article
DMX512 vs SPI Control For LED Strips
Both protocols drive addressable LED product, but they behave very differently over distance and in mixed installations. Choosing the wrong one is expensive to correct on site.
Read The Guide →FAQ
Neon Strip DMX SPI Media Ribbon IP67 1020 FAQ
What body sizes are available?
15 x 15 mm, 12 x 12 mm and 10 x 20 mm.
Which direction does it bend?
Side bend.
What control does it use?
SPI or DMX, at 10 pixels per metre.
Which certificates does it carry?
CE, UL and RoHS, with a 3 or 5 year warranty option.
Request A Quote For Neon Strip DMX SPI Media Ribbon IP67 1020
Tell us the quantity, the colour temperature and the profile it has to fit. We will confirm the part number and the lead time.
