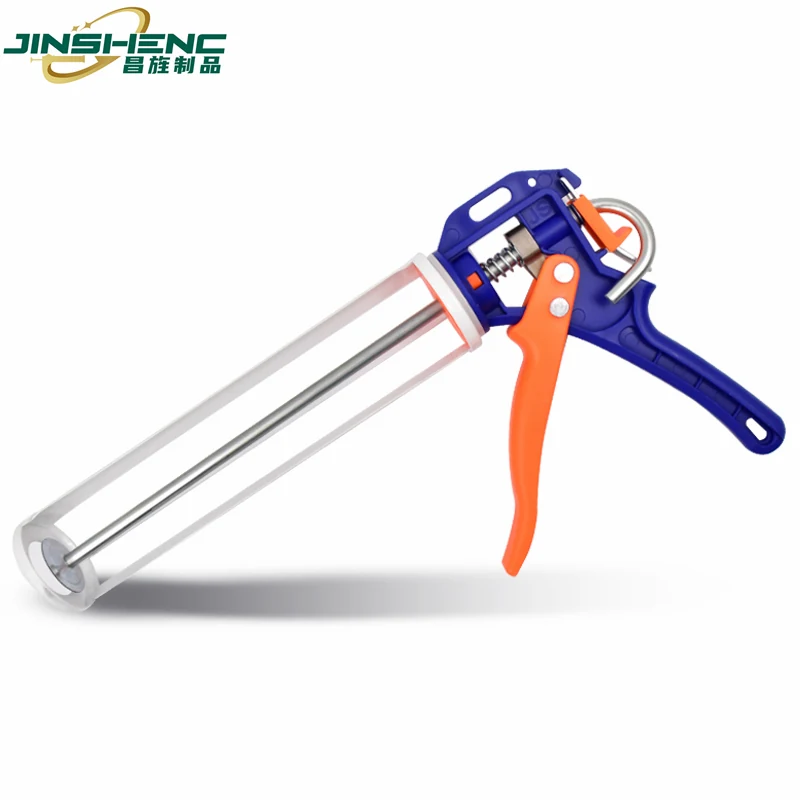

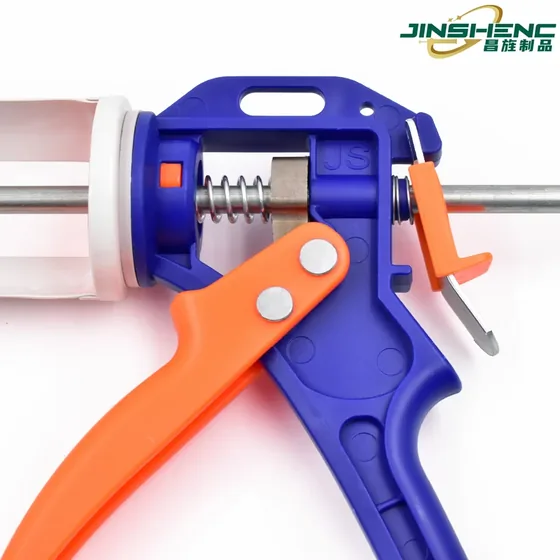

JS8630-2 Patented Self-Locking Thickened Plunger Glass Adhesive Gun (Designed for Bottle-Packaged Glass Adhesive)
The thickened-plunger version of the JS8630, and the best force-to-weight figure in the catalogue: 150 KG push force from a 405 g gun, with a 180 KG structural tolerance at a 16:1 thrust ratio.
Product Overview
The thickened-plunger version of the JS8630, and the best force-to-weight figure in the catalogue: 150 KG push force from a 405 g gun, with a 180 KG structural tolerance at a 16:1 thrust ratio. Four-point welded frame, modified reinforced polypropylene handle, 360-degree rotation, and a robust alloy mechanism.
Key benefits
Why Buyers Choose This Model
150 KG From 405 g
The highest force-to-weight ratio here. A conventional gun needs 520 g of welded steel to reach 160 KG; this reaches 150 KG at 405 g through the patented plunger.
Thickened Plunger
The plunger is thickened over the JS8630, which is what raises push force from 120 KG to 150 KG and structural tolerance from 150 KG to 180 KG.
16:1 Thrust Ratio
A low ratio deliberately chosen for force rather than volume, which is the right trade for stiff glass adhesive.
Enhanced Alloy Mechanism
A robust alloy mechanism rather than pressed steel parts, which is what lets a polypropylene-handled gun carry 180 KG.
Application scenarios
Where It Is Used
- Stiff glass adhesive from bottle packs
- Overhead and extended-reach work where weight matters
- Cold-weather application
- Flagship patented model in an own-brand range
Who it is for
The Buyers This Model Suits
Glazing Crews Working At Reach
Needs maximum force with minimum weight, because both hands are usually doing something else.
Structural Adhesive Applicators
Uses products a 120 KG gun struggles with, and needs the 16:1 ratio for pressure.
Brands Needing Differentiation
A patented mechanism with a genuinely unusual force-to-weight figure is defensible in a catalogue.
Problems it solves
What It Fixes
Weight Versus Force
Normally more force means more steel. The patented plunger breaks that relationship, which is the whole point of the model.
Adhesive That Will Not Move
150 KG at 16:1 puts more pressure on a bottle pack than a conventional gun of twice the weight.
Plunger Wear Over Time
The thickened plunger is the part that was reinforced, because it is the part that carries the load.
Technical features
How It Is Built
Modified Reinforced Polypropylene Handle
The handle is crafted from modified reinforced polypropylene, offering durability and ergonomic comfort.
Sturdy 4-Point Welded Frame
The gun’s frame is solidly constructed through a 4-point welding process, ensuring stability and durability.
Drip Prevention Function
Equipped with a drip prevention function, it minimizes adhesive wastage and maintains a clean work environment.
Enhanced Alloy Functionality
The gun features a robust alloy mechanism, enhancing its overall functionality and durability.
Affordable Price
JS8630-2 offers cost-effectiveness without compromising on performance.
Latest Generation Handle Design
The gun incorporates the latest generation handle design, which offers a comfortable grip and ease of use.
360-Degree Rotating Handle
The handle can rotate 360 degrees, providing enhanced usability and convenience during application.
Two Patented Technologies
JS8630-2 is backed by two patented technologies, showcasing its innovation and uniqueness.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 405g |
|---|---|
| Packing | 1PC/ poly bag, 40pcs/ CTN |
| Color | White, Yellow, or customized |
| Carton Size | 94*48*48 |
| Push Force | 150KG |
| Maximum Tolerance | 180KG |
| Drive Ratio | With 16:1 thrust ratio, this caulking gun ensures efficient application and high productivity |
| Capacity | Engineered for robustness, it can withstand structural loads of up to 180KG, ensuring reliable performance |
| Colour options | White, Yellow, or customized |
| Packing | 1PC/ poly bag, 40pcs/ CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS8630-2 are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Retract the rod fully before loading, so the thickened plunger seats square.
Step 2
Set the handle rotation to the joint angle before starting.
Step 3
Squeeze to full stroke end each time; the locking action engages at the stroke.
Step 4
Use drip prevention at every pause, since stiff adhesive under 150 KG will keep moving otherwise.
Comparison
How It Compares In Our Range
Compare against the standard-plunger version and the sausage equivalent.
| JS8630 | Standard plunger, 120 KG at 20:1 and 400 g, with 150 KG tolerance. Cheaper. |
|---|---|
| JS8631-2 | The sausage-pack thickened-plunger version at the same 150 KG, 170 KG tolerance and 20:1. |
| JS8632 | A conventional gun at 270 KG, if outright force matters more than weight. |
FAQ
JS8630-2 Questions
What is different from the JS8630?
A thickened plunger, which raises push force from 120 KG to 150 KG and structural tolerance from 150 KG to 180 KG. The thrust ratio changes from 20:1 to 16:1, trading volume for force.
Is 150 KG from 405 g realistic?
It is the published figure, and it comes from the patented self-locking mortise and tenon plunger rather than from frame mass. Our conventional 160 KG gun weighs 520 g.
Is the handle strong enough at 180 KG?
The handle is modified reinforced polypropylene and the mechanism is a robust alloy. The frame itself is a four-point weld, which is what carries the load.
What are the stock colours?
White and yellow, with custom colours available. Minimum order 2,000 pieces per colour for a customised version.
How is it packed?
One piece per poly bag, 40 pieces per master carton at 94 x 48 x 48 cm.
