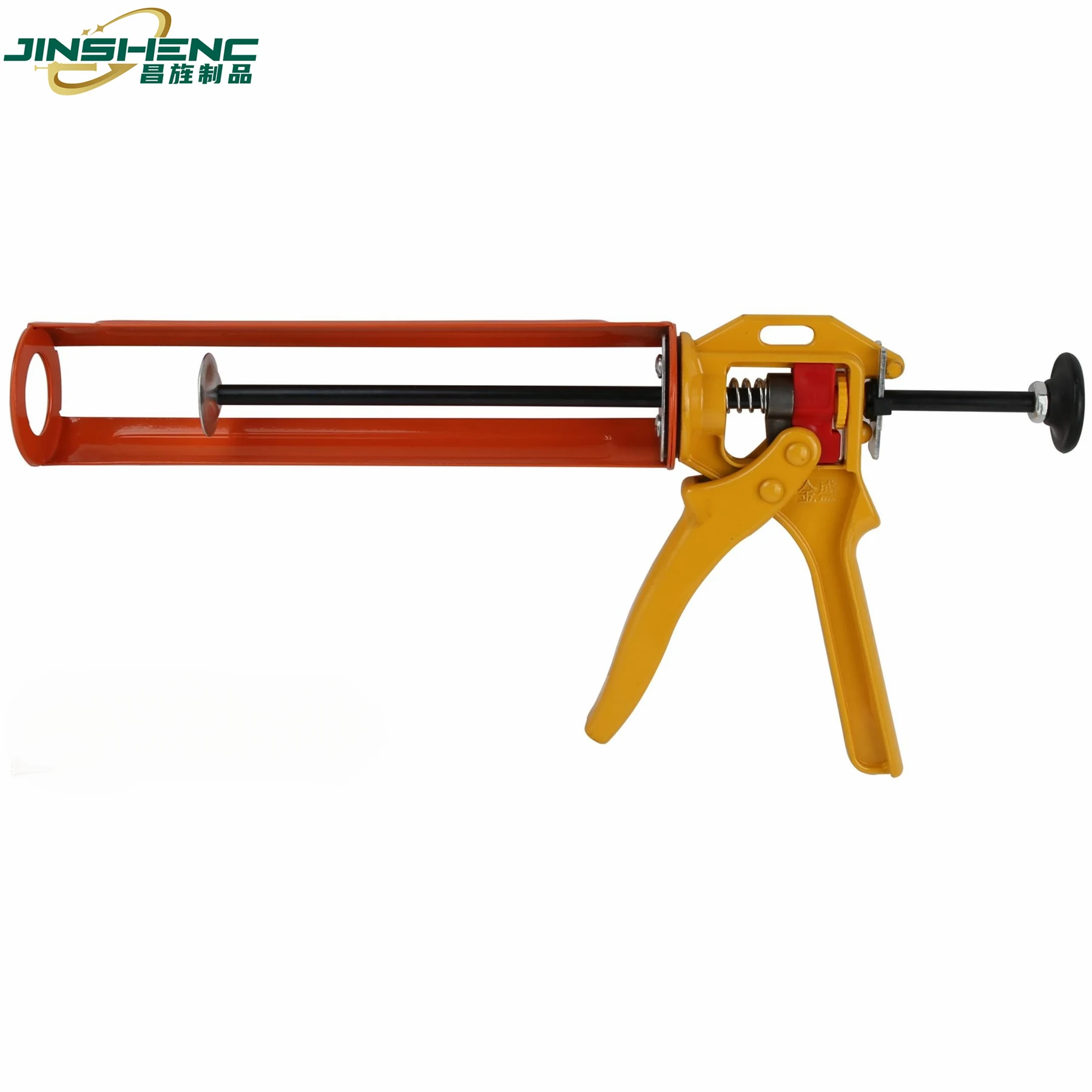

How To Read Caulking Gun Force Ratings

A caulking gun spec sheet usually carries three numbers: push force, maximum tolerance and drive ratio. They are not interchangeable, and a buyer who compares two guns on push force alone will sometimes pick the one that bends first. Here is what each number describes and how to use it.

Push Force Is What The Gun Delivers

Push force is the pressure the mechanism applies to the cartridge or sausage in normal operation. It is the number that decides whether the sealant you actually sell will come out at a reasonable trigger effort. Across our range it runs from 50 KG on the economy JS-8601 frame to 420 KG on the JS8615-3 welded steel grout gun.

Push force should be matched to the product, not maximised. A thin acrylic sealant needs very little, and a gun with 250 KG of force applied to it simply makes the bead harder to control. A stiff structural silicone or a two-part epoxy through a mixing nozzle is the case for the high figures.

Maximum Tolerance Is What The Frame Survives

Maximum tolerance is the load the body itself takes before it deforms. This is the number that matters on a cold morning, when the sealant has stiffened and the operator leans on the trigger harder than the designer intended. A gun whose tolerance sits only a little above its push force has no margin left for that.

If a supplier publishes only one force figure, ask which one it is. A single number is usually the flattering one.

Drive Ratio Is The Trade Between Force And Volume

Drive ratio, sometimes called thrust ratio or forward launch ratio, describes the mechanical advantage in the trigger linkage. A 25:1 gun moves more sealant per squeeze; an 18:1 gun moves less per squeeze but with more force behind it. Our range spans 15:1 to 50:1.

• Low ratio, around 15:1 to 19:1, for stiff products where force matters more than speed
• Middle ratio, around 20:1 to 27:1, for general sealant work and most sausage guns
• High ratio, 30:1 and above, for two-component grout and anchor resin where the nozzle adds resistance

One model in the range, JS8611, is adjustable across 18:1 to 28:1 from a rear attachment. That exists for contractors who cannot standardise on a single sealant and would otherwise need two guns.

Anti-Drip Is Not A Force Figure But It Decides Your Cost

Product wasted on run-on after the trigger is released does not appear on any spec sheet. A drip prevention mechanism retracts the rod slightly at release, dropping the pressure inside the cartridge so the bead stops. On our professional models the retraction is adjustable from the rear attachment, which lets the crew tune it to the sealant they are using.

Practical test: load a cartridge, dispense for two seconds, release, and watch for five. If sealant keeps emerging, that gun will waste material on every joint for its whole service life.

How To Turn This Into A Specification

1. Start from the sealant, not the gun. Get the product datasheet and the pack format.
2. Pick a push force that suits the viscosity, rather than the largest number available.
3. Require a maximum tolerance at least 25 percent above the push force.
4. Pick the drive ratio from the table above according to how stiff the product is.
5. Confirm anti-drip exists and, ideally, that it is adjustable.
6. Ask for both force figures in writing before you order quantity.

If you tell us the sealant and the pack size on WhatsApp, we will name a model and quote both force figures rather than sending you a category to browse.
