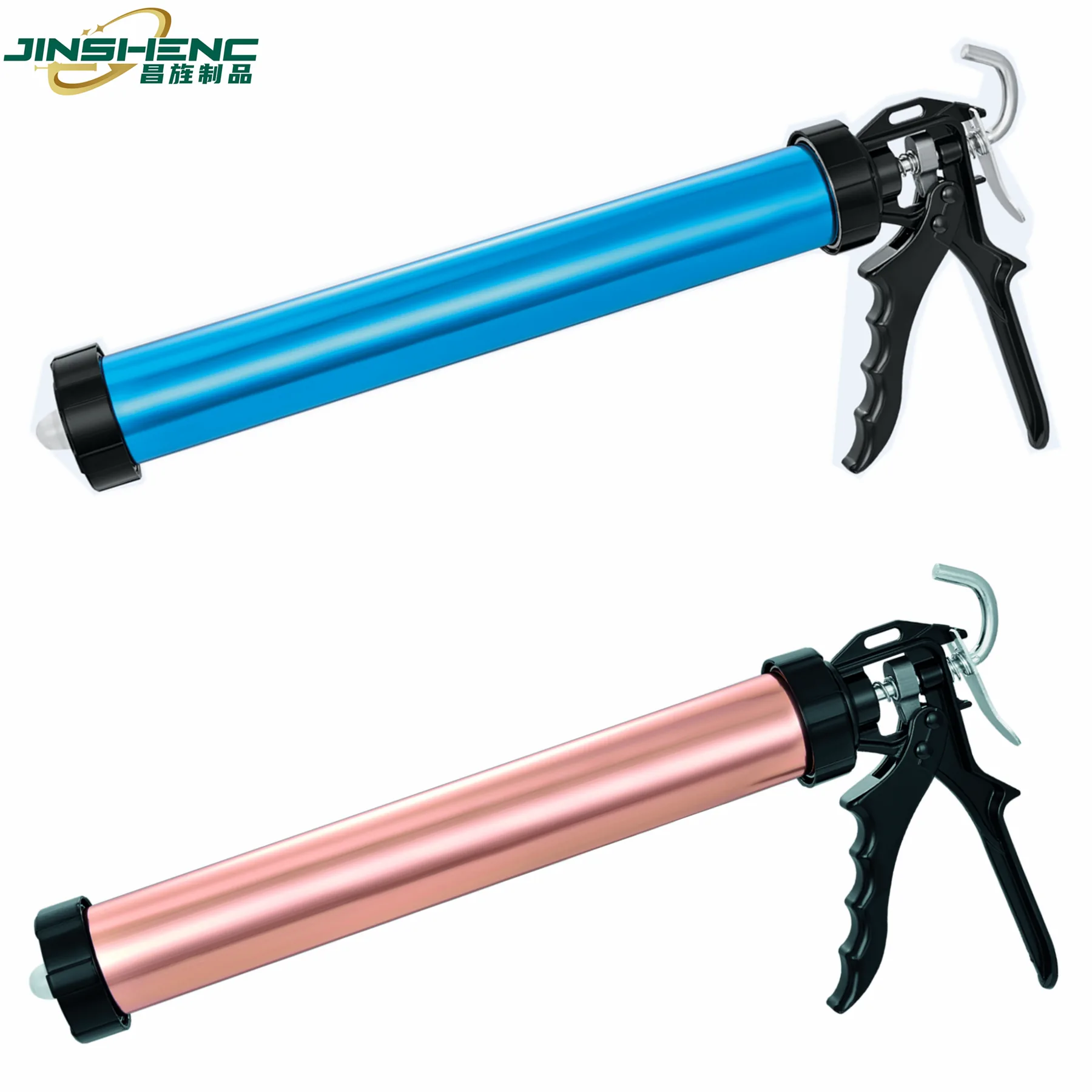

JS-8608-A 16 inch heavy duty silicone sealant gun sausage caulking gun
The documented successor to the JS-8607, and the point where the sausage range becomes professional.
Product Overview
The documented successor to the JS-8607, and the point where the sausage range becomes professional. A thicker aluminium tube, a thickened full aluminium alloy handle, a super hard alloy dispensing plate instead of iron, and adjustable anti-drip. 620 g, 160 KG push force, 200 KG tolerance at 27:1.
Key benefits
Why Buyers Choose This Model
Super Hard Alloy Dispensing Plate
Upgraded from iron to a thicker super hard alloy, which is where the improvement in force-to-output ratio comes from. At 160 KG an iron plate dishes.
Anodised Thicker Aluminium Tube
A thicker tube than the JS-8607, anodised so the surface is harder as well as coloured. Available in original, golden and blue.
Adjustable Anti-Drip
The rear attachment sets the firing ratio, so the operator tunes how firmly the bead stops at release to suit the sealant in use.
Cast Wave-Profile Front Handle
Precision cast in aluminium alloy with a contoured wave that fits the palm, and a customisable handle sleeve option on top of it.
Application scenarios
Where It Is Used
- Daily professional sealing on 600 ml packs
- Facade and curtain wall joint work
- Own-brand professional tier in a sausage range
- Crews tracking sealant waste
Who it is for
The Buyers This Model Suits
Professional Sealing Contractors
Uses 600 ml packs continuously and needs a gun whose plate and tube hold up at 160 KG.
Distributors Building Tiers
Needs a clear professional step above the economy JS-8607 with mechanical reasons for the price.
Buyers Customising Grip
The handle sleeve is a documented customisation on this model, which is unusual and worth using in an own-brand range.
Problems it solves
What It Fixes
Iron Plates At Professional Force
160 KG through an iron plate deforms it and the force stops arriving evenly. The alloy plate fixes that.
Anodising Wearing Through
A painted barrel wears to bare metal at the grip. Anodising raises the hardness of the aluminium itself.
Fixed Anti-Drip On Varied Sealant
Adjustable retraction from the rear attachment means the same gun suits thin and stiff product.
Technical features
How It Is Built
Full Aluminum Alloy Handle
The handle of JS8608-A features a thickened full aluminum alloy construction, offering increased stability and durability during operation.
Hard Alloy Dispensing Plate
The dispensing plate has been upgraded from iron to a thicker super hard alloy, further enhancing dispensing force and force-to-output ratio to accommodate high-intensity construction tasks.
Optimized Front Handle Design
The front handle is precision-cast from aluminum alloy and features a contoured wave-like design that comfortably fits the user’s palm, delivering exceptional grip and control.
Customizable Handle Sleeve
JS8608-A offers customers the option to customize the handle sleeve, elevating the grip and overall tactile experience, resulting in a substantial improvement in user comfort.
Customizable Anti-Drip Functionality
JS8608-A has anti-drip function. Use the attachment at the rear to adjust the firing ratio to prevent the silicone glue from continuing to flow out after the glue gun stops. This innovation helps save material. Thicker Aluminum This enhancement contributes to improved sturdiness and longevity.
Anodized Aluminum Treatment
The aluminum tubes of the JS8608-A Series undergo an anodization process, enhancing both their appearance and hardness. This process adds a sleek aesthetic while ensuring greater resilience.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 620g |
|---|---|
| Packing | 2PCS/ inner box, 20pcs/ CTN |
| Color | original, golden, blue, or customized |
| Carton Size | 52*45*35.5 |
| Push Force | 160KG |
| Maximum Tolerance | 200 KG |
| Drive Ratio | 27 :1 |
| Barrel | The JS8608-A Series features a thicker aluminum tube compared to its predecessor, JS8607 |
| Colour options | original, golden, blue, or customized |
| Packing | 2PCS/ inner box, 20pcs/ CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS-8608-A are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Set the rear attachment for the sealant before loading: more retraction for thin, less for stiff.
Step 2
Insert the 600 ml pack, cut the closure, refit the nose cone and fit a nozzle.
Step 3
Grip the cast front handle with the palm in the wave rather than at the tip.
Step 4
Check the alloy plate for build-up at each pack change, since a clean plate keeps the force even.
Comparison
How It Compares In Our Range
Sits between the economy barrel gun and the bearing-equipped professional models.
| JS-8607 | The model this replaces: 90 KG at 510 g with no anti-drip and an iron plate. |
|---|---|
| JS8608-B | Same series with a stamped iron front handle to reduce cost, 175 KG at 650 g. |
| JS8622-B | Adds three bearings at 180 KG and 220 KG tolerance, at 850 g. |
FAQ
JS-8608-A Questions
What was upgraded from the JS-8607?
A thicker aluminium tube, a thickened full aluminium handle, the dispensing plate from iron to thicker super hard alloy, a cast wave-profile front handle, a customisable handle sleeve and an adjustable anti-drip function. Push force rises from 90 KG to 160 KG.
What are the exact ratings?
160 KG push force, 200 KG maximum tolerance, 27:1 drive ratio, 620 g net weight.
What finishes are available?
Original, golden and blue anodised as stock, plus custom colours. Anodising raises the hardness of the tube surface as well as giving the colour.
Can the handle sleeve be customised?
Yes, that is a documented option on this model and changes grip and feel substantially.
How is it packed?
Two pieces per inner box, 20 pieces per master carton at 52 x 45 x 35.5 cm. Minimum order 2,000 pieces customised.
