Cement Mortar Pointing Guns
Hand-loaded pointing guns for cement and mortar joints, with round, flat and interchangeable nozzles
Three guns for filling joints with wet mortar rather than with cartridge sealant. The barrel is loaded by hand, so nozzle shape is what decides the bead: JS8614-3 comes with five interchangeable nozzles, JS8614-2 with three, and JS8614-1 is a stainless steel body for buyers who want the tool to outlast the job.
The range
All 3 Models In This Family
The problem
What This Family Is Built To Solve
Pointing mortar by trowel is slow and messy, and the residue on the face of the brick or tile has to be cleaned off afterwards. A pointing gun puts the mortar in the joint and nowhere else. The failure point on cheap ones is always the plunger or the rod, which is why these use enlarged thickened plungers and reinforced stainless steel rods.
Who buys these
Who This Range Is For
Masonry And Bricklaying Contractors
Point brick and block joints and want the mortar in the joint rather than on the face.
Tile And Paving Installers
Fill wider joints in paving, external tiling and floor cracks where a cartridge product would be uneconomic.
Building Repair Trades
Fill window and door gaps, engineering project seams and floor cracks as routine repair work.
Why these
What Makes This Range Different
Nozzle Sets, Not A Single Nozzle

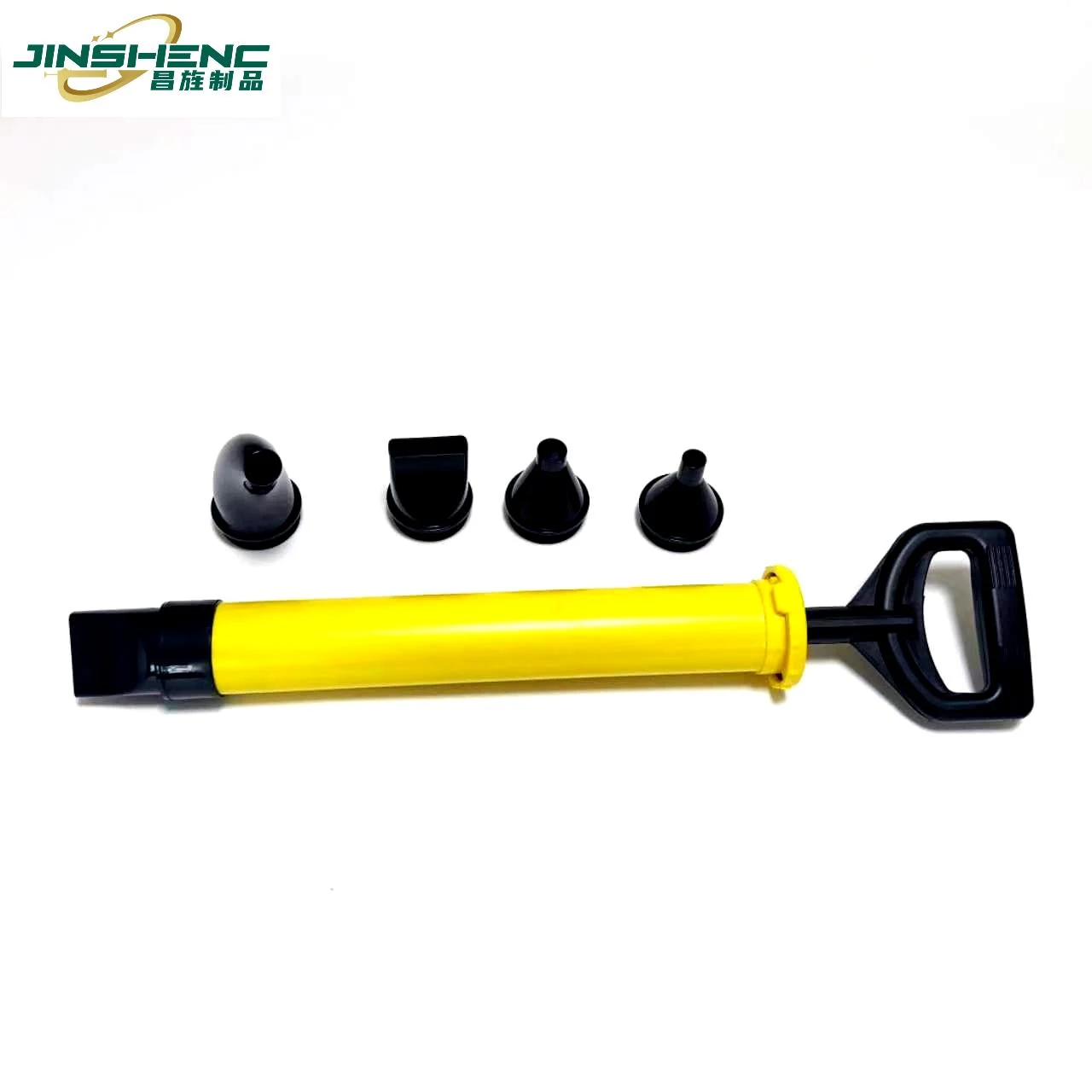

JS8614-3 ships with five detachable nozzles and JS8614-2 with three, in round and flat profiles. Joint width changes on site, and changing a nozzle is faster than changing a tool.
Reinforced Stainless Steel Rod
The rod is the part that bends when mortar sets stiff. Both the ABS models use a thickened stainless steel rod specifically to resist deformation over a long service life.
Enlarged Thickened Plunger
An undersized plunger cracks where it meets the rod. The plunger on these models is enlarged and thickened at that junction, which is the difference between a season and several.
Stainless Steel Option
JS8614-1 is a full stainless steel body at 751 g with high-wear rubber sealing rings, for buyers who would rather pay once than replace a plastic gun each year.
Application
Where These Tools Are Used
- Pointing brick and block mortar joints
- Filling wide joints in external paving and tiling
- Window and door gap filling on refurbishment work
- Floor crack repair on engineering projects
Industries
Trades That Specify This Family
Tile And Stone Installation
Epoxy grout guns, pointing guns and slab lifters for tiling and stonework
Window And Door Manufacturing
Glazing, perimeter foaming and gap filling for window and door plants and installers
Construction Sealing And Waterproofing
Cartridge, sausage and powered guns for joint sealing and waterproofing trades
FAQ
Cement Mortar Pointing Guns Questions
How many nozzles come with each gun?
JS8614-3 comes with five interchangeable nozzles, JS8614-2 with three. JS8614-1 is offered with a choice of nozzle shapes; tell us the joint widths you work with and we will confirm which set to pack.
Which body material should I choose?
High-strength ABS on JS8614-2 and JS8614-3 is lighter and cheaper: 579 g and 650 g. Stainless steel on JS8614-1 is 751 g and will take more abuse and more cleaning cycles.
Can these guns handle grout as well as mortar?
They are designed for cement mortar loaded into the barrel by hand. For two-component epoxy grout from a cartridge, use a ratio gun from the grout and anchor category instead.
What is the minimum order quantity?
2,000 pieces for a customised version on all three models. Stock yellow is available on the two ABS models.
How do they pack for shipping?
JS8614-2 packs one per poly bag, 30 per carton at 68 x 46 x 38 cm. JS8614-1 and JS8614-3 pack 20 per carton at 70 x 45 x 54 cm.
Are spare plungers and sealing rings available?
Yes. The plunger, rod and rubber sealing rings are the wearing parts and are all available as spares, which matters if you are supplying contractors rather than one-off buyers.
Get A Quote On Cement Mortar Pointing Guns
Send the models and quantities and we will confirm minimums, carton sizes and a real production date.
