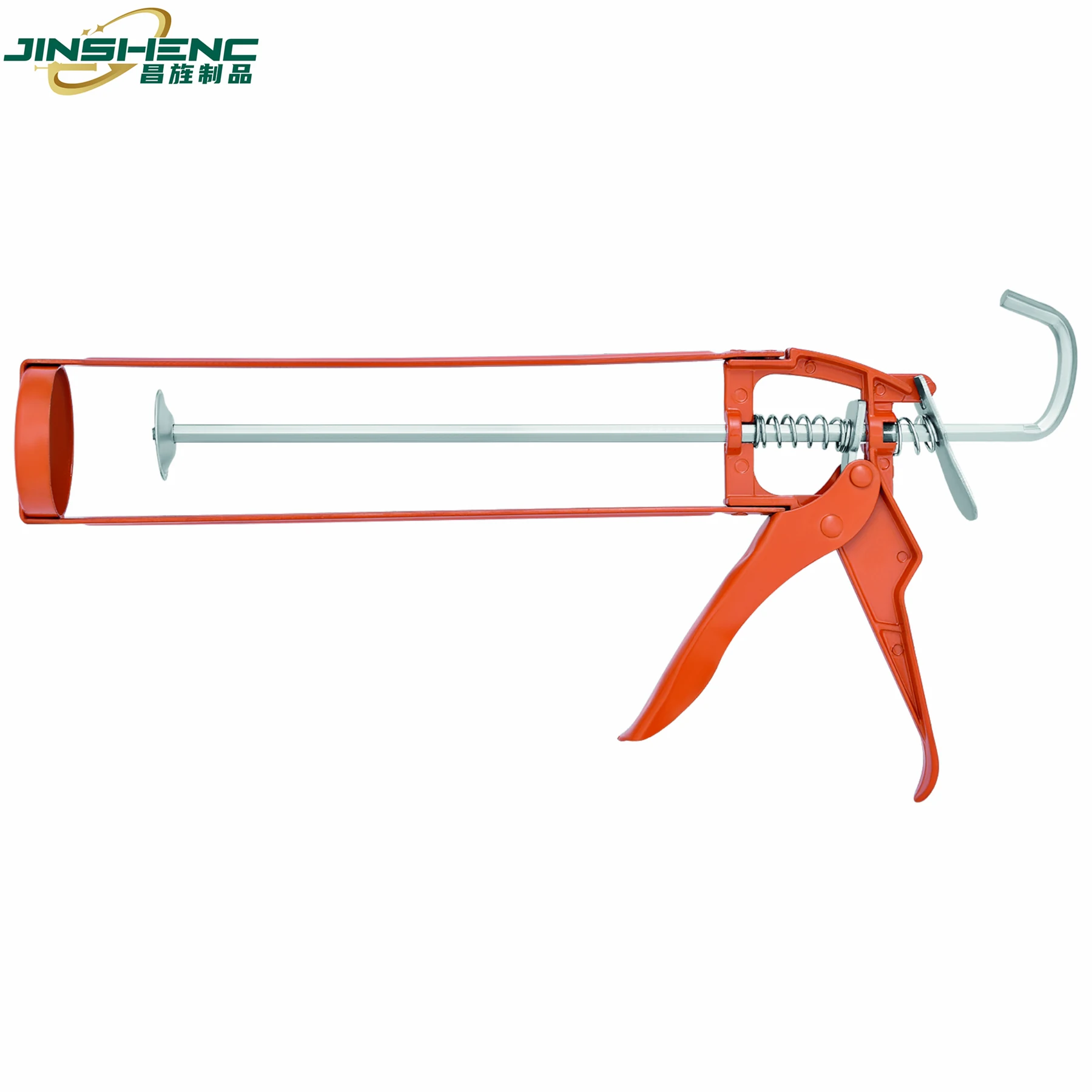

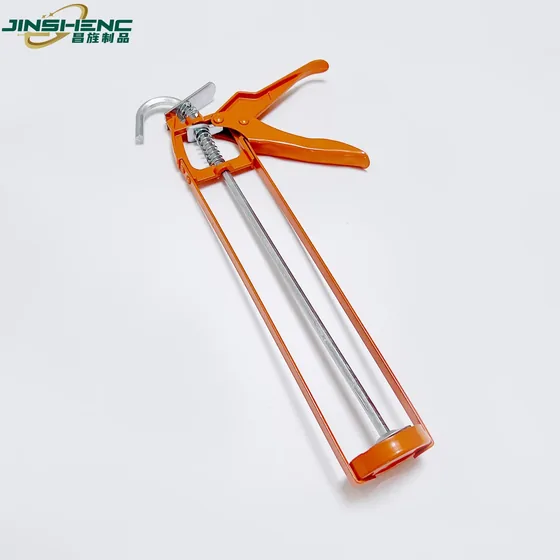

JS-8603 9 inch iron handle and sheet iron frame skeleton gun
The sheet-iron frame version of the 120 KG tier, at 312 g.
Product Overview
The sheet-iron frame version of the 120 KG tier, at 312 g. The difference from JS-8602 is the body connection: a stamped fixed-style joint with a welded frame, which produces a stiffer structure for the same force rating. It is the model that took hold in Southeast Asian markets, where site conditions are hard on open-frame guns.
Key benefits
Why Buyers Choose This Model
Stamped And Welded Body Connection
The body-to-frame joint is stamped and fixed rather than assembled, which is what makes this version sturdier than the JS-8602 at the same 120 KG rating.
Sheet Iron Frame
A sheet-iron frame in place of the rod frame spreads load across the body instead of concentrating it at the rod mounts.
Proven In Southeast Asian Markets
This connection design was developed for that region's demand and is the reason the model sells there in volume.
50 Pieces Per Carton
Unchanged from the rest of the economy tier, at 36 x 36 x 30 cm, so it substitutes freely in a mixed load.
Application scenarios
Where It Is Used
- General sealing work in hot and humid climates
- Distributor ranges serving Southeast Asian markets
- Site work where guns take knocks between joints
- Budget contract work needing a stiffer frame than a rod design
Who it is for
The Buyers This Model Suits
Distributors In Southeast Asia
Sells into the market this body design was developed for, where the stiffer connection is the reason customers ask for it by model.
General Building Retail
Wants one 120 KG model rather than two, and prefers the sturdier of the pair.
Contract Buyers
Orders in quantity for general adhesive work and values durability over refinement.
Problems it solves
What It Fixes
Frames Loosening At The Rod Mount
On open rod frames the mount is the weak point. A stamped and welded sheet-iron body moves the load away from it.
Guns Damaged Between Uses
Thrown into a bag or dropped from a step, an open frame bends. A sheet frame takes it better.
Paying Professional Prices For Durability
This model gets most of the structural benefit without moving to the welded professional tier.
Technical features
How It Is Built
Asia Comparable Tier Selection
JS8603 belongs to the same tier as JS8602, offering similar levels of quality and performance standards.
Distinctive Craftsmanship Variation
JS8603 features a unique design in its gun body connection process. It employs a stamped fixed-style connection for the gun body, with a welded-style connection at the front portion, while the remaining parts are identical to.
in Southeast Asian Markets
This upgraded version, JS8603, has gained popularity in the Southeast Asian region due to its specially designed gun body connection process that caters to the local customer requirements.
Ensured Outstanding Performance
JS8603 not only maintains the excellent performance of its predecessor but also provides a sturdier and more durable gun body structure through the combination of stamped fixed and welded-style connections.
Versatile Applicability
Just like JS8602, JS8603 excels in a wide range of glass glue application tasks, catering to diverse application needs.
Continued Cost-Effectiveness
JS8603 retains the affordability aspect, making it suitable for budget-conscious customers, offering them a reliable solution for adhesive tasks.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 312g |
|---|---|
| Packing | 1PC/ poly bag, 50pcs/ CTN |
| Color | orange, or customized |
| Carton Size | 36*36*30 |
| Push Force | 120KG |
| Maximum Tolerance | 130KG |
| Drive Ratio | 17:1 |
| Colour options | orange, or customized |
| Packing | 1PC/ poly bag, 50pcs/ CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS-8603 are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Retract the rod fully and drop the cartridge into the sheet frame.
Step 2
Confirm the cartridge base is flat against the push plate before the first squeeze.
Step 3
Maintain a steady travel speed for consistent bead width at 17:1.
Step 4
Release rod pressure by twisting before putting the gun down.
Step 5
Clean cured sealant off the plate and frame ends, which is where it builds up on a sheet frame.
Comparison
How It Compares In Our Range
Compare against the other 120 KG options before deciding.
| JS-8602 | Same 120 KG and 17:1, rod-frame construction, 285 g and slightly cheaper. |
|---|---|
| JS-8604 | Four-point welded frame, 120 KG with 150 KG tolerance, aluminium handle, 398-400 g. |
| JS8603-EX2 | Reinforced PP body with a built-in nozzle cutter and automatic pressure release, 350 g at 110 KG. |
FAQ
JS-8603 Questions
Why choose this over the JS-8602?
Same 120 KG force and 17:1 ratio, but a stamped fixed-style body connection with a welded frame makes it a stiffer structure. It weighs 312 g against 285 g.
Why is it popular in Southeast Asia?
The body connection process was designed for that market's requirements, and it is documented as the reason the model gained traction there.
Does it have anti-drip?
No. Anti-drip on cartridge guns starts at the professional welded tier: JS-8605, JS-8606, JS8611 and JS8603-EX2.
How is it packed?
One piece per poly bag, 50 pieces per carton at 36 x 36 x 30 cm. Stock colour is orange.
What is the minimum order quantity?
2,000 pieces for a customised version, per colour.
