Cartridge Caulking Guns

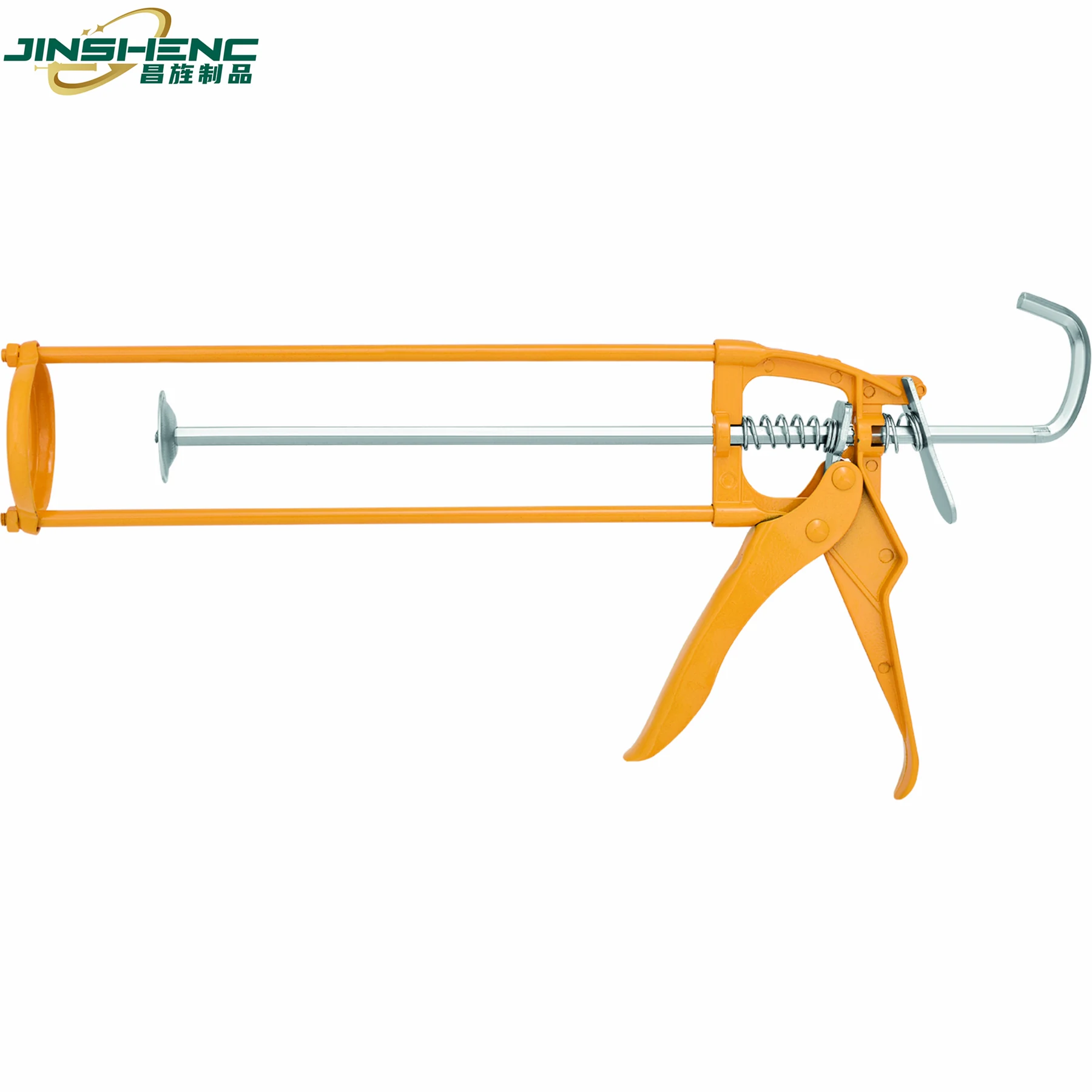

JS-8602 9" iron handle silicone rod frame skeleton gun
An iron and aluminium frame gun at 285 g that more than doubles the push force of the PP model it replaces, from 50 KG to 120 KG, at a 17:1 drive ratio.
Product Overview
An iron and aluminium frame gun at 285 g that more than doubles the push force of the PP model it replaces, from 50 KG to 120 KG, at a 17:1 drive ratio. It keeps the frame-style open body and the 50-per-carton packing, so the freight economics survive the upgrade.
Key benefits
Why Buyers Choose This Model
120 KG From A 285 g Gun
Iron and aluminium construction instead of injection-moulded plastic, which is where the force comes from. Maximum tolerance is 130 KG.
Frame-Style Open Body
The open rod frame keeps weight down and lets the operator see how far the cartridge has emptied without pulling it out.
17:1 For Force Over Speed
A lower drive ratio than the economy model, which puts more of the squeeze into pressure. Suited to sealant that has stiffened in storage.
Still 50 Pieces Per Carton
Same 36 x 36 x 30 cm carton as JS-8601, so a mixed pallet of the two models loads cleanly.
Application scenarios
Where It Is Used
- General glass adhesive work across a range of sealants
- Trade counter sales to jobbing builders
- Budget-conscious contract work needing more than an economy frame
- Mixed retail ranges needing a visible second tier
Who it is for
The Buyers This Model Suits
Trade Counters
Serves customers who found the economy gun too light but will not pay for a welded professional body.
Building Material Retail
Needs a credible middle tier between an economy gun and a professional one, differentiated by material rather than colour.
Contractors On Price
Buys in quantity for general sealing and values the force step over refinement.
Problems it solves
What It Fixes
An Economy Frame That Flexes
PP frames give under a stiff cartridge and the bead goes uneven. Iron and aluminium at 120 KG removes that at a small cost increase.
Too Big A Jump In Price
Going straight from an economy gun to a welded professional body is a large step. This model fills it.
Not Knowing How Much Is Left
The open frame shows the cartridge, so the operator can judge whether there is enough for the next joint.
Technical features
How It Is Built
Caulking Gun Budget-Friendly Upgrade
JS8602 is an upgraded version of JS8601, maintaining its budget-friendly price point while offering enhanced features.
Robust Construction
JS8602 boasts a construction composed of iron and aluminum, providing increased durability and sturdiness compared to its predecessor.
Frame-Style Design
Featuring a frame-style structure, JS8602 is designed for improved stability and ease of use, ensuring efficient operation during adhesive applications.
Basic Performance Excellence
Similar to JS8601, JS8602 focuses on delivering essential application functions, including even adhesive distribution and effective bonding of objects.
Versatile Cost-Effective Solution
Just like its predecessor, JS8602 remains a cost-effective option, catering to users with budget constraints.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 285g |
|---|---|
| Packing | 1PC/ poly bag, 50pcs/ CTN |
| Color | yellow, or customized |
| Carton Size | 36*36*30 |
| Push Force | 120KG |
| Maximum Tolerance | 130 KG |
| Drive Ratio | 17:1 |
| Application | JS8602 inherits the versatility of its predecessor, excelling in a wide range of glass adhesive tasks, despite its straightforward design |
| Colour options | yellow, or customized |
| Packing | 1PC/ poly bag, 50pcs/ CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS-8602 are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Check the rod is fully retracted before the cartridge goes in.
Step 2
Seat the cartridge against the front plate so the nozzle is square to the frame.
Step 3
Work at a constant travel speed; at 17:1 the bead responds more to speed than to grip pressure.
Step 4
Twist the rod to release pressure before setting the gun down mid-cartridge.
Step 5
Keep the rod clean of cured sealant, since a dirty rod is the first thing that makes a frame gun feel stiff.
Comparison
How It Compares In Our Range
JS-8602 sits between the PP economy frame and the welded sheet-iron models.
| JS-8601 | PP frame at 175 g and 50 KG, for the lowest price point. |
|---|---|
| JS-8603 | Same 120 KG force, but a stamped and welded sheet-iron body that is sturdier. 312 g. |

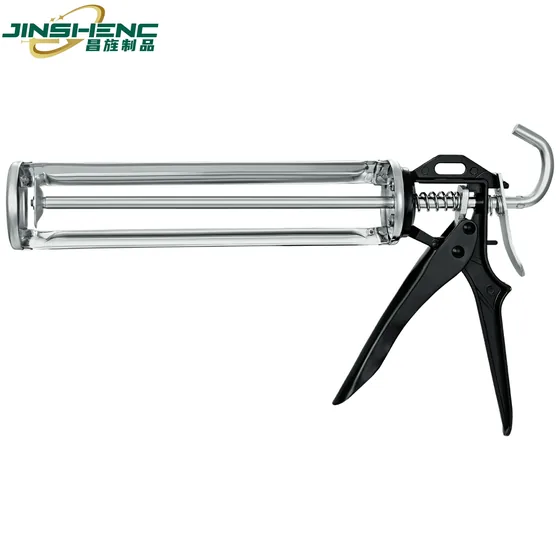

| JS-8604 | Welded four-point frame with an aluminium handle, 120 KG and 150 KG tolerance. |
FAQ
JS-8602 Questions
How much stronger is this than the PP model?
120 KG push force against 50 KG, with a 130 KG maximum tolerance against 60 KG. The construction changes from injection-moulded PP to iron and aluminium.
What is the difference between this and JS-8603?
Both are 120 KG at 17:1. JS-8603 uses a stamped fixed-style body connection with a welded frame, which makes it sturdier, and weighs 312 g against 285 g.
Is there an anti-drip function?
Not on this tier. Anti-drip starts with the professional welded models such as JS-8605, JS-8606 and JS8611.
How is it packed?
One piece per poly bag, 50 pieces per master carton at 36 x 36 x 30 cm. Stock colour is yellow.
What is the minimum order quantity?
2,000 pieces for a customised version, per colour.
