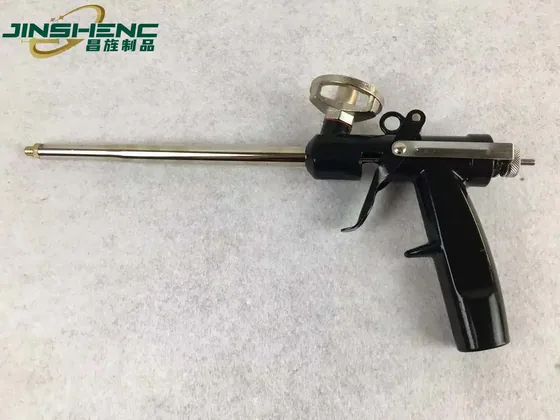

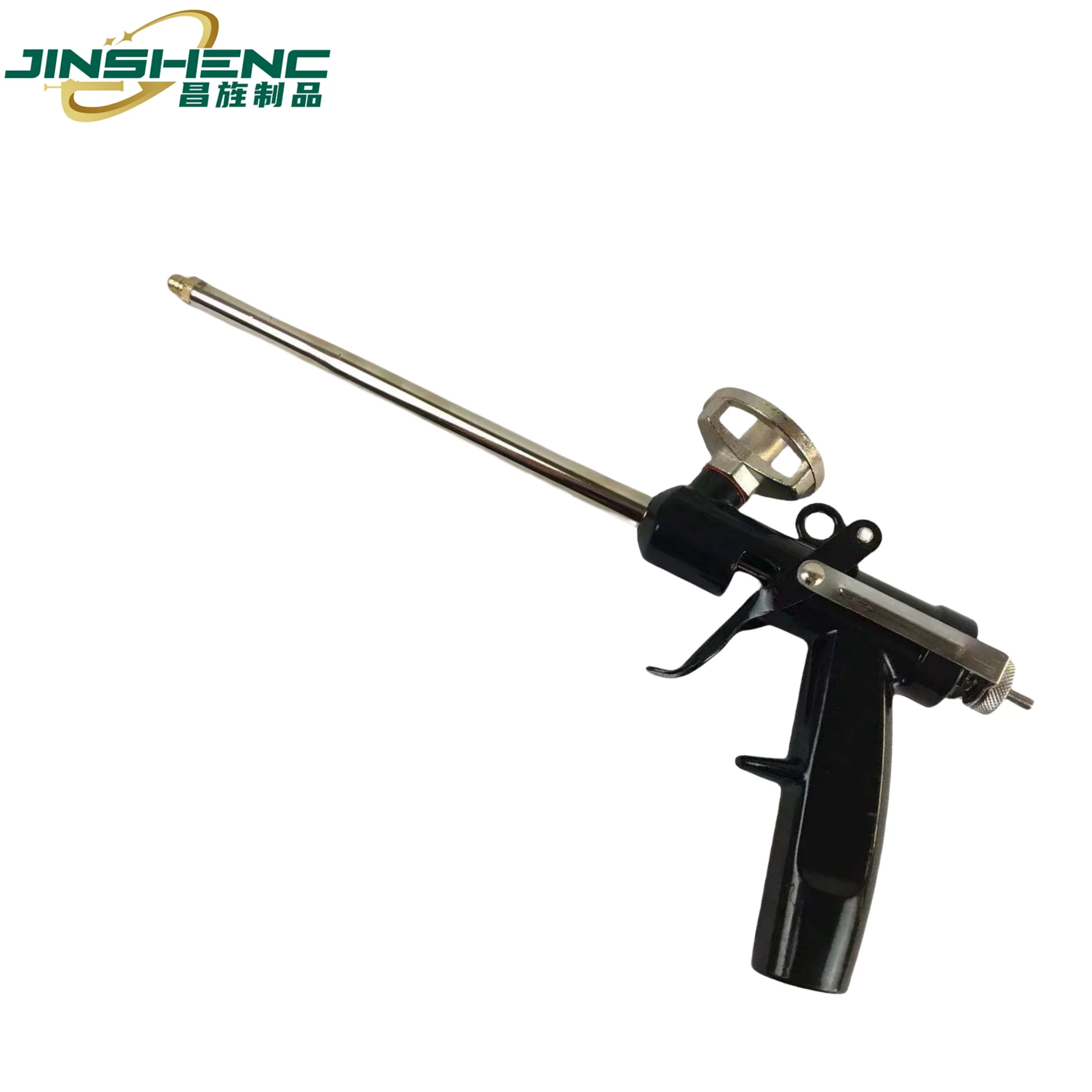

JS8621-E Black Handle Metal Foam Gun
The best-finished gun in the foam range: an aluminium alloy body, sandblasted then chrome plated to resist oxidation and rust, at 210 g.
Product Overview
The best-finished gun in the foam range: an aluminium alloy body, sandblasted then chrome plated to resist oxidation and rust, at 210 g. It carries the anti-slip output adjuster, an aluminium alloy valve with a thickened rotary valve, a copper nozzle and a baked-enamel metal handle with two finger grooves and a pinch guard.
Key benefits
Why Buyers Choose This Model
Sandblasted And Chrome Plated
The surface is sandblasted then chrome plated to prevent oxidation and rust, keeping a smooth finish with superior corrosion resistance. It also stays smooth enough to wipe clean.
Anti-Slip Output Adjuster
An anti-slip threaded adjuster controls foam flow, so output can be dialled down for a narrow gap rather than being controlled by trigger feel alone.
Thickened Aluminium Alloy Rotary Valve
An aluminium alloy valve with a thickened rotary valve ensures secure thread locking onto the canister, which is the joint that carries the pressure.

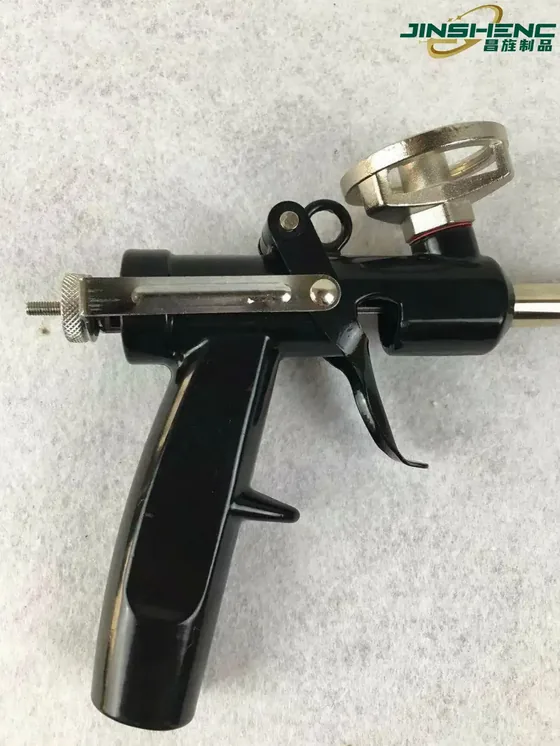

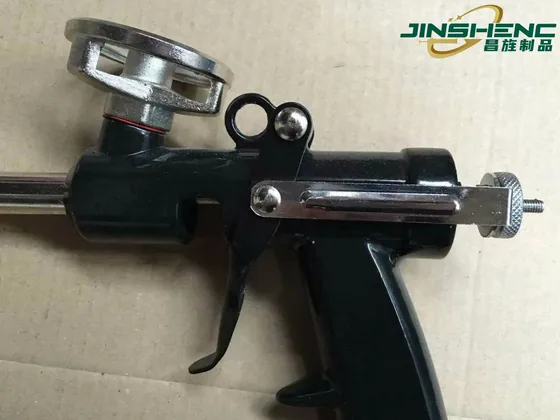

Handle With Finger Grooves And Pinch Guard
Black baked-enamel metal with two finger grooves on the trigger for a snug fit, and a guard to prevent pinching. That guard is the detail that says someone used one of these.
Application scenarios
Where It Is Used
- Daily professional insulation and sealing
- Narrow-gap work needing precise output control
- Wet and humid environments where guns corrode
- Flagship position in a distributor's foam range
Who it is for
The Buyers This Model Suits
Professional Insulation Crews
Foams every day and wants the best-built gun rather than the cheapest replaceable one.
Window And Door Installers
Needs the output adjuster so expanding foam does not distort the frame it is sealing.
Distributors Needing A Flagship
A chrome-plated gun with an adjustable valve and a copper nozzle looks and reads like the top of a range.
Problems it solves
What It Fixes
Corrosion In Humid Conditions
Sandblasting and chrome plating are specified together to prevent oxidation and rust and hold a smooth finish.
Over-Expanding Foam Distorting Frames
The anti-slip adjuster dials output down for a narrow gap, which is how a frame stays square.
Canister Threads Loosening
The aluminium alloy valve and thickened rotary valve lock securely onto the canister.
Pinched Fingers
The handle guard exists because a metal trigger on a metal handle will otherwise catch a finger.
Technical features
How It Is Built
Alloy Gun Body
Crafted from aluminum alloy for strength and durability.
Superior Sealing
The gun boasts exceptional sealing properties, preventing adhesive leakage and ensuring uniform foam distribution.
Adjustable Foam Dispensing Speed
The foam application speed is adjustable, offering control over foam distribution.
Valve and Rotary Valve
The aluminum alloy valve, coupled with the thickened aluminum alloy rotary valve, ensures secure thread locking onto the canister for convenient operation.
Anti-Slip Adjuster
The anti-slip adjuster controls foam flow, allowing for adjustable foam output and adhesive conservation, featuring an anti-slip threaded design.
Enhanced Nozzle Design
The copper nozzle’s internal design enhances lifespan and foam effectiveness.
Ergonomic Handle Design
The ergonomic handle is crafted from black baked enamel metal, featuring two finger grooves on the trigger for a snug fit and a guard to prevent pinching.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 210 /g |
|---|---|
| Packing | 2PC/ inner box, 40pcs/ CTN |
| Color | black, or customized |
| Carton Size | 38*34*52 |
| Surface Treatment | The gun’s surface undergoes sandblasting and chrome plating to prevent oxidation, rust, and maintain a smooth finish with superior corrosion resistance |
| Colour options | black, or customized |
| Packing | 2PC/ inner box, 40pcs/ CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS8621-E are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Shake the canister and thread it onto the rotary valve until it locks securely.
Step 2
Set the anti-slip adjuster for the gap width before the first bead, not during it.
Step 3
Fill to about half depth and let the foam expand into the rest of the gap.
Step 4
Flush with cleaner before removing the canister; the chrome surface wipes clean but the barrel is uncoated.
Comparison
How It Compares In Our Range
The top of the foam range on build quality, though not on barrel coating.
| JS8621-D | PTFE coated barrel at 260 g, the better choice if the crew will not clean the gun. |
|---|---|
| JS8621-B | All-aluminium handle with stainless barrel and copper nozzle, 275 g, uncoated and unplated. |
| JS8621-G | All-black metal body with an ON/OFF valve and a plastic-dipped trigger, 290 g. |
FAQ
JS8621-E Questions
What is the body finish?
An aluminium alloy body, sandblasted and then chrome plated. That combination prevents oxidation and rust and keeps a smooth finish with superior corrosion resistance.
Is output adjustable?
Yes. An anti-slip threaded adjuster controls foam flow, allowing adjustable output and adhesive conservation independently of trigger position.
Is the barrel PTFE coated?
No. For a coated barrel, order JS8621-D or the Teflon coated tube version of JS8621-F. This model's advantage is body finish, valve assembly and output control.
What are the other materials?
Aluminium alloy gun body and valve with a thickened aluminium alloy rotary valve, a copper nozzle, and a black baked-enamel metal handle with two trigger finger grooves and a pinch guard. Net weight 210 g.
How is it packed?
Two pieces per inner box, 40 pieces per master carton at 38 x 34 x 52 cm. Stock colour is black.
