Cartridge Caulking Guns

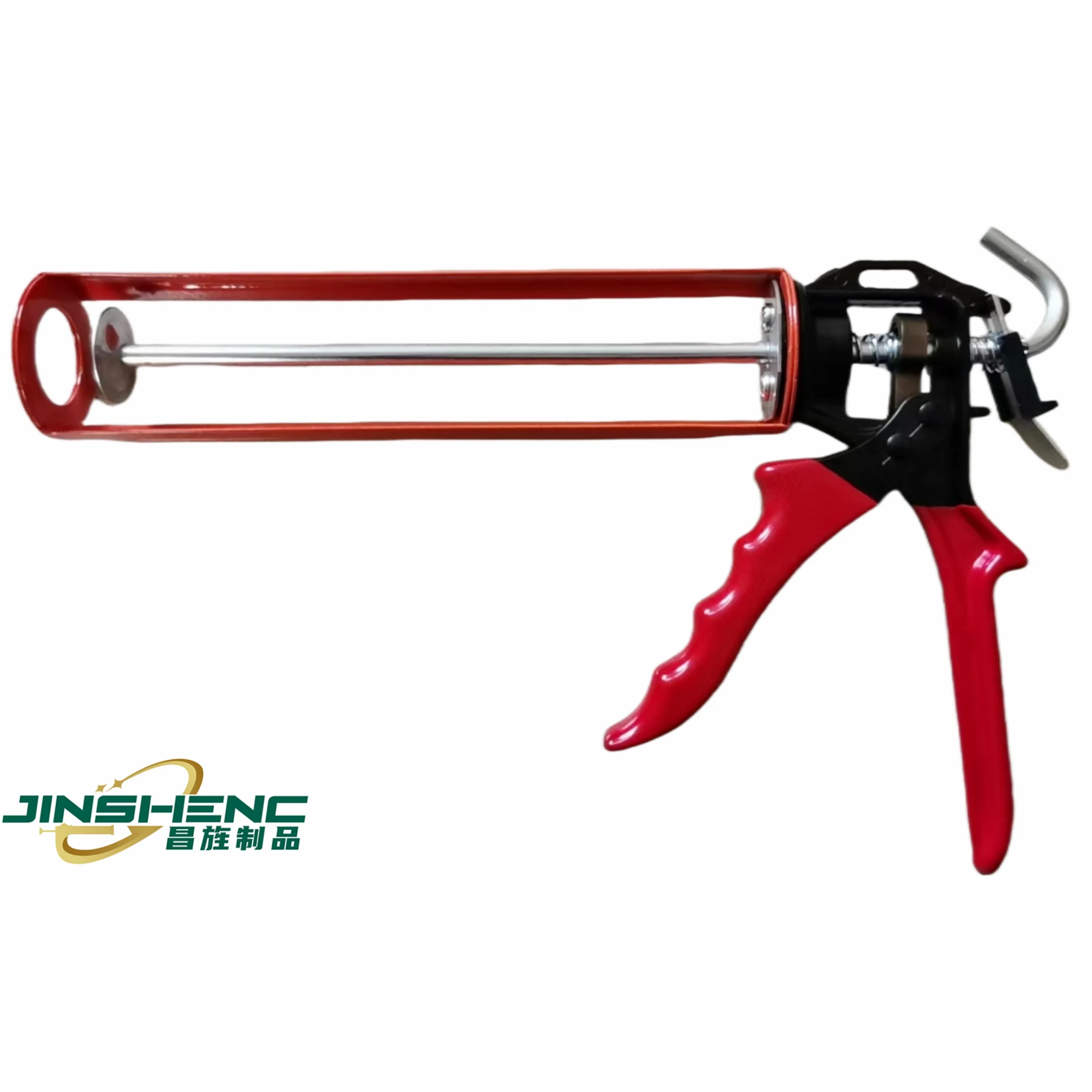

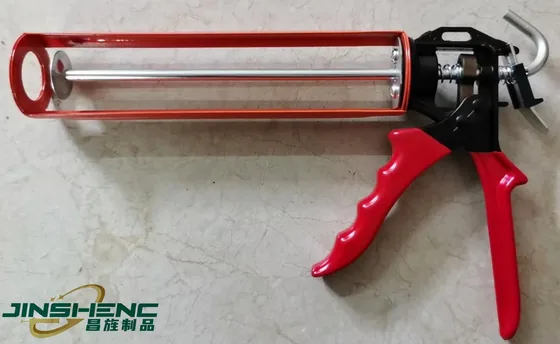

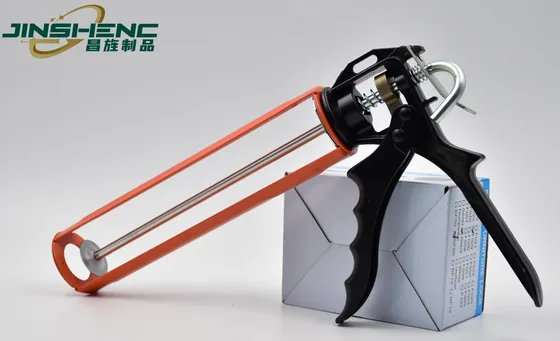

JS-8606 Professional 9 inch heavy duty cartridge silicone gun with alluminum alloy handle
A further step on from the JS-8605, at 538 g and 220 KG maximum tolerance against the same 160 KG working force.
Product Overview
A further step on from the JS-8605, at 538 g and 220 KG maximum tolerance against the same 160 KG working force. The body is a single-piece welded structure with twelve welding points, and the handle adds a plastic glove for grip and protection. The gain here is margin and comfort, not headline force.
Key benefits
Why Buyers Choose This Model
Twelve-Point Single-Piece Welded Body
Twelve welds on a monolithic body rather than a bolted assembly. That is where the 220 KG tolerance comes from, a 38 percent margin over the 160 KG working force.
Added Plastic Glove On The Handle
A plastic glove over the handle, added over the JS-8605, which improves grip and protects the hand during long runs.
Highest Tolerance In The 160 KG Tier
220 KG against JS-8605's 200 KG at the same working force. If your customers work in cold conditions, that extra margin is the reason to pay the difference.
19:1 Ratio With Aluminium Handle
Same drive ratio and aluminium alloy handle as the JS-8605, so the gun behaves identically and only the durability changes.
Application scenarios
Where It Is Used
- Cold-climate sealing where frames are pushed hardest
- Crews that are hard on tools
- Professional tier of a distributor's own-brand range
- Long shifts where handle comfort affects output
Who it is for
The Buyers This Model Suits
Cold-Climate Distributors
Sells where sealant stiffens and frame margin is what customers complain about when it is absent.
Rental And Fleet Buyers
Buys guns that will be used by people who did not pay for them, and needs the extra structural margin.
Professional Contractors
Values the welded body and the handle glove over an extra twenty kilos of headline force.
Problems it solves
What It Fixes
Bodies Working Loose Over Time
A bolted or clipped body develops play. Twelve welds on a single-piece body do not.
Cold Weather Eating The Safety Margin
Stiff sealant plus an enthusiastic operator is how frames bend. 220 KG tolerance absorbs it.
Blisters On Long Runs
The added plastic glove on the handle is a small thing that shows up at the end of a shift.
Technical features
How It Is Built
Enhanced Operating Comfort
JS8606 represents a step further in upgrading from JS8605, providing users with enhanced operational convenience, along with the addition of a new plastic glove feature.
Effortless Operation
Utilizing JS8606 is easy, offering you a seamless and user-friendly adhesive application experience.
Plastic Glove Addition
JS8606 introduces an added plastic glove feature, enhancing operational comfort and protection.
Monolithic Welded Gun Body
The gun body is presented with a robust monolithic welded structure, featuring a total of 12 welding points, imparting JS8606 with an sturdy and durable appearance and performance.
Specifications
Published Figures For This Model
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Net Weight | 538g |
|---|---|
| Packing | 1PC/ poly bag, 20pcs/ CTN |
| Color | orange, or customized |
| Carton Size | 47*25*25 |
| Push Force | 160KG |
| Maximum Tolerance | 220KG |
| Drive Ratio | 19:1 |
| Colour options | orange, or customized |
| Packing | 1PC/ poly bag, 20pcs/ CTN |
| Minimum order | 2000pcs for a customised version |
| Customisation | Colour, packing method, carton appearance and logo |
Materials and manufacturing
How This Model Is Made
Parts for the JS-8606 are produced in our own workshops in Jinli Town, Zhaoqing. This model uses both routes: its moulded components come off our five horizontal and three vertical injection moulding machines, and its metal parts come off our fifteen automatic punching machines, nine automatic lathes and three welding machines. Tooling is designed and cut in our own mould room, which is why a change to this model does not queue behind another factory's schedule.
Quality Control
- Every model is weighed against its declared net weight during production, so the carton weight on your packing list matches what arrives.
- Stamped parts are produced in house on 15 automatic punching machines and 9 automatic lathes, so dimensional consistency is controlled at source rather than inspected on arrival.
- Moulded parts come off 5 horizontal and 3 vertical injection moulding machines running up to 10,000 mould open-and-close cycles per day, with tooling maintained in our own mould room.
- The quality management system was certified to ISO 9001:2015 in August 2023, with a certificate valid to 31 July 2026.
- Cartons are counted against the packing list as they are loaded into the container at our own factory door.
Certifications
The quality management system was certified to ISO 9001:2015 in August 2023, under standard GB/T19001-2016, for the manufacture and sale of glass caulking guns and sealant guns. The certificate on file runs to 31 July 2026; ask us for the current renewal status before relying on it. A TUV Rheinland assessment was obtained in 2016.
Customisation Options
- Aluminium Tube Anodizing And Colouring: More than 10 colours available; the surface can be given a frosted texture.
- Aluminium Tube Painting: Up to 10 colours with customisable patterns.
- Aluminium Tube Laser Engraving: Engraved logos, text and patterns on stamped fittings and aluminium tubes.
- Self-Adhesive Logo Labels: Applied to the product in the position the buyer specifies.
- Multi-Colour Logo Printing: Paint screen printing in any colour, with several colours printed at once.
- Tag And Product Screen Printing: Screen printed tags and product markings, multi-colour capable.
Use guide
Getting The Best Out Of It
Step 1
Load with the rod fully retracted and the plate flat on the cartridge base.
Step 2
Grip over the plastic glove rather than in front of it, so the load sits in the palm.
Step 3
Pull along the joint at a steady speed at about 45 degrees.
Step 4
Release rod pressure before setting the gun down mid-cartridge.
Step 5
Inspect the welds occasionally on a fleet gun; a single-piece welded body gives visible warning long before it fails.
Comparison
How It Compares In Our Range
The JS-8604 to JS-8605 to JS-8606 sequence is a documented upgrade path; pick the point on it that matches your customer.
| JS-8605 | Same 160 KG and 19:1 at 520 g, with 200 KG tolerance and no handle glove. Slightly cheaper. |
|---|---|
| JS-8622-A | 180 KG with 250 KG tolerance and three bearings, at 750 g. The next real step up. |
| JS8611 | 160 KG with an adjustable 18:1 to 28:1 ratio and automatic anti-drip. |
FAQ
JS-8606 Questions
What is different from the JS-8605?
The maximum tolerance rises from 200 KG to 220 KG on the same 160 KG working force, and a plastic glove is added to the handle for grip and protection. Net weight goes from 520 g to 538 g.
What does the twelve-point weld do?
It makes the gun body a single piece rather than an assembly, which is why the frame tolerance is the highest in this tier.
Is anti-drip included?
Yes, in line with the rest of the professional cartridge tier.
What are the exact ratings?
160 KG push force, 220 KG maximum tolerance, 19:1 drive ratio, 538 g. Stock colour is orange.
How is it packed?
One piece per poly bag, 20 pieces per master carton at 47 x 25 x 25 cm. Minimum order 2,000 pieces customised.
