Engineering Molds That Run for a Million Shots
A 50-person tool shop building export injection molds, die casting tooling and precision mold components — with the MoldFlow and DFM study done before the steel is cut.
Full 3D Mold Design Reviewed Before It Reaches You
Designed to your own standard or to DME, Meusburger, HASCO, Progressive or MISUMI, and issued in STEP, IGES, Parasolid, CATIA or SolidWorks.
Quotation in Two Days Reply in Twenty Four Hours
Ninety percent of our molds go to Europe, North America and Australia. Send the 3D data and the resin and you will have a professional quotation back within two working days.

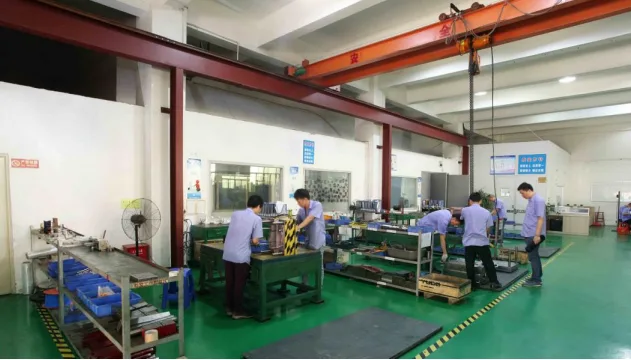

One Shop From Design Through Trial
Mold trial reports with a sample dimension report, then final mold inspection and packing inspection before your tool is shipped.
Six Services One Tool Shop
Since 2011 we have been a middle-sized tool shop of fifty people in Dongguan, exporting engineering molds worldwide. These are the six services we sell.
High quality plastic injection mold making
Engineering molds built for more than one million shots.
Rapid prototype mold making
Low price and fast lead time for the stage before production tooling.
Precision components making
CNC and EDM machined cavity, core and insert work sold on its own.
Mold engineering
Practical MoldFlow study, DFM study, full 3D mold design and complex mold movement simulation.
Die casting mold making
Aluminum die casting tooling built alongside our injection work.
Professional mold quotation
Returned within two working days.
Parts and Tools From Our Own Shop
Every photograph on this site is a JEC part or a JEC tool. Here are sixteen of the seventy-one; the rest are one click away.

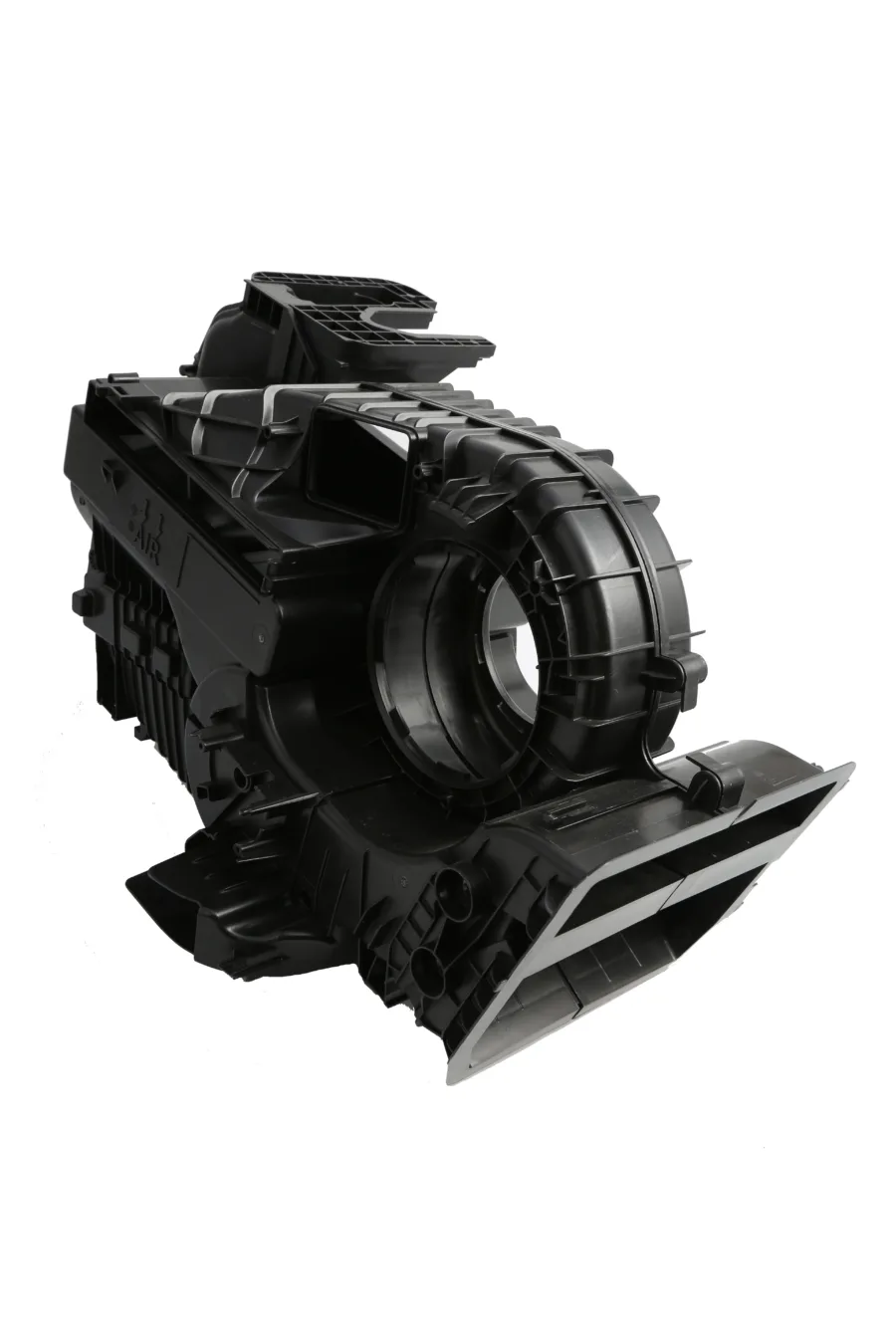

Automotive Air Handling Housing
Deep-ribbed black housing with a large circular bore and integrated ducting, molded as one piece.
View details →

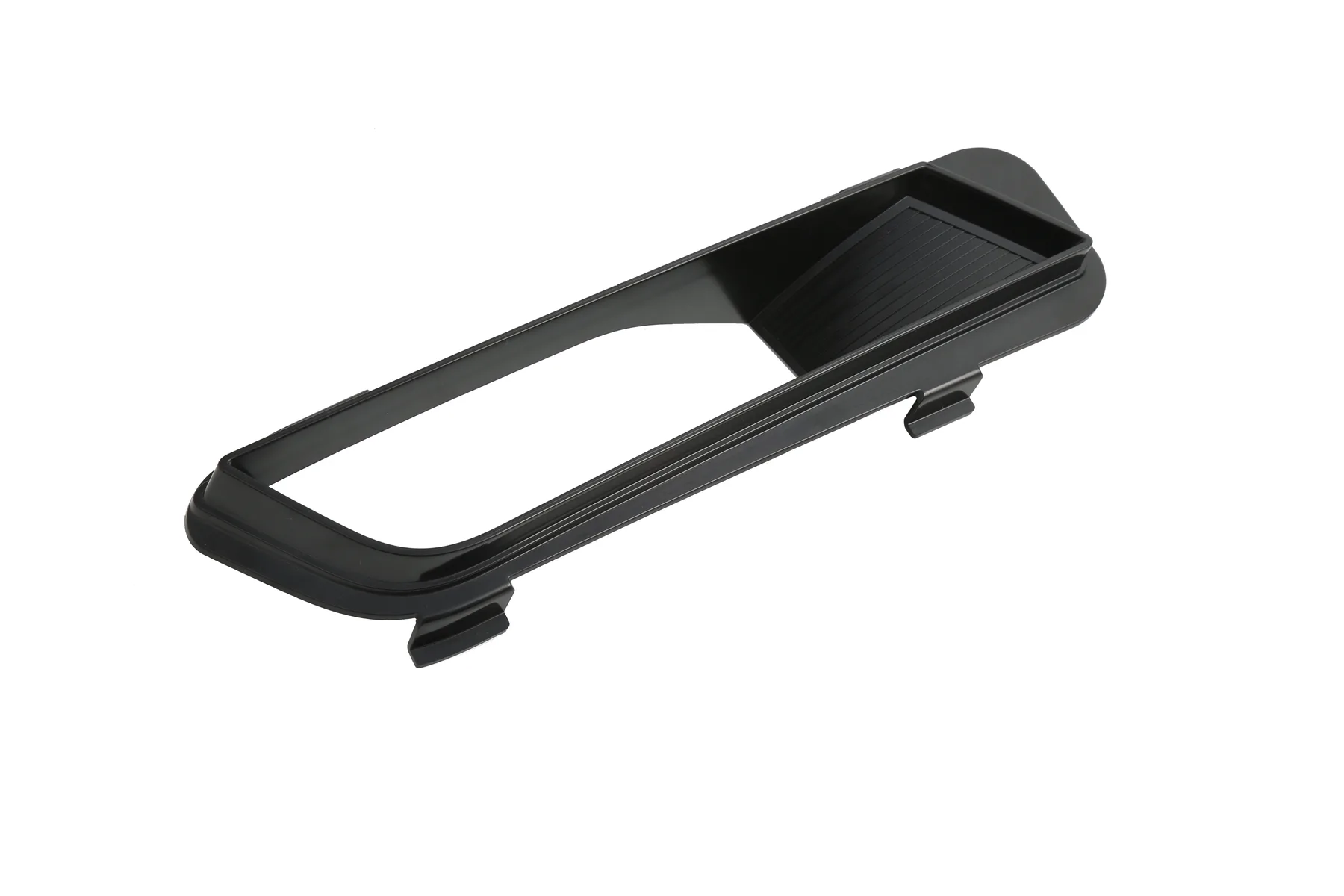

Automotive Interior Trim Bezel
Slim black bezel frame with a molded-in clip rail and a Class-A visible face.
View details →
Die Cast Aluminum Rotor Disc
Cast aluminum disc with radial lugs, a bored hub face and an integral side arm.
View details →
Die Cast Aluminum Support Bracket
Slender cast arm pair with machined pivot bosses and a ribbed spine.
View details →
Transparent Blender Jug
Clear jug body with a molded handle, pour lip and internal measure ribs.
View details →
White Appliance Top Cover
Smooth white cover shell with a recessed control pocket and a clean parting line.
View details →
Clear Medical Optical Cover
Optically clear V-profile cover with polished surfaces on both faces.
View details →
Transparent Medical Cassette Housing
Clear rectangular cassette with internal dividing ribs and a stepped sealing edge.
View details →

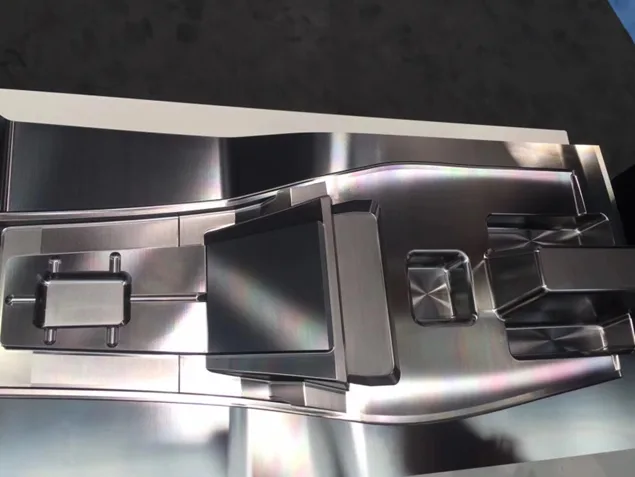

Polished Cavity Insert for Automotive Trim
Machined and polished insert carrying a long automotive trim form with sharp shut-offs.
View details →

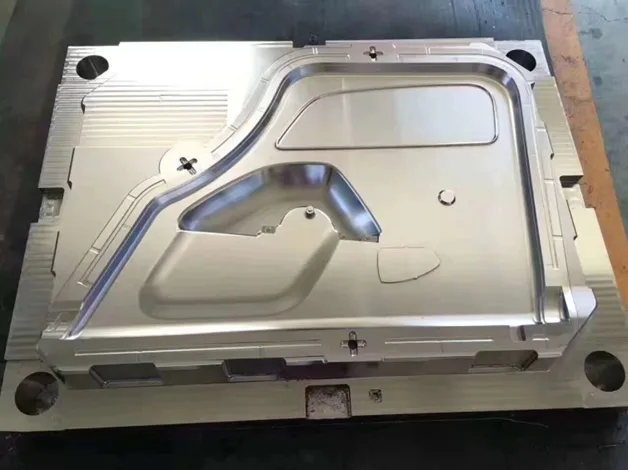

Cavity Plate for Appliance Panel
Large cavity plate with a deep panel form, guide bores and a full cooling pattern.
View details →
Barbed Pipe Connector with Mounting Bracket
Barbed spigot connector with an integrated flat mounting bracket and clip.
View details →
Plastic Tee Pipe Connector
Three-way tee with barbed ends and molded O-ring seats.
View details →
Precision Mold Insert Set
Group of machined cavity and core blocks finished ready for fitting.
View details →
Precision Core Pins and Slide Inserts
Array of slender core pins, blades and slide inserts ground to size.
View details →

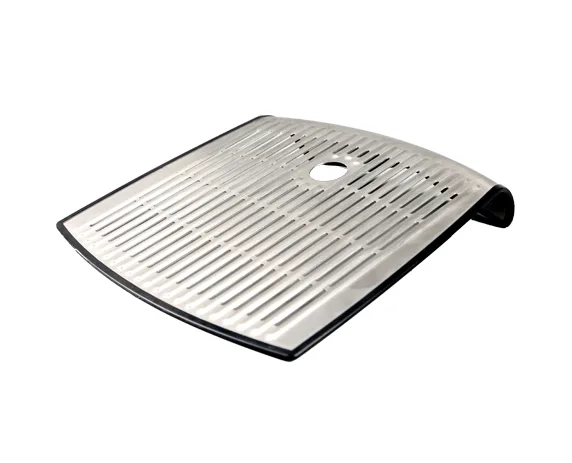

Two Shot Ribbed Panel
Curved panel combining a rigid frame with a ribbed contrast surface in one tool.
View details →

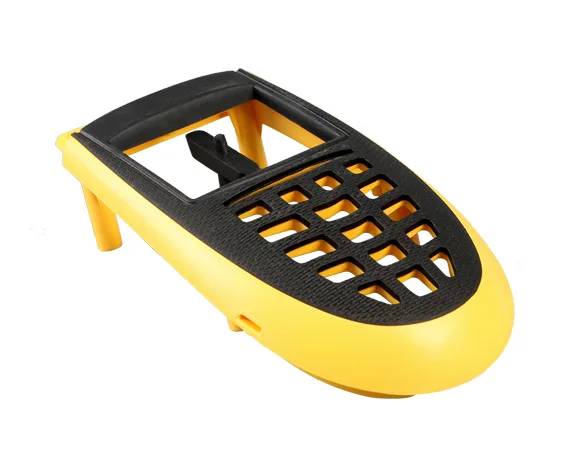

Two Shot Handheld Terminal Housing
Handheld terminal front housing molded in a yellow shell with a black keypad frame.
View details →Industries We Have Built Tooling For
Automotive
Tooling for lighting air handling fluid circuits and interior trim
Medical Devices
Clear thin wall components and the mirror finished tooling behind them
Home & Office Appliances
Large visible housings covers and panels that must stay flat
Plumbing & Fluid Handling
Connectors manifolds and valve bodies for circuits that have to hold pressure
Handheld Electronics
Two shot enclosures grips and keypads for instruments people hold all day
The Four Ways a Tooling Project Goes Wrong
None of these are surprises. They are what happens when the engineering is left until after the steel is cut.
- A mold quoted without a study, so the first trial is also the first analysis
- A design that arrives as a layout rather than as a finished, reviewed set
- Side actions that meet on the first close because the sequence was never simulated
- Corrections argued verbally because no sample dimension report was ever issued
- Practical MoldFlow — filling, packing, warpage, cooling — before the cavity is roughed
- Design completed to one hundred percent and checked in a review meeting
- Mold motion simulation on complex tools, open to close, step by step
- Trial reports with a sample dimension report (FAI) issued with the tool
A Tool Shop You Can Actually Talk To

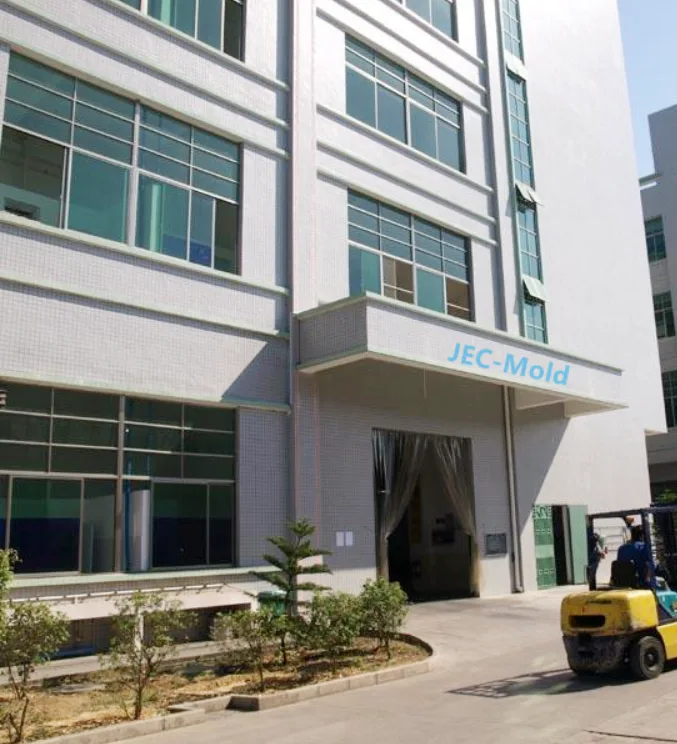

We are in Dongguan in South China, forty minutes by car from Shenzhen international airport. Ninety percent of our molds serve global markets in Europe, North America and Australia, and our engineering team has been trained on customer mold standards so a specification written for a European or North American shop does not have to be rewritten for us.
- Response to customers no later than 24 hours
- Professional mold quotation within 2 working days
- Design to DME, Meusburger, HASCO, Progressive or MISUMI — or to your own standard
- 3D data in STEP, IGES, Parasolid, CATIA or SolidWorks

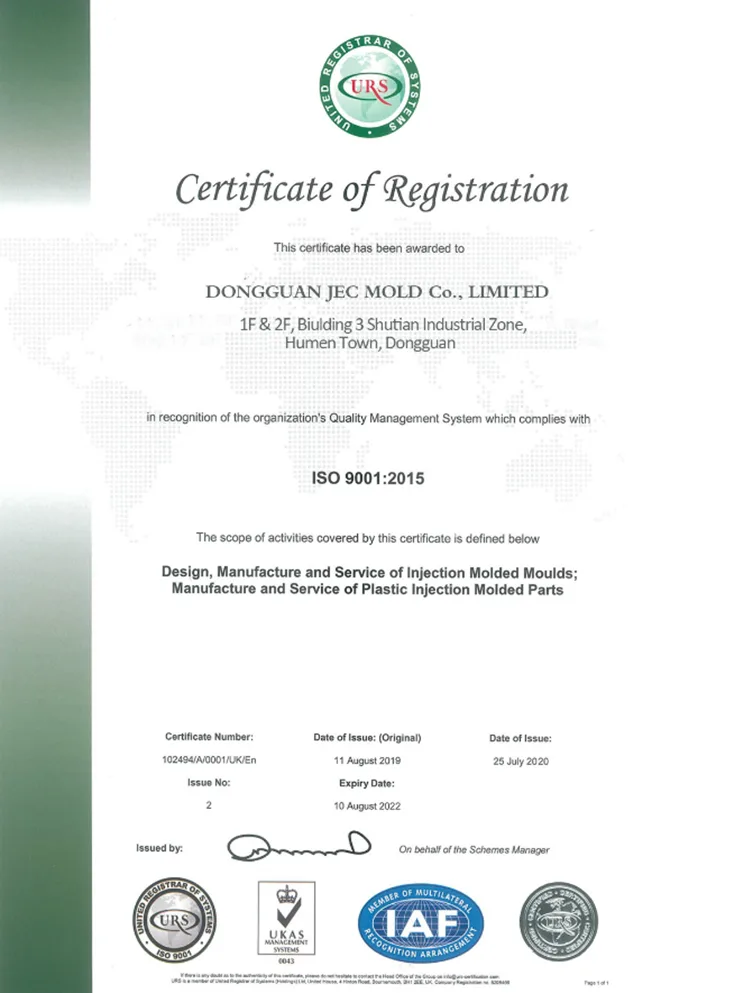

- ISO 9001:2015 covering design, manufacture and service
Engineering Before Steel
The work that decides whether a mold runs: design, DFM, MoldFlow and a proven movement sequence.

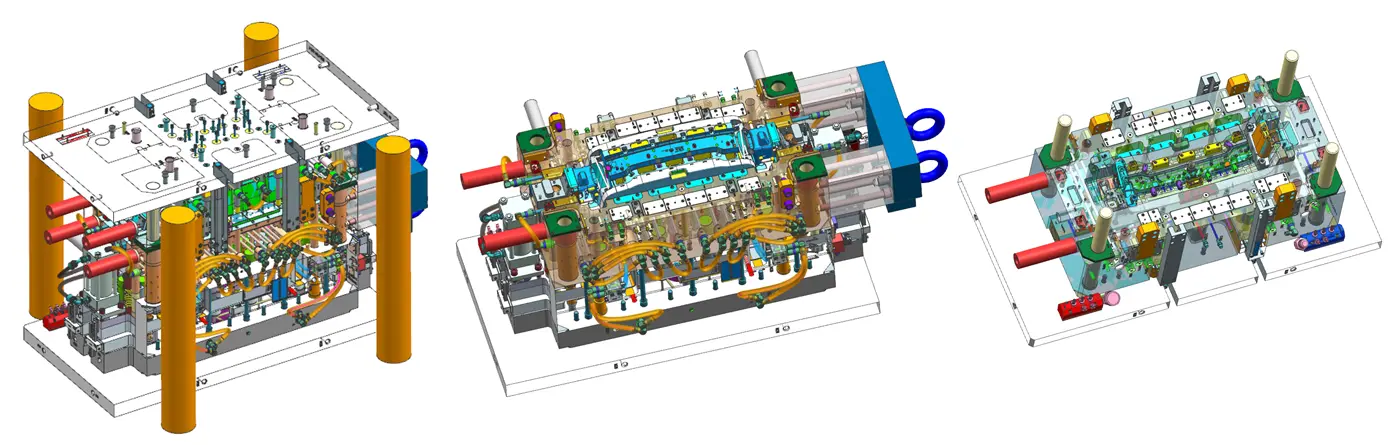

Mold Design
Full 3D mold design completed to one hundred percent and reviewed before it reaches you
Read more →

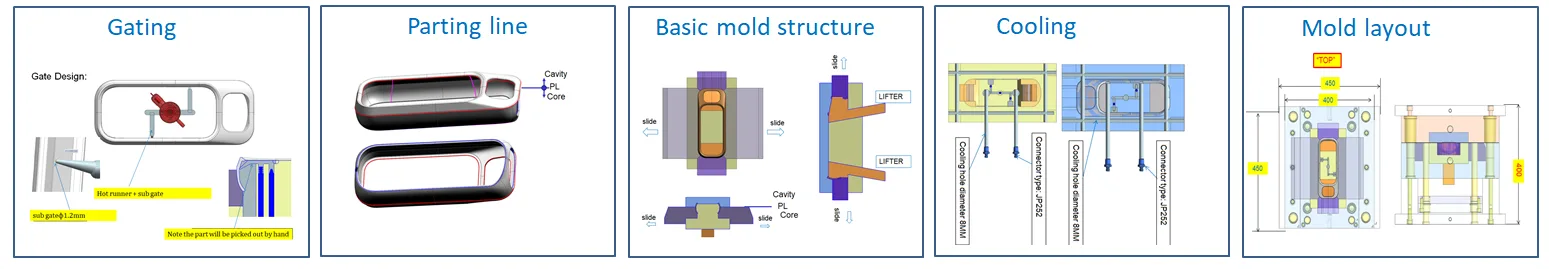

DFM Study
A written design for manufacture study submitted on every mold before fabrication
Read more →

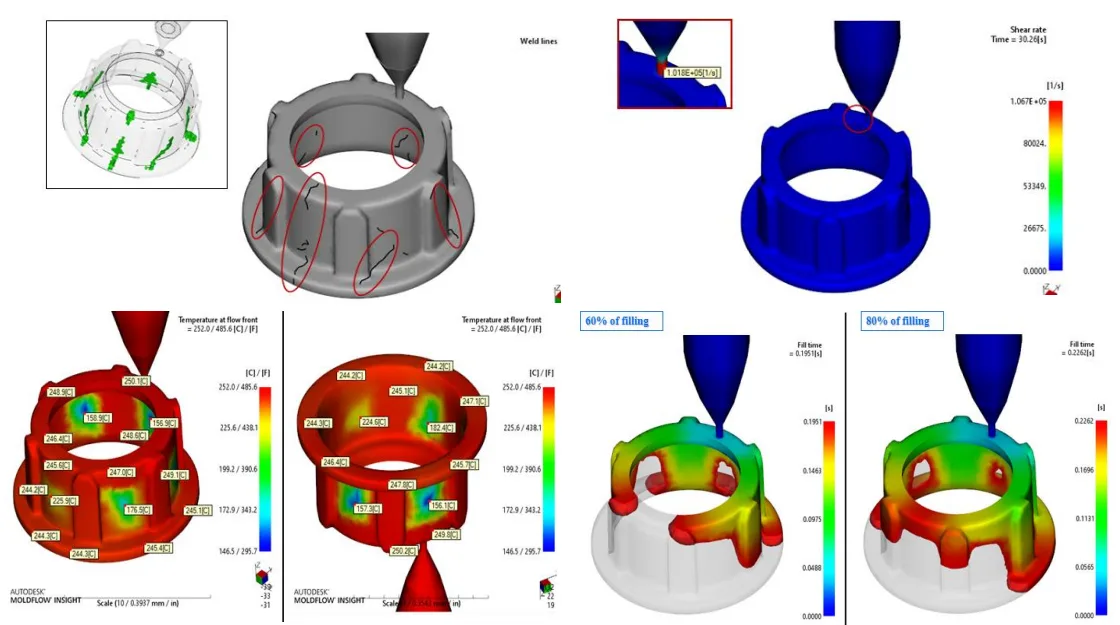

MoldFlow Analysis
Practical MoldFlow study applied to mass production molds to remove defects in advance
Read more →

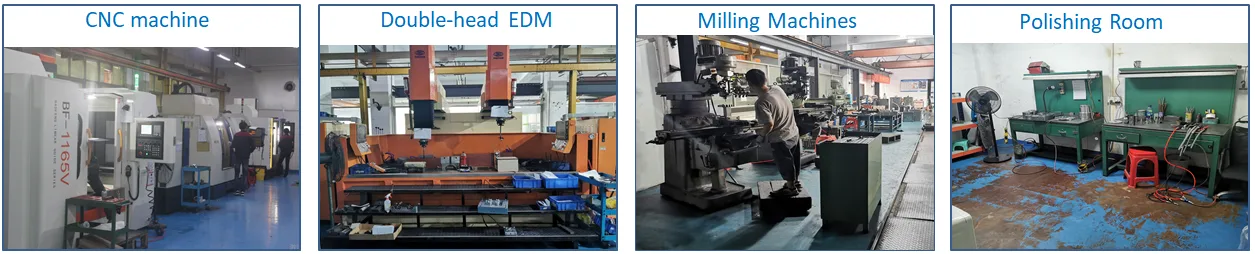

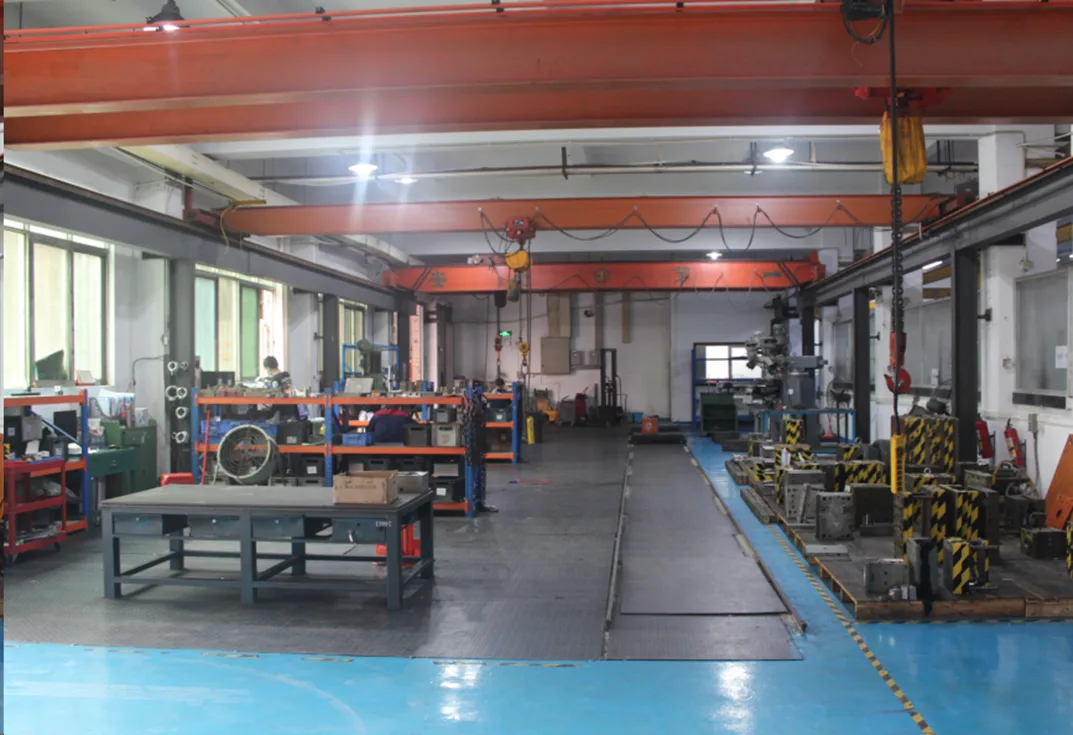

Mold Making
CNC EDM grinding and CMM equipped mold manufacture since 2011
Read more →Tooling Problems and How We Take Them
Four part families we have tooled, and the engineering decisions each one forces.

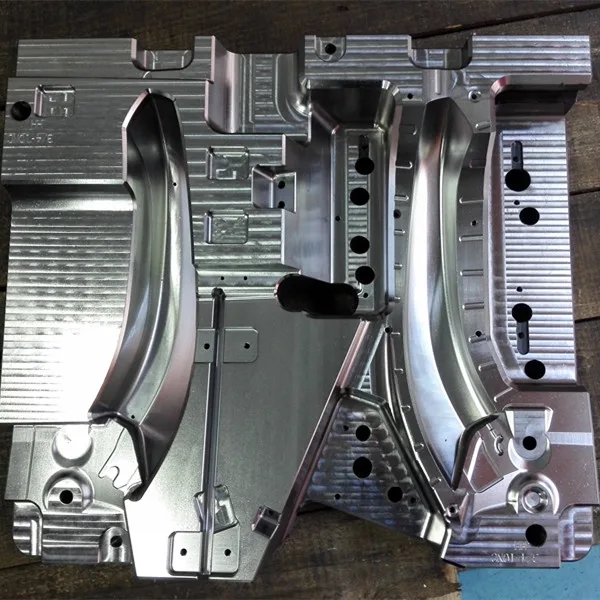

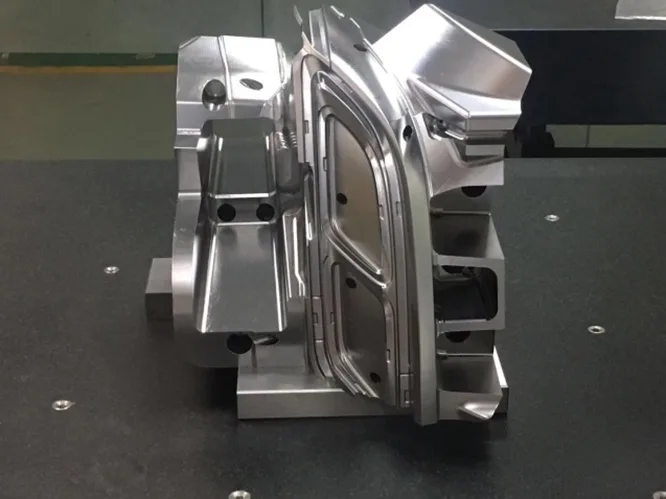

Automotive Lamp Housing Tooling
Lamp housings and lenses carry optical surfaces slide-formed apertures and a long production life on the same tool
Read the profile →

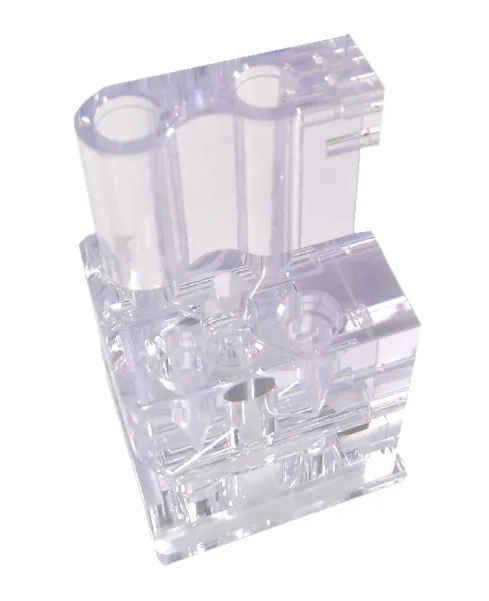

Medical Clear Part Tooling
Clear medical components leave nowhere for a tool mark to hide
Read the profile →Appliance Panel Tooling
Large thin appliance panels are won or lost on warpage
Read the profile →

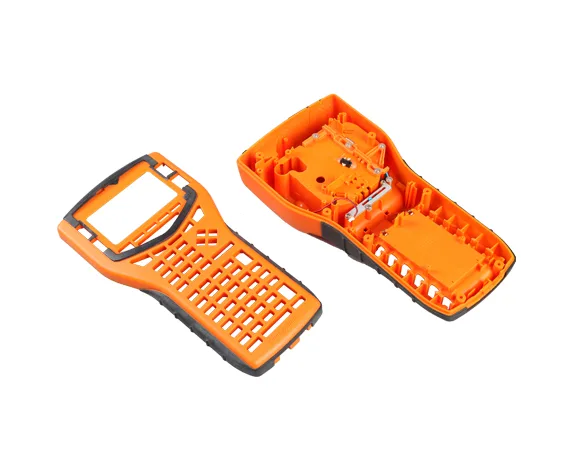

Two Shot Handheld Enclosure Tooling
Two materials one visible boundary and a tool that has to agree with itself
Read the profile →
Quality Control Starts at the Kick Off Meeting
Quality is the most important thing for a mold-making company and we never compromise on it. For a new project the control starts at the initial stage — pre-DFM, mold design, fabrication, mold trials and final inspection before delivery. All of these steps have to be checked and controlled.
- Customer mold specification and requirement review and discussion during the kick-off meeting
- 3D and 2D mold design review meeting before the design is sent to you, and a final check before fabrication
- Incoming material inspection
- Steel hardness inspection and steel certification
- Electrode dimension and surface finish inspection
Guides for the People Who Buy Tooling
What a Mold DFM Study Should Contain
The ten items we put in every DFM we send, and what each one is there to prevent.
Read →What MoldFlow Analysis Actually Catches
Filling, packing, warpage, cooling — what each stage of the analysis is looking for.
Read →
Mold Standards DME HASCO Meusburger and MISUMI
Why the standard you name in the purchase order decides how your tool is maintained for the next ten years.
Read →Questions Buyers Ask First
What do you need in order to quote a mold?
The 3D part data, the resin, the expected annual volume and the mold standard you want us to follow. With those four things a professional mold quotation comes back within two working days.
How long has JEC Mold been making molds?
Since 2011. We are a middle-sized tool shop of fifty people in Dongguan and have devoted ourselves to precision mold-making since the company started.
Where do your molds go?
Ninety percent of our molds serve global markets such as Europe, North America and Australia. Export tooling is the normal case for us rather than the exception.
Do you only build molds, or can you mold the parts too?
Both. Mold-making is ninety percent of our business and injection production is the other ten percent, and both sit inside the same ISO 9001:2015 scope.
How quickly do you reply?
Response to customers is no later than 24 hours. We work efficiently and keep real-time communication through the project.
Can you build die casting tooling as well as injection molds?
Yes. Die casting mold making is one of the six services we have listed since we began exporting, and it uses the same design, machining and inspection route as our injection work.
Send Us Your Next Project
Send the 3D data and the resin. You will have a professional quotation with detailed technical comment within two working days.
