Mold Plate with Lamp Housing Cavity
Plate carrying a curved lamp housing cavity with slide pockets and ejector bores.
Mold Plate with Lamp Housing Cavity
Mold Plate with Lamp Housing Cavity is one of the parts molded on tooling built at our Dongguan shop. Plate carrying a curved lamp housing cavity with slide pockets and ejector bores.
3D data for this tool is issued in whichever format your own toolroom opens without translation: STEP, IGES, Parasolid, CATIA, SolidWorks.
Final mold inspection and packing inspection are the last two steps before shipment, because a tool that passes trial can still arrive damaged.
Key Benefits
- One shop from design through trial, with no tool transfer between vendors
- Reply to every enquiry inside 24 hours
- Standard components to DME / Meusburger / HASCO / Progressive / MISUMI so spares stay available locally
- ISO 9001:2015 quality management covering design, manufacture and service
Problems It Solves
- Warpage found at assembly rather than in the cooling study
- Molds that arrive with no design record and no one able to explain the cooling layout
- Suppliers who cannot read a mold standard written in English
Who It Is For
- Tool shops outsourcing overflow cavity and core work
- Mold owners needing spare or replacement inserts
- OEMs holding their own tools and buying consumable components
- Buyers needing electrode and insert work with an inspection record
Application Scenarios
- Cavity and core plates for production molds
- Slide blocks, lifters and shut-off inserts
- Core pins, blades and ground details
- Replacement inserts for tools already in production
How the Tool Behind Mold Plate with Lamp Housing Cavity Is Built
- Design
Full 3D mold design completed to one hundred percent and checked in a design review meeting.
- DFM and MoldFlow
A written DFM for your comment, and filling, packing, warpage and cooling analysis on mass production tools.
- Machining
CNC and EDM work with steel inspected dimensionally after machining and electrodes inspected before burning.
- Trial and inspection
Mold trial with trial report and sample dimension report, then final mold and packing inspection.
Technical Data
The source material for this site records the part, its category and the photograph. Dimensions, resin grade, cavity count and tolerances are project data and are confirmed in the quotation.
| Product name | Mold Plate with Lamp Housing Cavity |
|---|---|
| Reference on our catalogue | Mold Component 3 |
| Category | Mold Components |
| Process | Plastic injection molding |
| Tooling built by | Dongguan JEC Mold Co., Limited, Dongguan, China |
| Designed tool life | More than 1 million shots |
| Mold standard | Customer standard, or DME / Meusburger / HASCO / Progressive / MISUMI |
| Design data formats | STEP, IGES, Parasolid, CATIA, SolidWorks |
| Quality system | ISO 9001:2015 — Design, Manufacture and Service of Injection Molded Moulds; Manufacture and Service of Plastic Injection Molded Parts |
| Part dimensions | TBC — confirmed in the quotation |
| Resin or alloy grade | TBC — confirmed in the quotation |
| Cavity count | TBC — confirmed in the quotation |
| Dimensional tolerance | TBC — confirmed in the quotation |
| Surface finish | TBC — confirmed in the quotation |
| Annual volume | TBC — confirmed in the quotation |
What Is Checked
- Customer mold specification and requirement review and discussion during the kick-off meeting
- 3D and 2D mold design review meeting before the design is sent to you, and a final check before fabrication
- Incoming material inspection
- Steel hardness inspection and steel certification
- Electrode dimension and surface finish inspection
- Steel dimension inspection after machining
- Mold trial reports with a sample dimension report (FAI)
- Final mold inspection and packing inspection
Certification
ISO 9001:2015 — scope: Design, Manufacture and Service of Injection Molded Moulds; Manufacture and Service of Plastic Injection Molded Parts.
Customization
Mold standard, cavity count, gating strategy, surface finish and mold base supplier are all specified per project. Tell us what your own standard requires and it is folded into the DFM rather than handled as a change later.
Compared With a Prototype Tool
A production mold for Mold Plate with Lamp Housing Cavity is built to run for more than 1 million shots and is documented with a trial report and a sample dimension report. A rapid prototype mold answers a different question — is the design right — at a lower price and a faster lead time, and is not built for that life. If the design is still moving, the prototype stage is usually the cheaper route into the production tool.
Rapid Prototype MoldsUse Guide
- Send 3D part data in STEP, IGES, Parasolid, CATIA, SolidWorks
- State the resin or alloy, the annual volume and the mold standard
- Comment on the DFM before fabrication — that is the cheapest point to change anything
- Review the trial report and sample dimension report against your own drawing before release
- Keep the mold standard on file so spares stay available locally
Others in Mold Components
Precision Core Insert Block
Tall machined core block with stepped faces, deep slots and interlocking shut-offs.
View details →
CNC Machined Mold Inserts
Set of inserts on the machine table, cut in one clamping for form accuracy.
View details →
Multi Cavity Plate for Oval Parts
Cavity plate with a row of oval cavities and a balanced runner layout.
View details →
Cavity Plate Under CMM Inspection

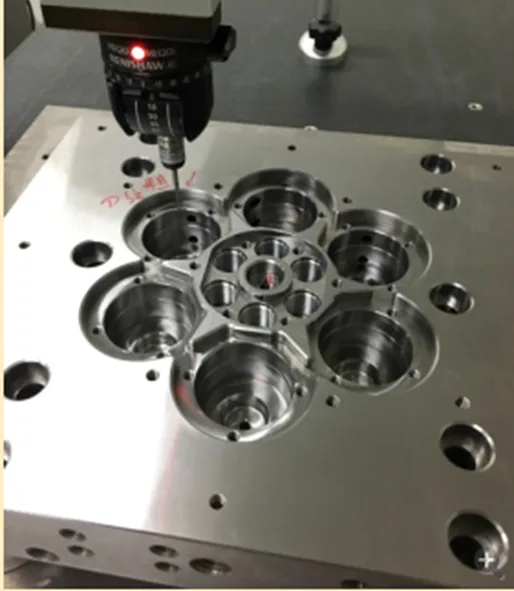

Cavity plate on the CMM with a probe measuring the circular cavity pattern.
View details →Mold Plate with Lamp Housing Cavity — Buyer Questions
Can you handle the side actions this part needs?
Tools with several slides or lifters go through a mold motion simulation before the design review closes, so the open-to-close sequence is proven step by step rather than discovered at first trial.
Do you run MoldFlow before building the mold for Mold Plate with Lamp Housing Cavity?
For mass production molds, yes. We run the practical study in four stages — filling, then packing, then warpage, then cooling — and the cooling layout is designed from the result.
Do you make the part as well as the mold for Mold Plate with Lamp Housing Cavity?
We can. Mold-making is ninety percent of our business and injection production is the other ten percent, and both sit inside the same ISO 9001:2015 scope.
Is a prototype tool worth it before the production mold?
It is when the design is not yet frozen. Rapid prototype mold making is one of our listed services, priced low and built for a fast lead time, and what the trial shows feeds the DFM for the production tool.
Quote Mold Plate with Lamp Housing Cavity
Send the 3D data, the resin and the annual volume. A professional quotation with technical comment comes back within two working days.
