Plastic Injection Molds
Complete engineering molds designed built tried and documented for export production
All 12 Plastic Injection Molds
Precision Mold Insert Set
Group of machined cavity and core blocks finished ready for fitting.
View details →
Precision Core Pins and Slide Inserts
Array of slender core pins, blades and slide inserts ground to size.
View details →
Injection Mold Mounted in Molding Machine
Mold clamped in the molding machine during trial, with the platen and tie bars visible.
View details →
Injection Mold with Hydraulic Core Pulls

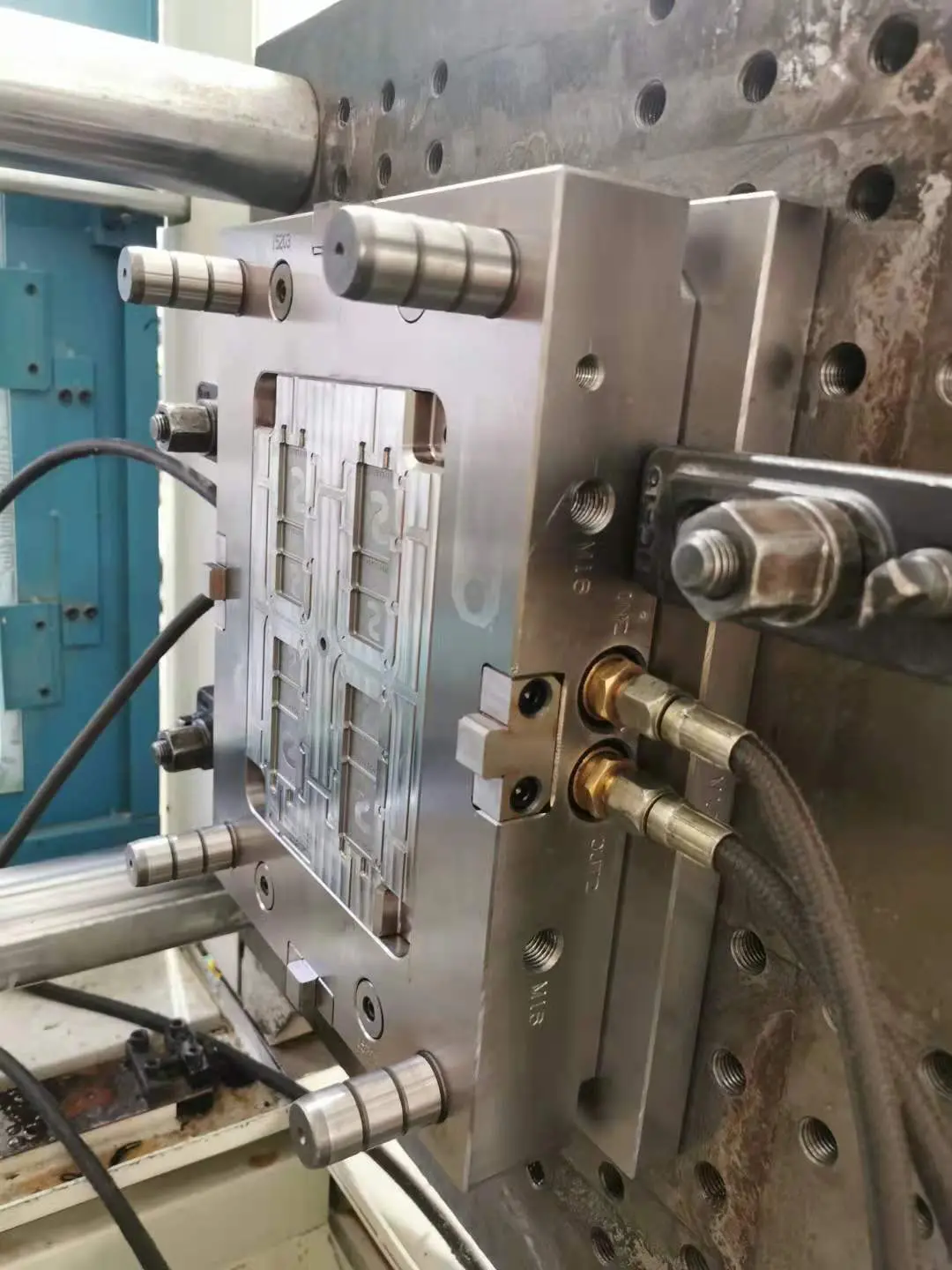

Mold in the machine with hydraulic couplings feeding the core-pull cylinders.
View details →

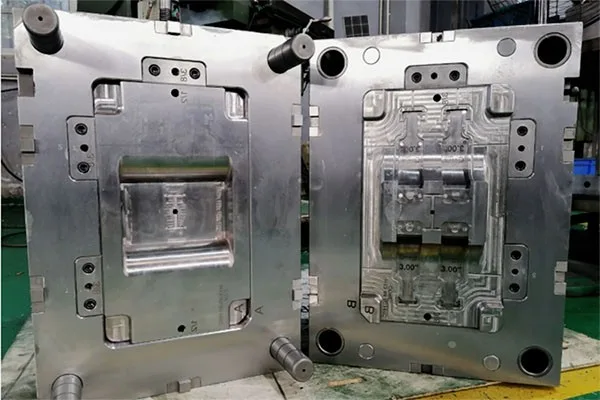

Two Plate Injection Mold
Two-plate mold opened on the bench showing cavity and core sides together.
View details →

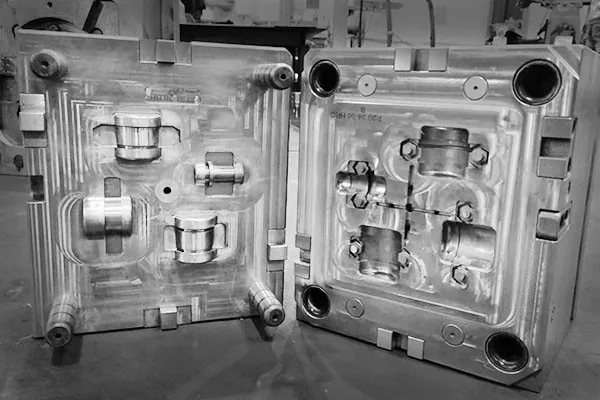

Multi Cavity Injection Mold with Lifters
Opened mold with several cavities, lifters and a balanced runner layout.
View details →

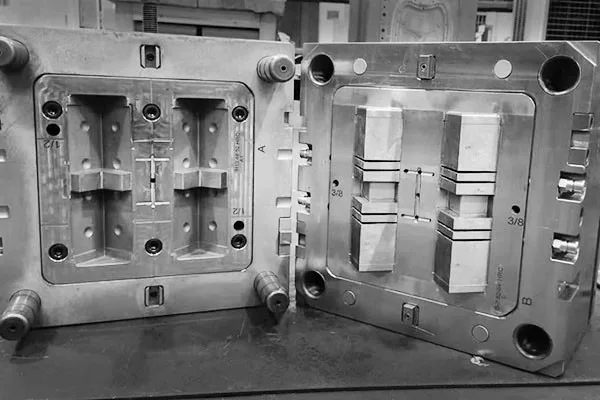

Large Two Cavity Injection Mold
Large opened mold with two deep cavities and heavy guide pillars.
View details →

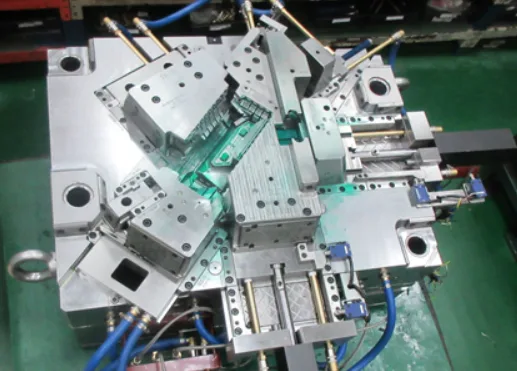

Injection Mold with Cooling Circuit Manifolds
Mold on the bench with cooling manifolds and color-coded circuit hoses fitted.
View details →

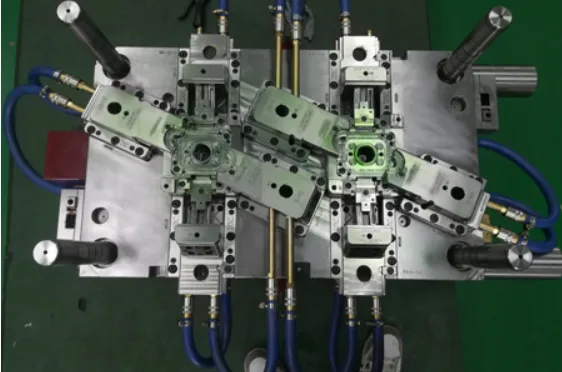

Injection Mold with Multi Circuit Water Manifolds
Mold fitted with several independent water circuits routed through side manifolds.
View details →

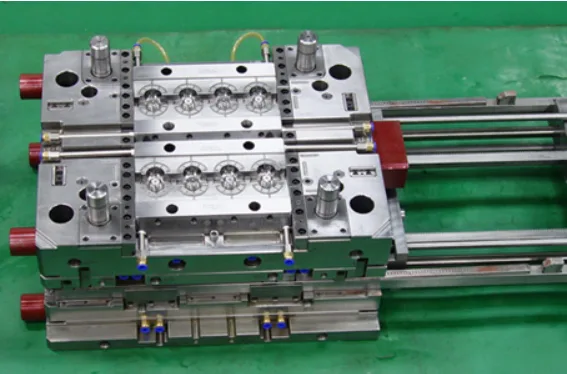

Slide Action Injection Mold
Long mold with side slides and a multi-cavity layout set up on the bench.
View details →

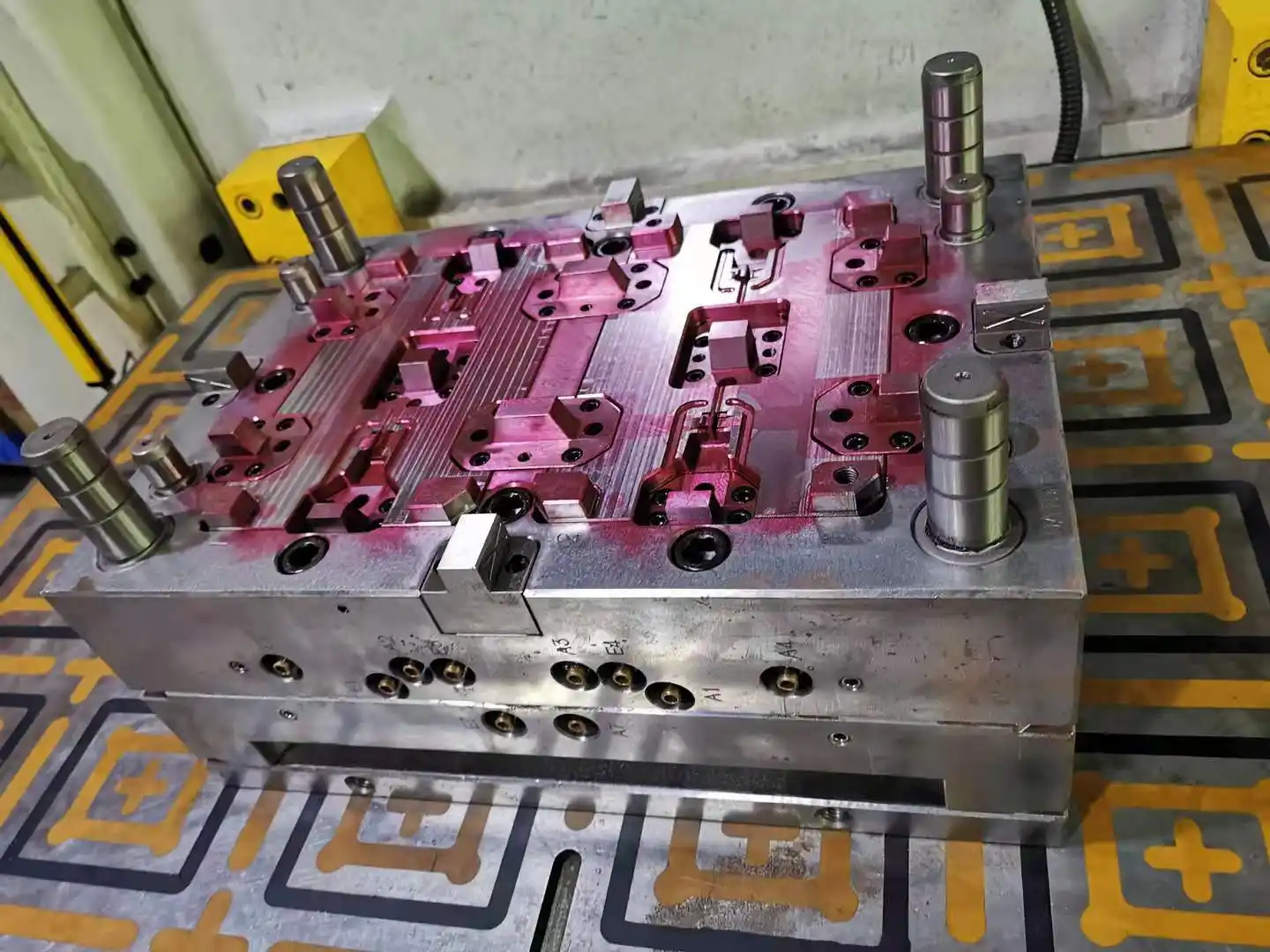

Injection Mold Assembly on Assembly Bench
Mold assembly under final fitting, with plates and inserts laid up for build.
View details →

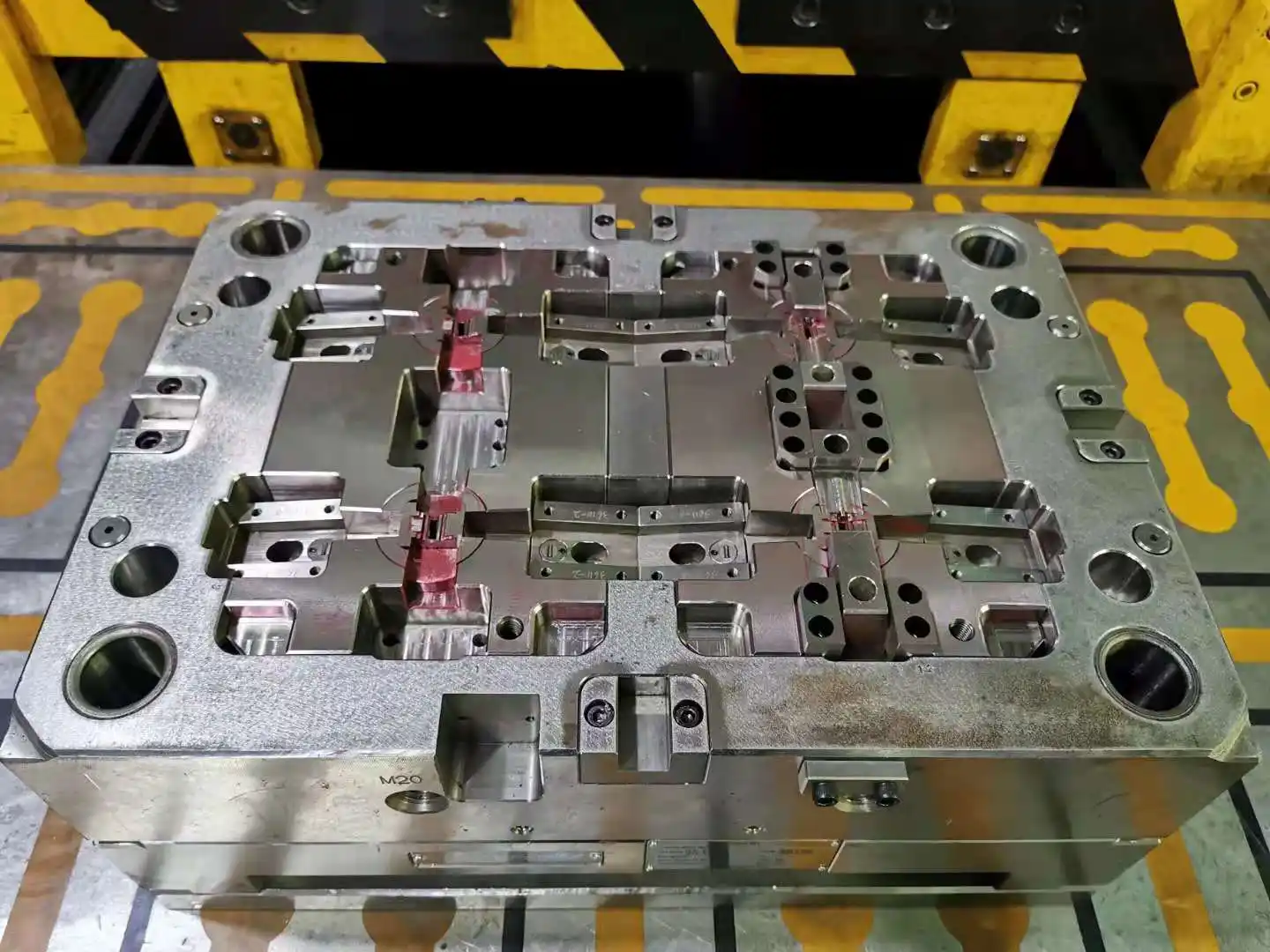

Large Injection Mold Ready for Trial
Large mold staged on the shop floor ahead of its trial in the molding machine.
View details →What Goes Wrong Here
Most tooling disputes are not about price. They are about a mold that arrived without a design record, without a trial report, and without anyone who can say why the cooling runs where it runs.
Our Answer
Mold making is ninety percent of what we do. Design is completed to one hundred percent detail and checked in a design review meeting before it is sent to you, and the mold leaves with trial reports and a sample dimension report.
Who This Is For
- OEMs moving a program to an Asian tooling source
- Product companies needing a tool and the engineering behind it
- Buyers replacing a tool that failed in production
- Teams needing rapid prototype tooling before committing to steel
Where These Parts Are Used
- Two-plate and three-plate production molds
- Slide and lifter action tools
- Multi-cavity family and balanced-runner molds
- Rapid prototype molds ahead of a production tool
From Enquiry to Delivered Tool
- Step 1
Quotation within two working days from your 3D data, resin and volume
- Step 2
Full 3D mold design completed and reviewed, with the DFM sent for your comment
- Step 3
CNC and EDM machining with inspection after machining and on the electrodes
- Step 4
Mold trial, trial report and sample dimension report, then final and packing inspection
Plastic Injection Molds — Questions We Are Asked
How many plastic injection molds do you show?
12, all photographed from our own work. Each one has its own page with the tooling route behind it.
What is the lead time on tooling for plastic injection molds?
Lead time depends on the size of the tool, the number of cavities and the side actions involved, so we put it in the quotation rather than publishing one figure. The quotation itself comes back within two working days. Programme lead times: TBC per project.
Which mold standard will you use?
Yours if you have one. Otherwise DME, Meusburger, HASCO, Progressive or MISUMI — naming it in the enquiry avoids re-specifying components later in the design.
Will we see a design before you cut steel?
Yes. The mold design is completed to one hundred percent detail, checked in a design review meeting, and sent to you together with the DFM for comment before fabrication starts.
What do you need to quote plastic injection molds?
3D part data, the resin, the expected annual volume and the mold standard. With those four items we can quote without a second round of questions.
Quote a Plastic Injection Mold Tool
Send us the part and the volume. A professional mold quotation with technical comment comes back within two working days.
