Full catalogue

All 728 Slip Ring and Rotary Joint Models

Every model INGIANT publishes, grouped into 13 families and listed in full on this page — no pagination, no hidden pages. Each entry links to its own parameter table.

141 models

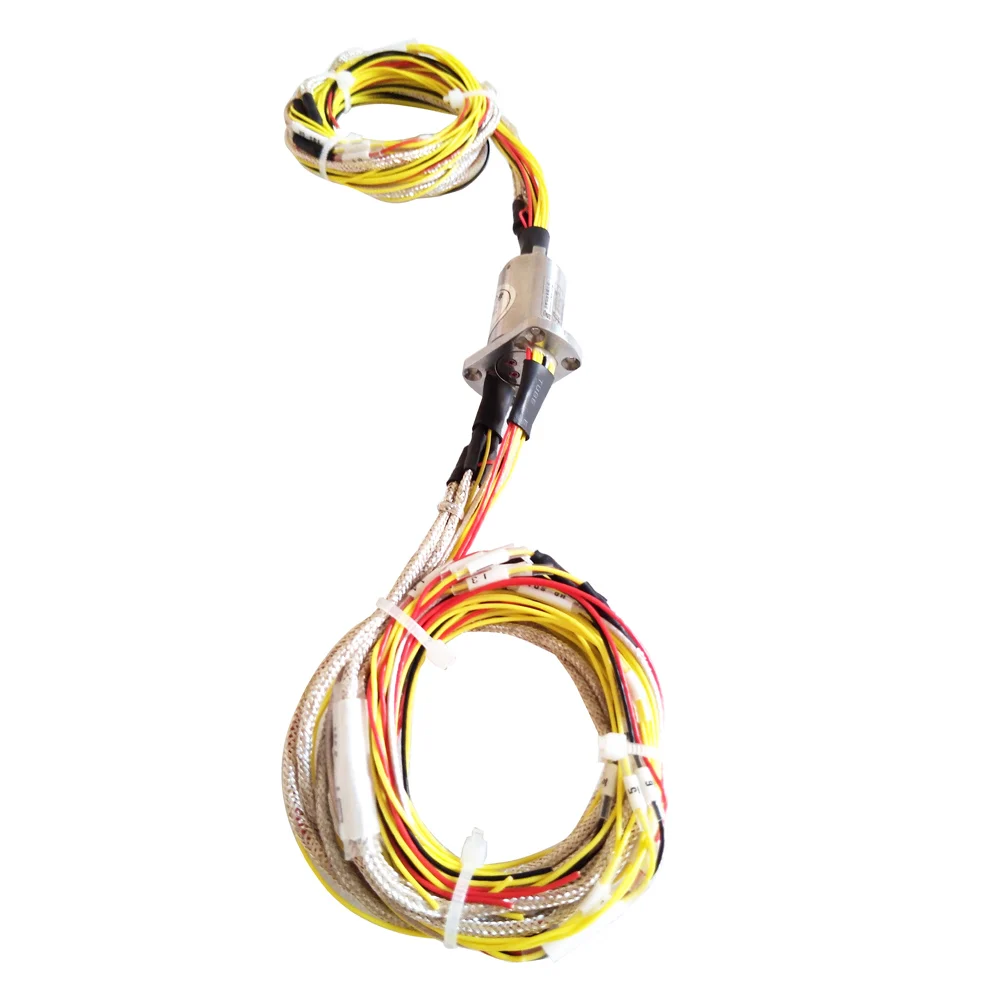

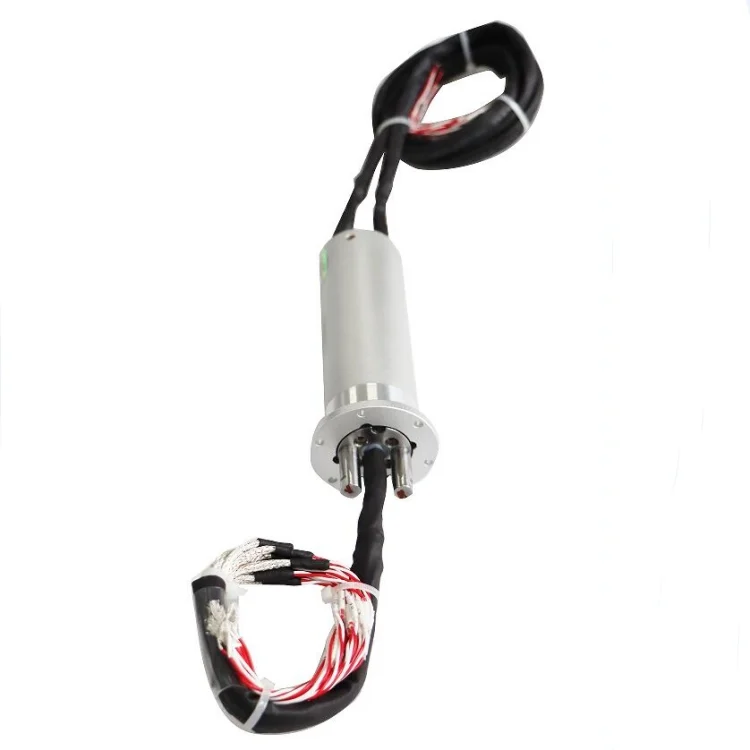

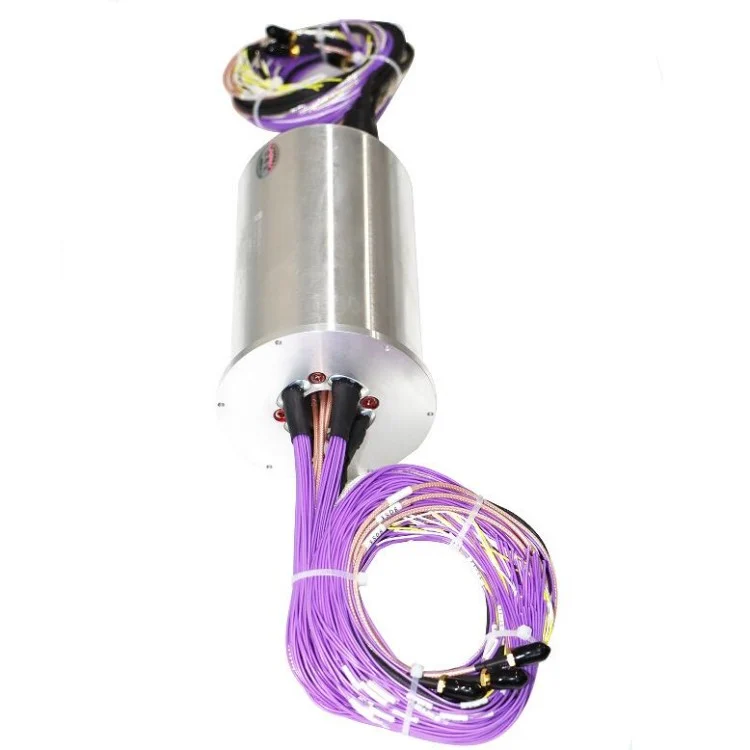

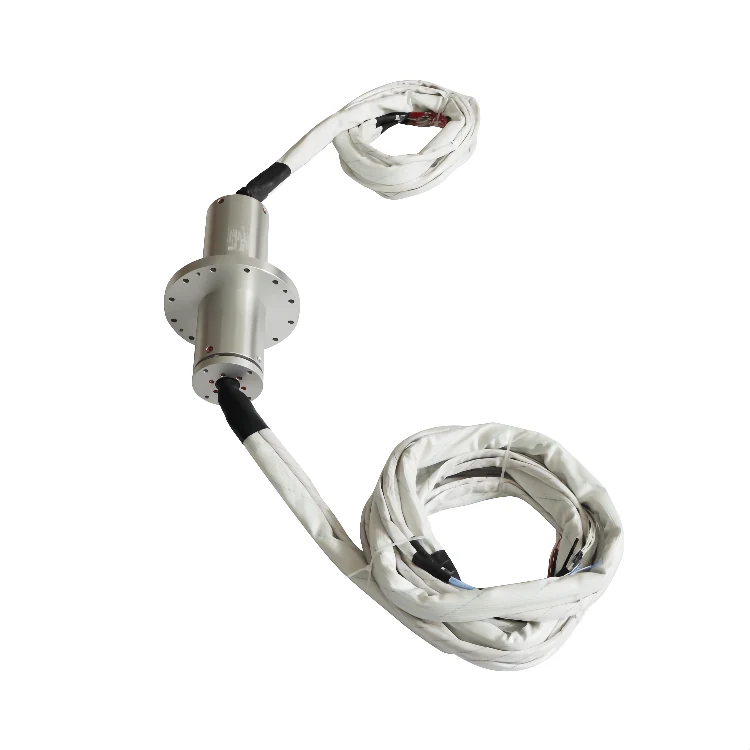

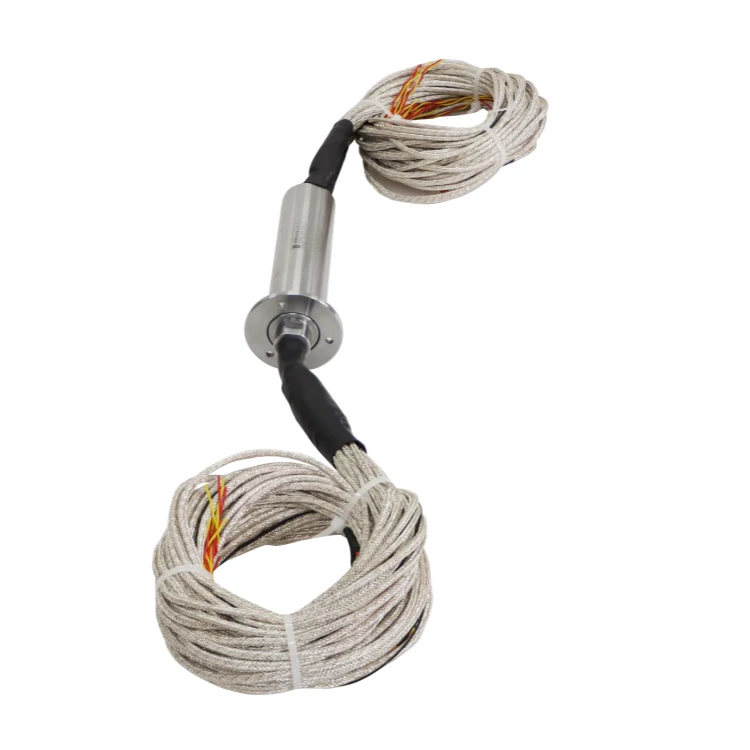

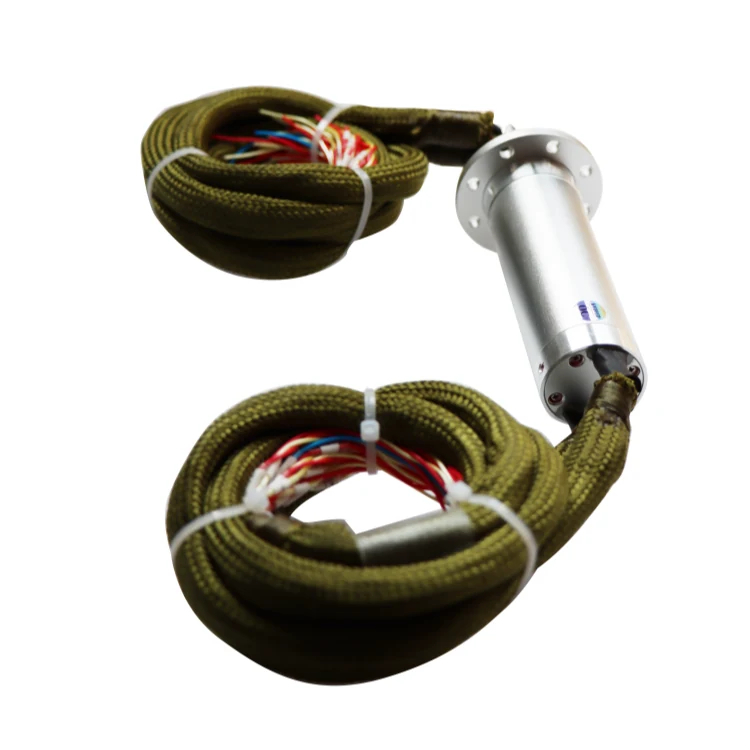

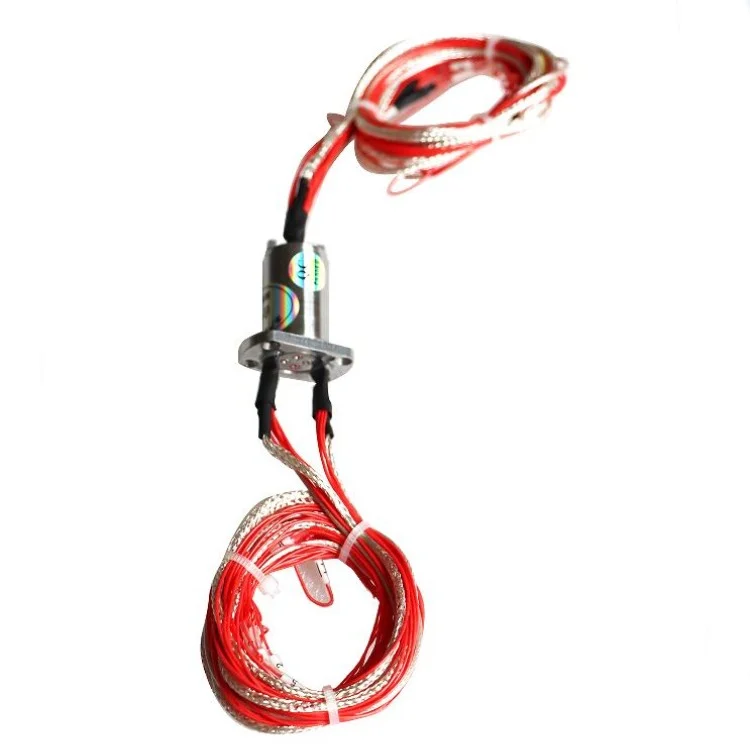

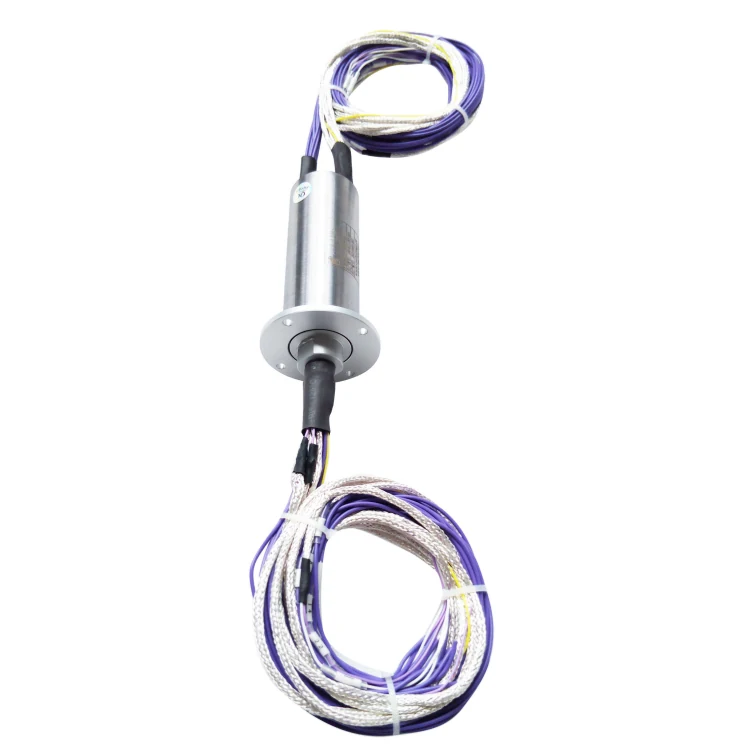

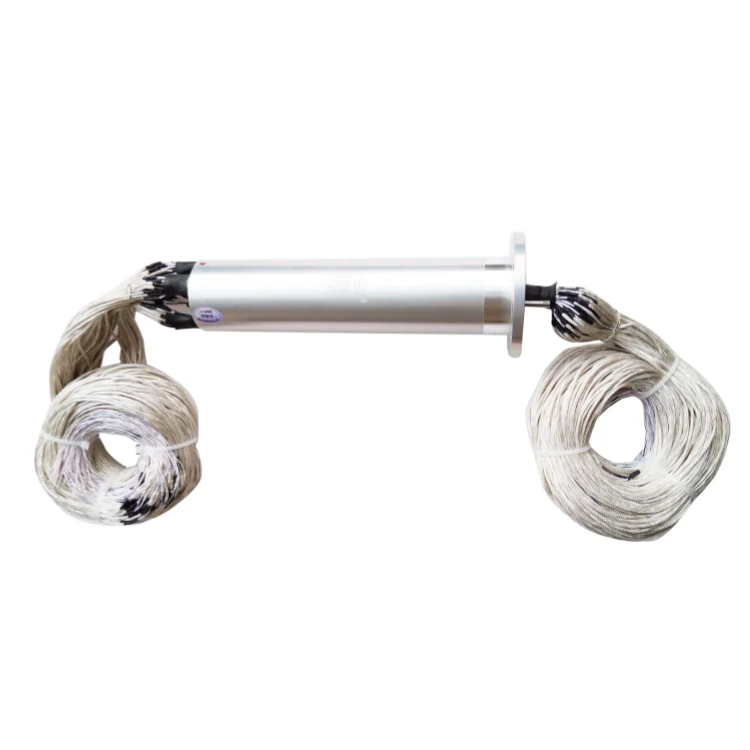

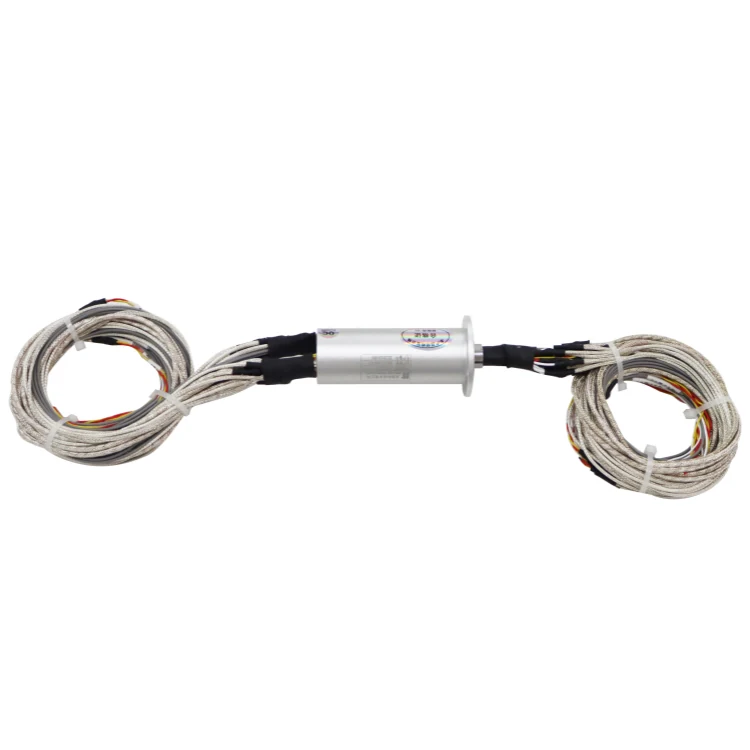

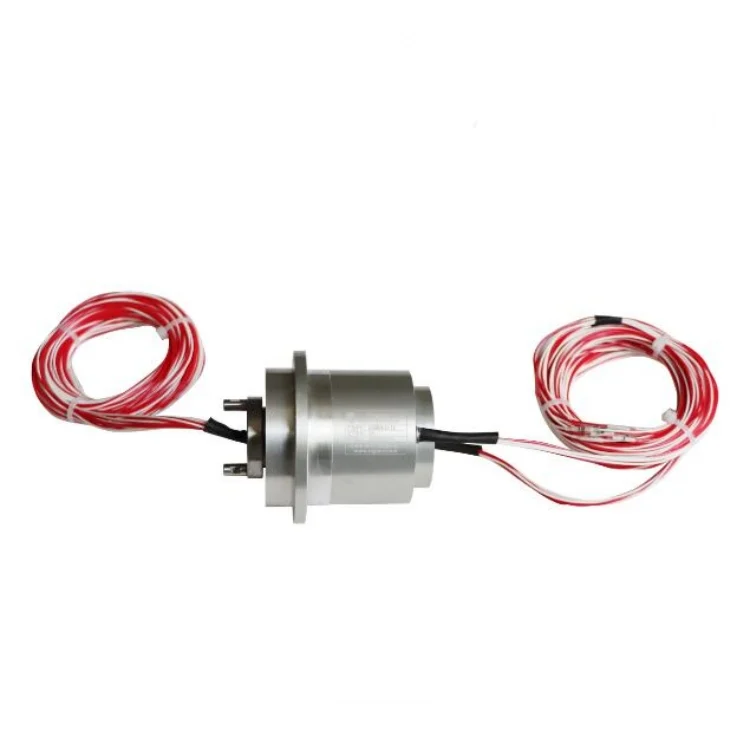

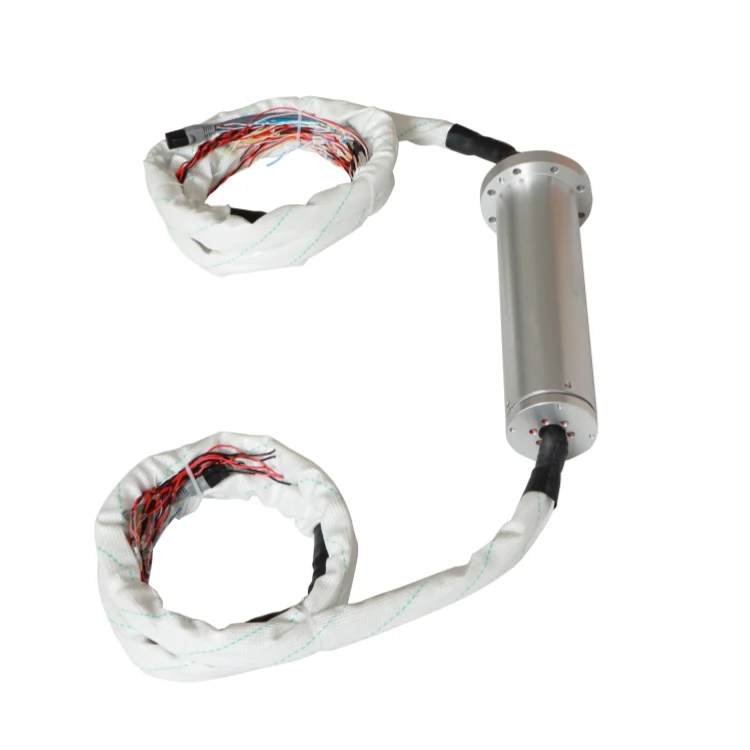

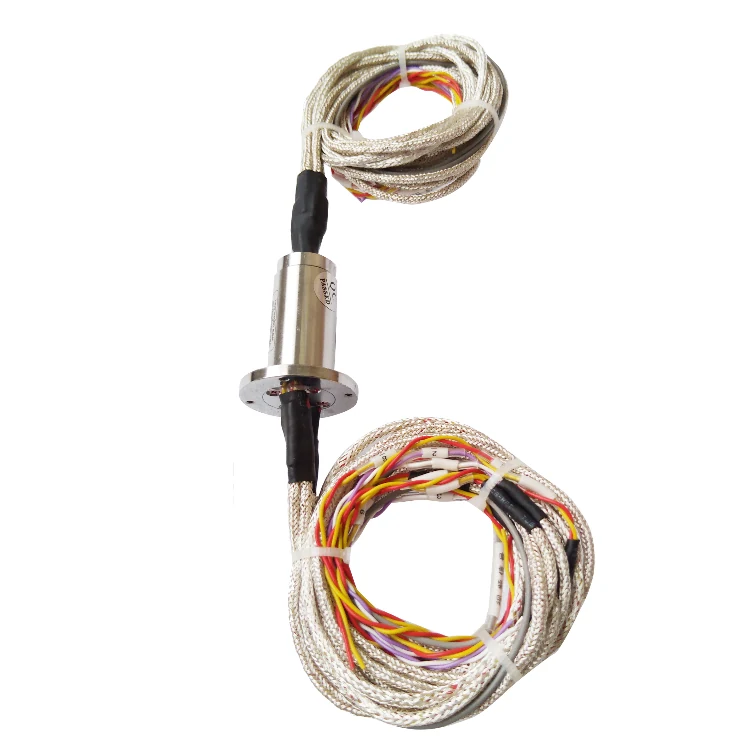

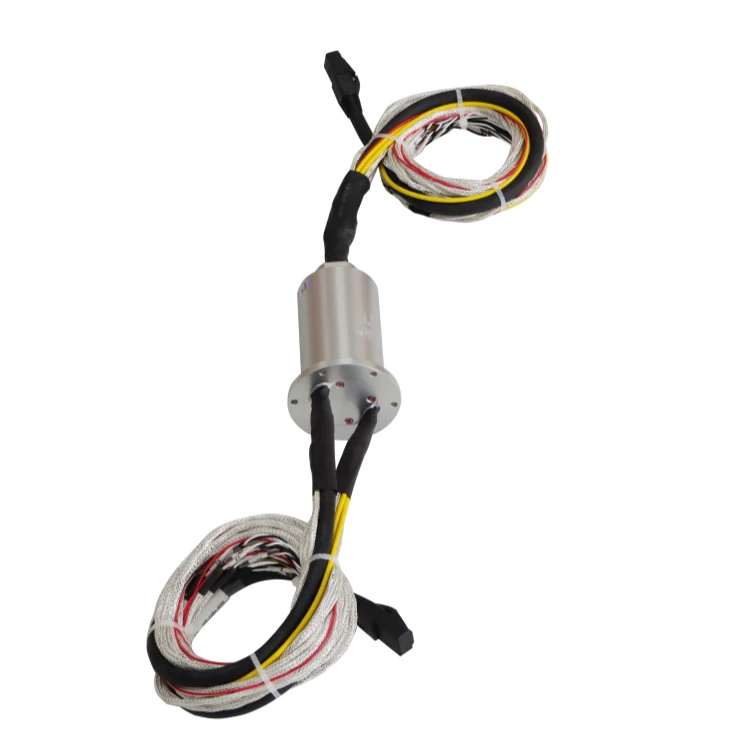

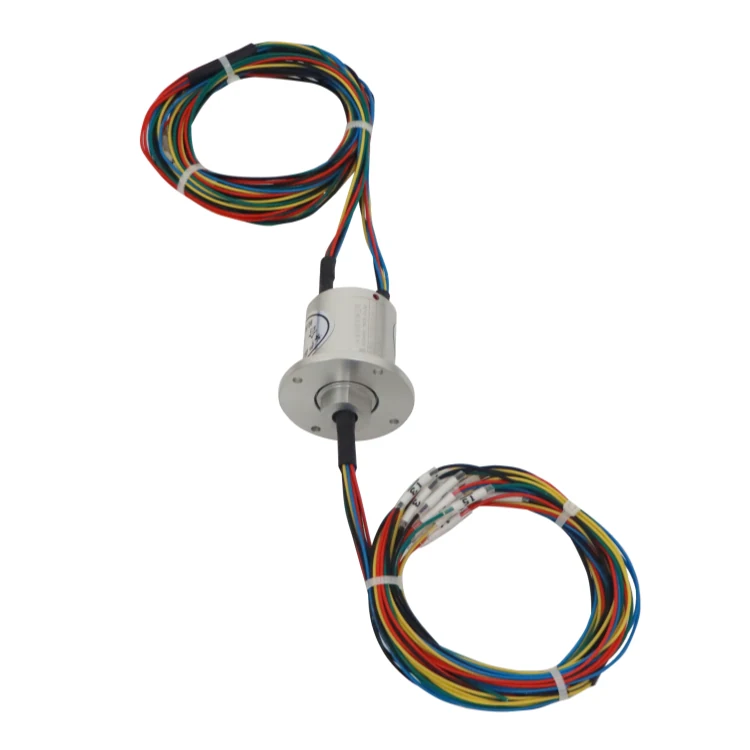

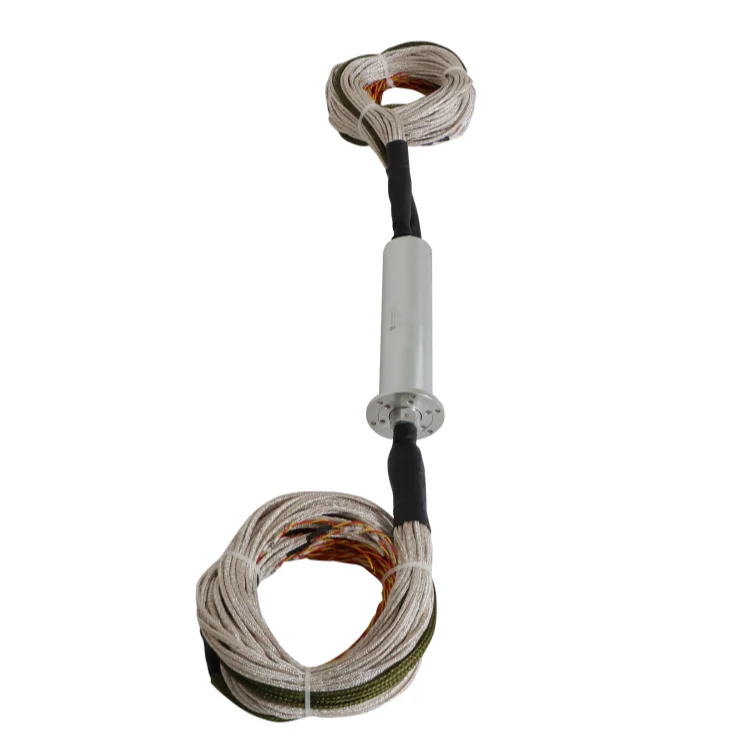

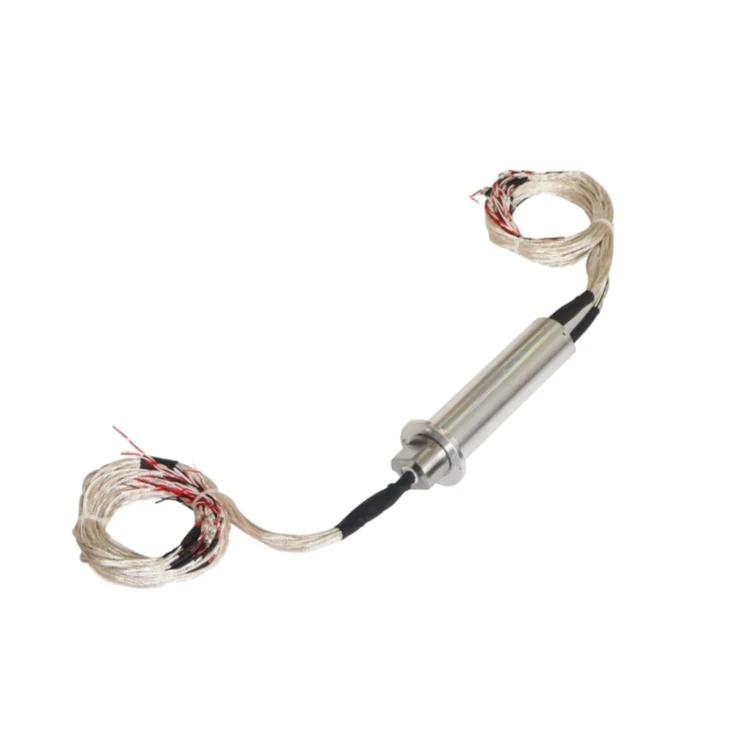

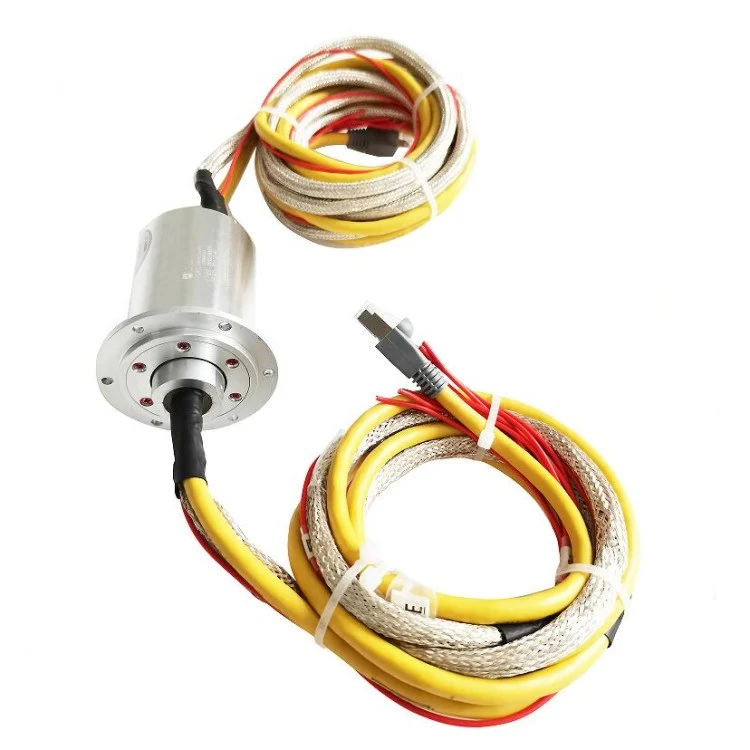

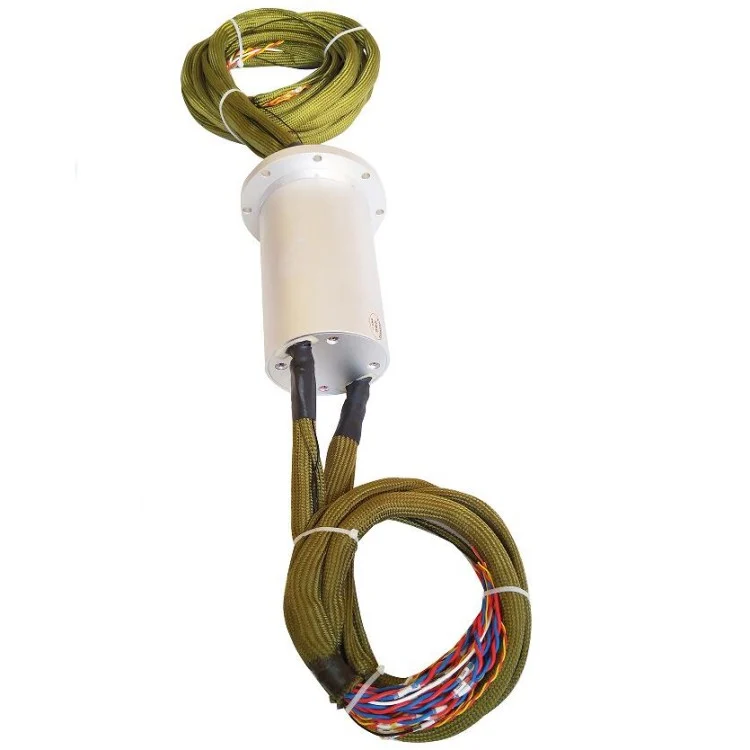

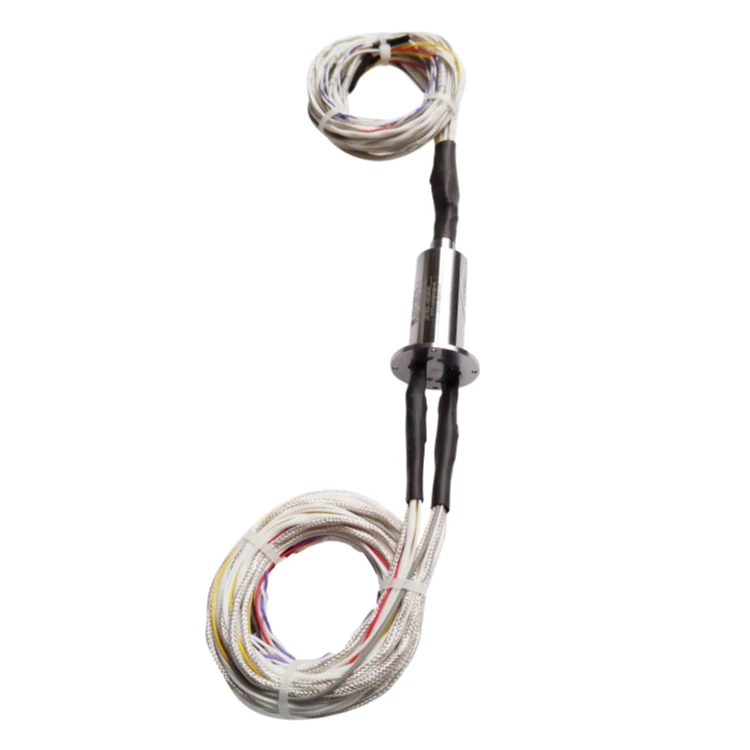

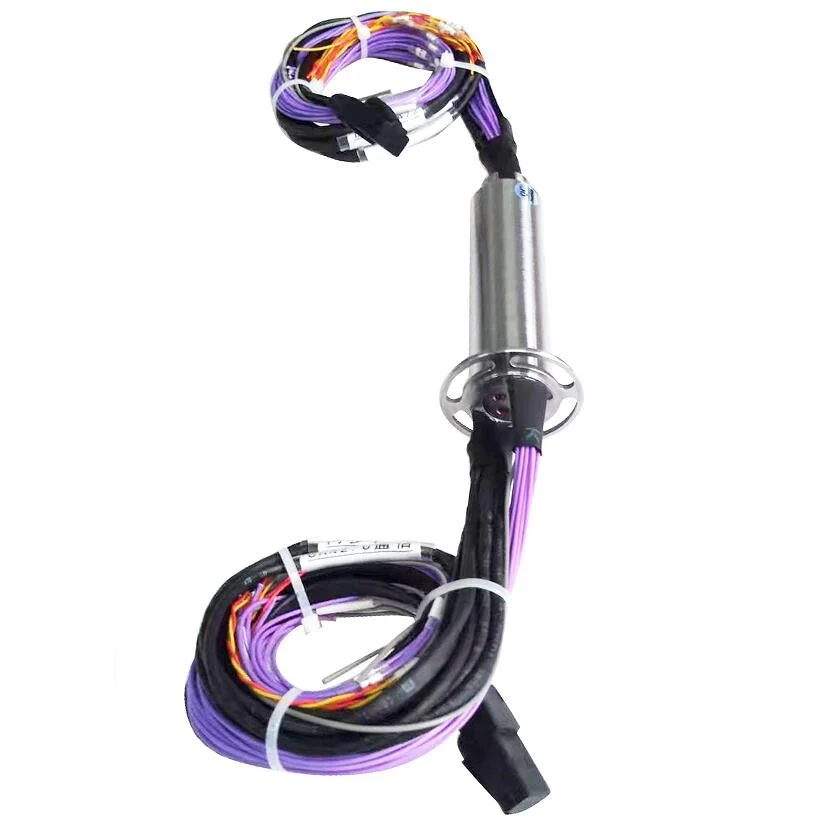

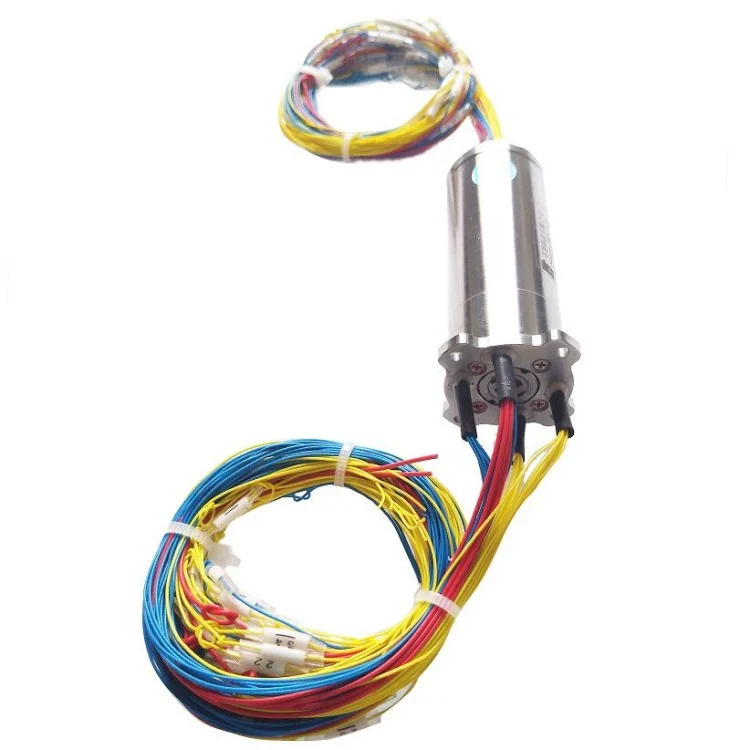

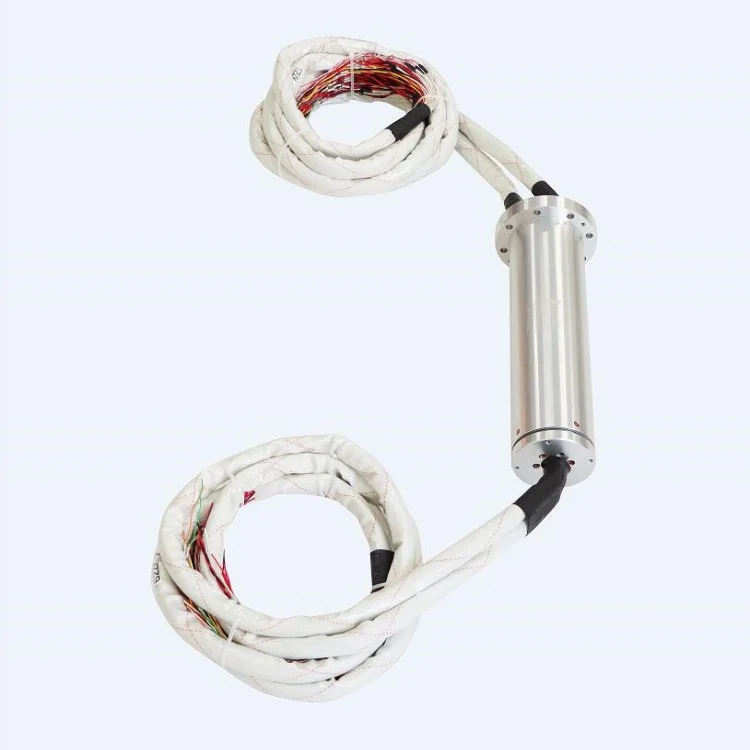

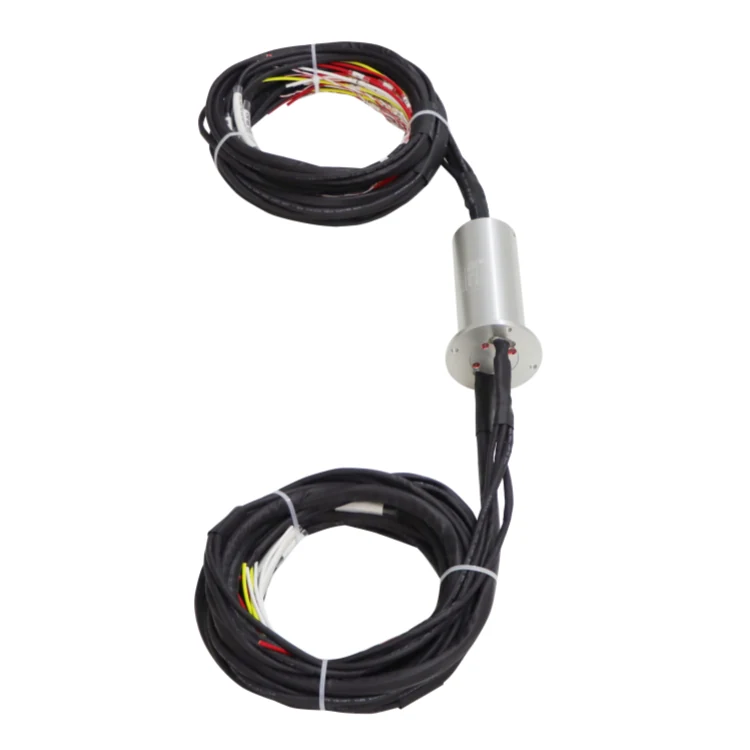

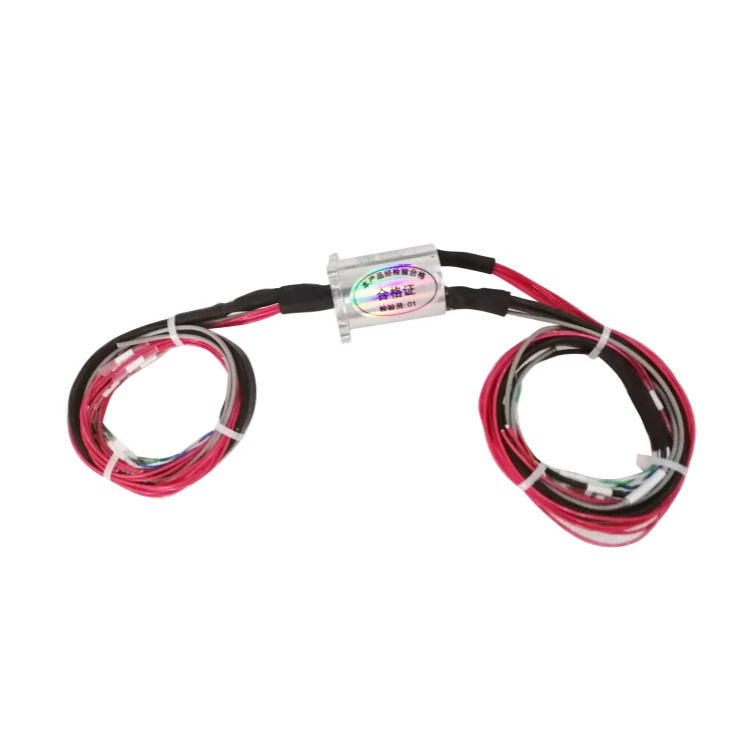

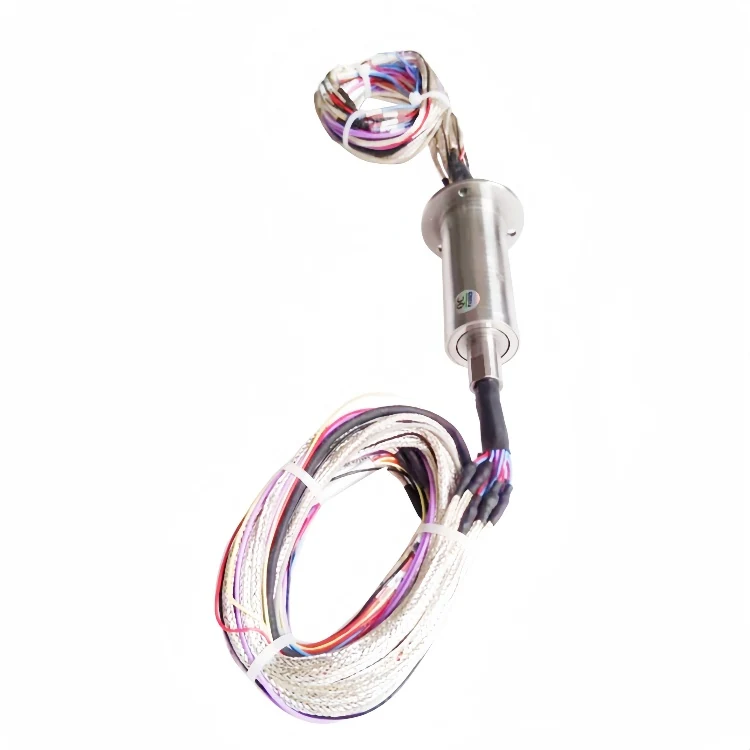

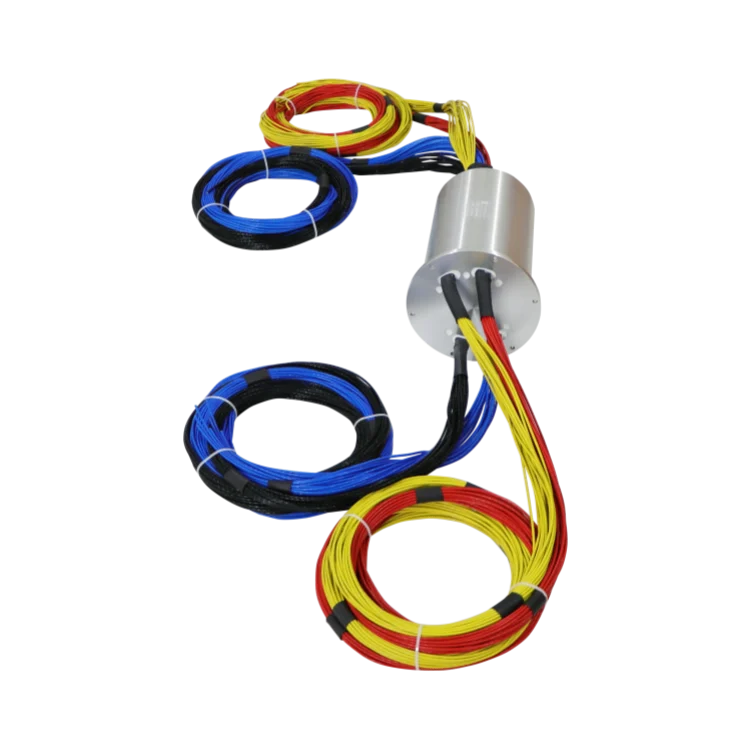

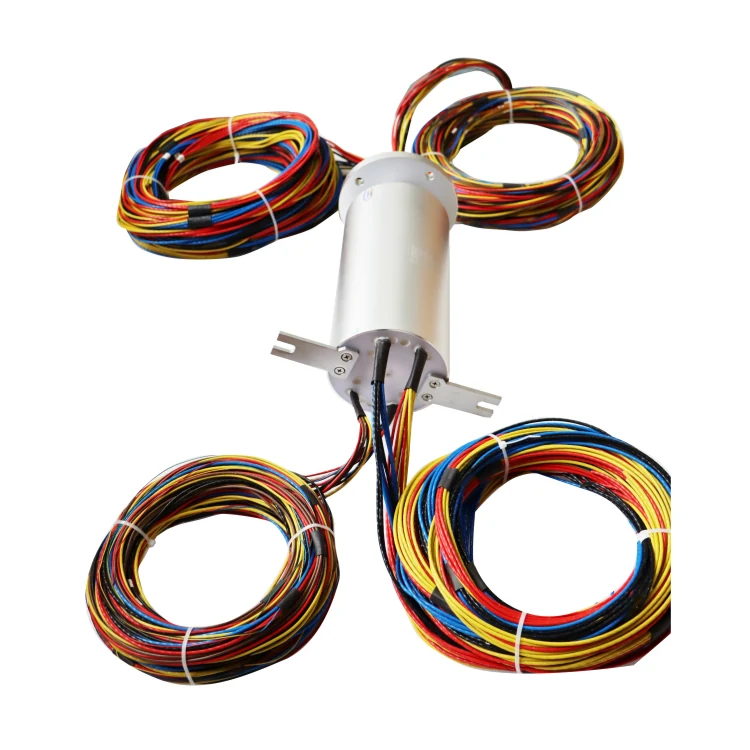

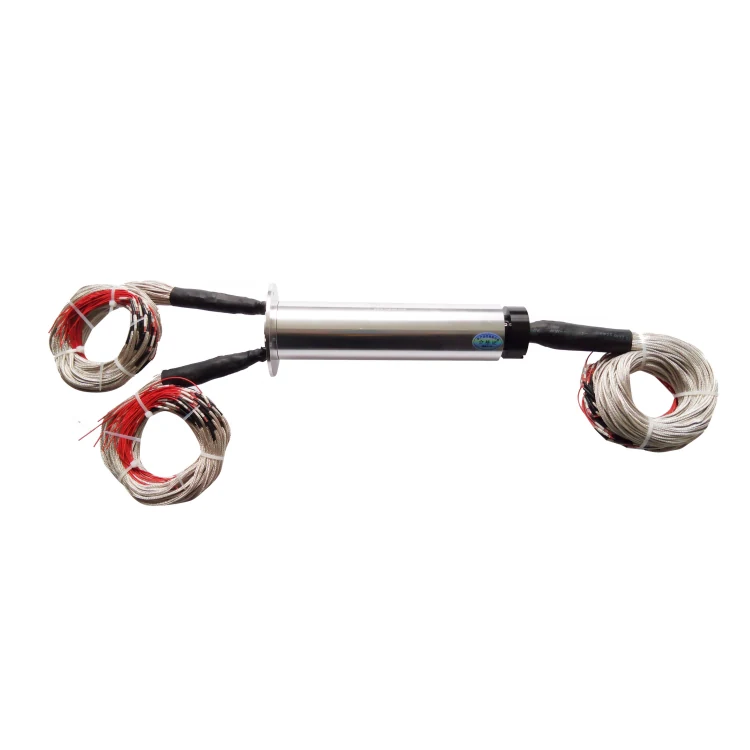

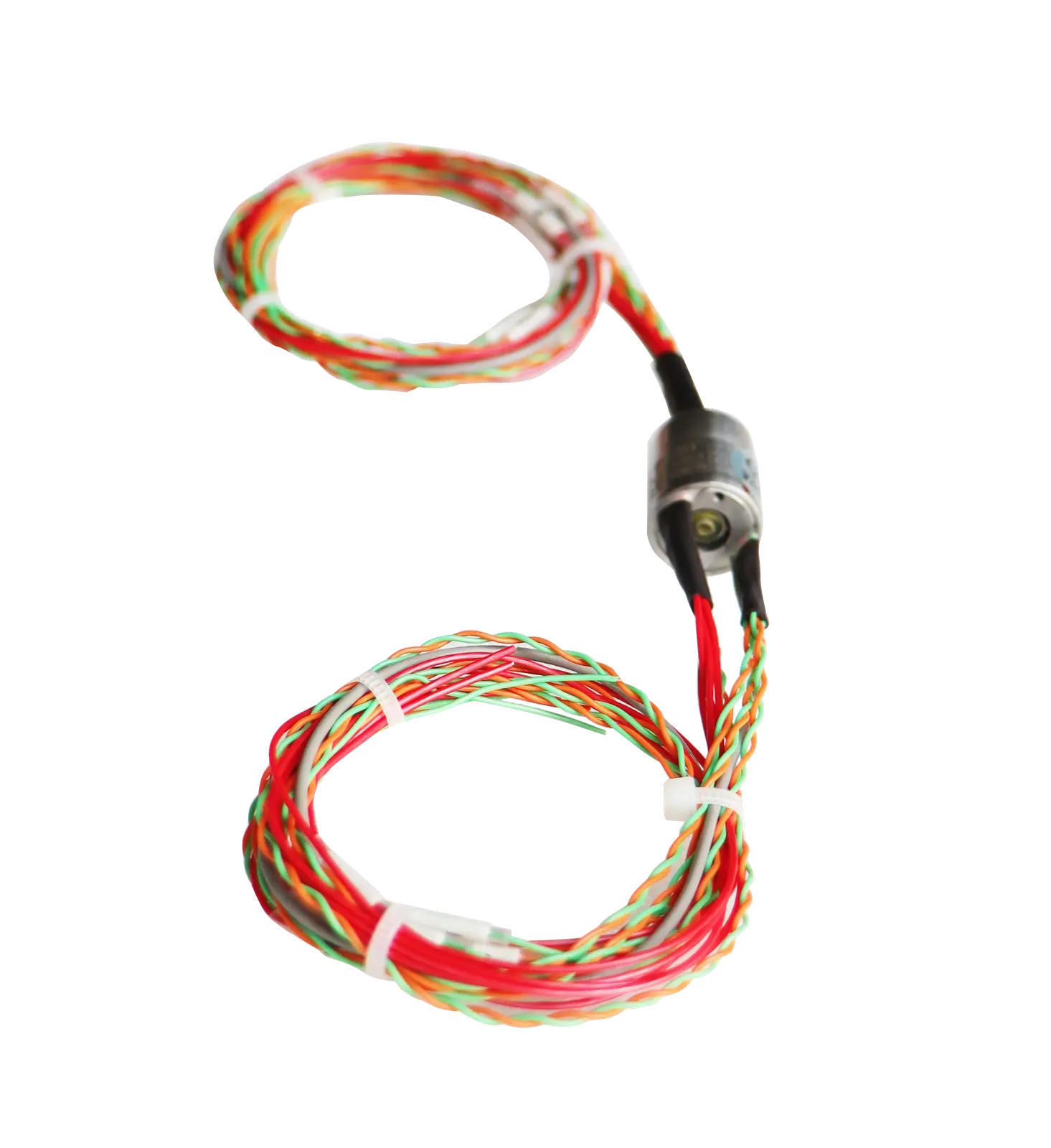

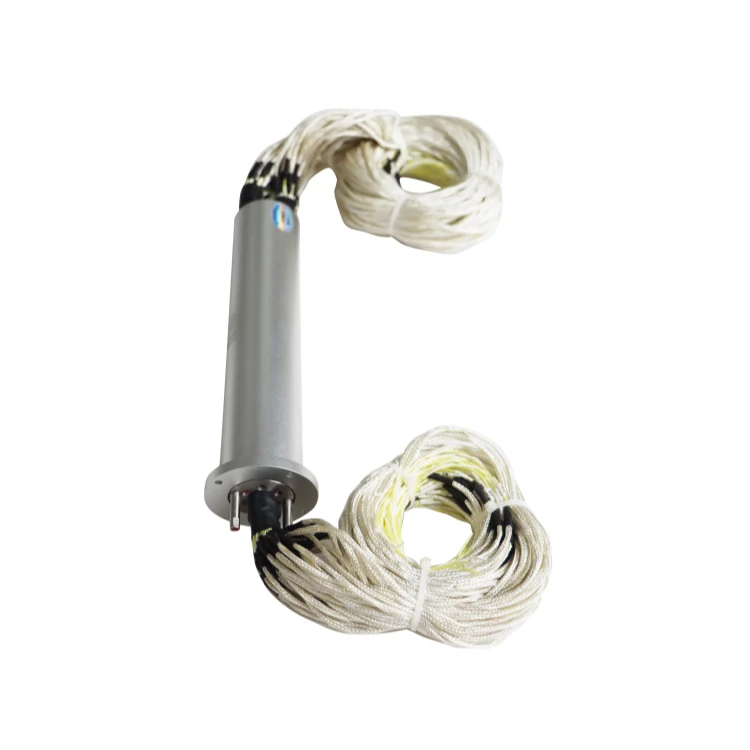

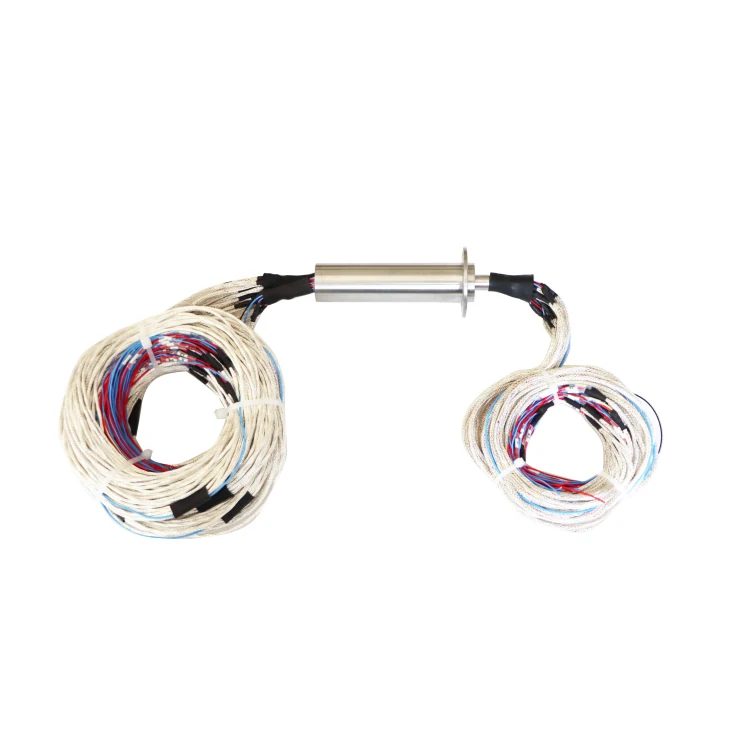

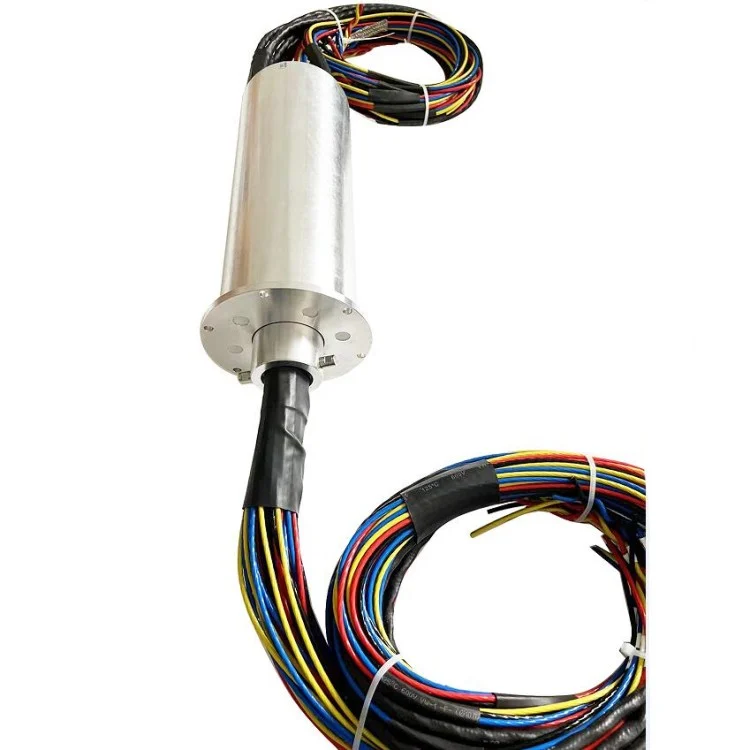

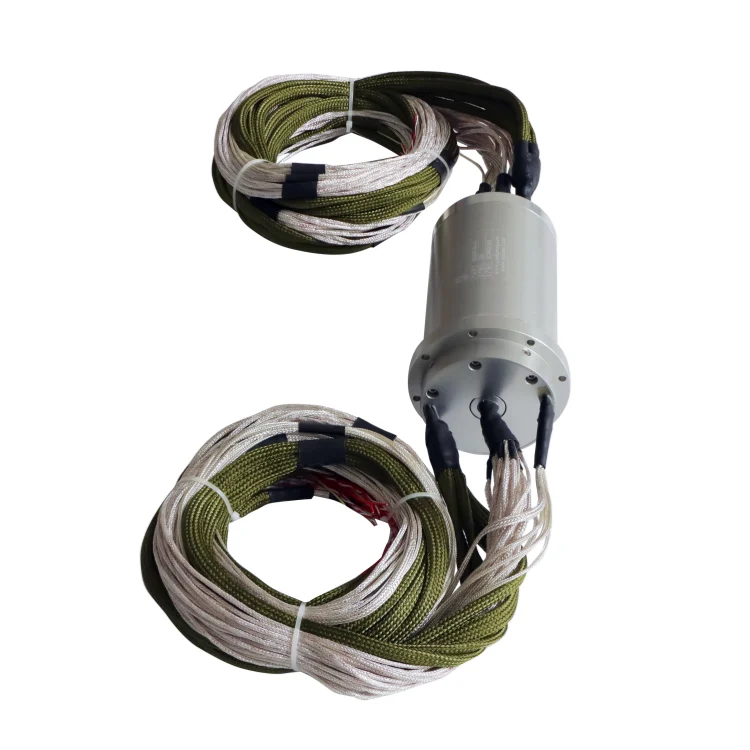

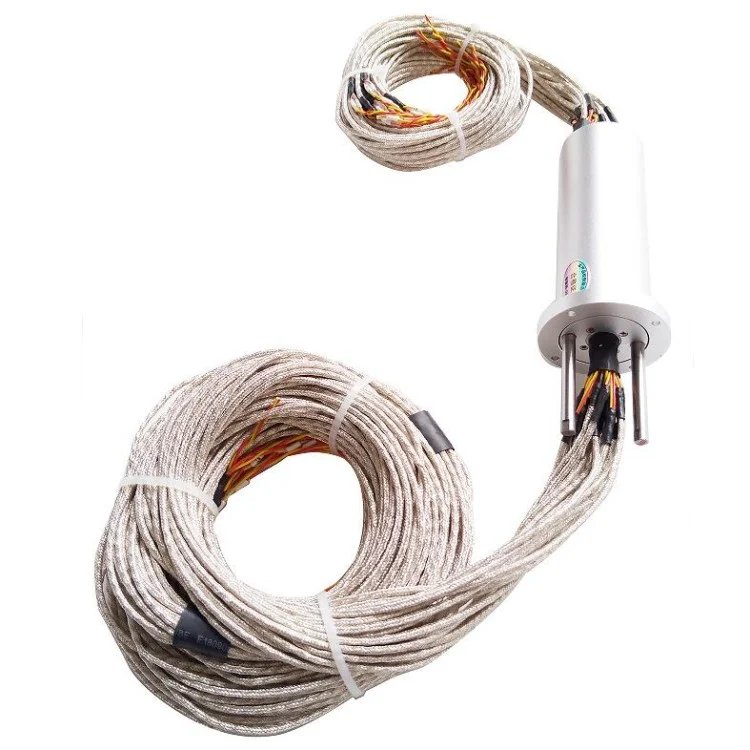

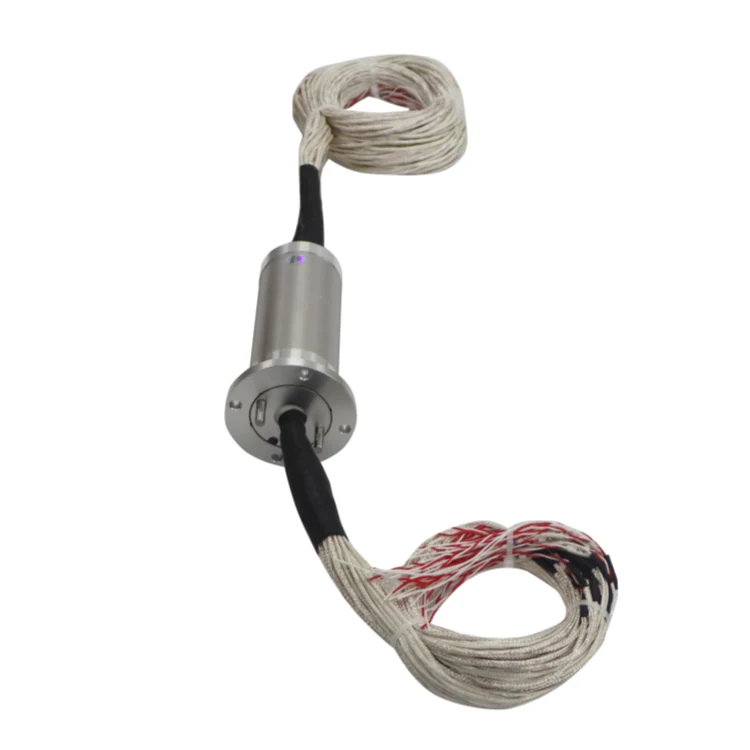

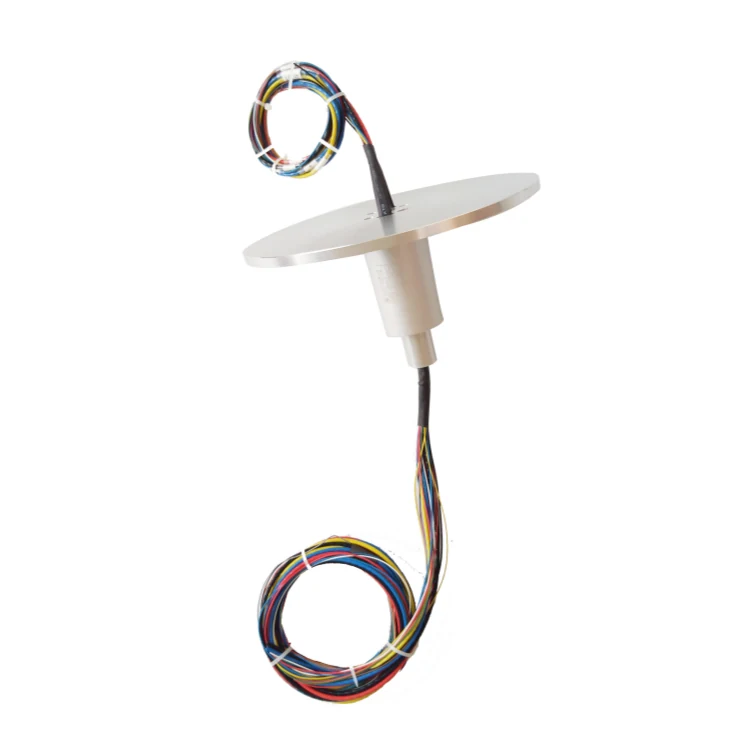

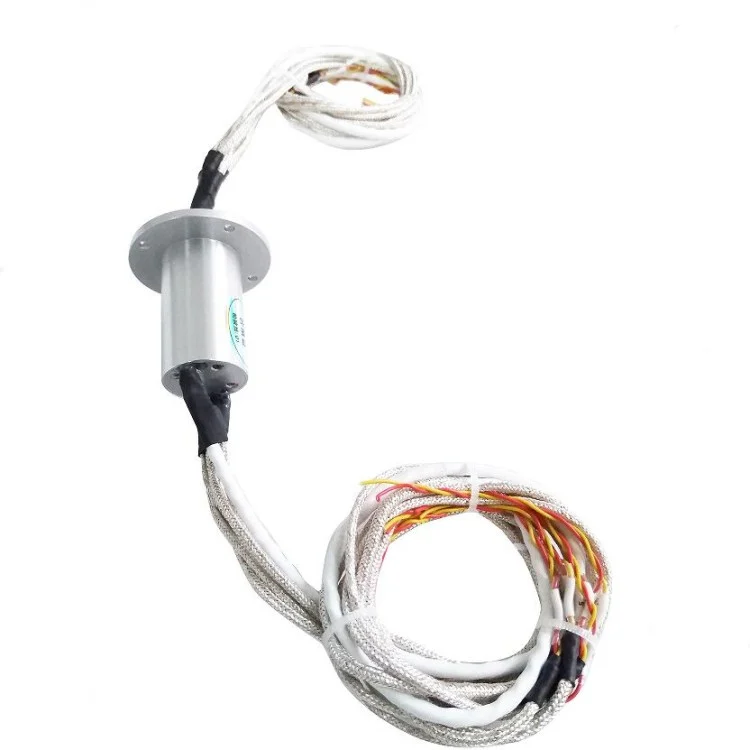

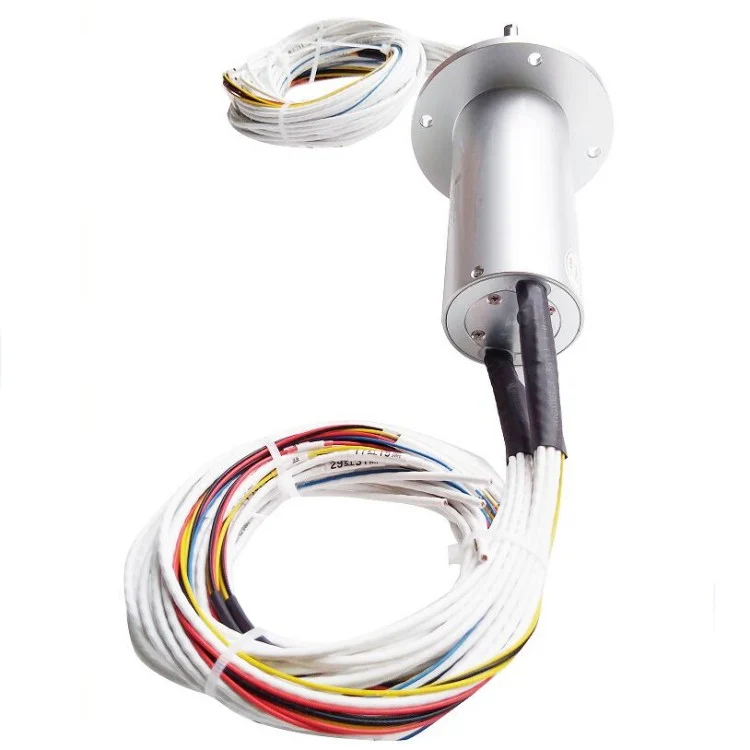

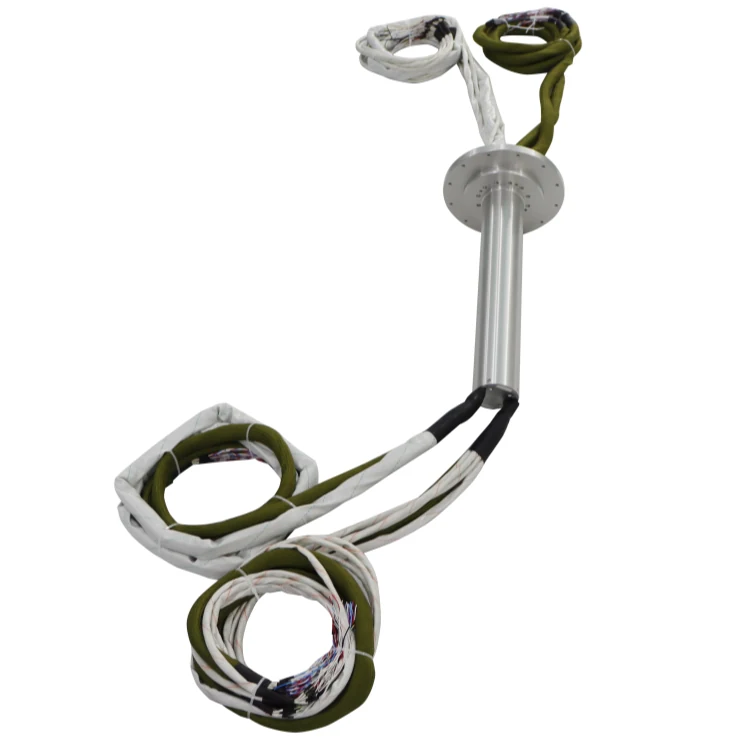

Capsulated Slip Rings

A capsulated slip ring is a sealed cylinder with a solid shaft: the rotor turns, the stator stays still, and both ends leave the body as flying leads. It is the smallest way to get a rotating electrical connection into a tight assembly.

Open the Capsulated Slip Rings page
139 models

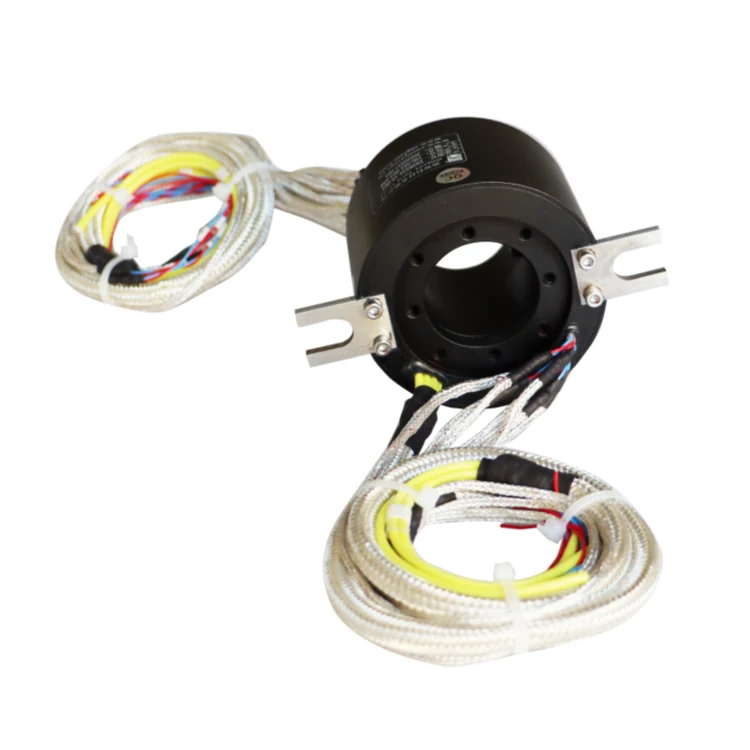

Customized Slip Rings

When the envelope, the channel mix or the environment does not match a catalogue model, INGIANT designs the slip ring around the machine instead of the other way round.

Open the Customized Slip Rings page
62 models

Fiber Optic Rotary Joints

A fibre optic rotary joint passes light across a rotating interface, so bandwidth, isolation and immunity to electrical noise survive continuous rotation where copper cannot follow.

Open the Fiber Optic Rotary Joints page
15 models

HD-SDI Slip Rings

An HD-SDI slip ring carries uncompressed high definition video from a camera on a continuously rotating platform to the fixed recorder or switcher, without dropped frames at the joint.

Open the HD-SDI Slip Rings page
106 models

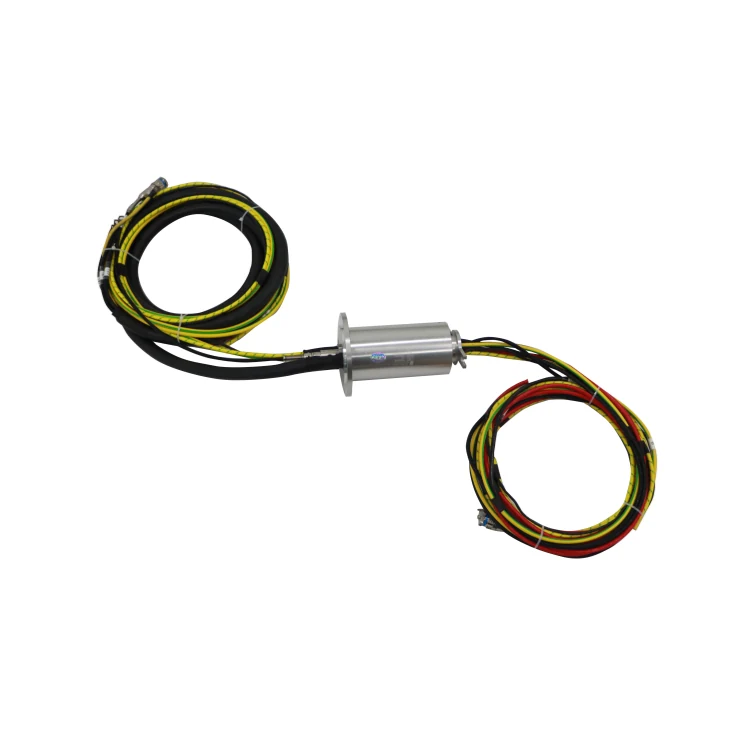

Hybrid Slip Rings

A hybrid slip ring puts more than one kind of transfer into a single rotating body — power rings plus optical fibre, pneumatic passages, liquid passages, RF coax or high speed data, all turning on one axis.

Open the Hybrid Slip Rings page
77 models

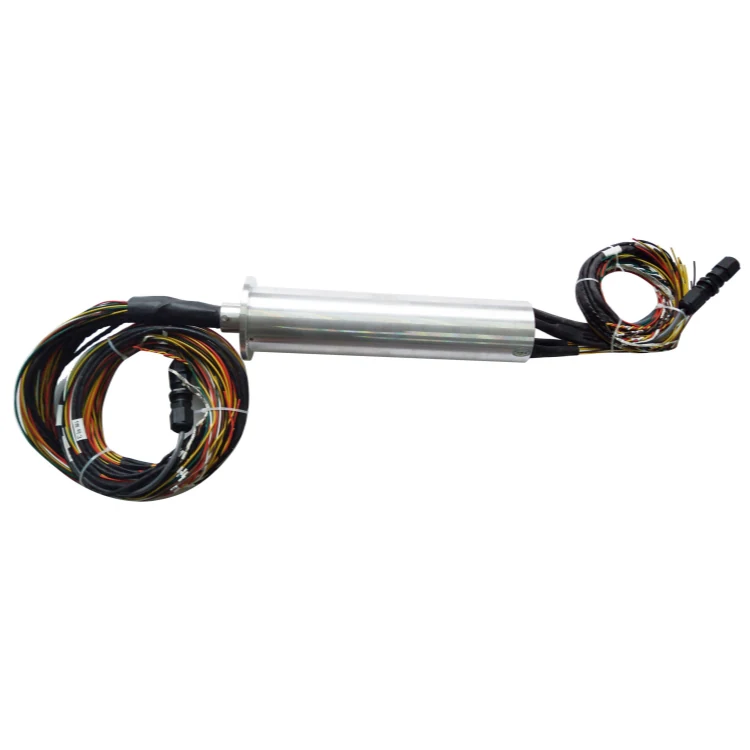

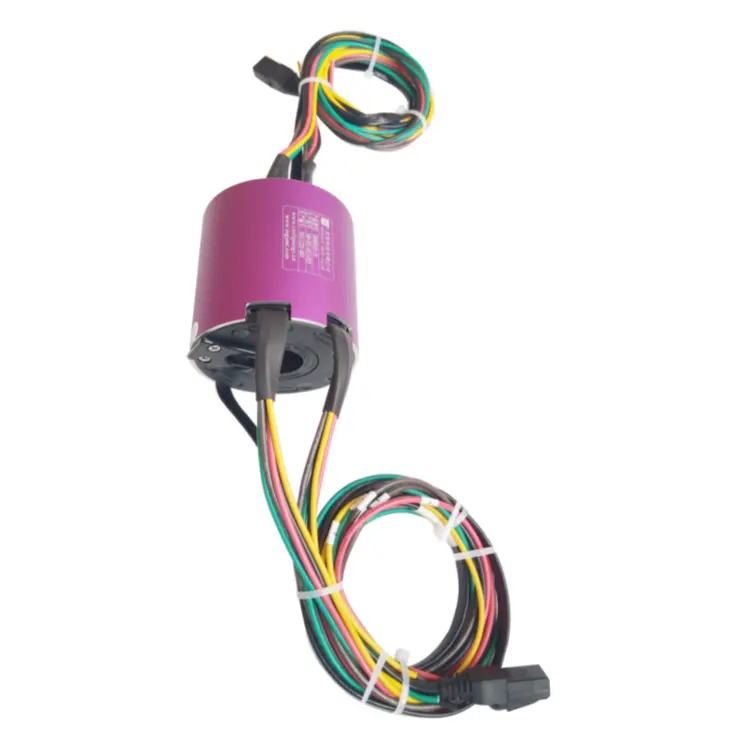

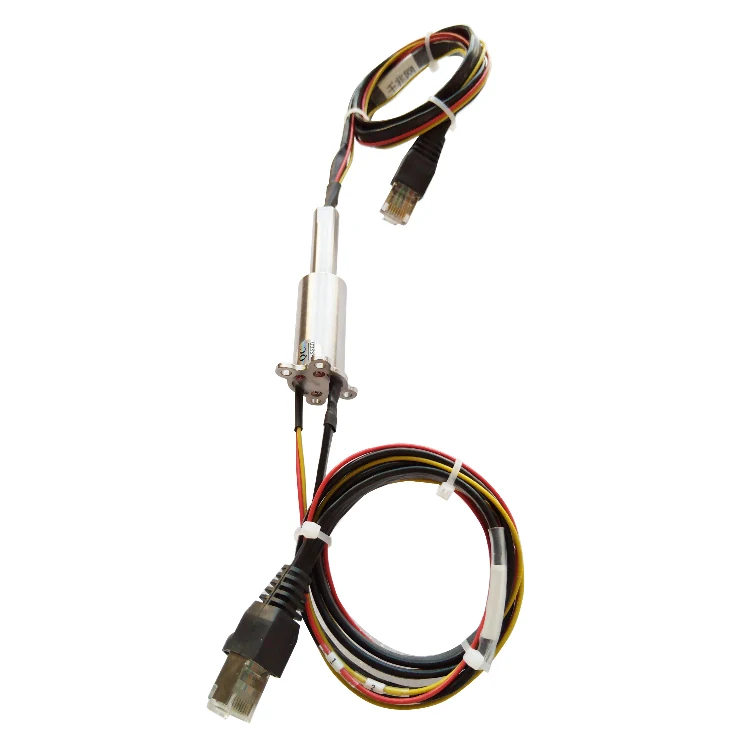

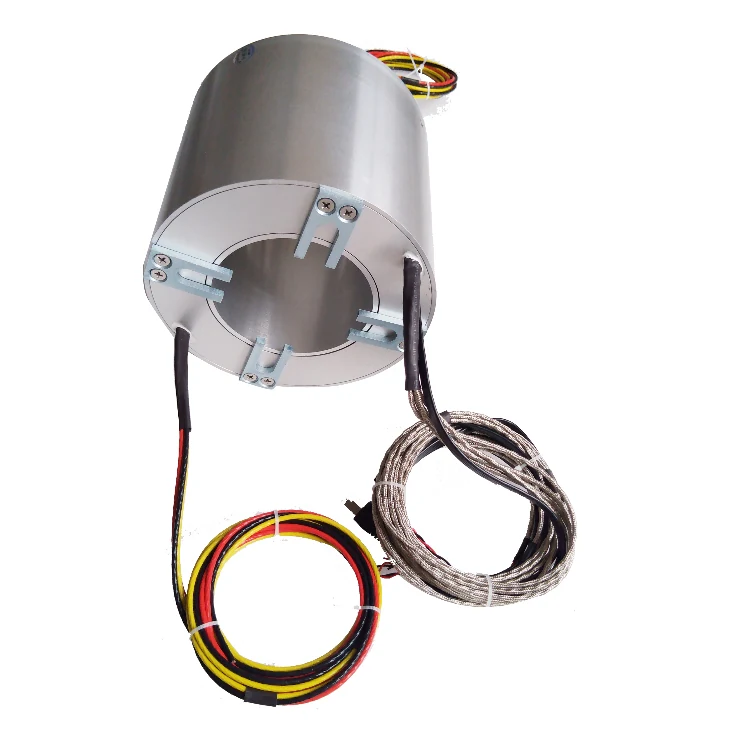

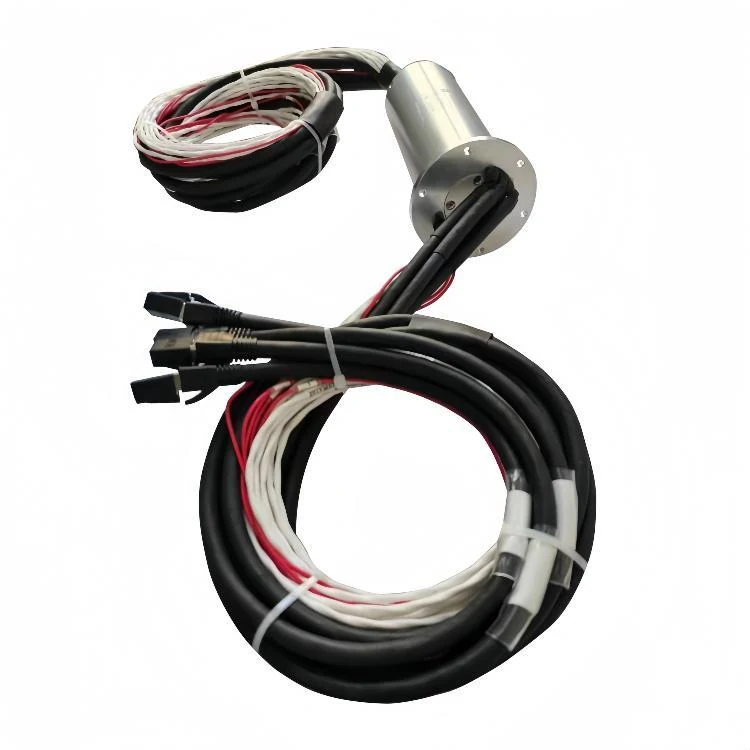

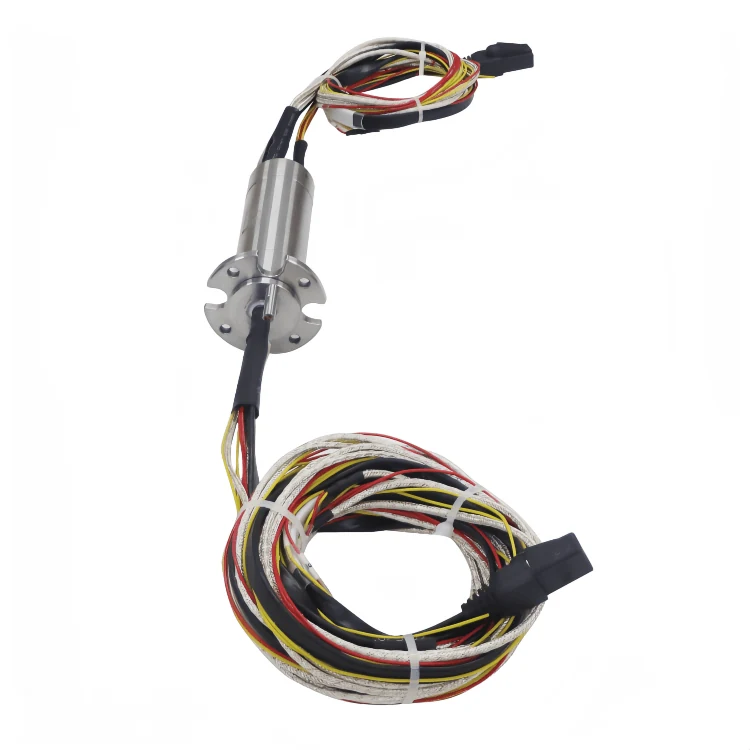

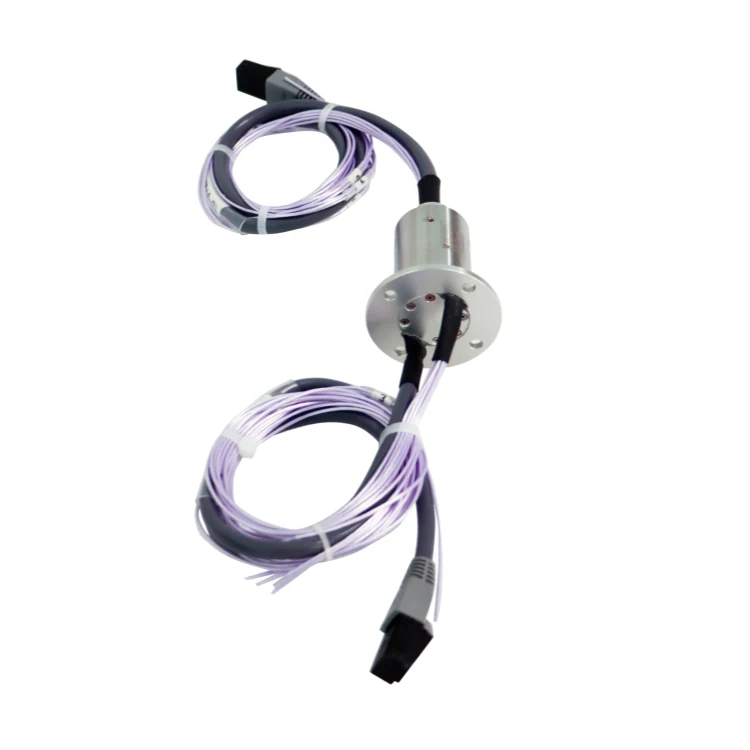

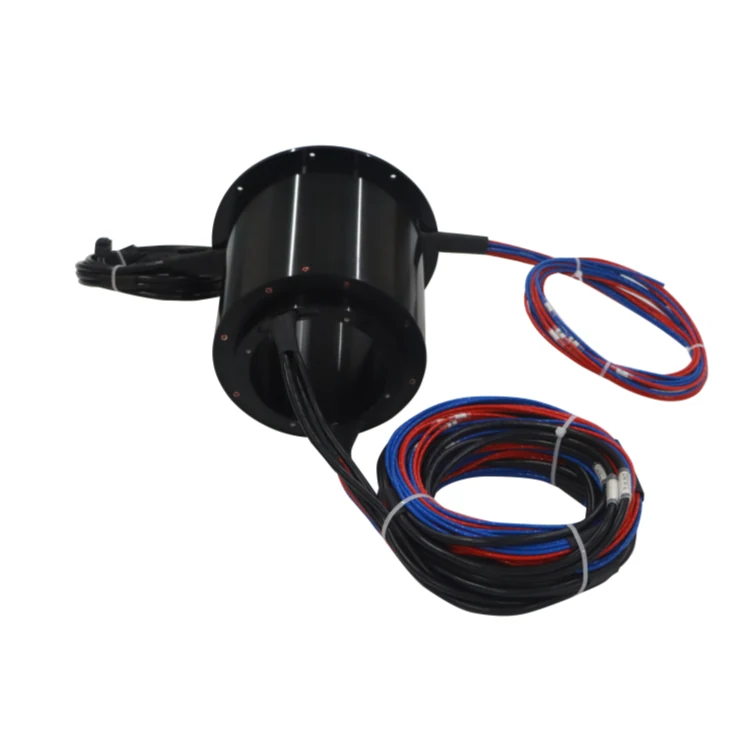

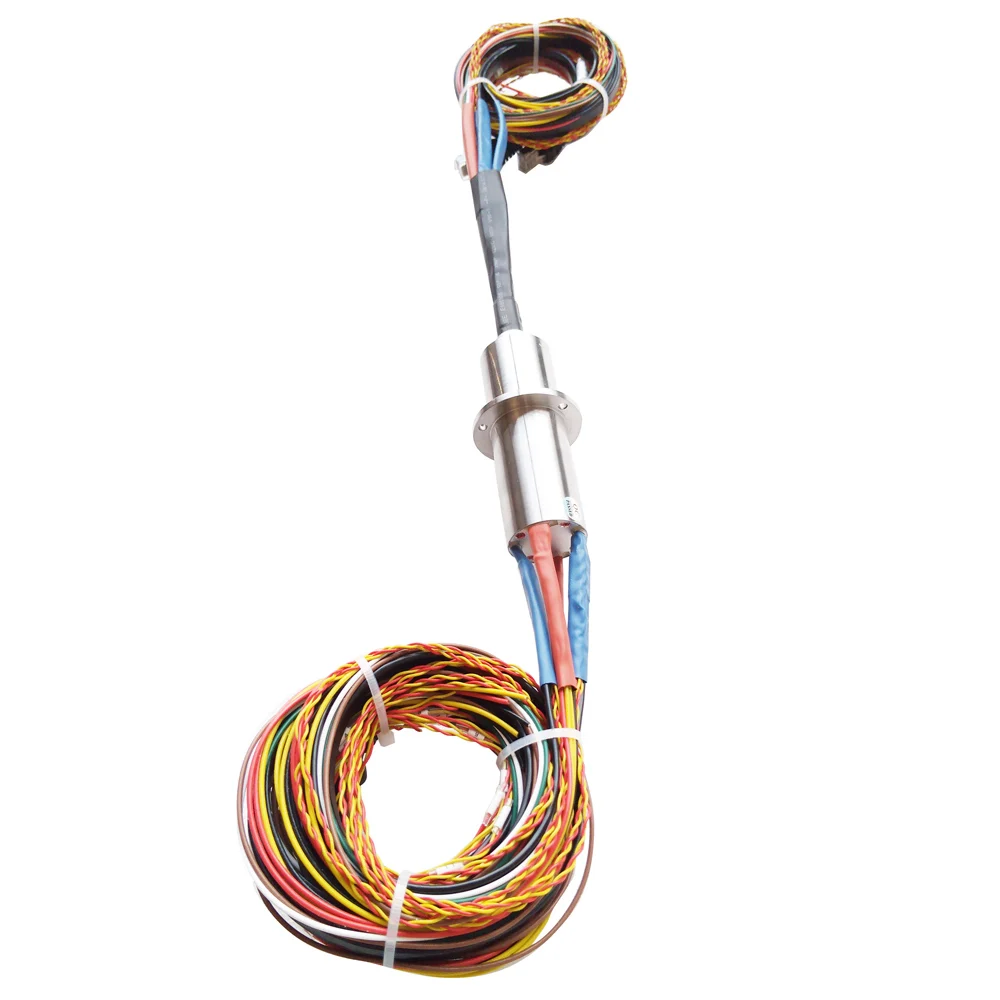

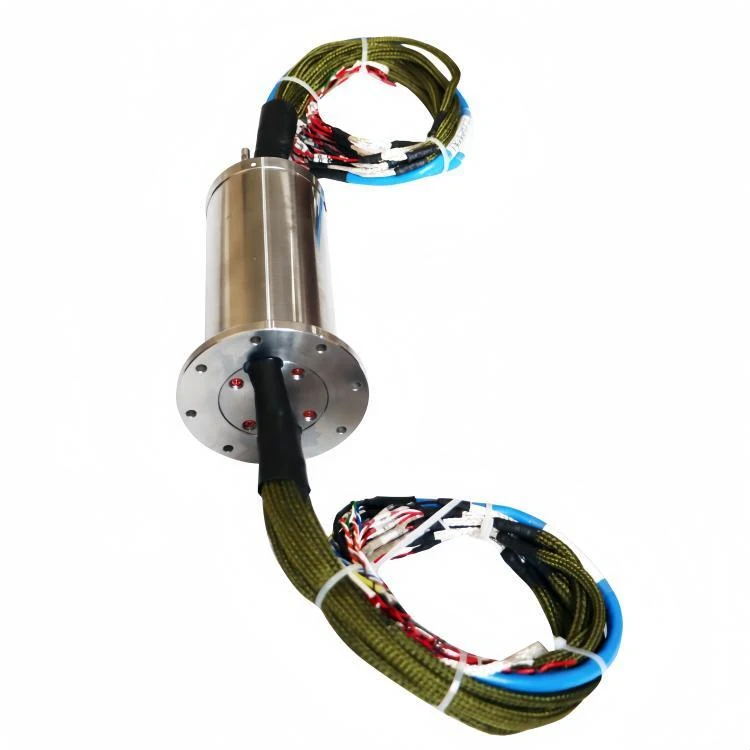

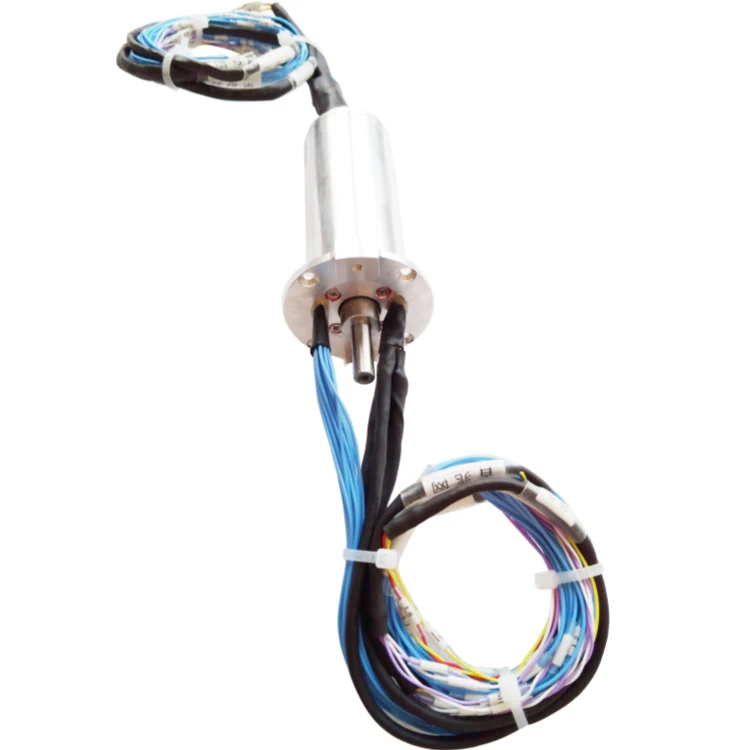

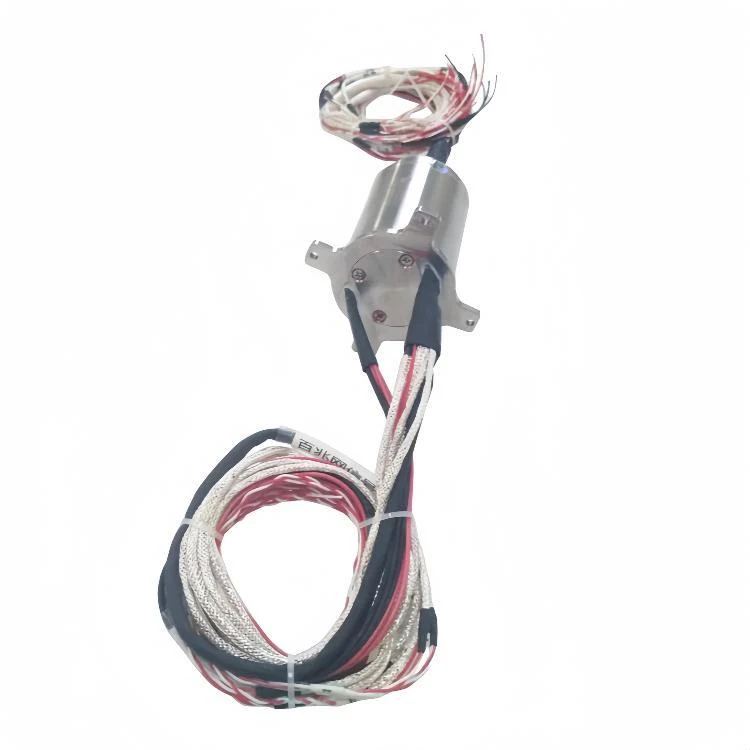

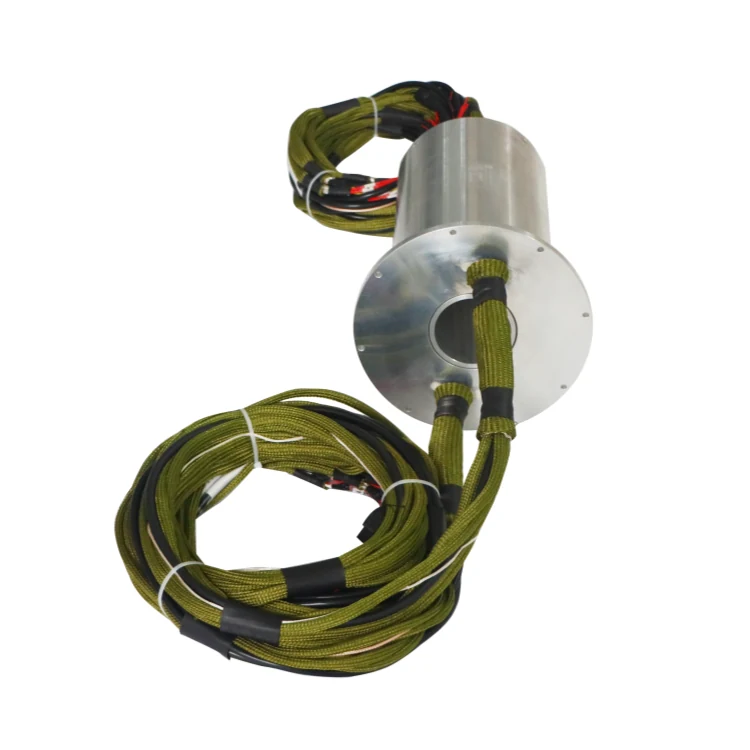

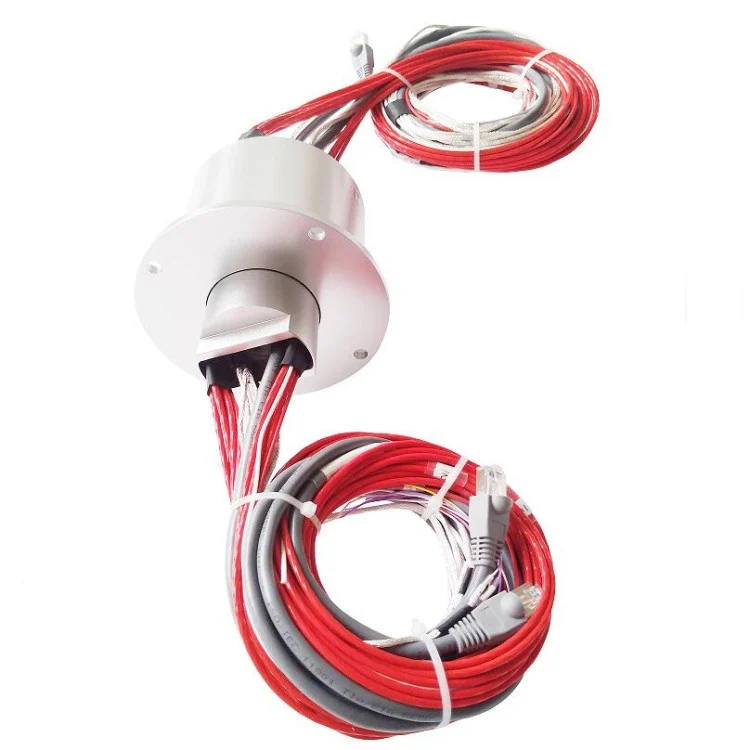

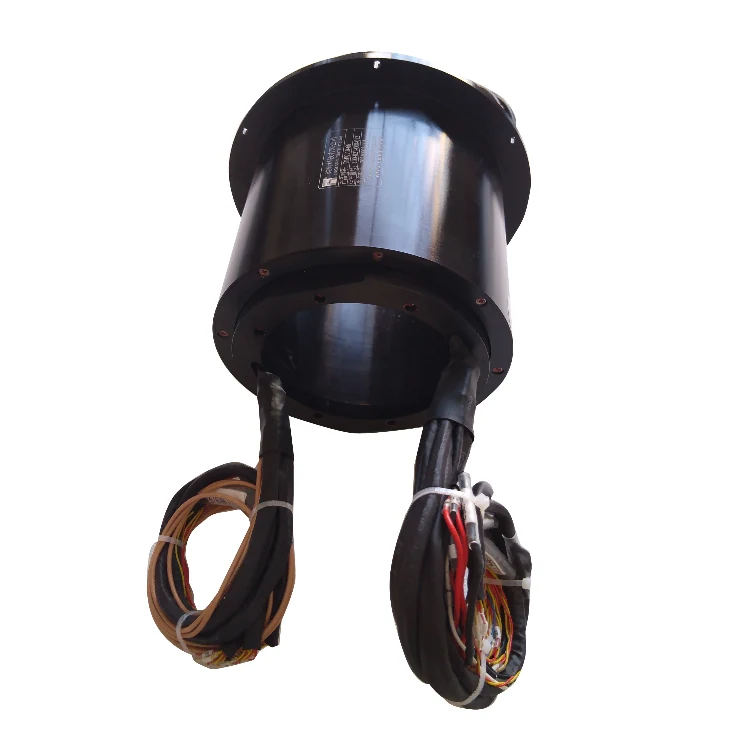

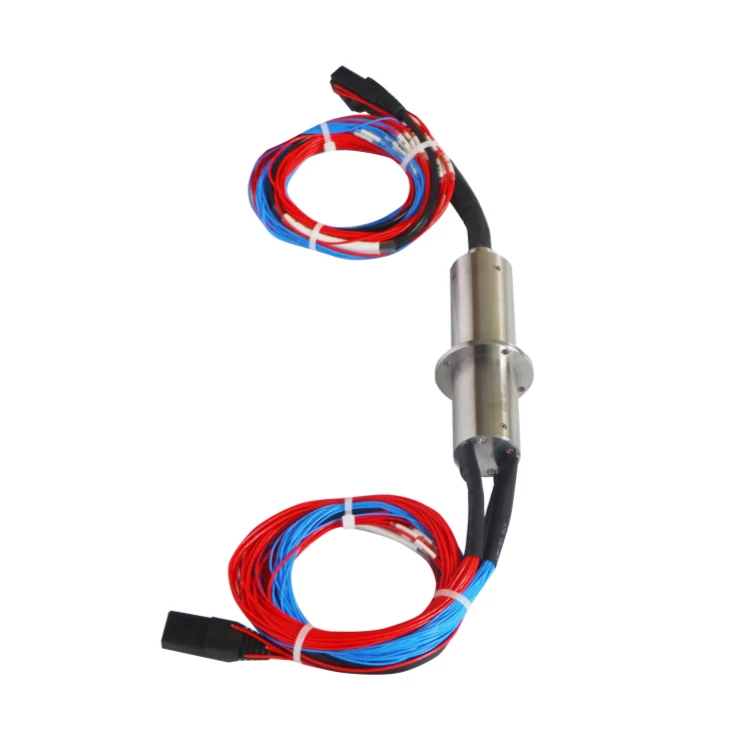

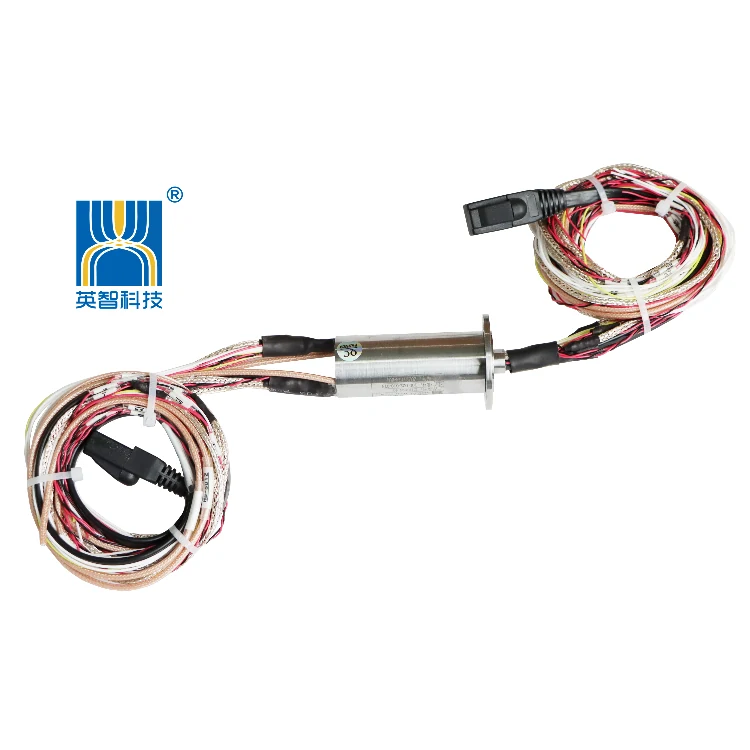

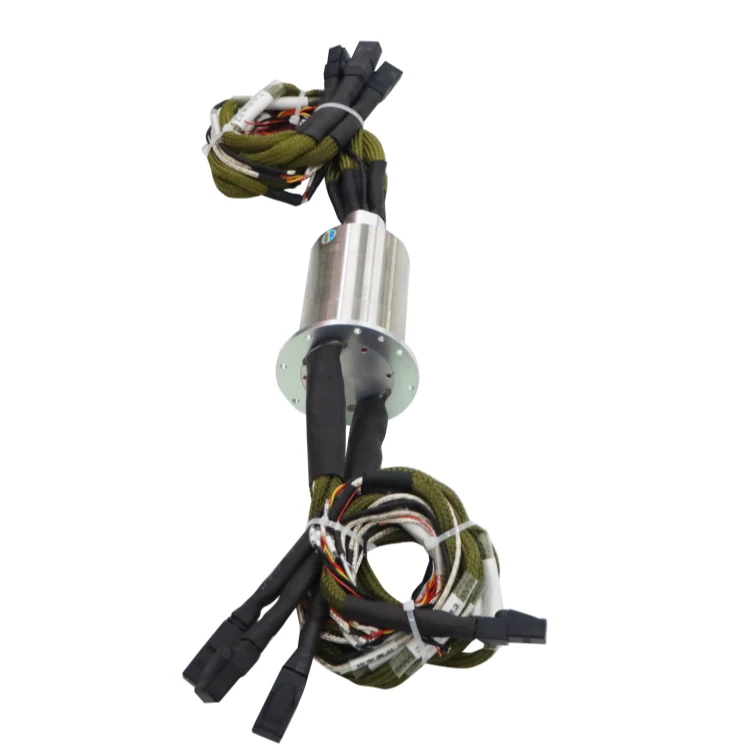

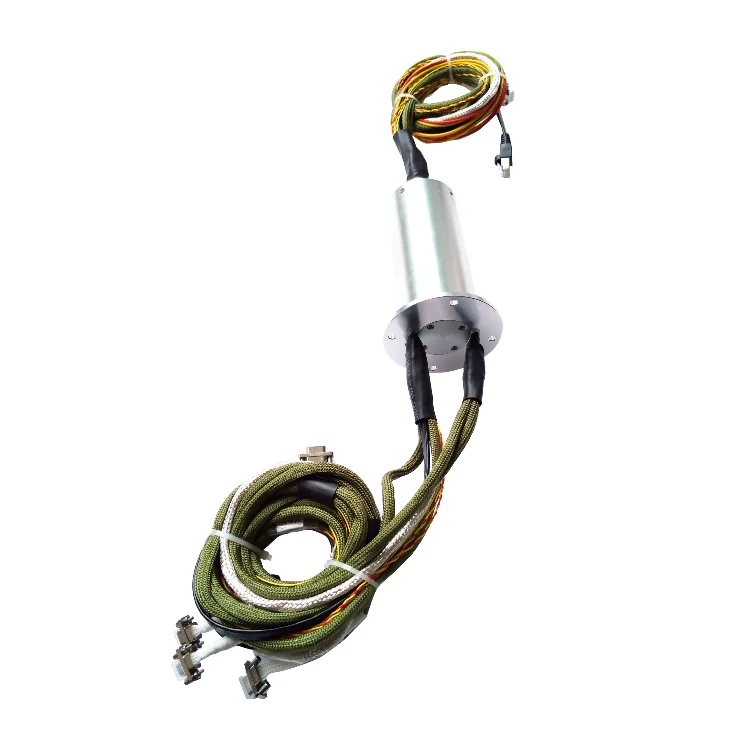

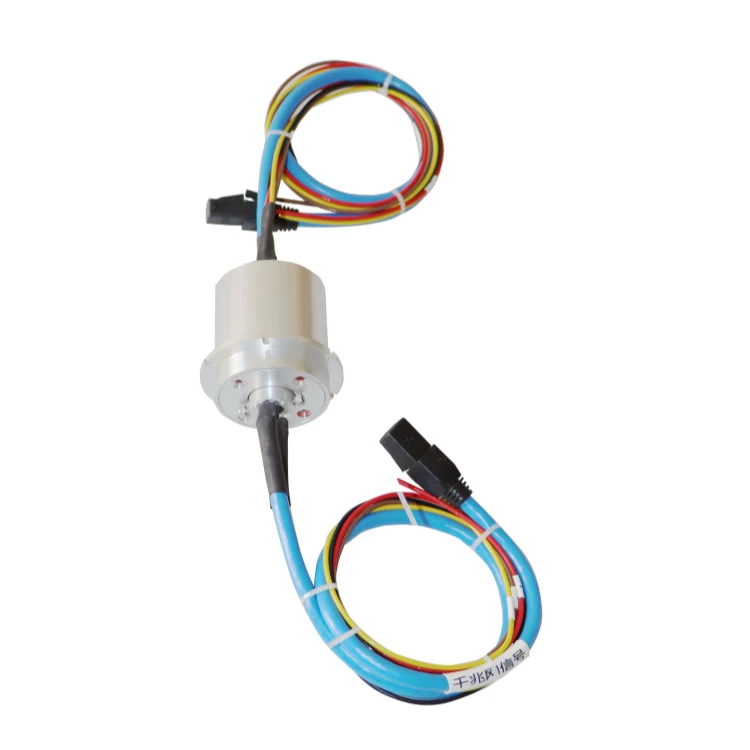

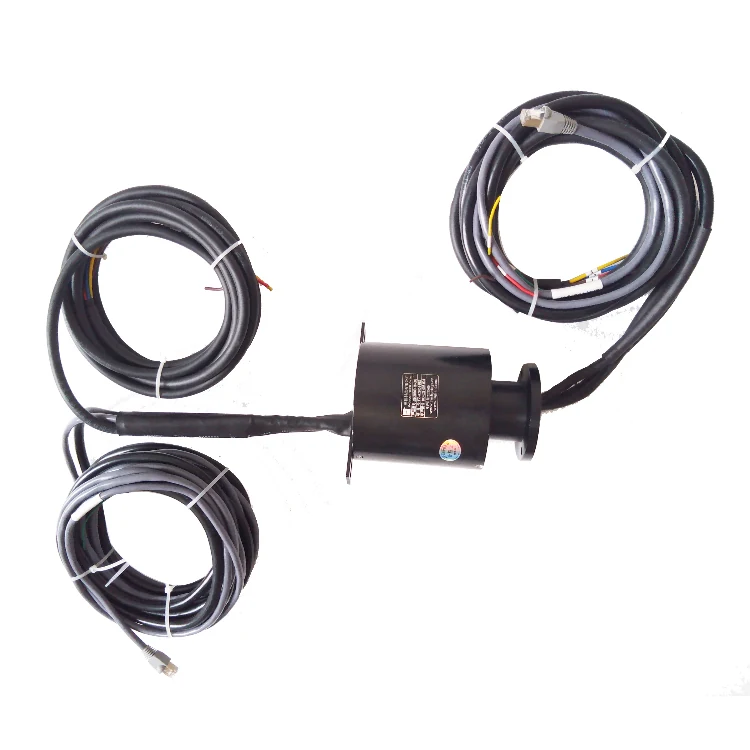

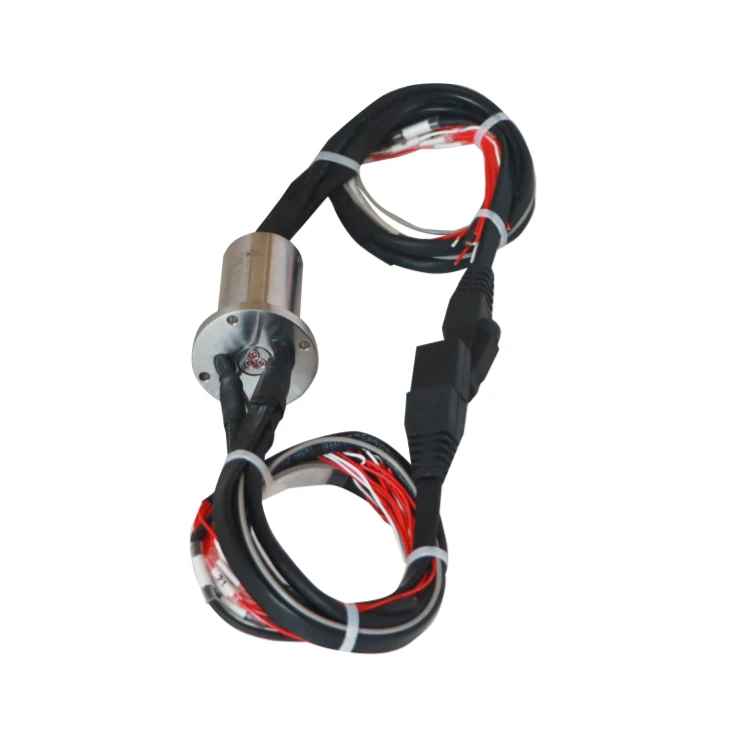

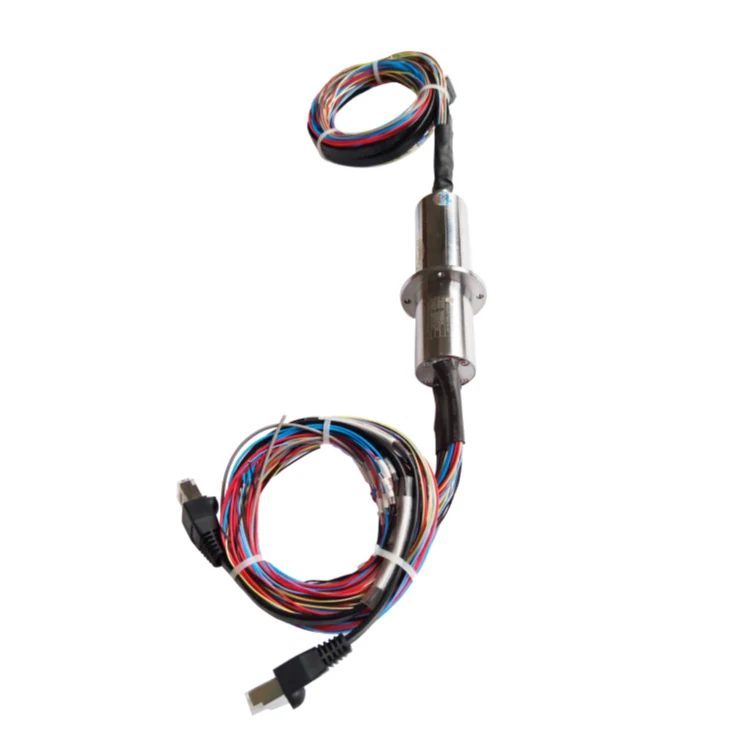

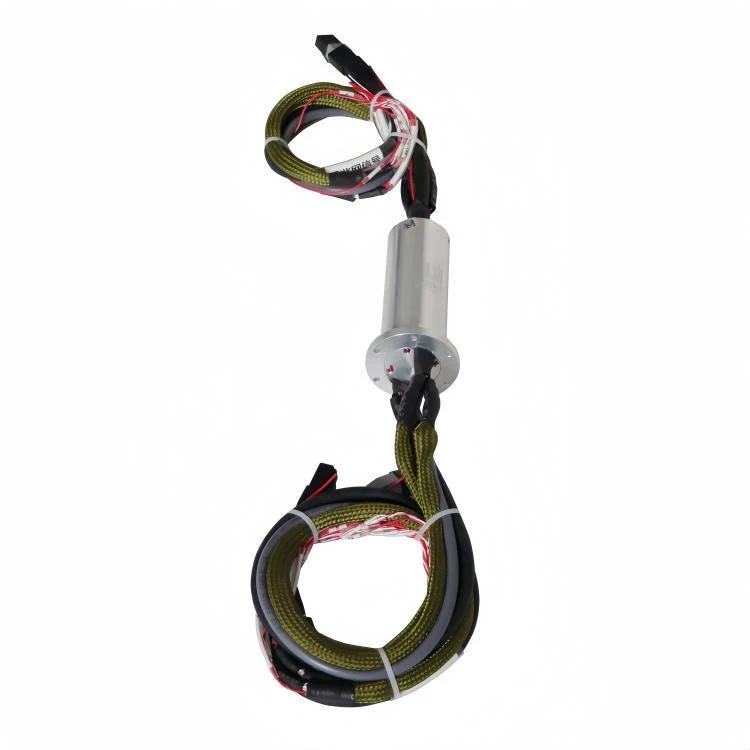

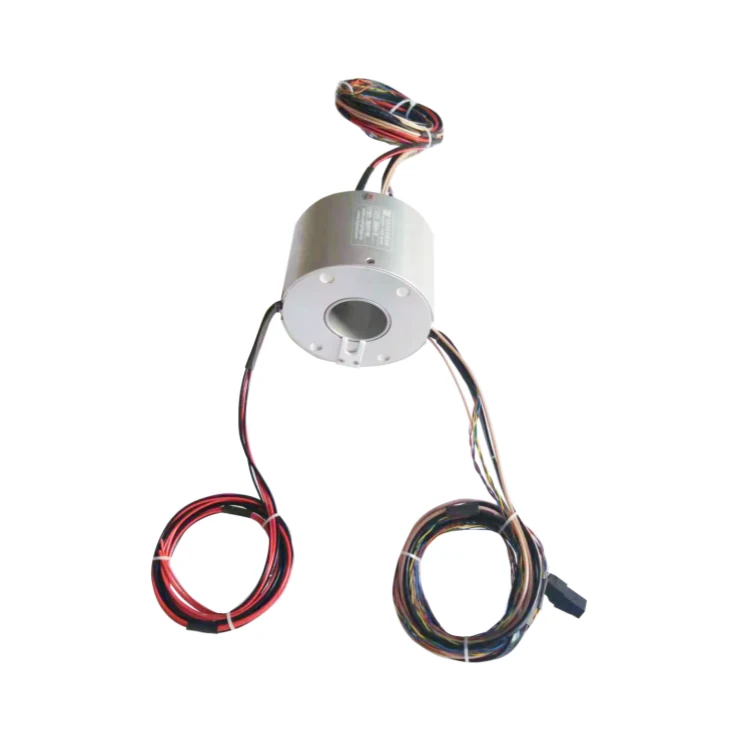

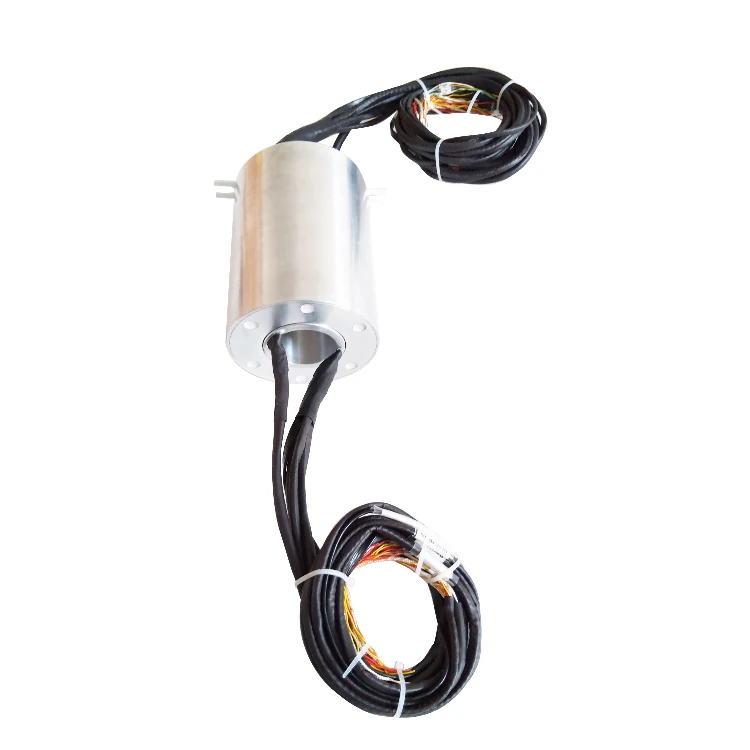

Ethernet Slip Rings

An Ethernet slip ring — also called a network slip ring or RJ45 slip ring — carries 10/100/1000 Base-T traffic through a rotating interface together with the power rings that feed the rotating side.

Open the Ethernet Slip Rings page
1 models

Optical Transceivers

Optical transceivers convert between electrical and optical signals at each end of a fibre link, and are supplied with INGIANT fibre optic rotary joints so the rotating optical path arrives as a usable electrical interface.

Open the Optical Transceivers page
24 models

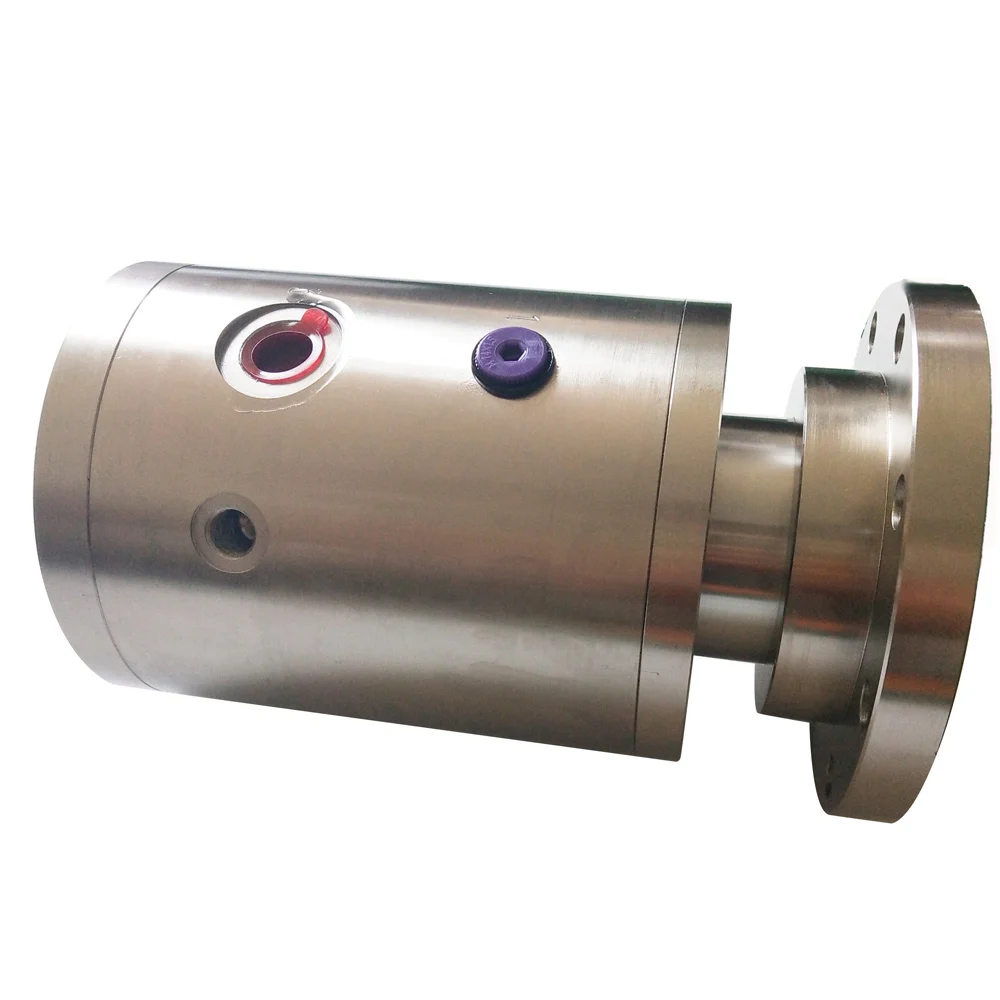

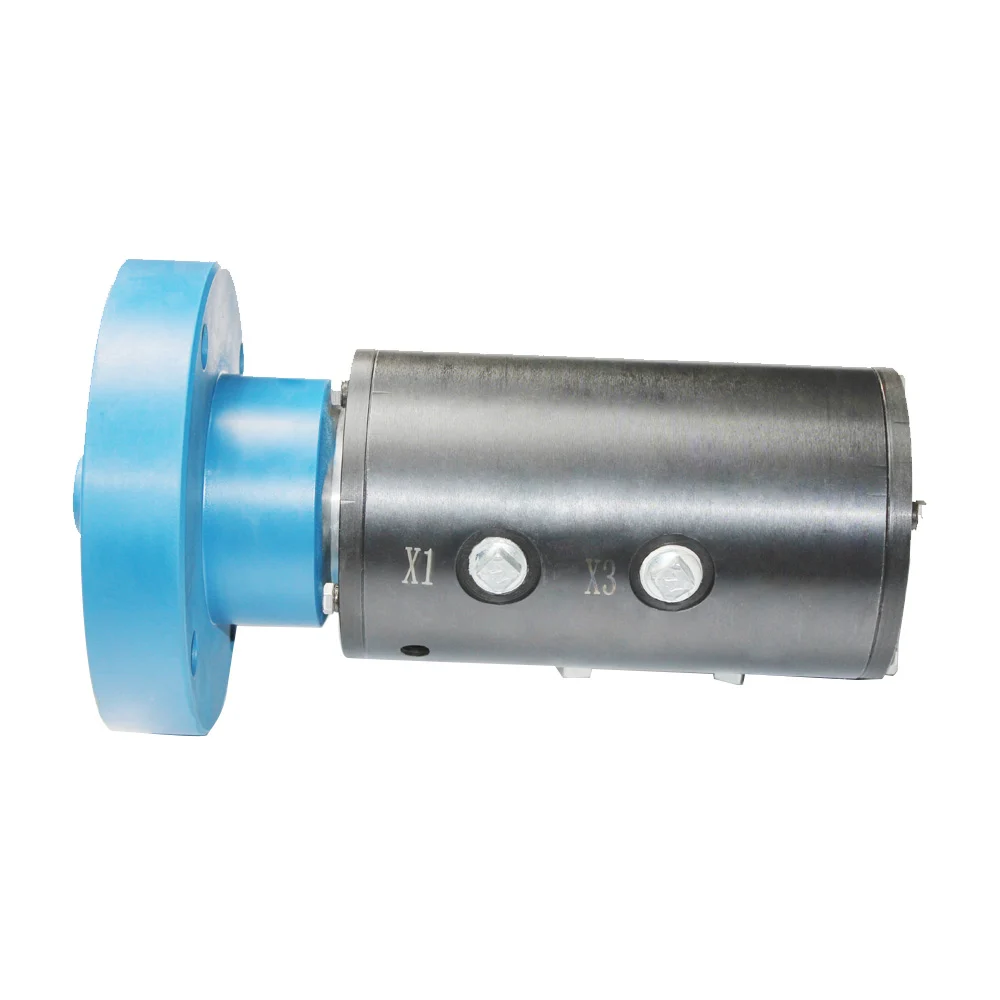

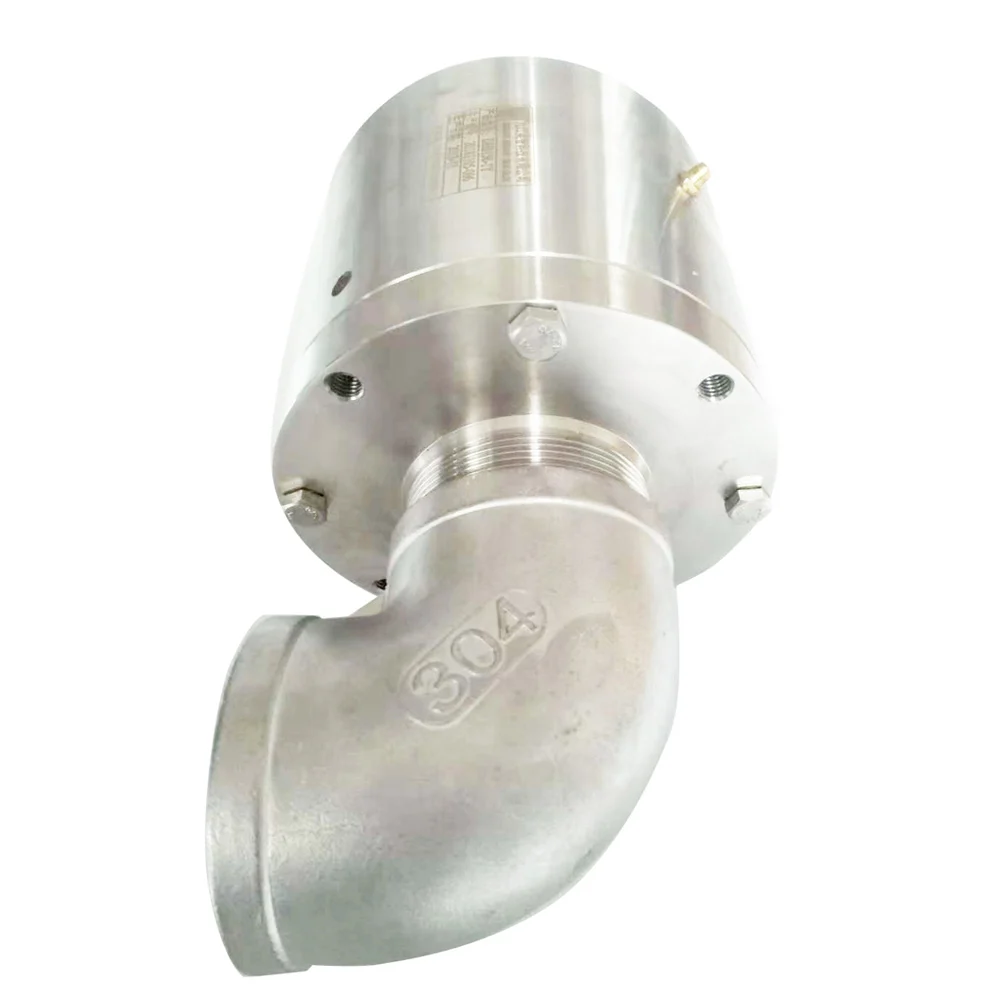

Pneumatic and Liquid Slip Rings

A pneumatic or liquid slip ring — a rotary union — carries compressed air, gas, water, oil, grease or emulsion across a rotating joint, on its own or combined with electrical rings in the same body.

Open the Pneumatic and Liquid Slip Rings page
27 models

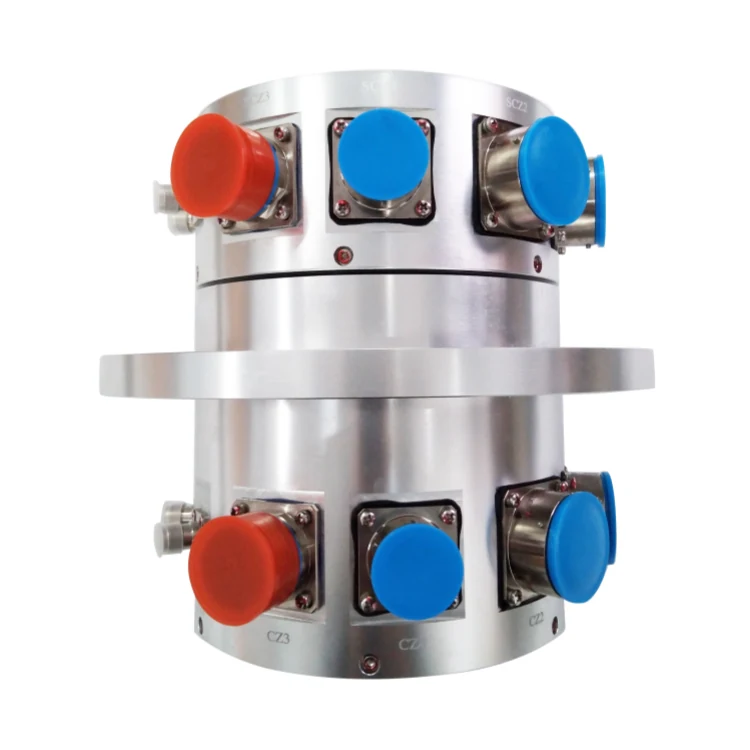

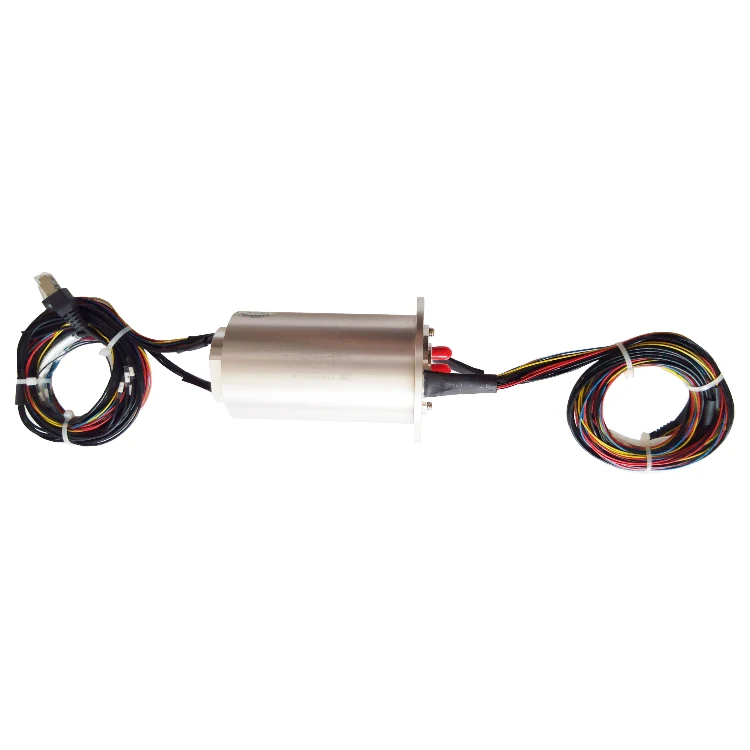

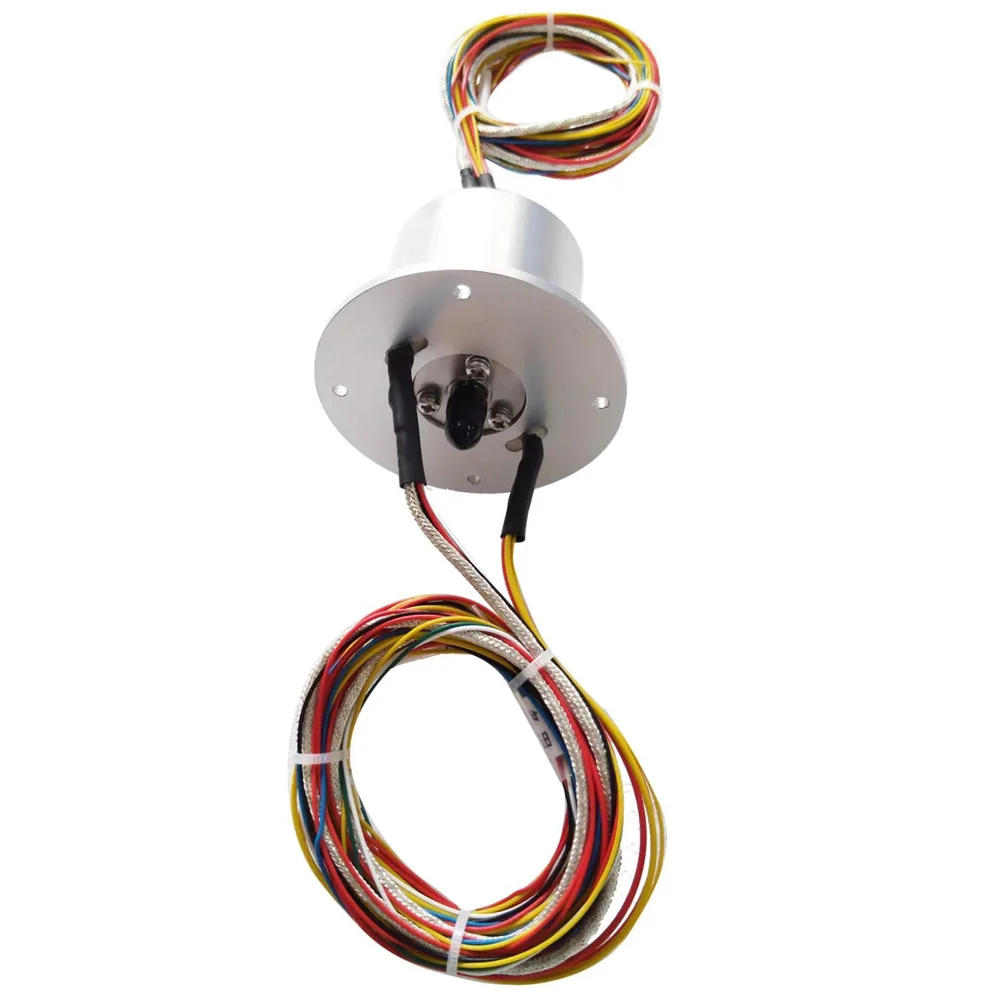

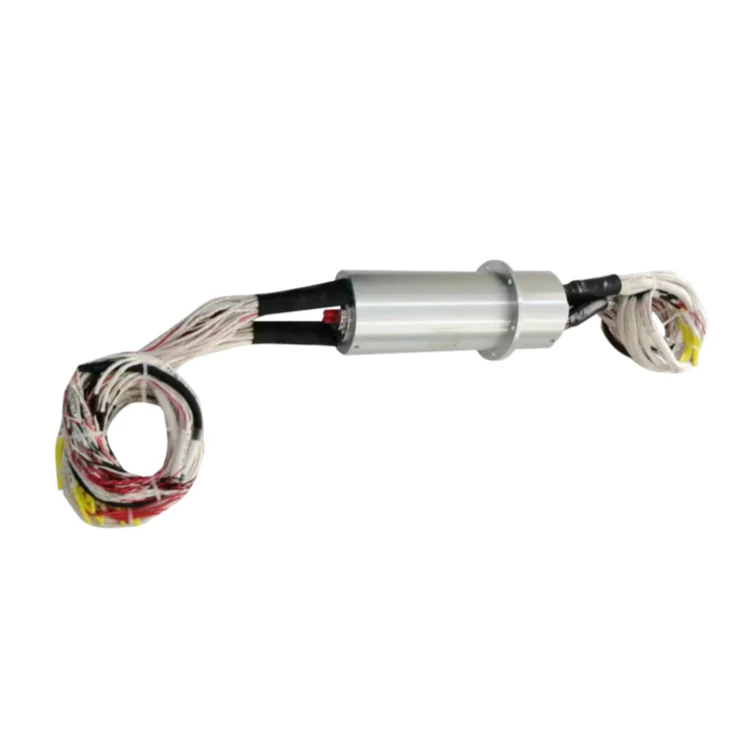

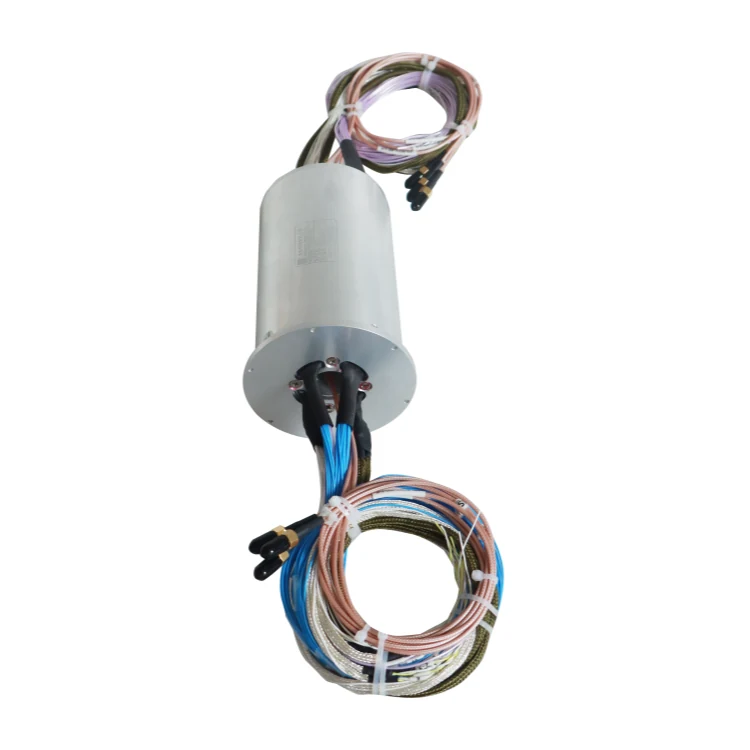

RF Rotary Joints and Coax Slip Rings

An RF rotary joint carries microwave and coaxial signals through a rotating interface while holding VSWR and insertion loss steady through the full turn.

Open the RF Rotary Joints and Coax Slip Rings page
11 models

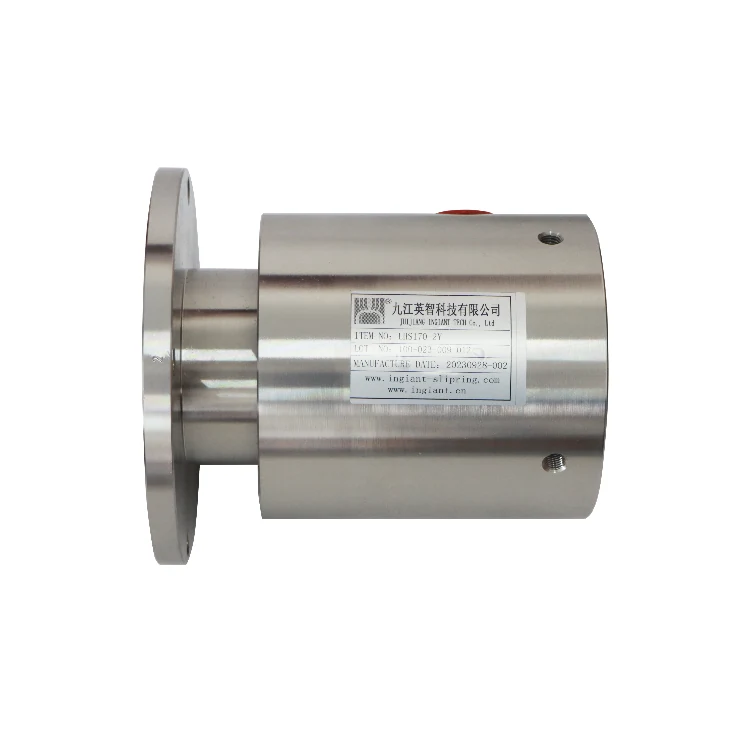

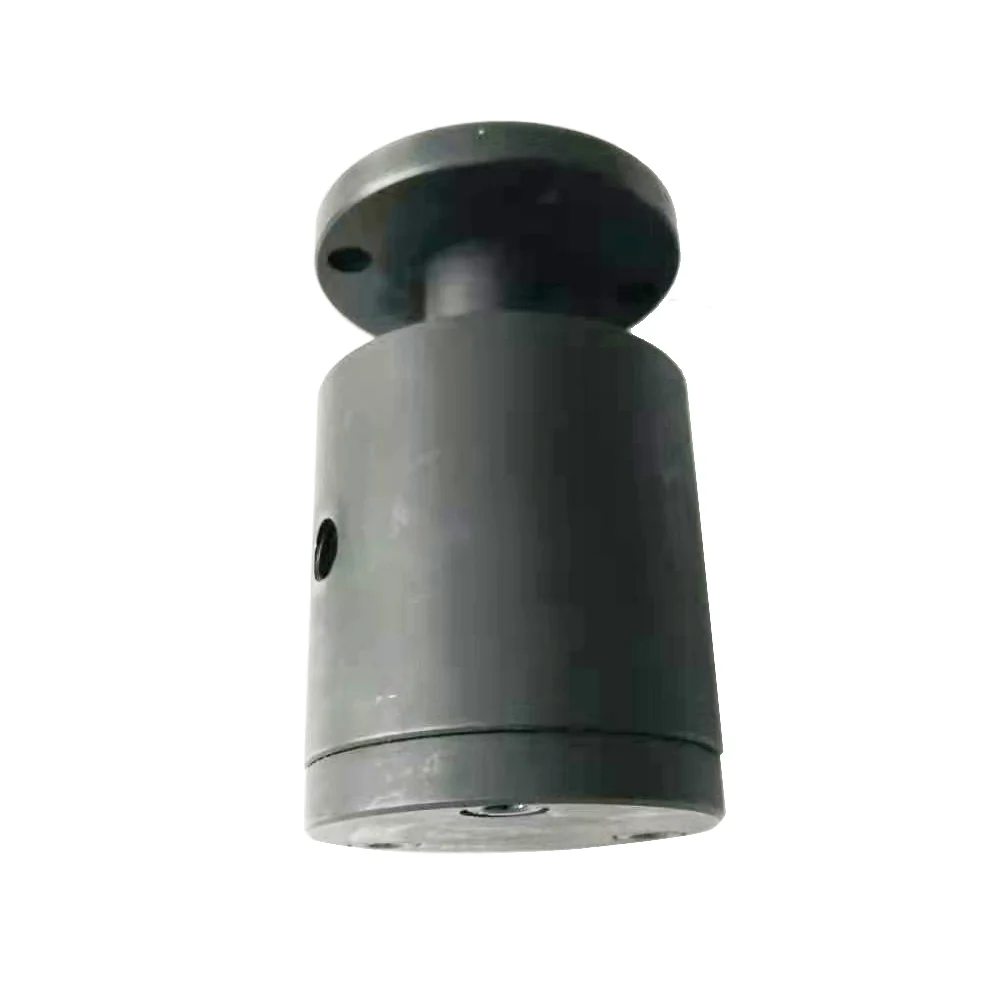

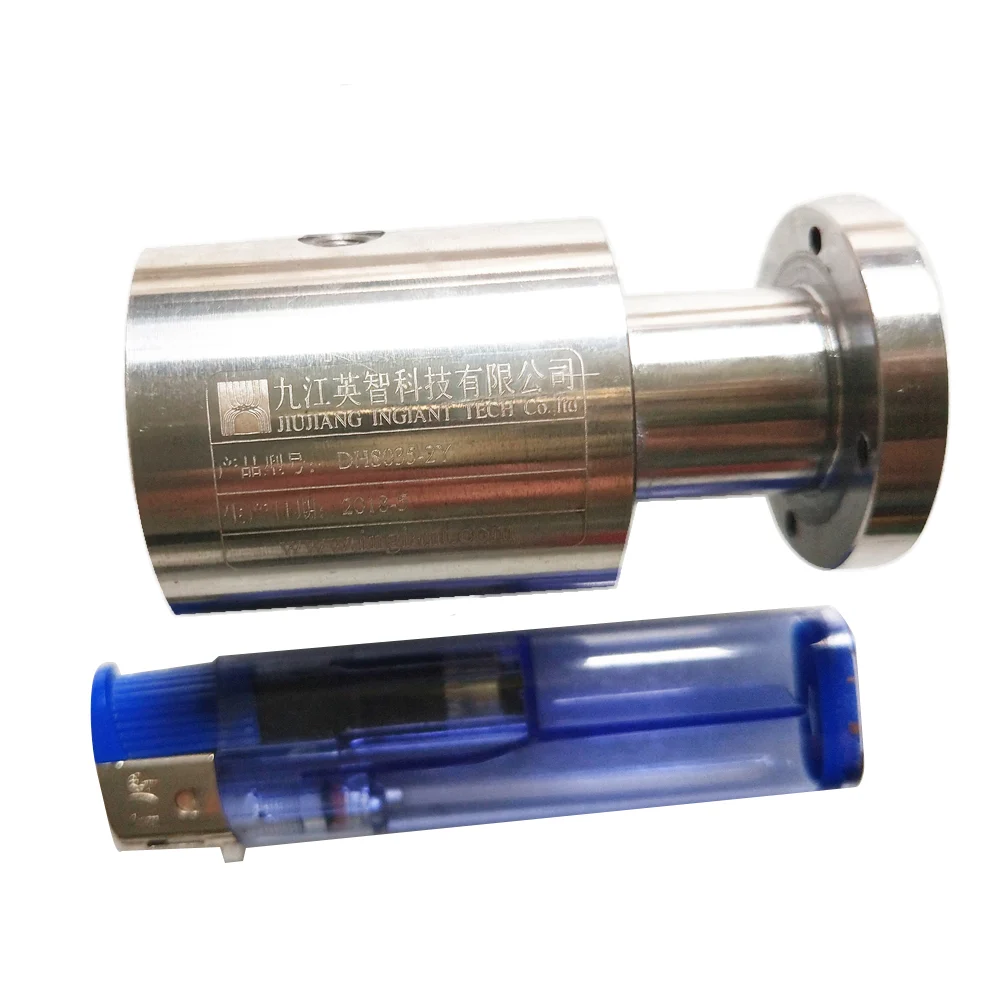

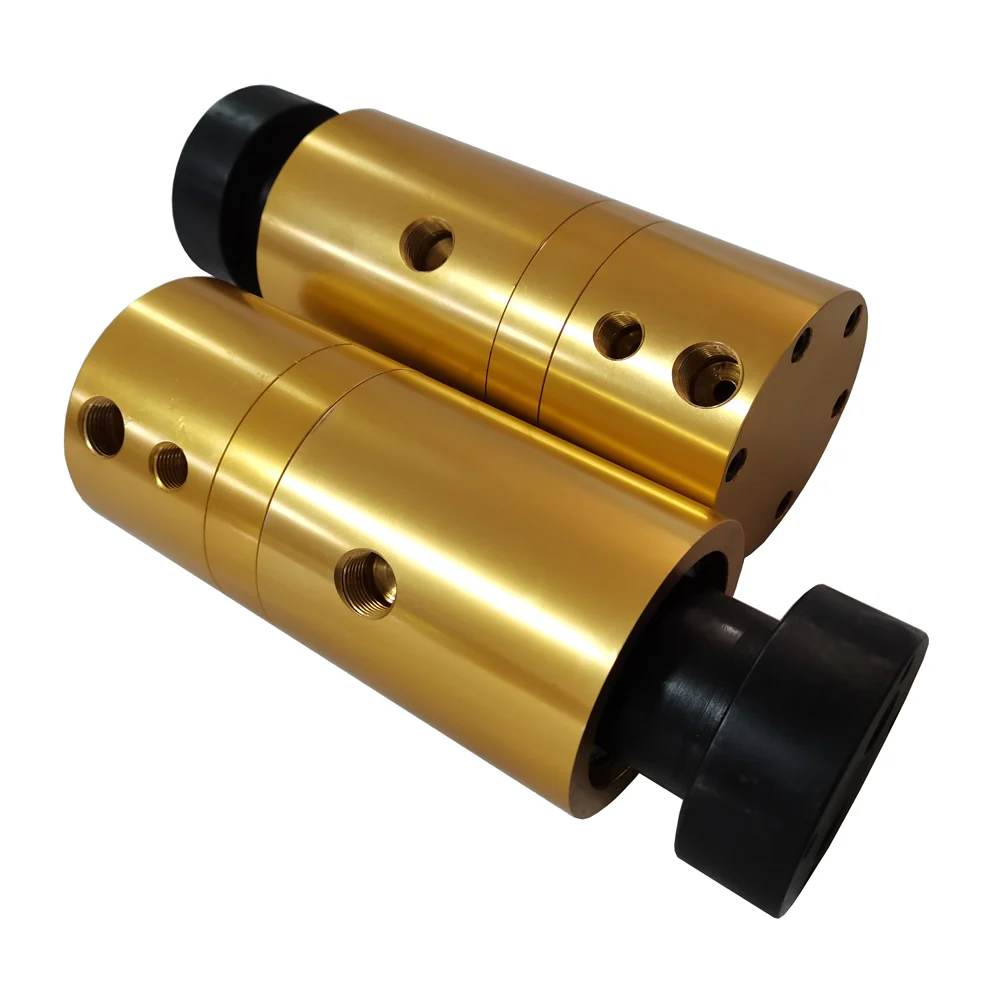

Rotary Joints

Rotary joints transfer a medium — fluid, gas, light or microwave energy — between a fixed and a rotating part, and are the mechanical counterpart to the electrical slip ring.

Open the Rotary Joints page
4 models

Separate Slip Rings

A separate slip ring supplies the ring stack and the brush block as two independent parts, so the machine builder mounts each one directly on the structure instead of fitting a packaged unit.

Open the Separate Slip Rings page
201 models

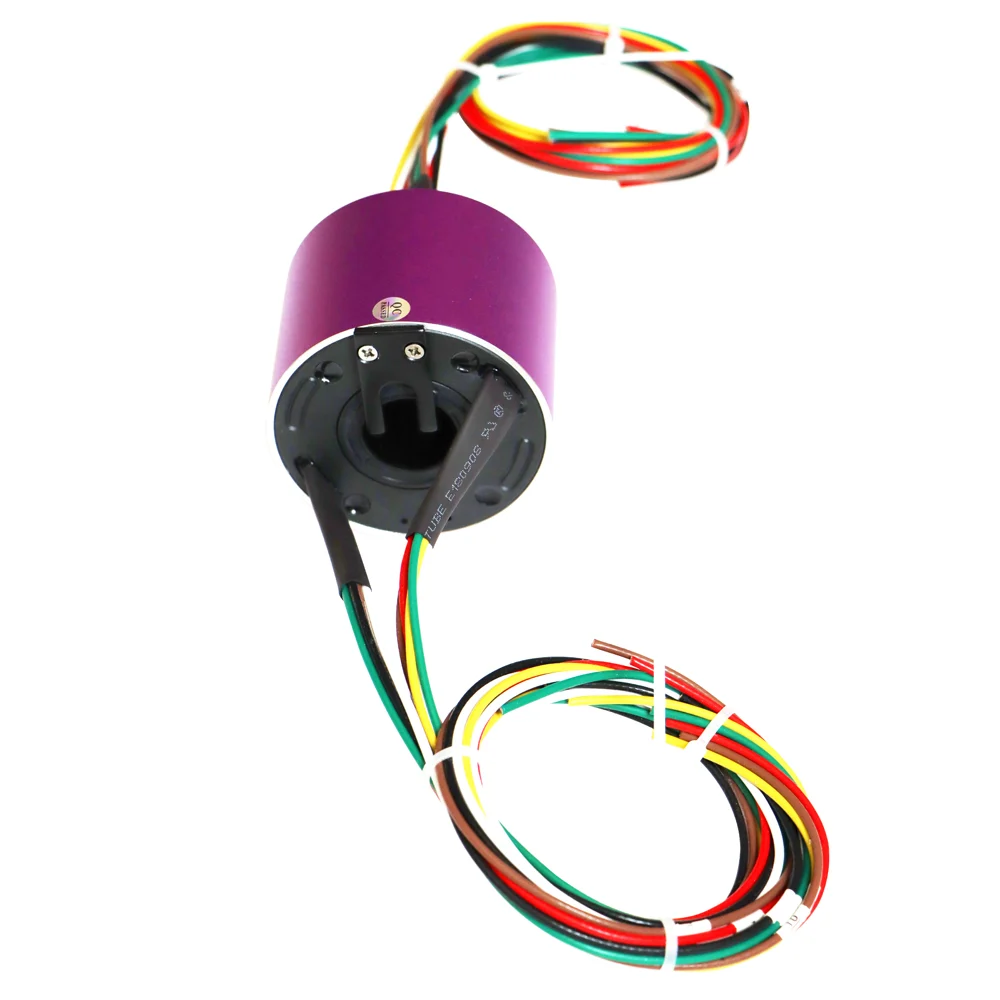

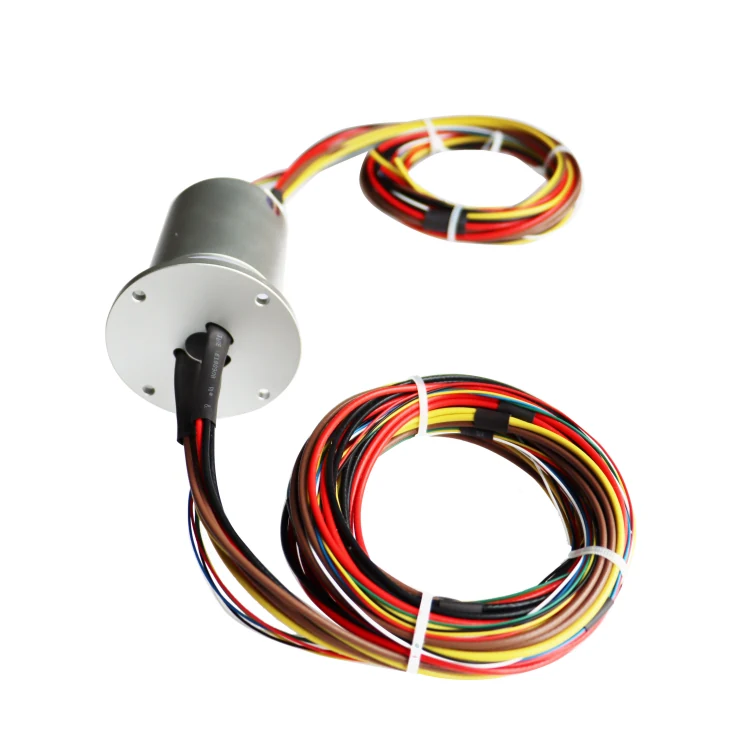

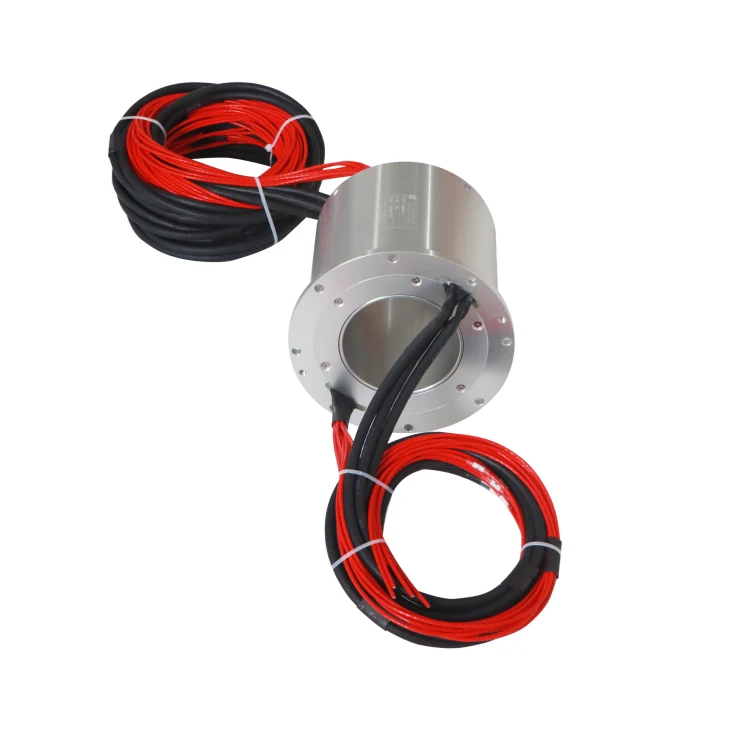

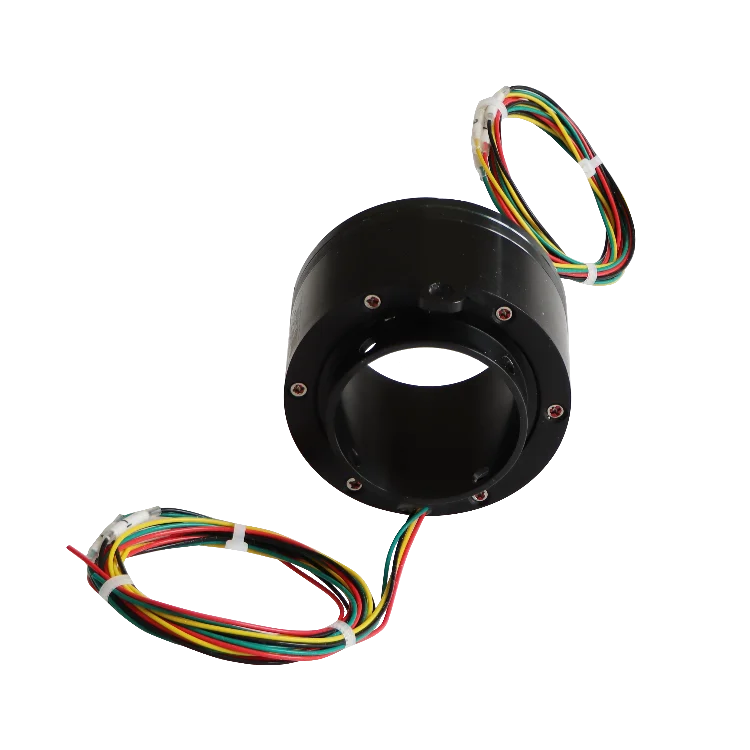

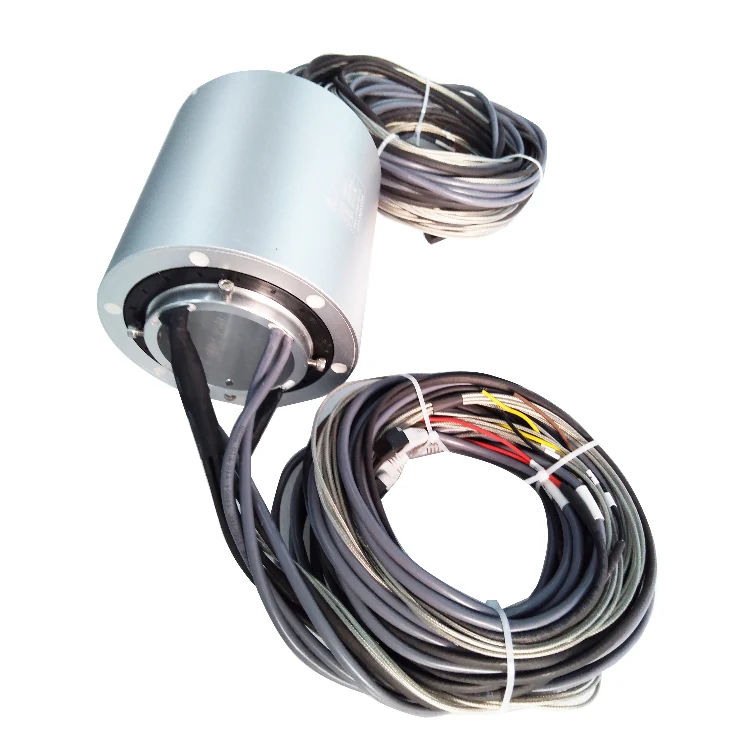

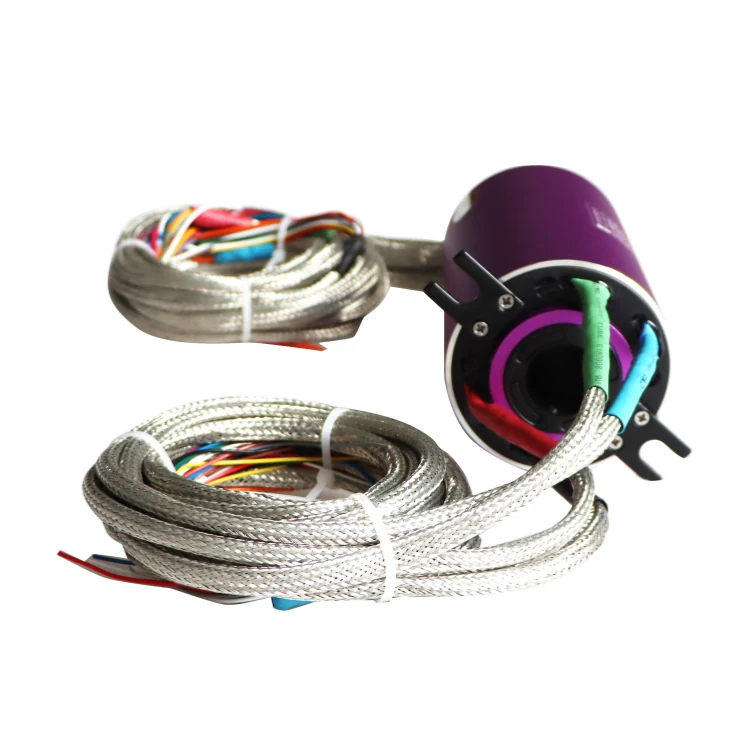

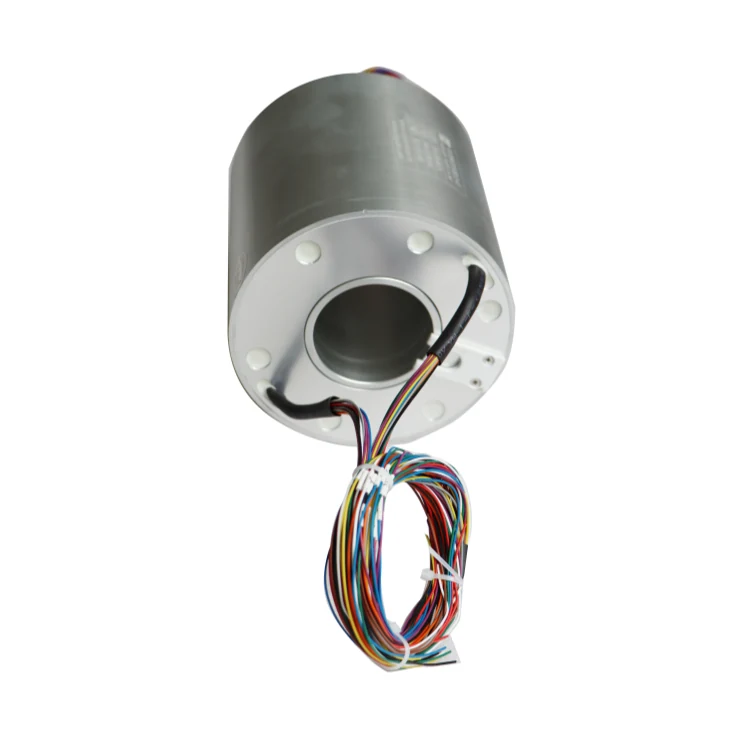

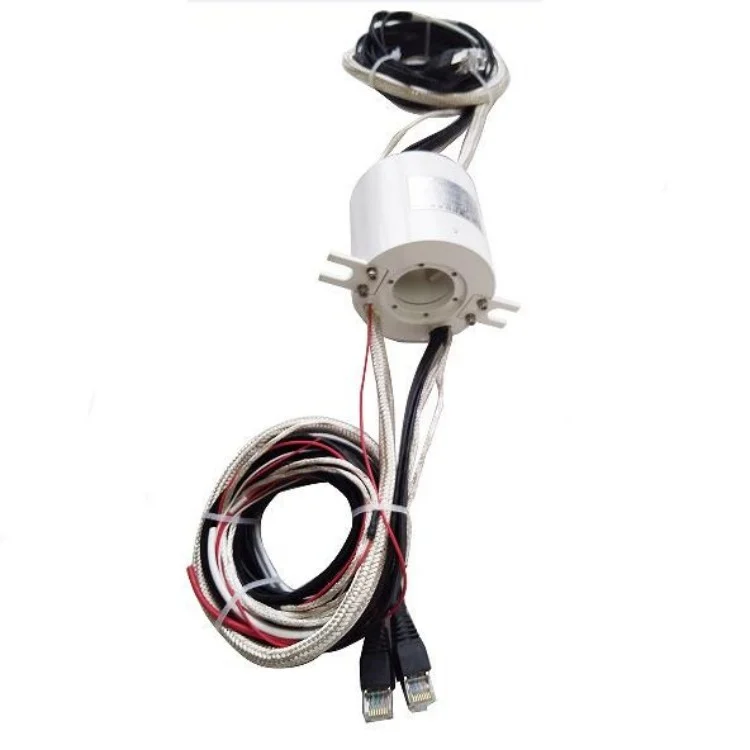

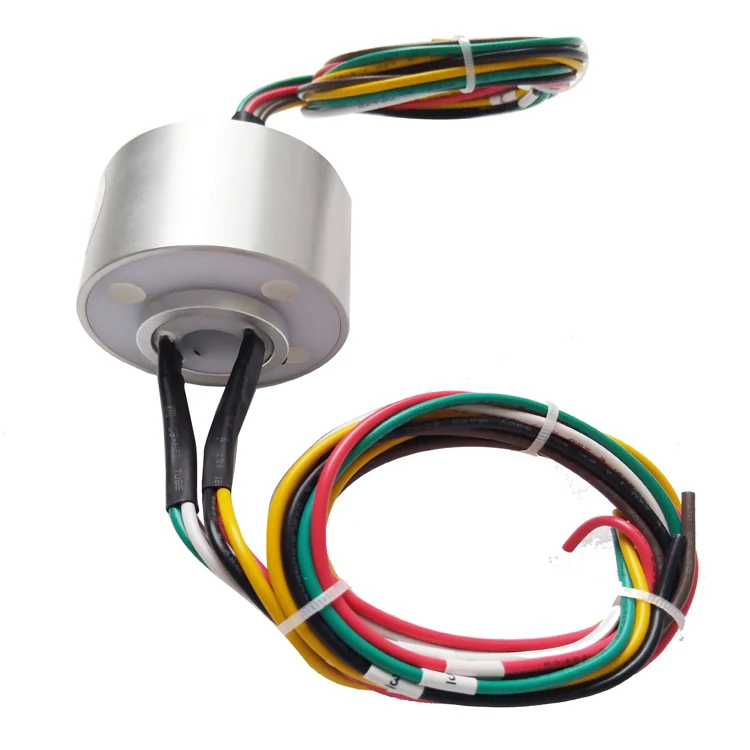

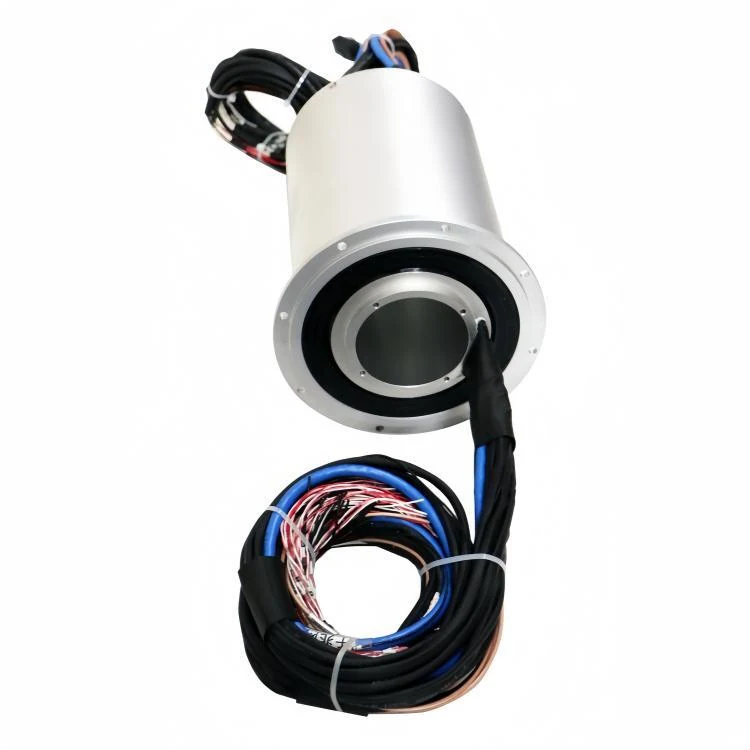

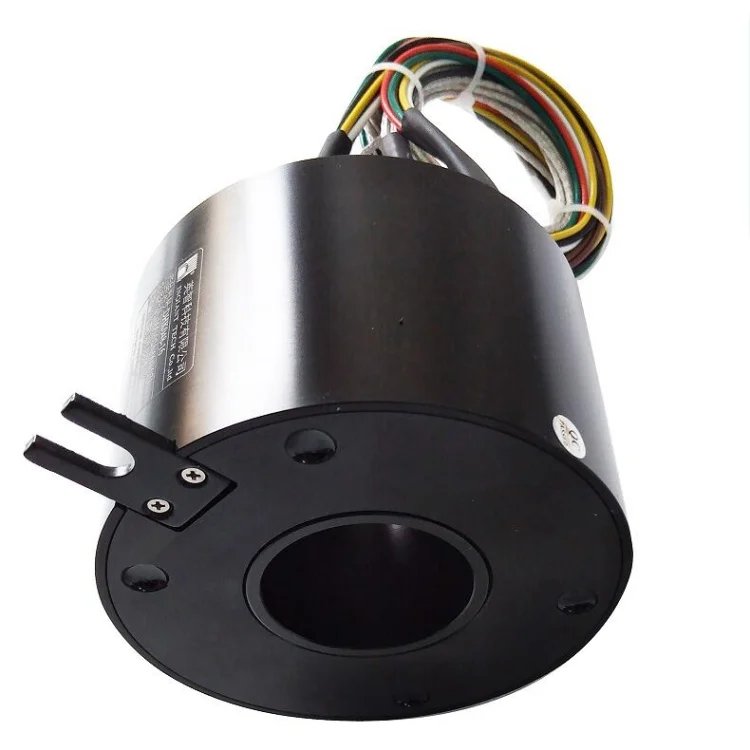

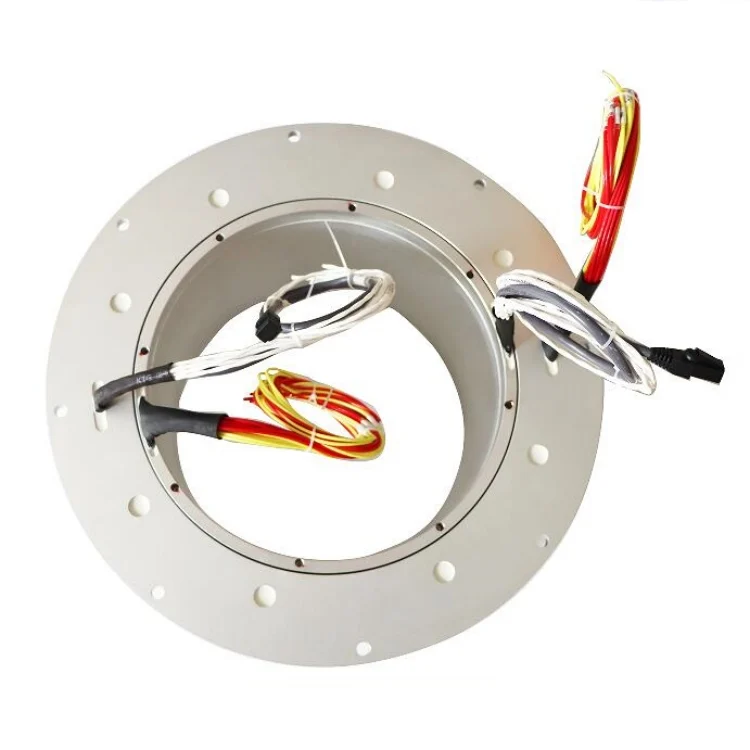

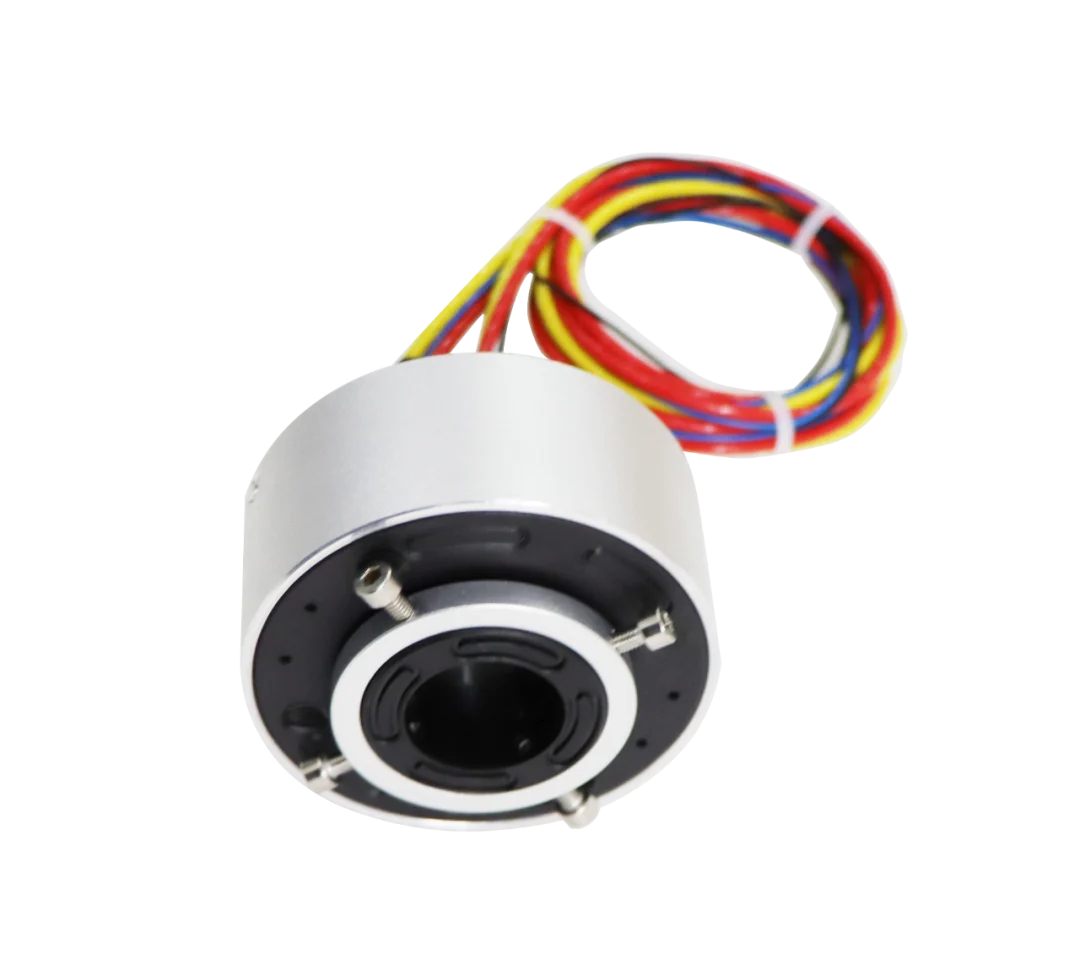

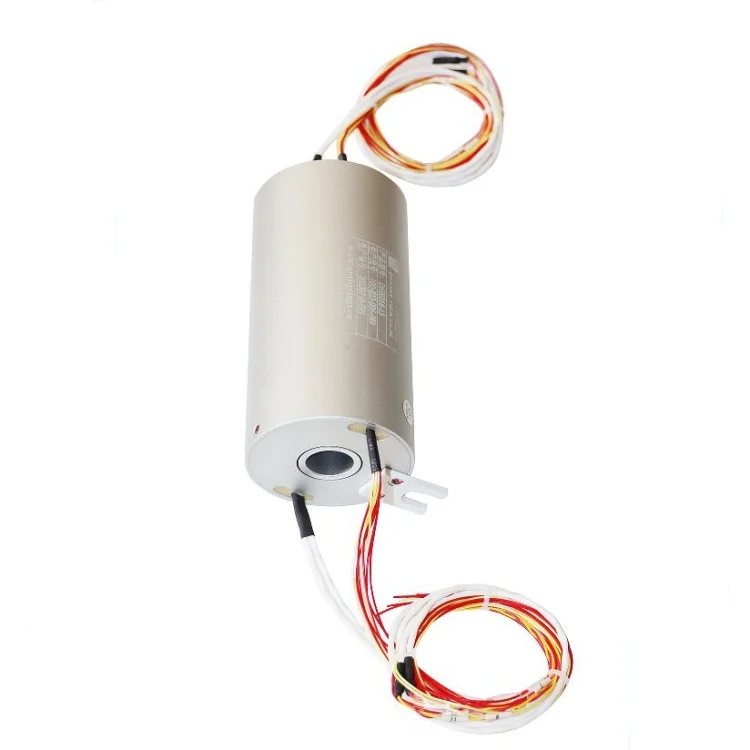

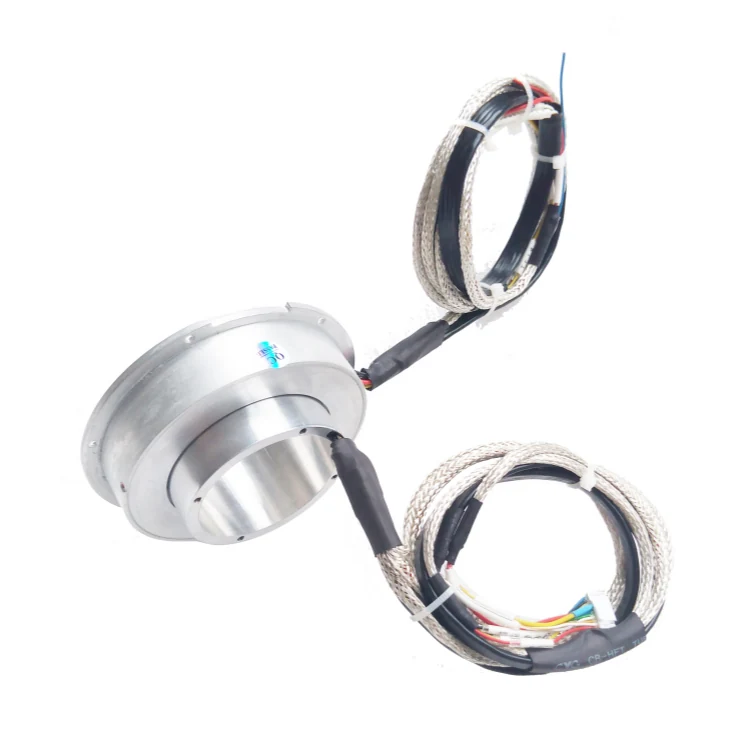

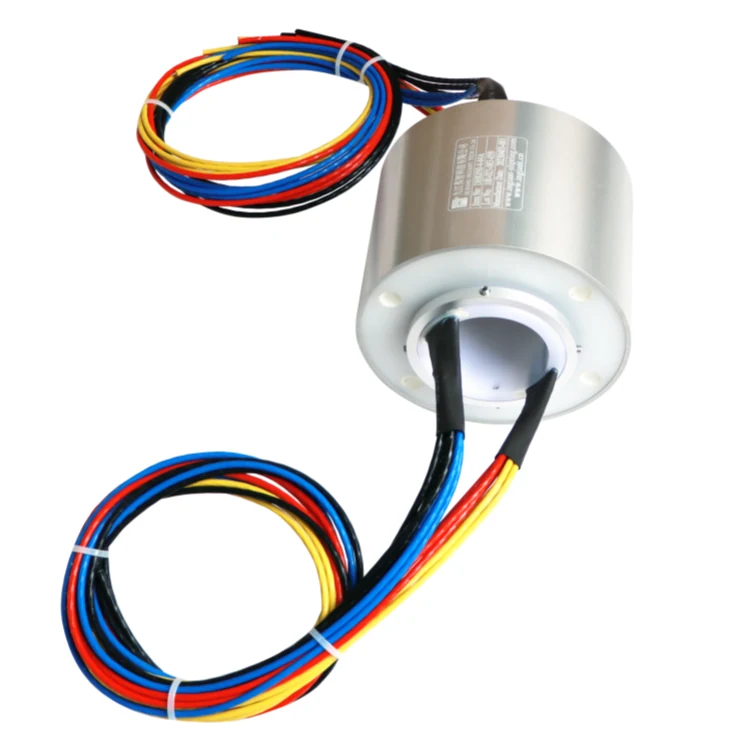

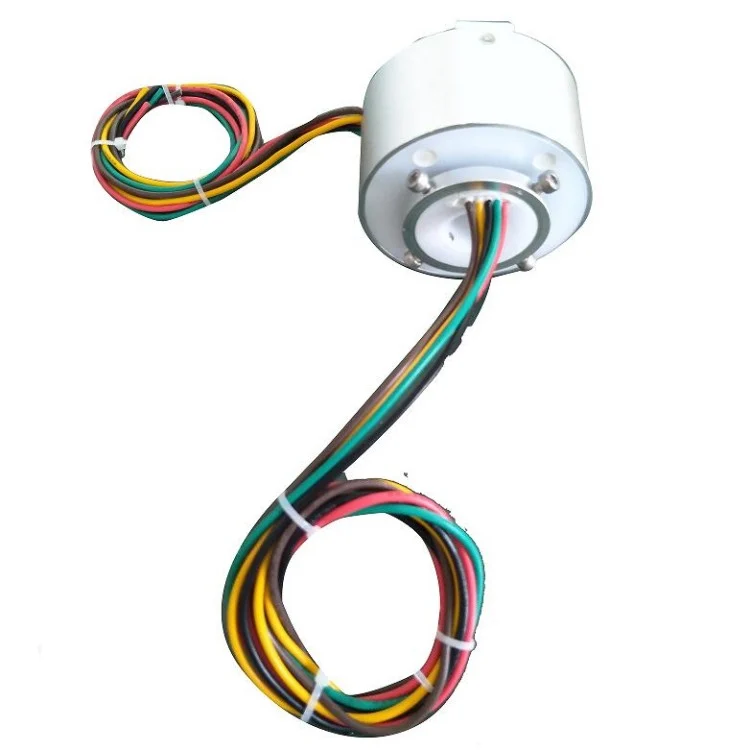

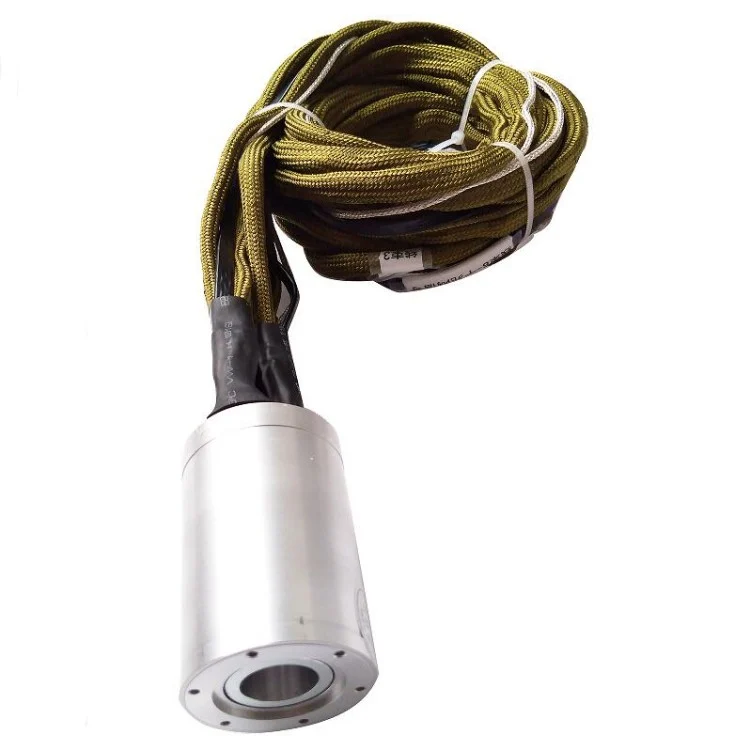

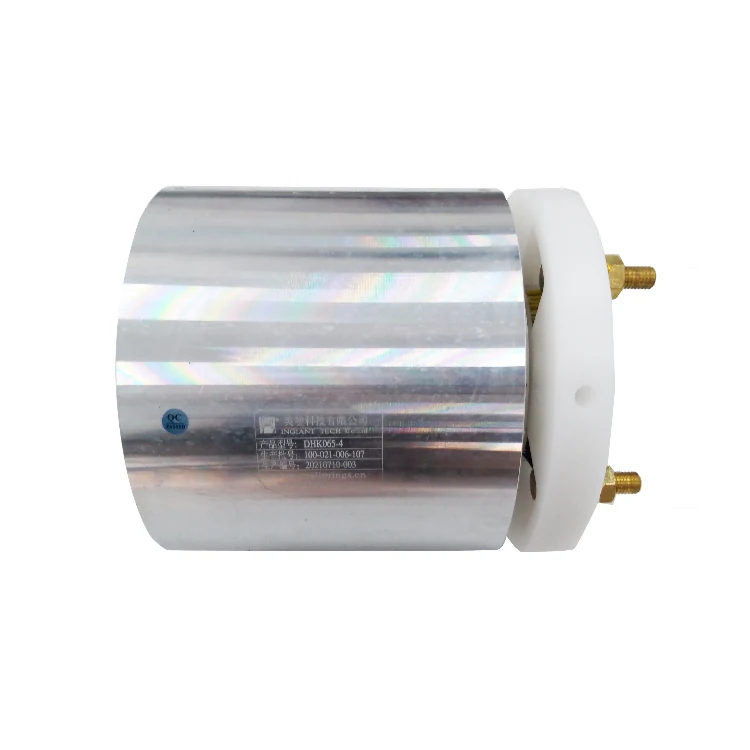

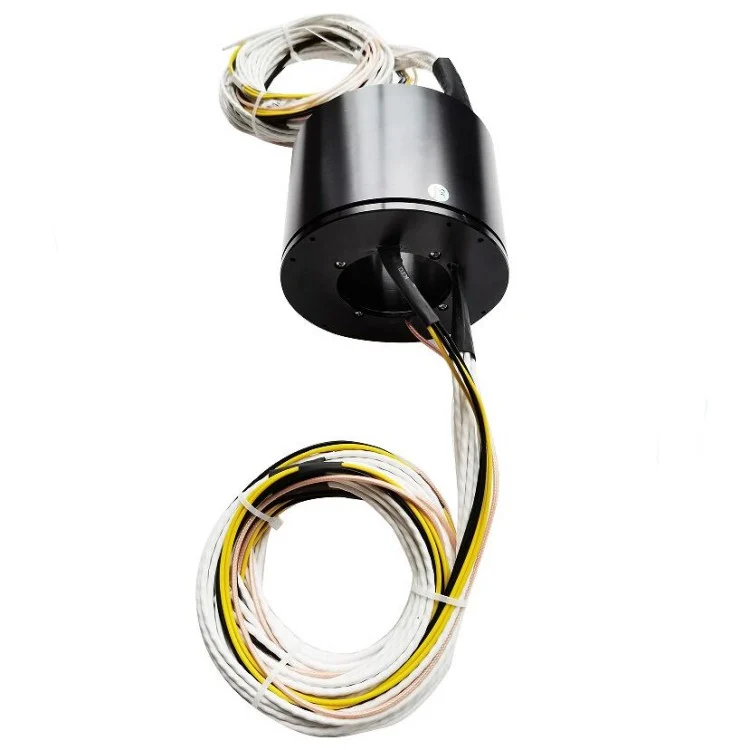

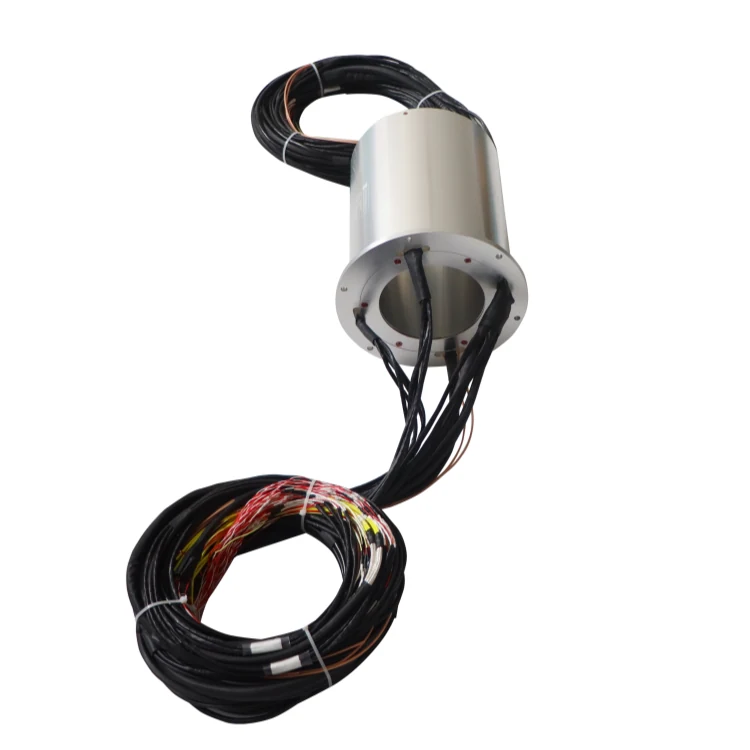

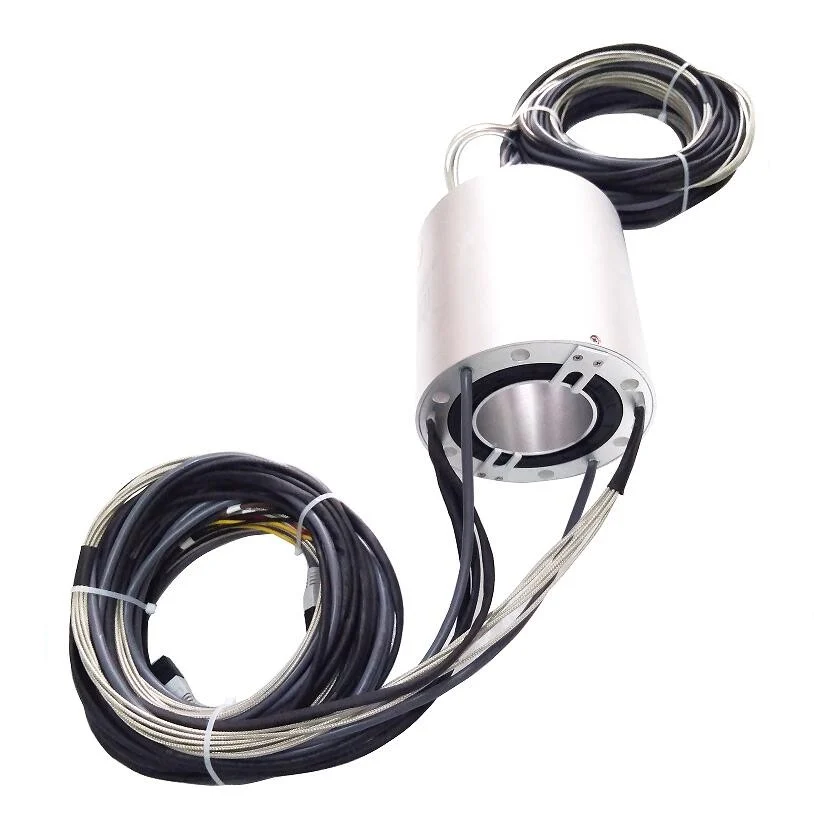

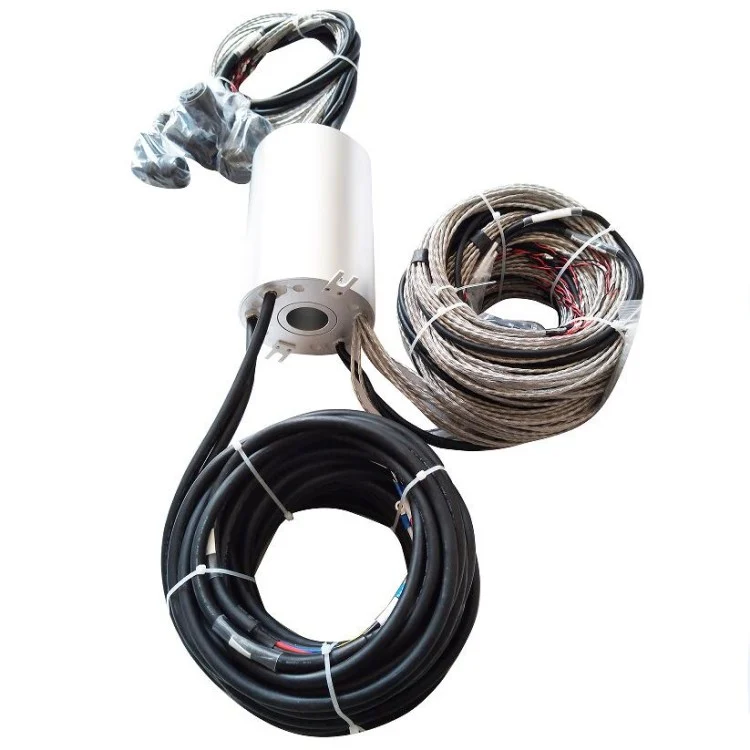

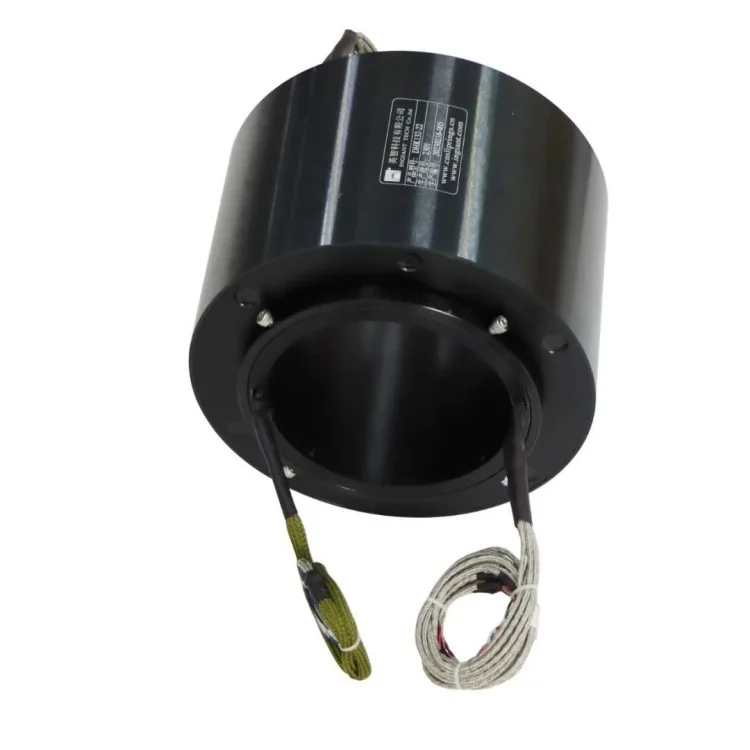

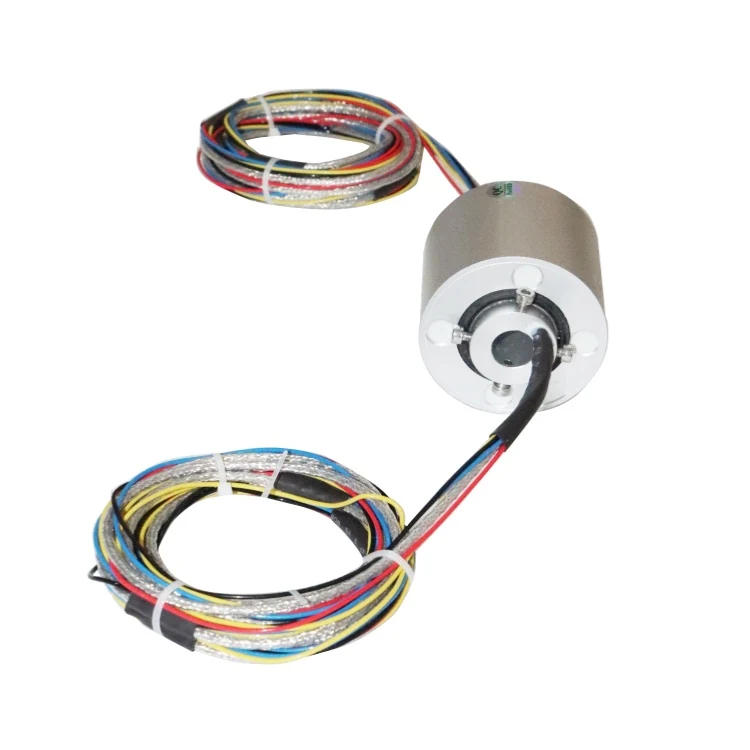

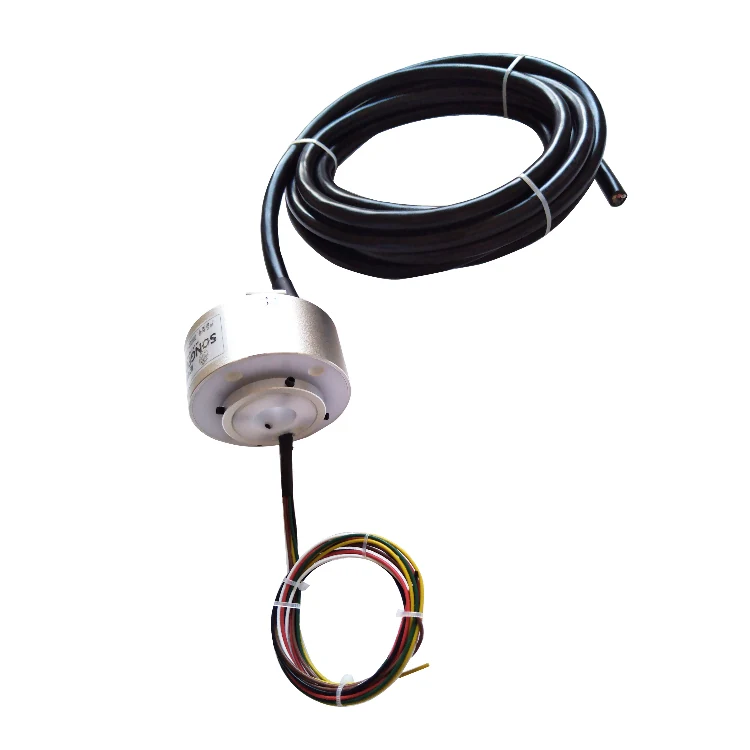

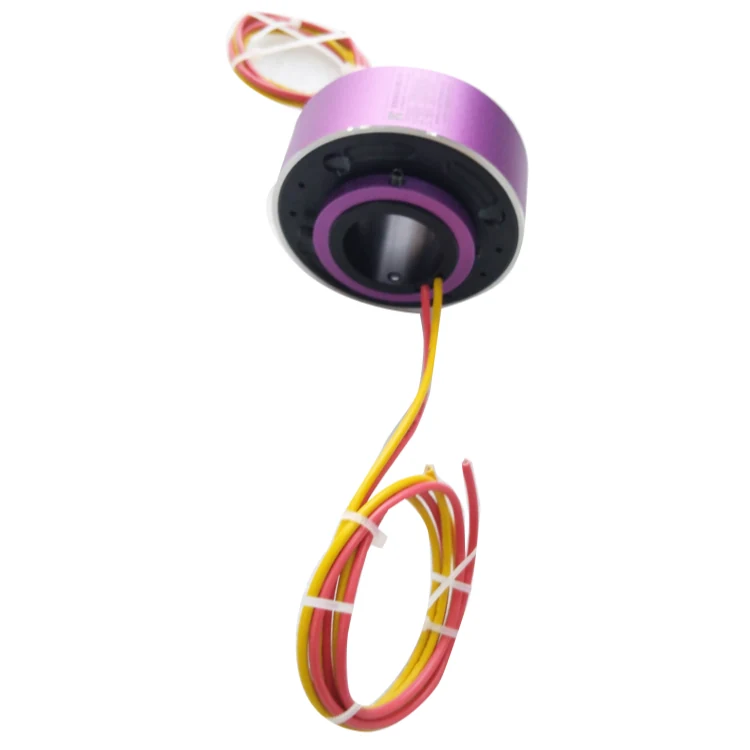

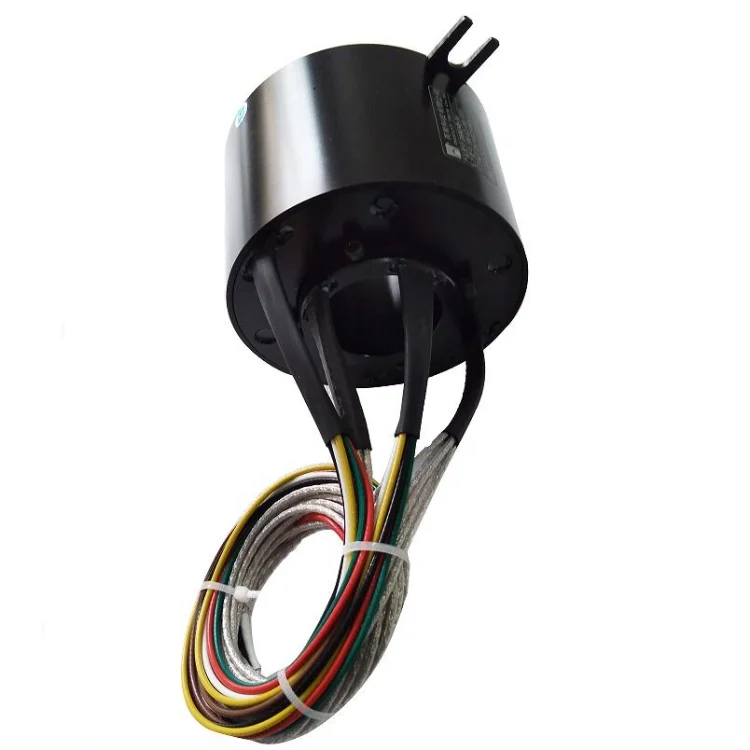

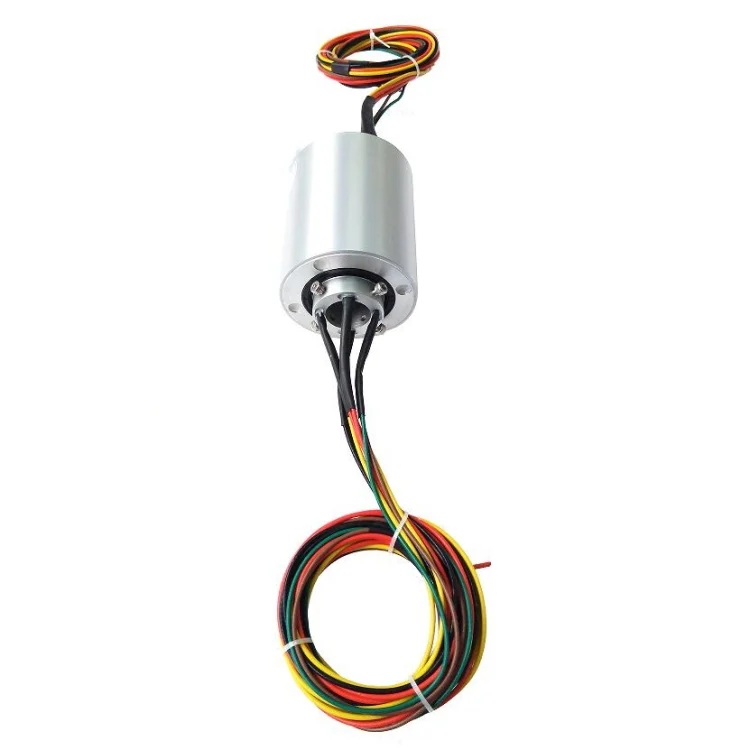

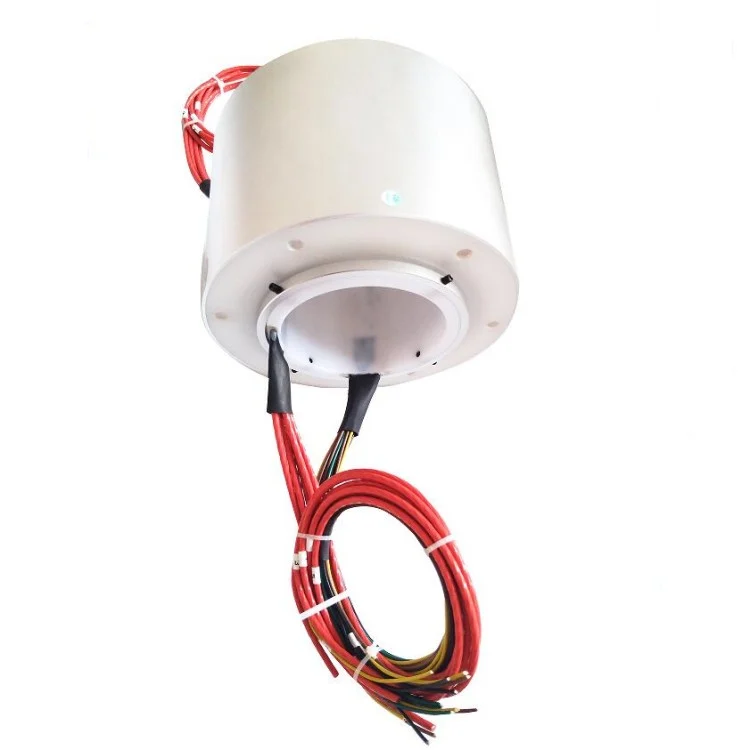

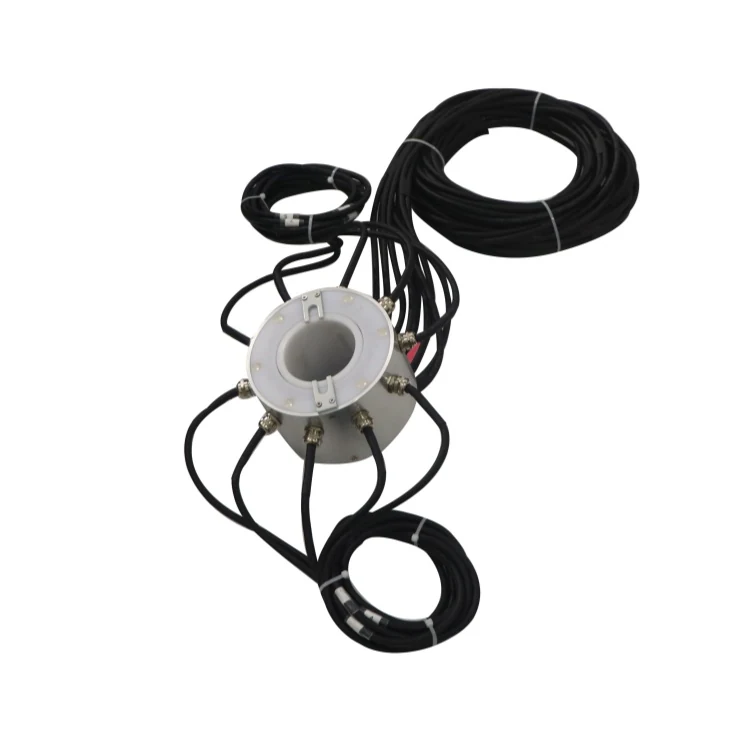

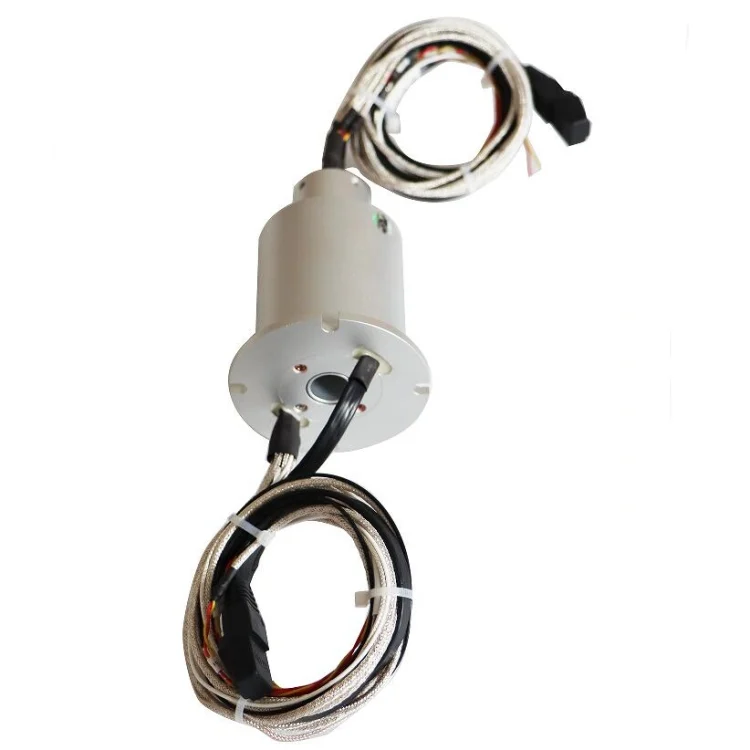

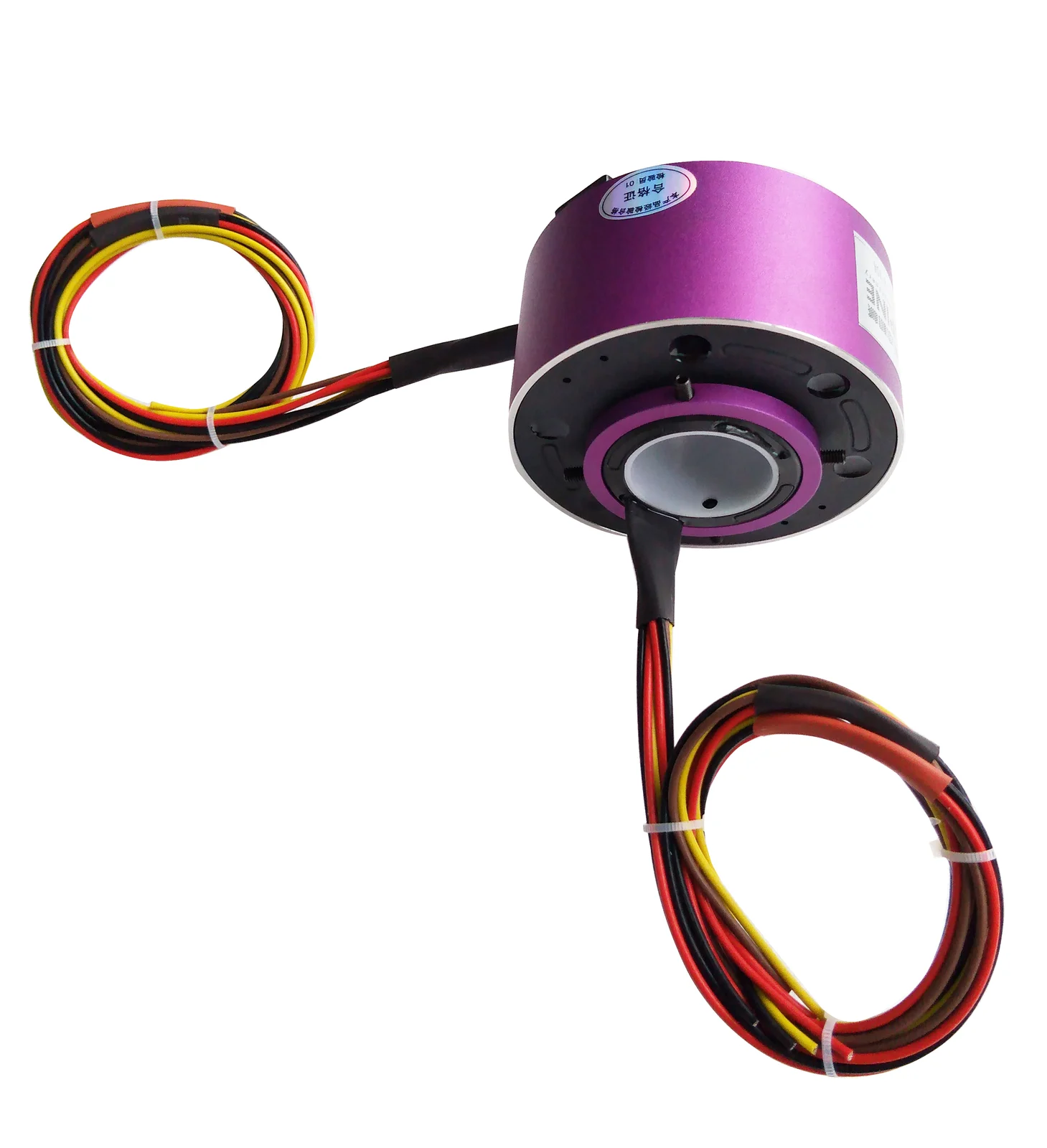

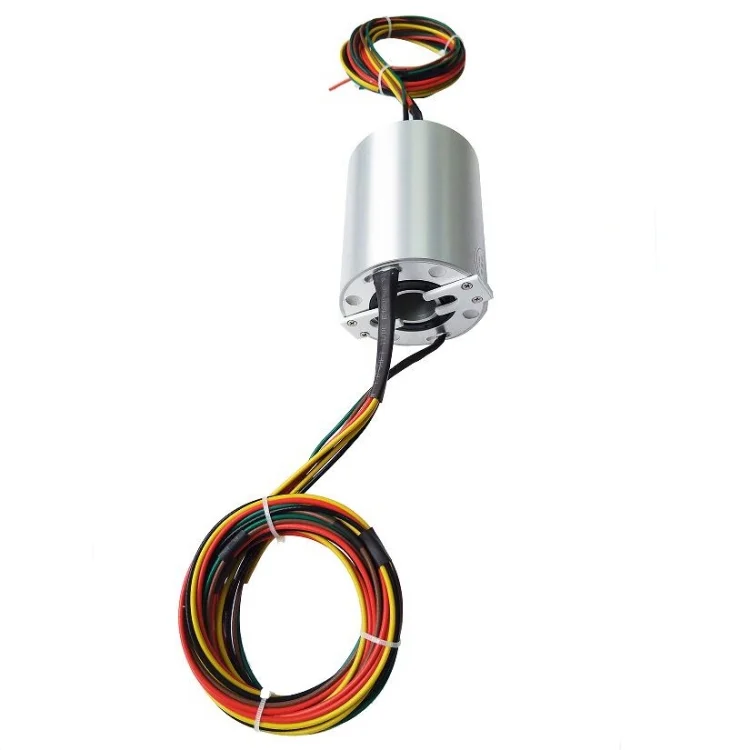

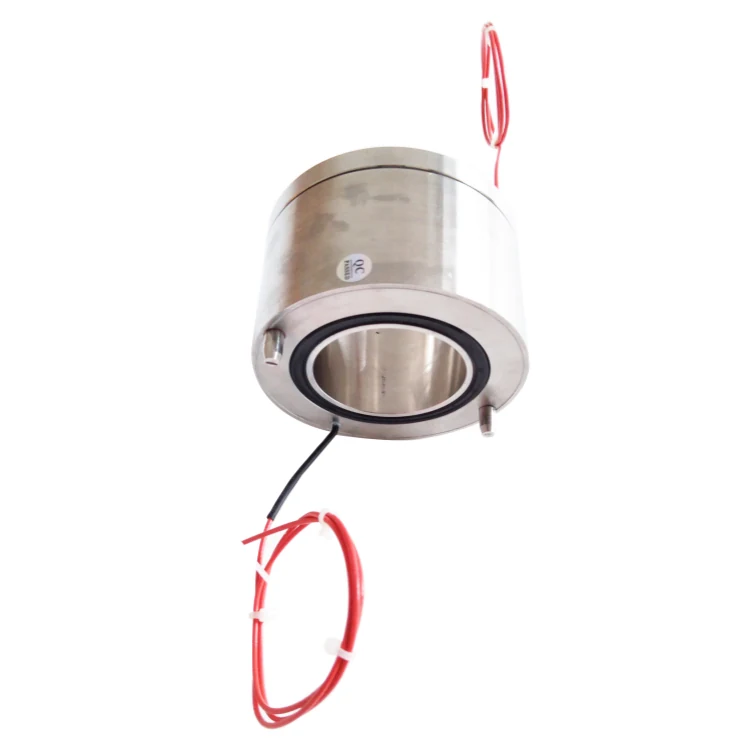

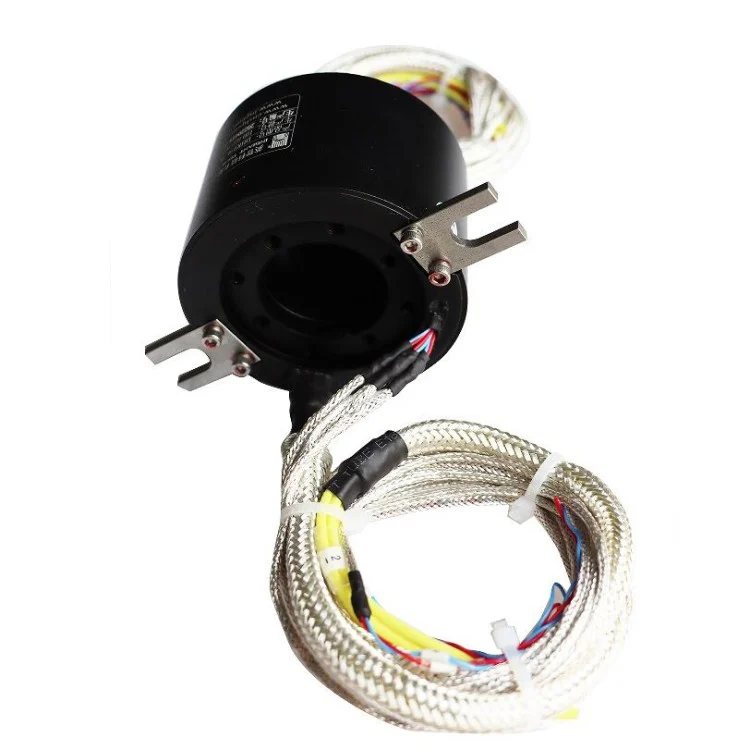

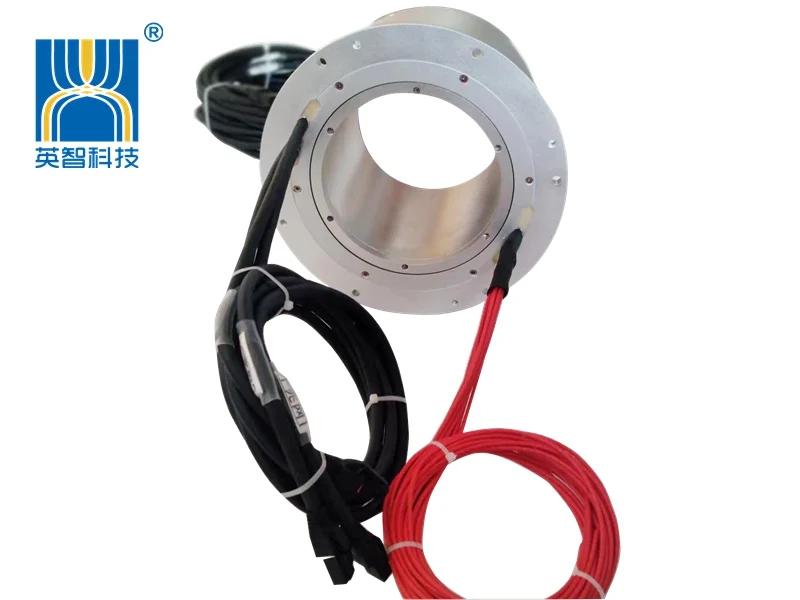

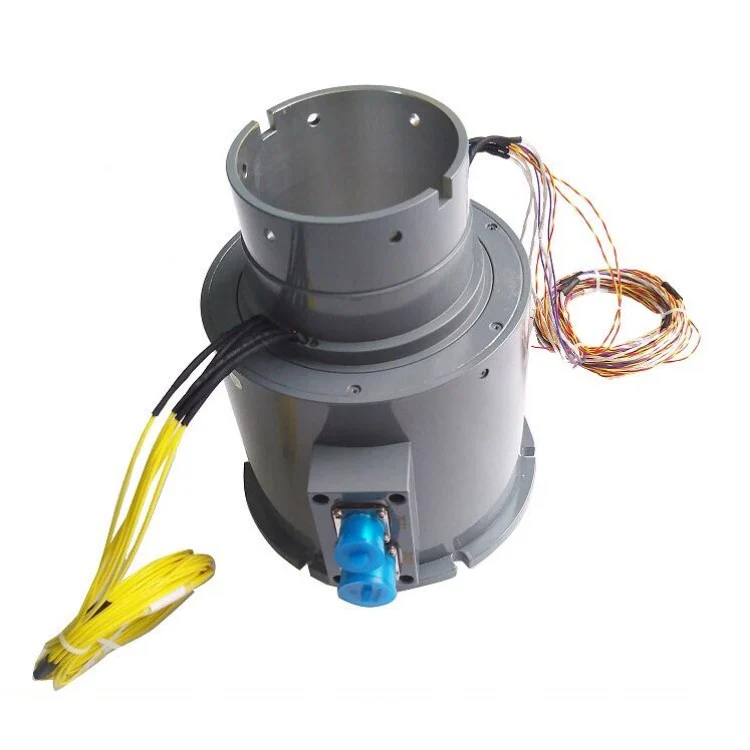

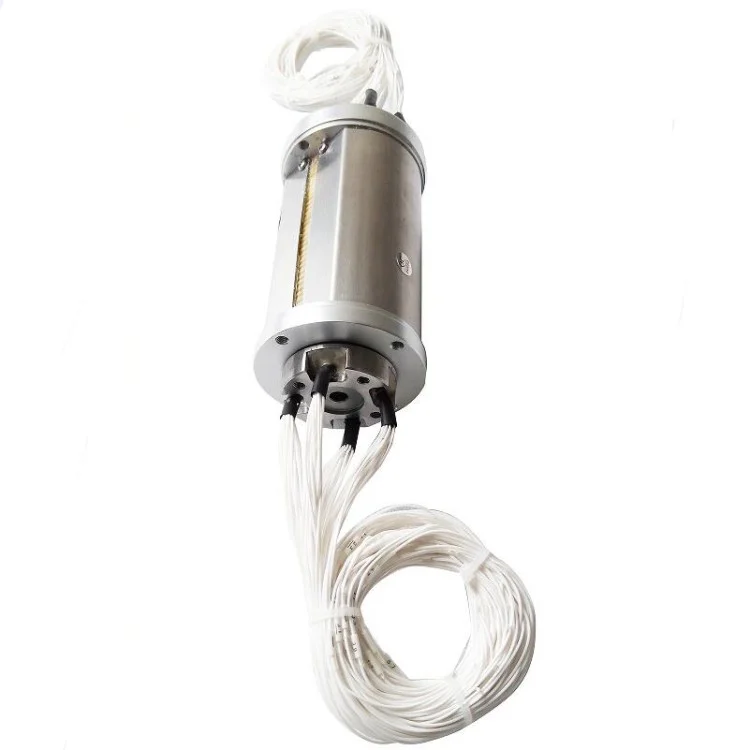

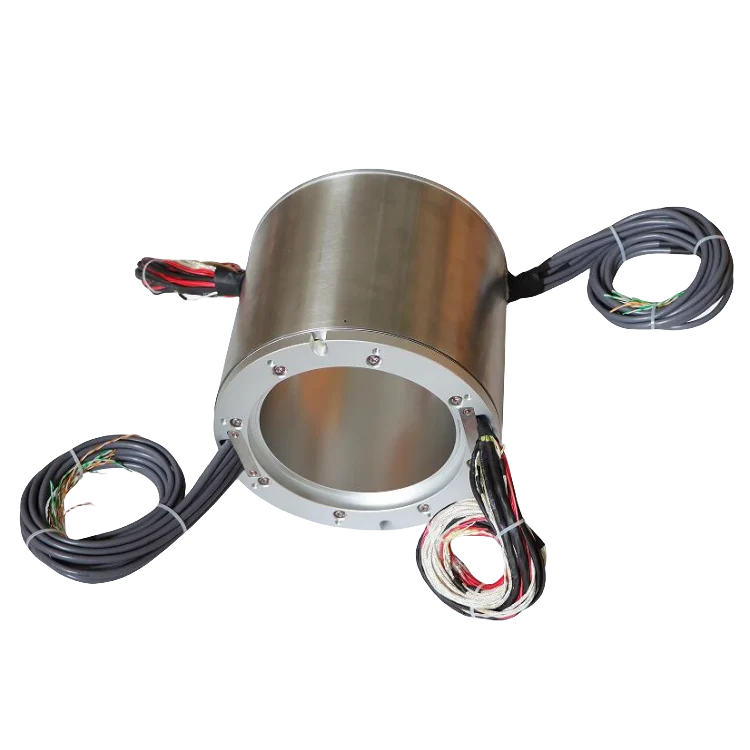

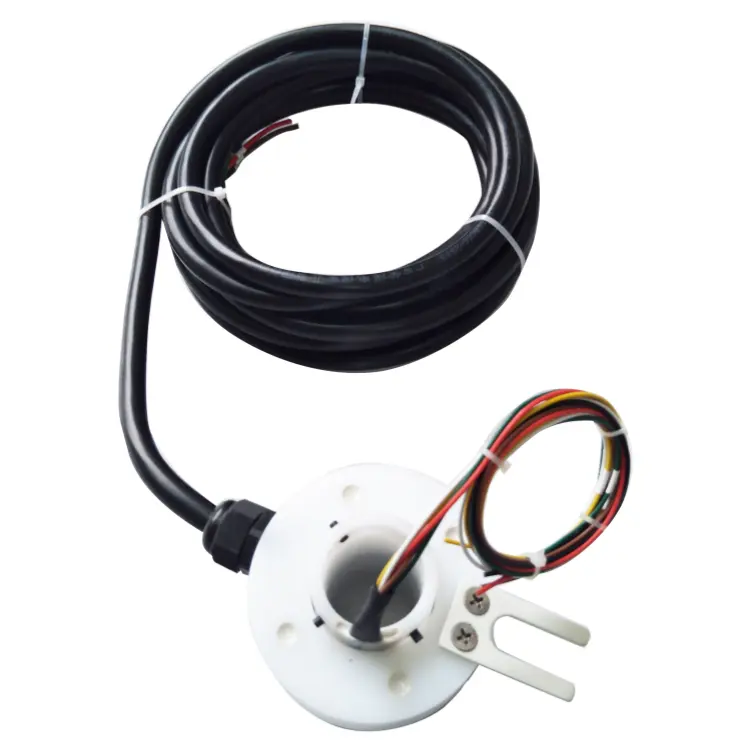

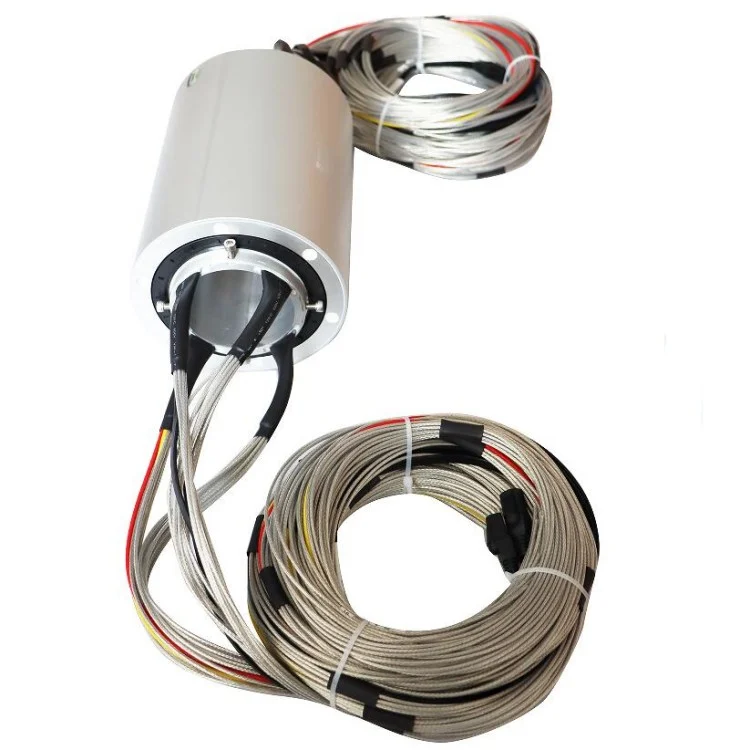

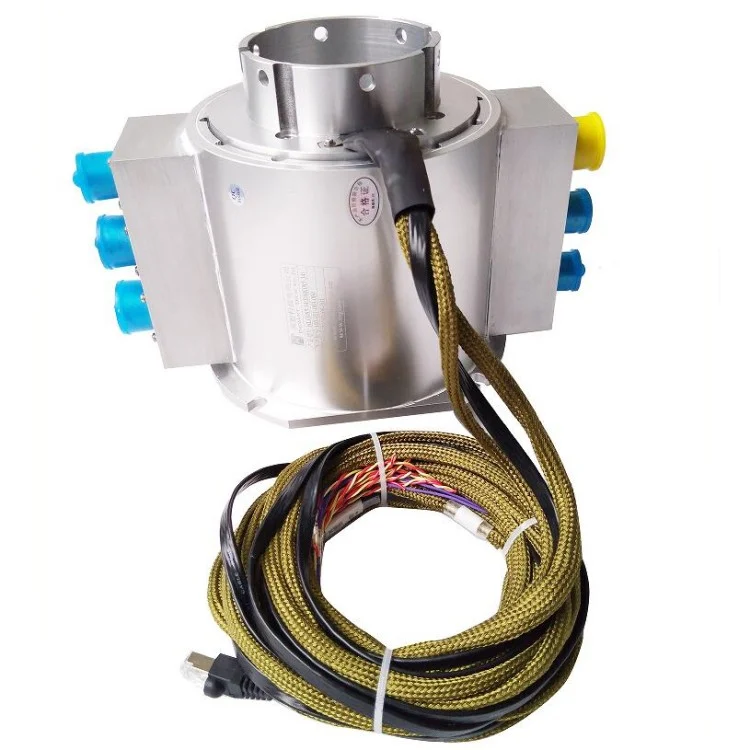

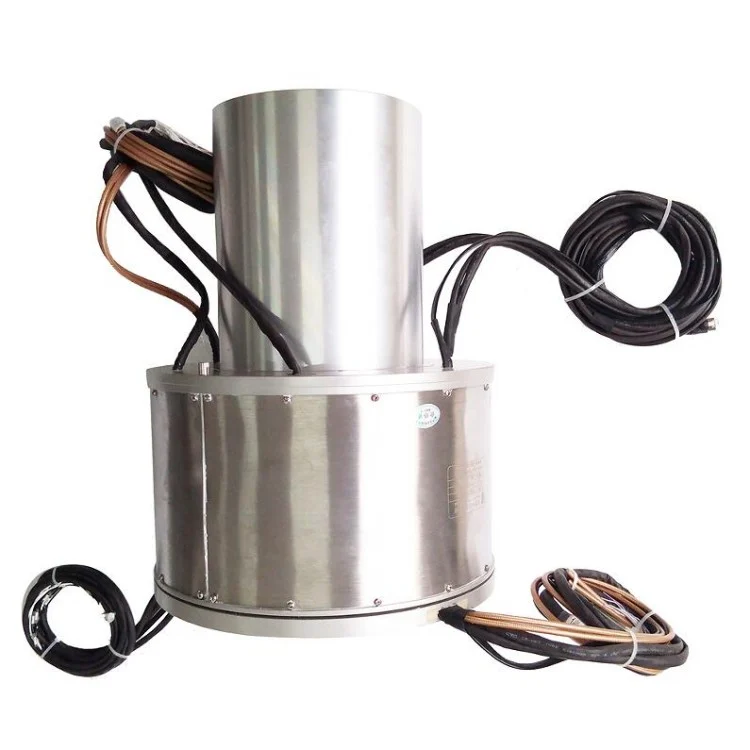

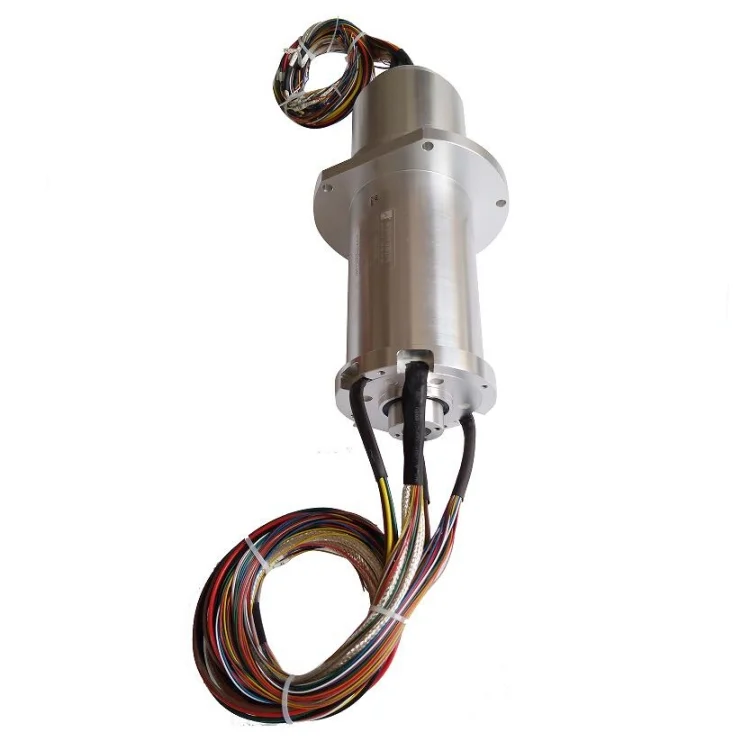

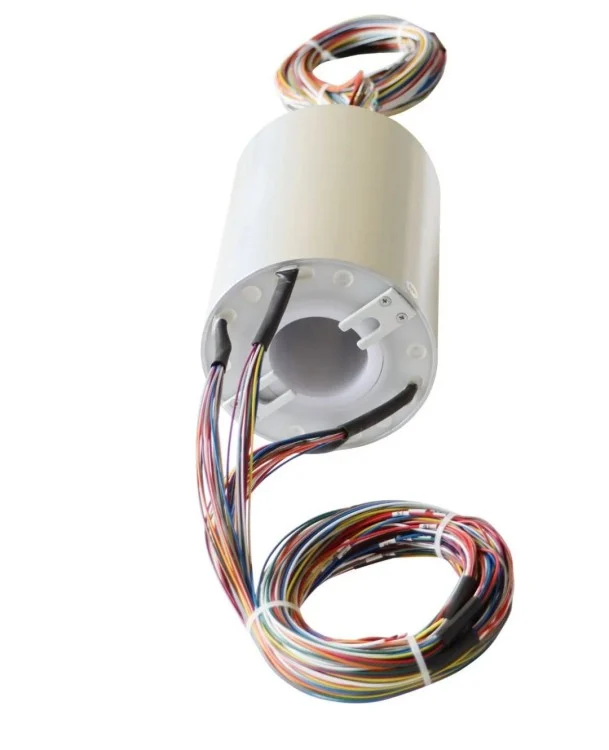

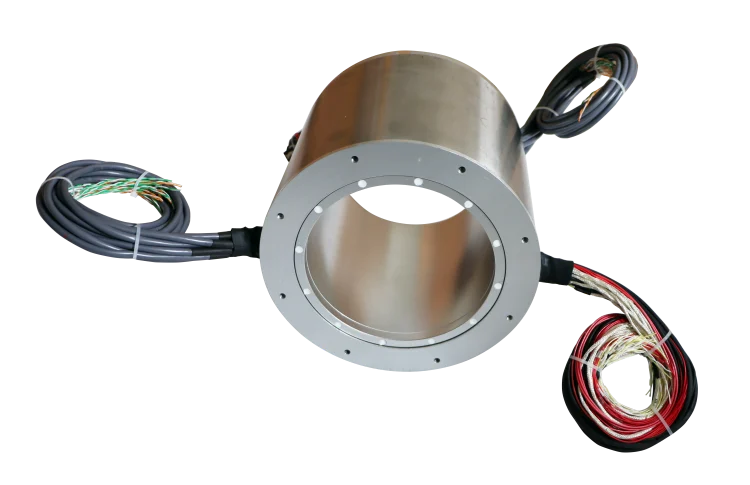

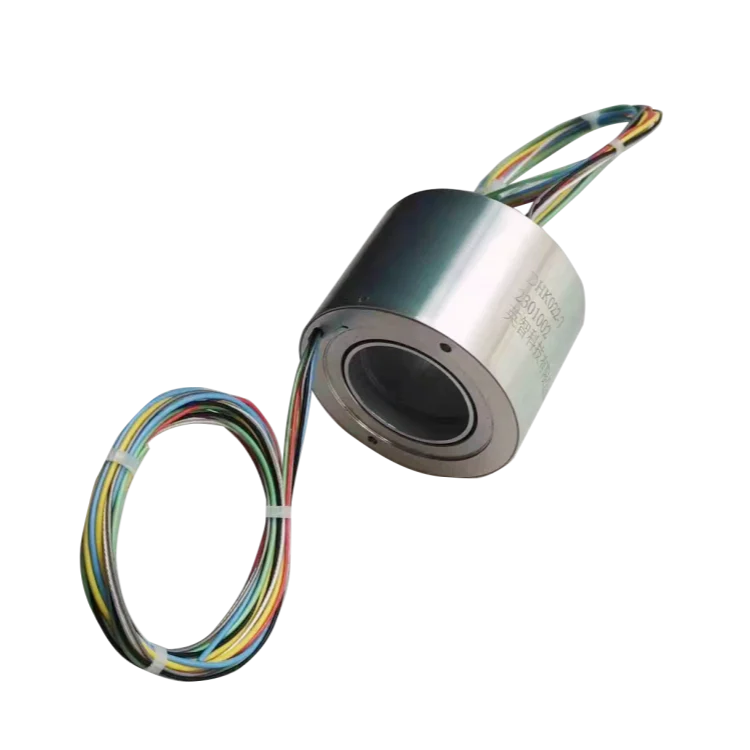

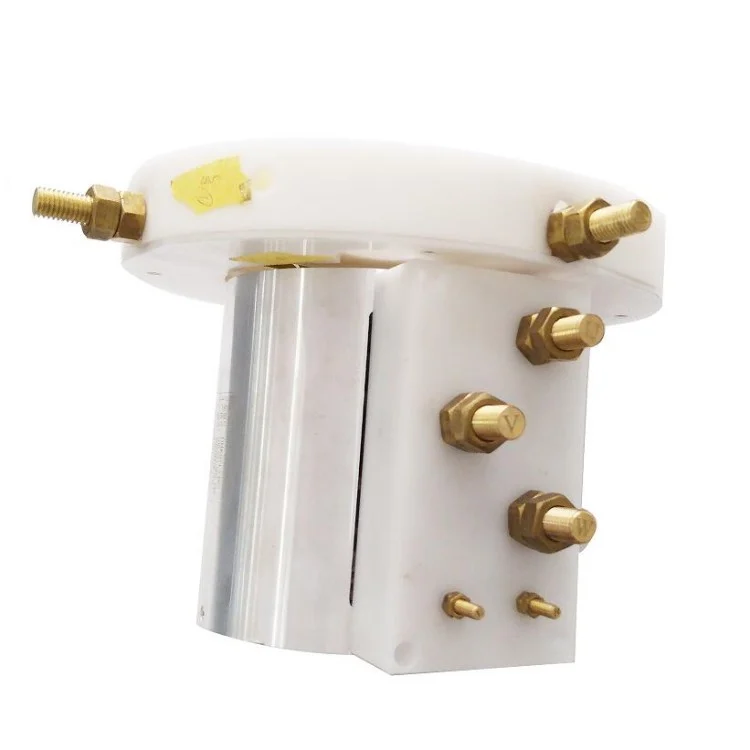

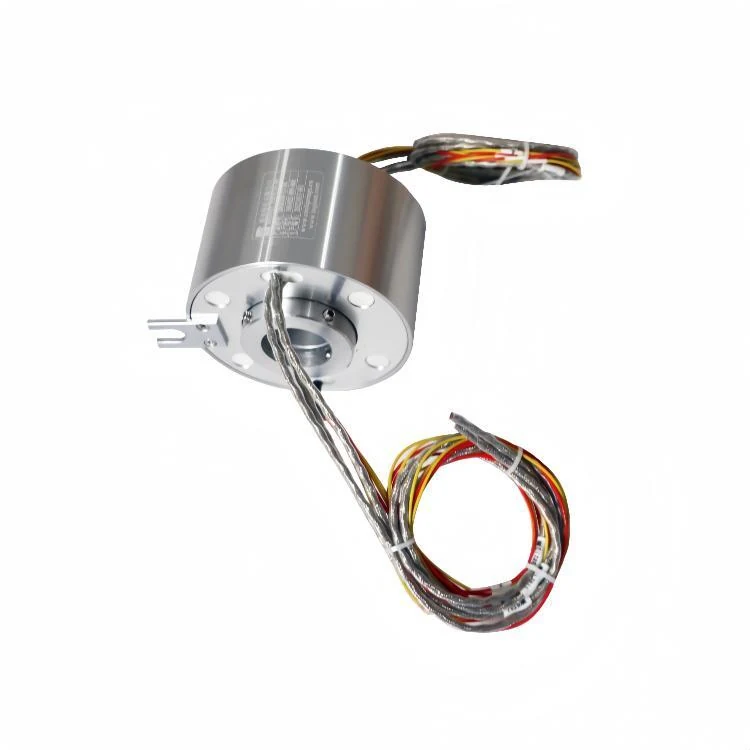

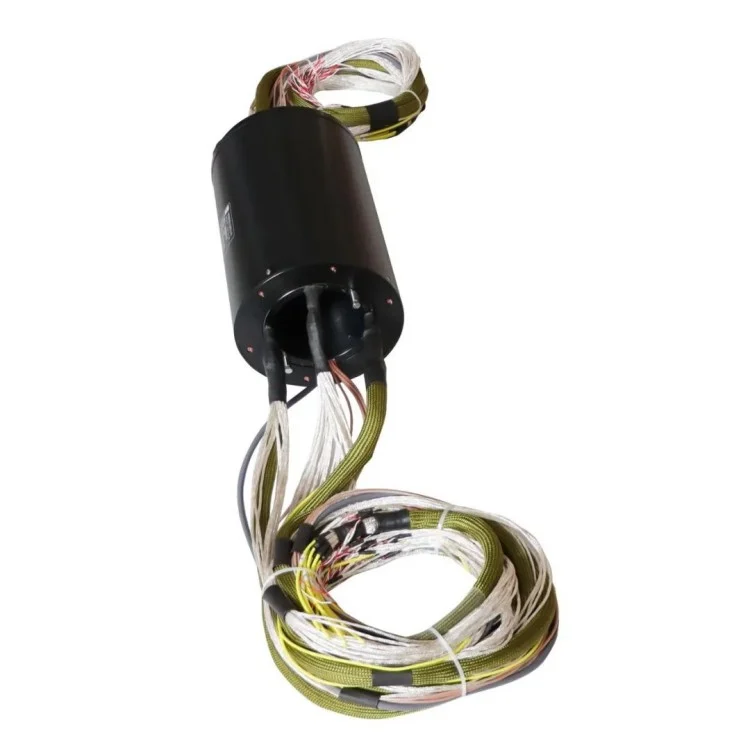

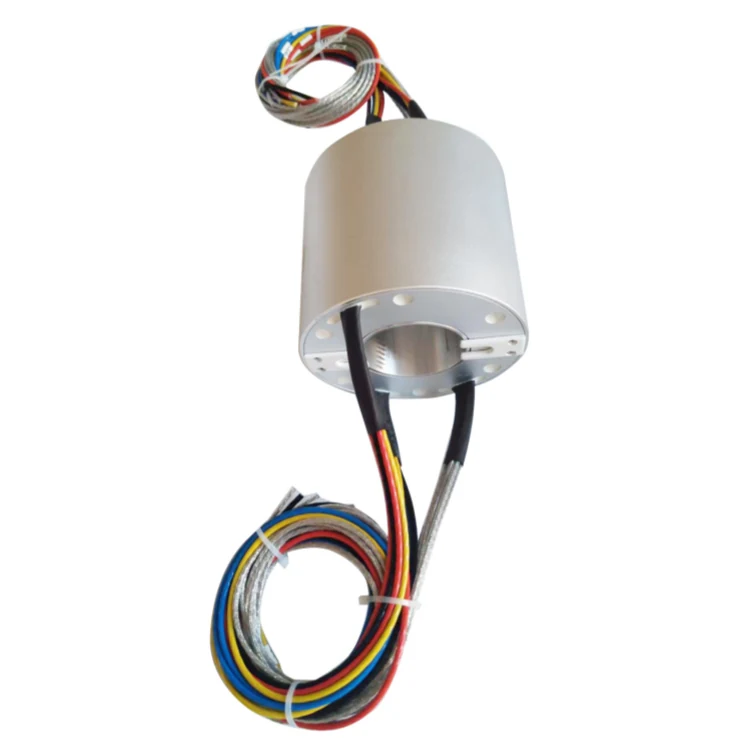

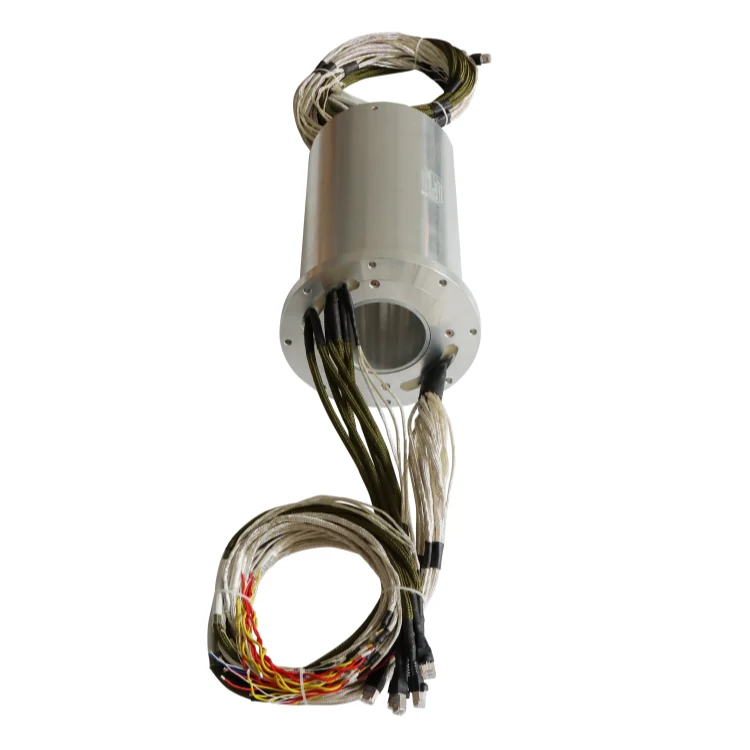

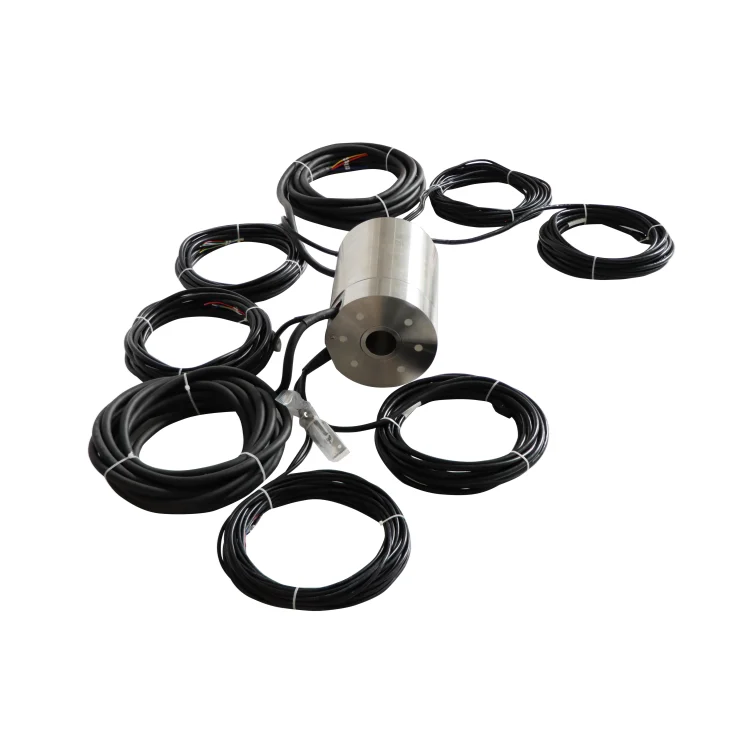

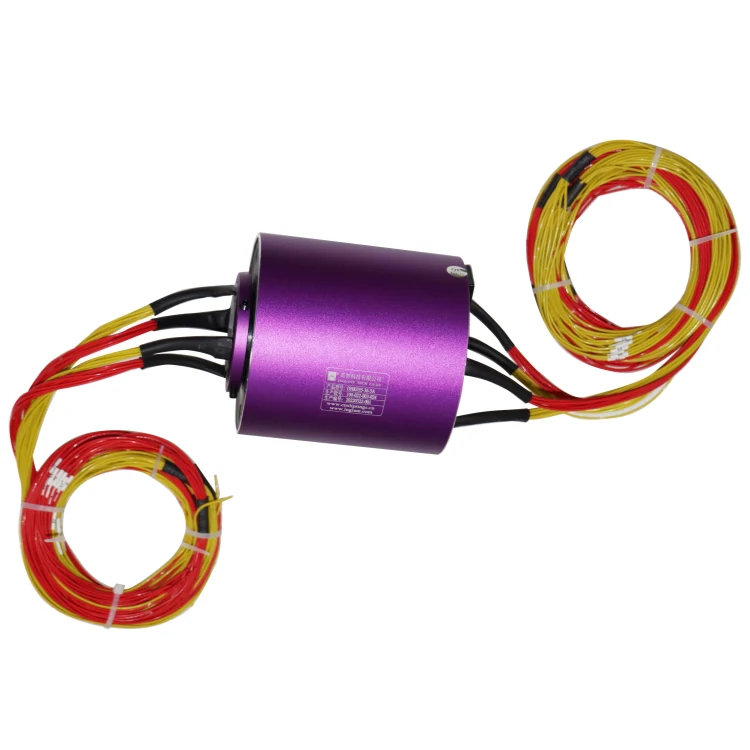

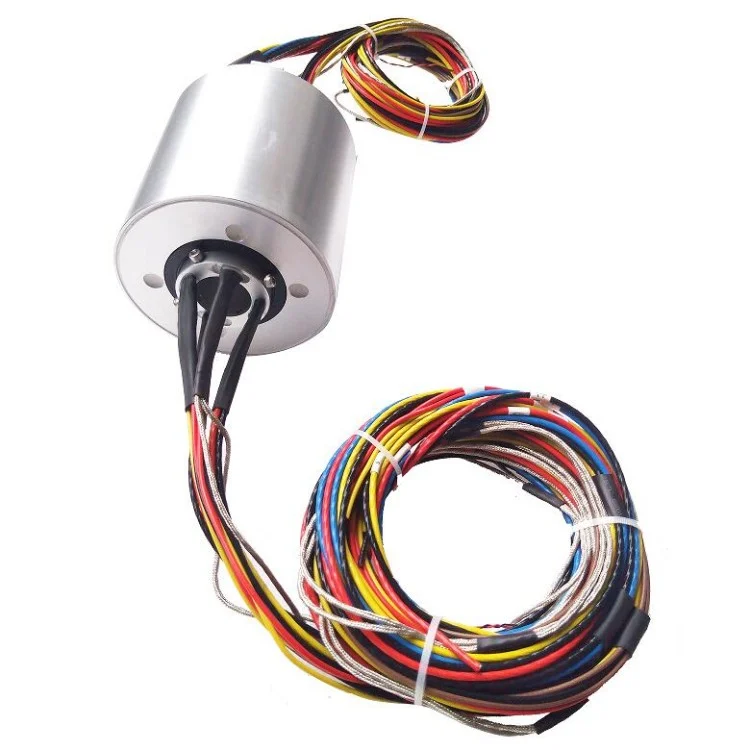

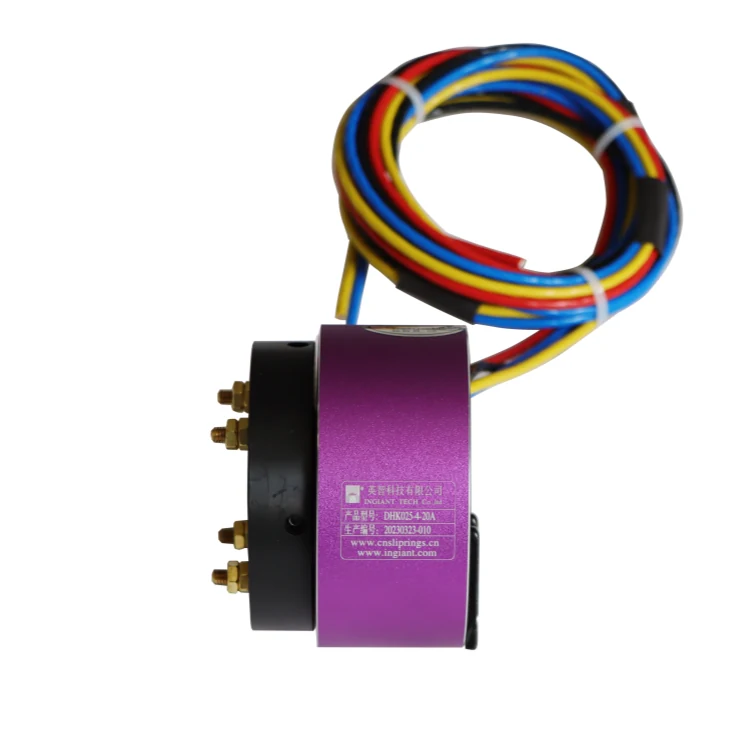

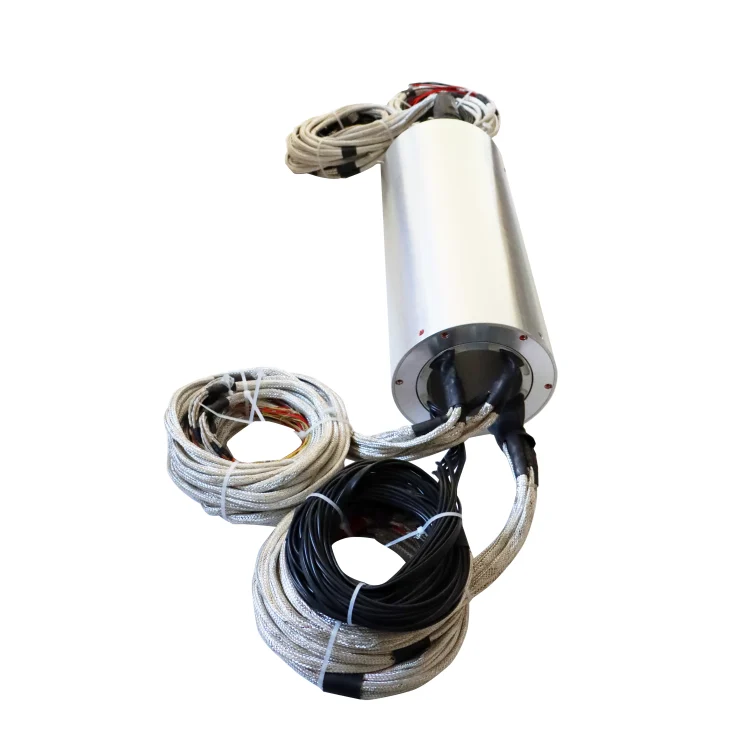

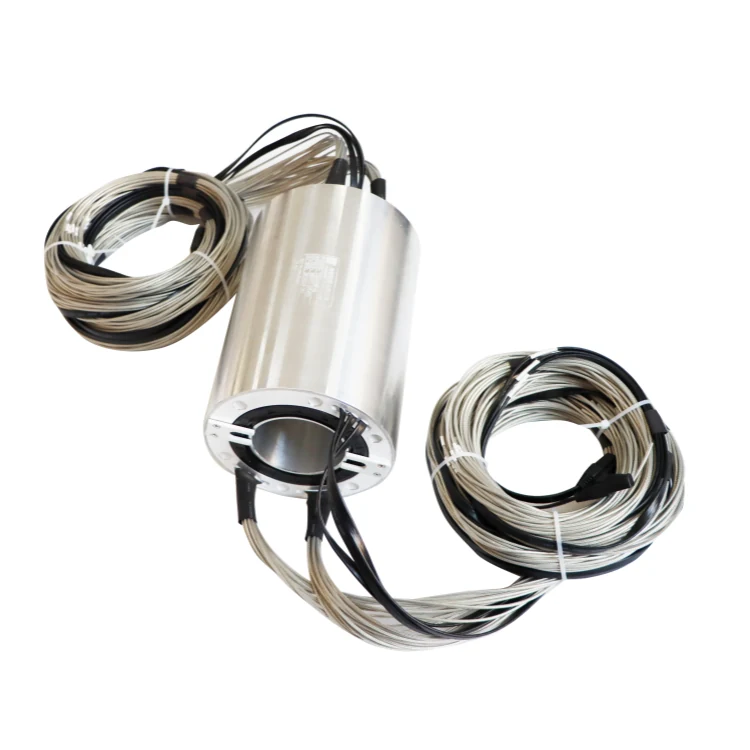

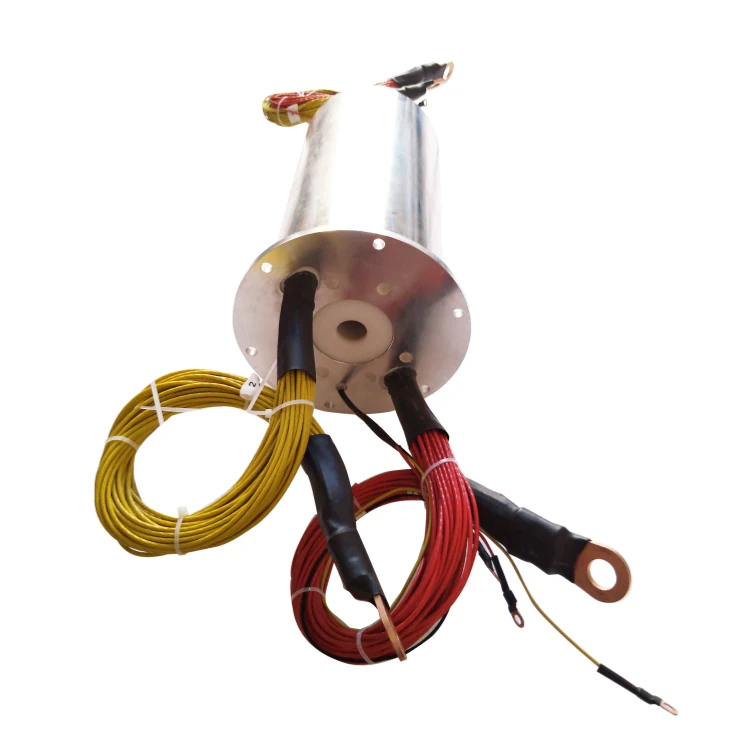

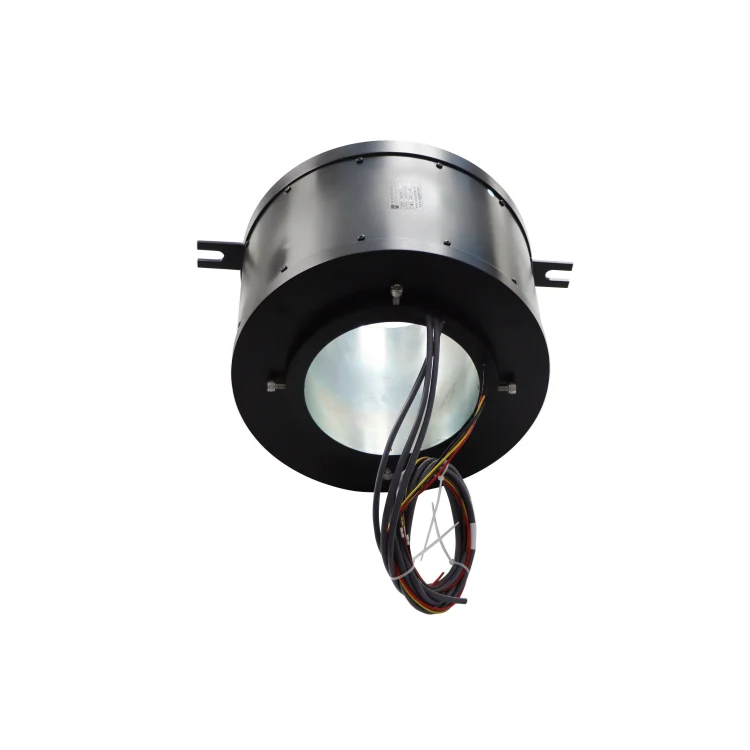

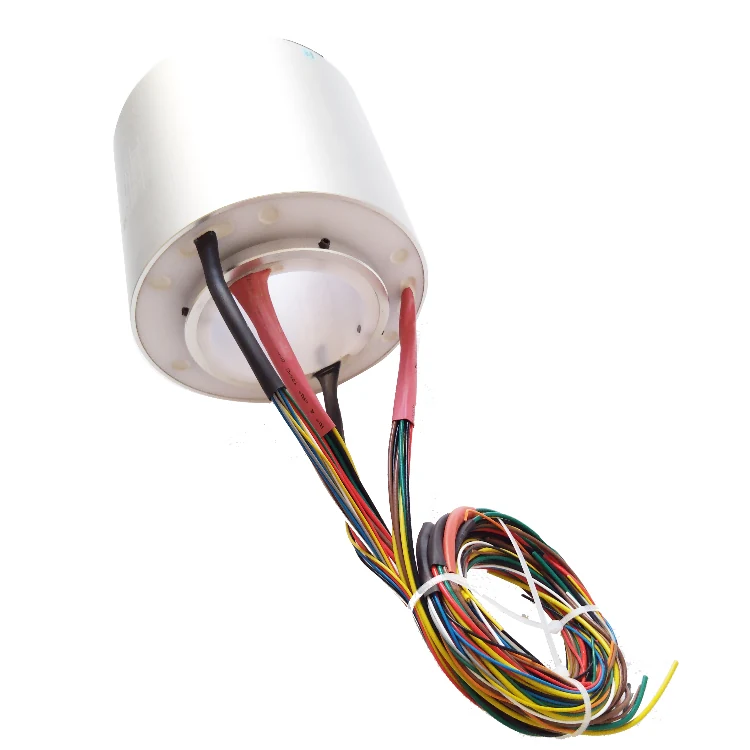

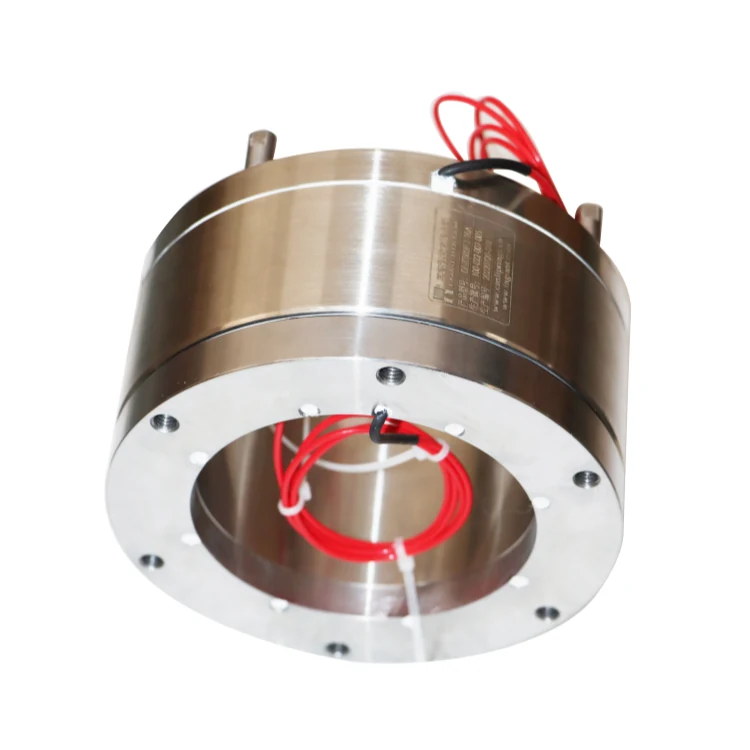

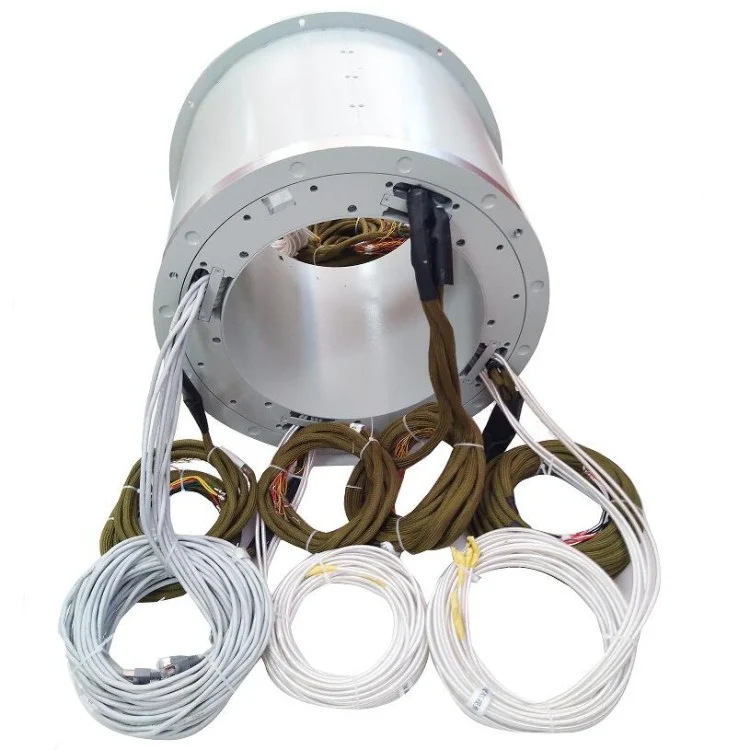

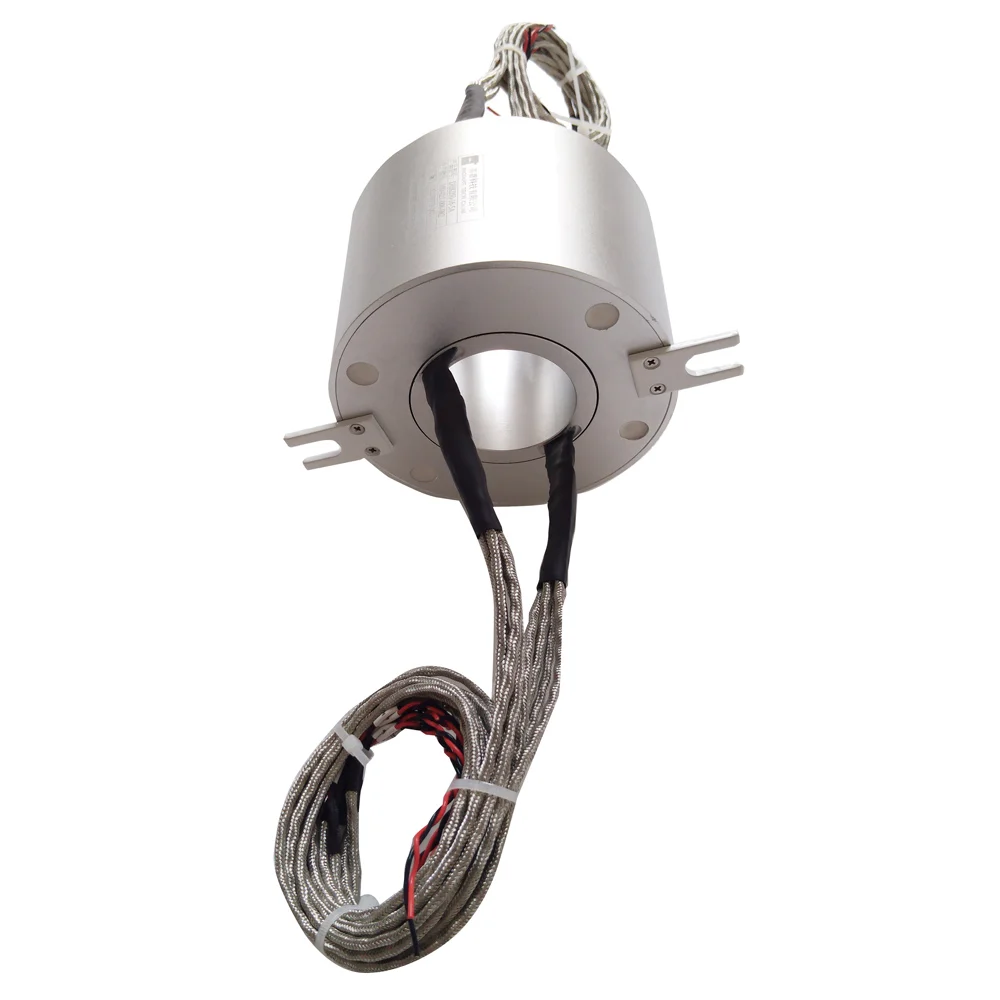

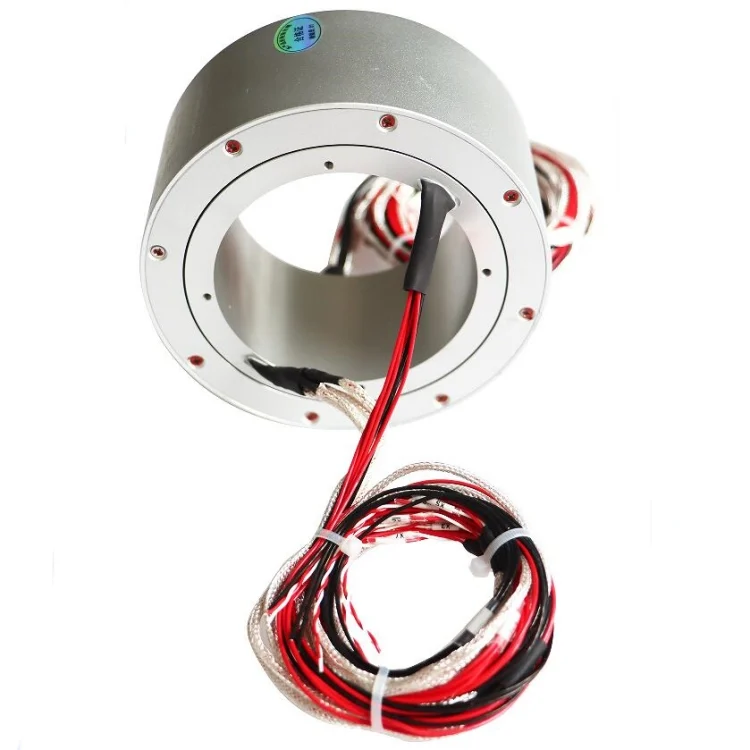

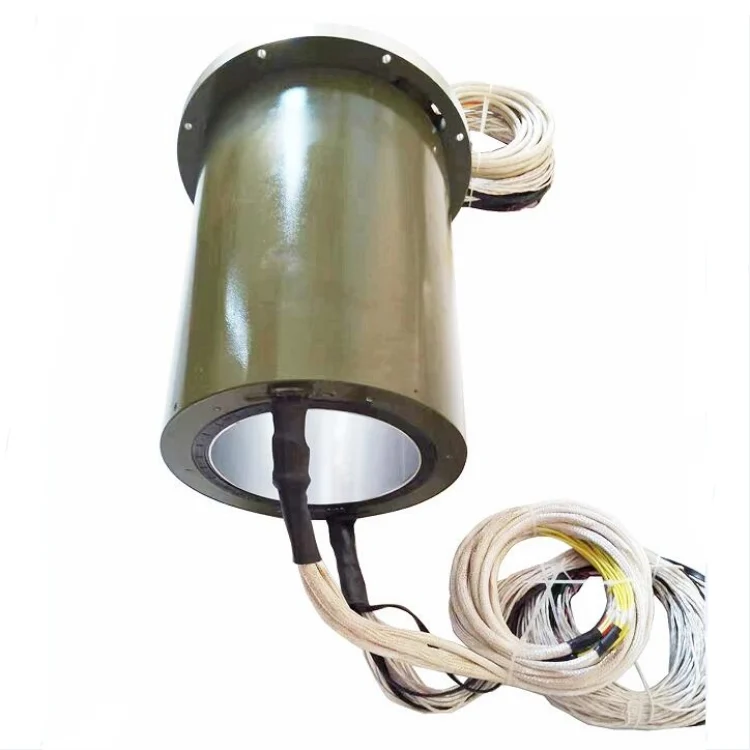

Through Bore Slip Rings

A through bore slip ring carries power and signals around a hollow centre, so a drive shaft, a hydraulic line, an optical cable or a pneumatic hose can pass straight through the rotating joint instead of being routed around it.

Open the Through Bore Slip Rings page
8 models

USB Slip Rings

A USB slip ring keeps a USB device on a rotating platform enumerated and streaming while the platform turns without limit.

Open the USB Slip Rings page
A to Z

Every Model in One Alphabetical Index

Useful when you already have a model number from a drawing or an old purchase order.

FAQ

Questions About the INGIANT Catalogue

How many slip ring models do you publish?

728 models across 13 families, each with its own page and its own parameter table. Anything not listed can be built to order.

Are all of these models in stock?

Standard models ship in 7–15 days. Customised builds take 10–20 days for simple changes and 15–40 days for complex designs.

Can I get a full catalogue as a PDF?

Yes. The downloads page carries a PDF specification sheet for every product family, generated from the same data as these pages.

What if none of these models fits my machine?

That is the normal case, and it is why the customised range is the largest family on this site. Send the eight inputs on the custom engineering page and INGIANT designs to them.

Cannot Find the Model Number You Were Given

Send the model code, a photo of the label or the drawing and INGIANT will identify the unit and quote a replacement.
