FHS105-14-10112SSB Wind turbine pitch slip ring IP65，accurate and reliable, total 14 channels

FHS105-14-10112SSB puts 14 circuits through a 105 mm body without limiting rotation. It sits between the fixed and the rotating side of a machine so cables never wind up, and it is supplied by JiuJiang Ingiant Technology Co., Ltd as a standard or customised…

Request A Quote Email The Specification
FHS105-14-10112SSB Wind turbine pitch slip ring IP65，accurate and reliable, total 14 channels — customized slip rings manufactured by INGIANT

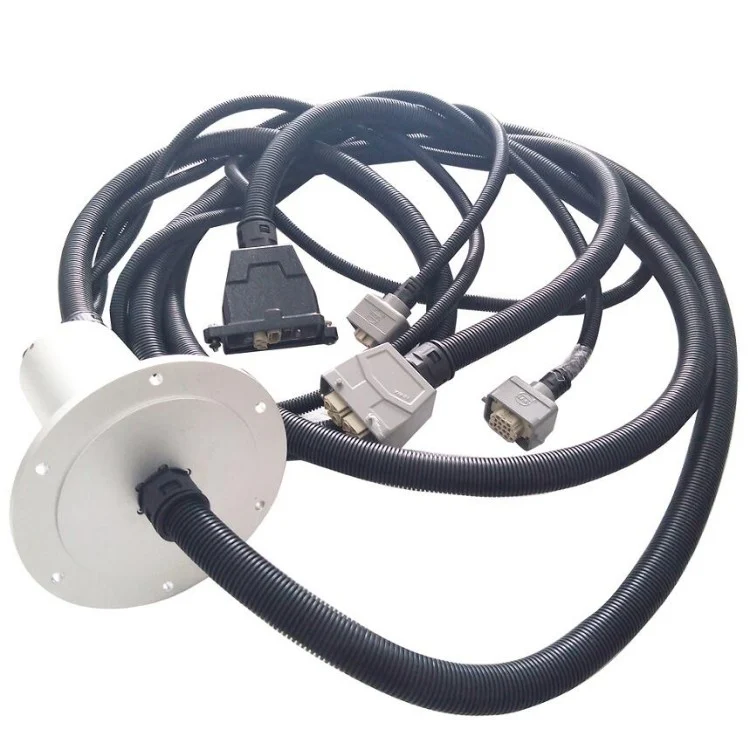

FHS105-14-10112SSB Wind turbine pitch slip ring IP65，accurate and reliable, total 14 channels, view 2

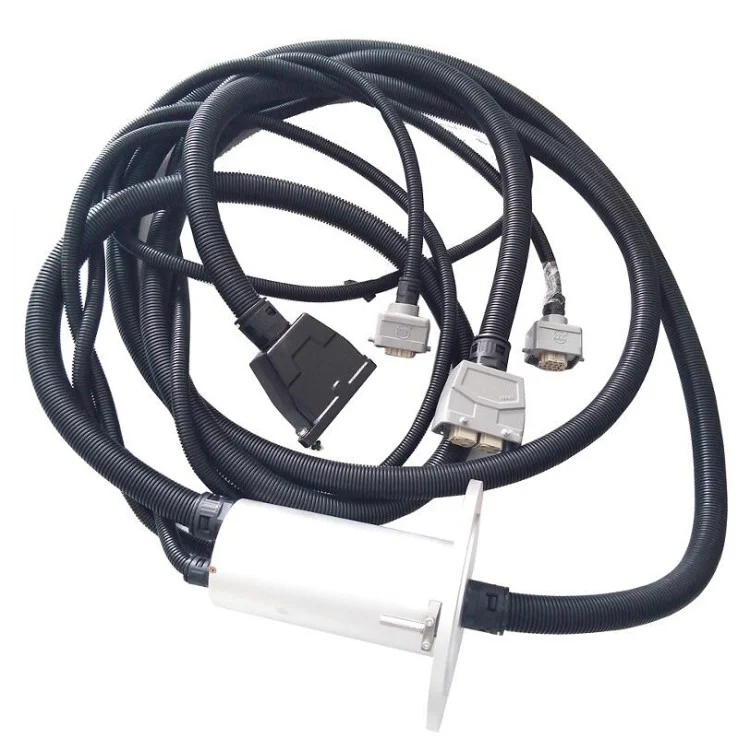

FHS105-14-10112SSB Wind turbine pitch slip ring IP65，accurate and reliable, total 14 channels, view 3
Product Overview

FHS105-14-10112SSB at a Glance

FHS105-14-10112SSB puts 14 circuits through a 105 mm body without limiting rotation. It sits between the fixed and the rotating side of a machine so cables never wind up, and it is supplied by JiuJiang Ingiant Technology Co., Ltd as a standard or customised build.

  • Ø105 mm
Key Benefits

What This Model Gives the Machine

Unlimited rotation without cable wind-up

The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind.

Maintenance-free contact system

Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis.

Fits a 105 mm interface

The 105 mm envelope keeps the joint inside the space the assembly already has, so the surrounding design does not have to change.

Stable transmission under vibration

The contact geometry is designed so that shock and vibration do not translate into resistance variation on the signal rings.

Backed by a 12 month warranty

12 months from date of sale; free repair or replacement for quality problems not caused by human damage

Who It Is For

Engineers Who Specify This Part

OEM engineering teams, defence and research institutes, special machine builders and integrators who cannot design around a catalogue part.

Application scenarios

Problems It Solves

Three Failures It Removes

Failure 1

Cables that have to follow a rotating part fail at the flex point, and the failure always happens in production rather than on the bench.

Failure 2

A rotating joint that is not sealed for its environment lets dust or wash water reach the contact surfaces, and the symptom looks like an electrical fault.

Failure 3

Sourcing several rotating joints for one axis multiplies lead times and alignment tolerances.

Technical Features

Materials Contacts and Construction

Insulation

Insulation resistance Main power：≥1000MΩ@1000VDC Others:≥500MΩ@500VDC.

Specifications

Full Parameter Table

Values published for this model. Anything in this table can be changed on a customised build.

Model codeFHS105-14-1011
Body diameter105 mm
Product familyCustomized Slip Rings
ManufacturerJiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China
Standard lead time7–15 days
Warranty12 months from date of sale
Rated voltage400VAC 24VDC 24VDC
Rated current30A 2A 1A
Insulation resistanceMain power：≥1000MΩ@1000VDC Others:≥500MΩ@500VDC
Manufacturing and Quality Control

How the Unit Is Built and Checked

Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.

Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.

Certifications

  • ISO 9001
  • GJB9001C
  • GB/T 19001-2008 / ISO 9001:2008
Customization Options

What Can Be Changed on This Build

  • Circuit count, and the current and voltage rating of each ring
  • Body diameter, overall length and mounting interface
  • Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
  • Sealing grade from IP51 to IP68, and housing material
  • Lead length, lead specification, connector termination and outlet direction
  • Quality grade S Standard, I Industrial or P Premium against the revolutions expected

Simple customisation 10–20 days. Complex customisation 15–40 days.

Comparison

How It Compares With the Other Formats

A through bore unit keeps the centre of the axis clear but needs more radial space and a flange. Choose the capsule format when nothing has to pass through the middle and the envelope is the binding constraint.

Use Guide

Fitting and Commissioning

Mount the stator, not the load

Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.

Respect the lead route

Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.

Separate power and signal runs

Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.

Commission at low speed

Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.

Products

Related Models

Other models in the same family and nearby sizes.

Knowledge

Related Reading

FAQ

About FHS105-14-10112SSB

How many circuits does FHS105-14-1011 have?

This build has 14 circuits, rated 400VAC 24VDC 24VDC at 30A 2A 1A. The ring count can be changed on a customised build — send the number of single wires that have to cross the joint.

What does the 105 mm in the model number refer to?

It is the outside diameter of the body. In FHS105-14-1011 the digits after the series letters give that dimension in millimetres, and the number after the dash is the circuit count.

How long does delivery take?

Standard products ship in 7–15 days. Simple customised products take 10–20 days and complex customised products take 15–40 days. The delivery port is Jiujiang, China Mainland.

Can this model be modified for my machine?

Yes. Send the rotating speed, the installation type and size, the circuit count, the voltage and current per ring, the signal types and their parameters, the operating temperature and the IP requirement, and the unit is redesigned around them.
