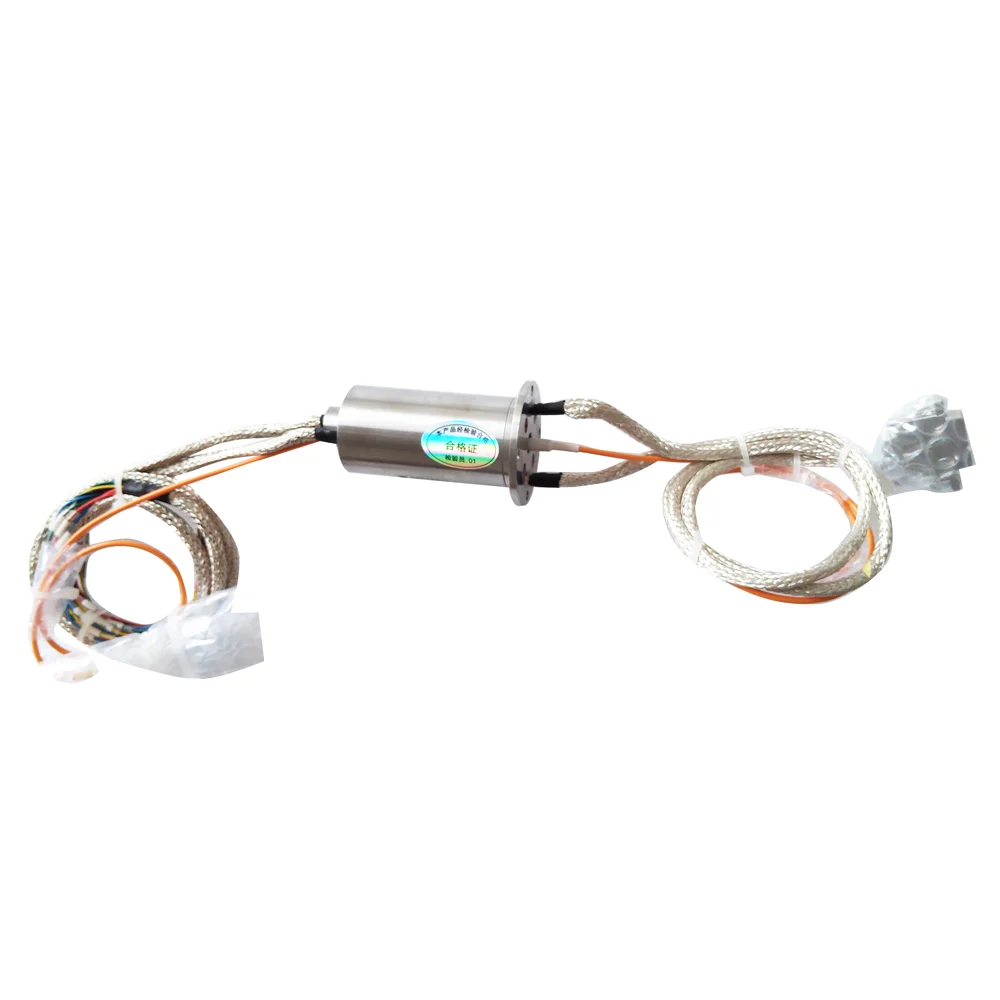

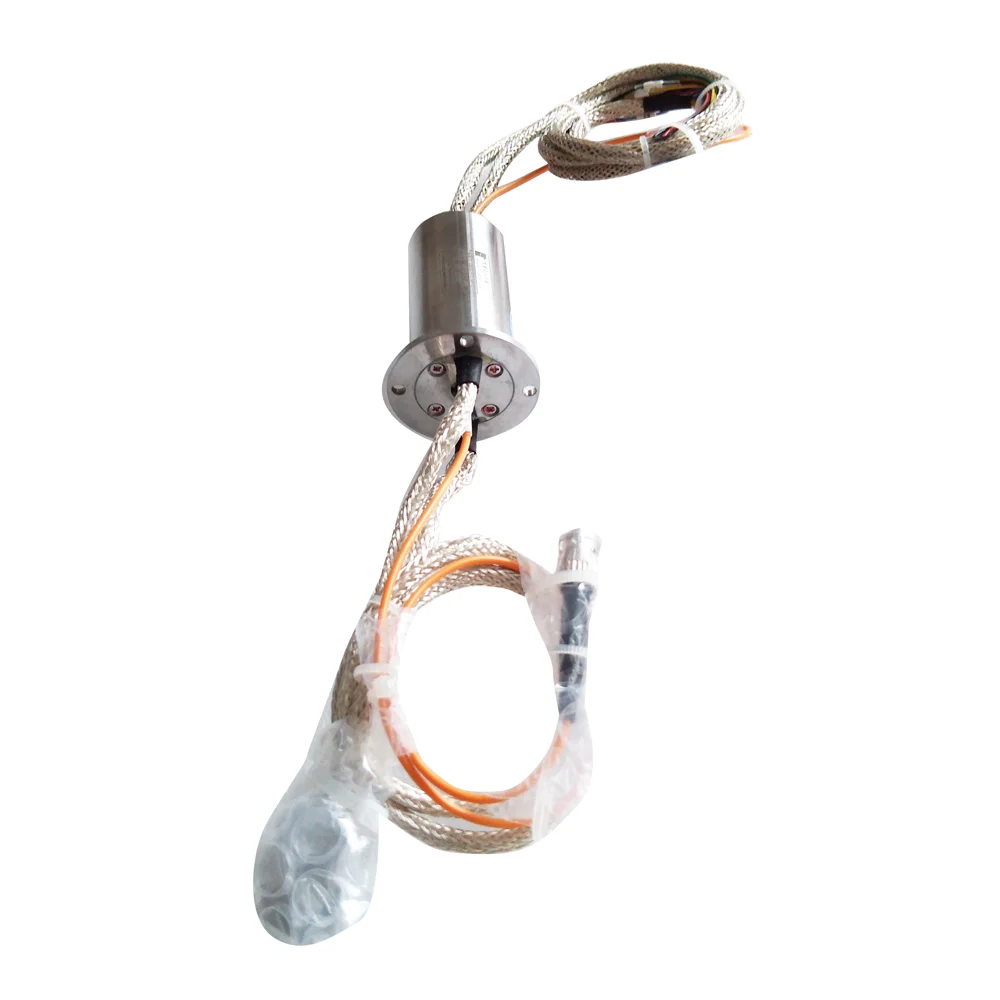

Ingiant hybrid slip rings 25channels combine 1 channel fiber optic
This is a rotating unit with the envelope you specify, carrying 25 circuits across a continuously rotating joint. The stator stays with the frame and the rotor turns with the machine, so the wiring on the moving side keeps its connection through unlimited…
Ingiant at a Glance
This is a rotating unit with the envelope you specify, carrying 25 circuits across a continuously rotating joint. The stator stays with the frame and the rotor turns with the machine, so the wiring on the moving side keeps its connection through unlimited 360° rotation. On this model sealing is rated IP51, rated speed is 0~300rpm.
- 25 circuits
- IP51
- 0~300rpm
- -40℃~+65℃
What This Model Gives the Machine
Unlimited rotation without cable wind-up
The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind. Rated speed is 0~300rpm.
Maintenance-free contact system
Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis. Dynamic resistance variation stays <10MΩ.
Built to your installation envelope
The mounting interface, lead exit and connector termination are set against your drawing.
Sealed to IP51
Housing and seals are matched to the environment so dust, splash or washdown does not reach the contact surfaces.
Backed by a 12 month warranty
12 months from date of sale; free repair or replacement for quality problems not caused by human damage
Engineers Who Specify This Part
Builders of inspection and subsea systems, radar and antenna positioners, filling and packaging lines, gimbals and pan-tilt platforms, and semiconductor and test equipment.
Application scenarios
Three Failures It Removes
Failure 1
Cables that have to follow a rotating part fail at the flex point, and the failure always happens in production rather than on the bench.
Failure 2
Slip rings that need periodic servicing pull a machine out of production for a job that should never have been on the schedule.
Failure 3
Sourcing several rotating joints for one axis multiplies lead times and alignment tolerances.
Materials Contacts and Construction
Contact system
Precious metal rings and brushes, selected for low contact resistance and long wear life.
Housing
Stainless steel housing, machined in-house on a CNC centre.
Insulation
Insulation resistance ≥1000MΩ @500VDC. Insulation strength 1500 VAC@50Hz,60s,2mA.
Lead wire
FF4-2Q-0.35mm, RG316 coaxial cable, 500mm + 15mm Outline drawing of this item as standard.
Operating environment
Working temperature -40℃~+65℃. Working humidity <70%. Protection level IP51.
Full Parameter Table
Values published for this model. Anything in this table can be changed on a customised build.
| Product family | Hybrid Slip Rings |
|---|---|
| Manufacturer | JiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China |
| Standard lead time | 7–15 days |
| Warranty | 12 months from date of sale |
| Number of circuits | 25 |
| Rated voltage | 0~240 VAC/VDC |
| Rated current | Can be customized |
| Rotating speed | 0~300rpm |
| Working temperature | -40℃~+65℃ |
| Working humidity | <70% |
| Protection level | IP51 |
| Insulation resistance | ≥1000MΩ @500VDC |
| Insulation strength | 1500 VAC@50Hz,60s,2mA |
| Dynamic resistance variation | <10MΩ |
| Housing material | Stainless steel |
| Electrical contact material | Precious metal |
| Lead wire specification | FF4-2Q-0.35mm, RG316 coaxial cable |
| Lead wire length | 500mm + 15mm Outline drawing of this item |
How the Unit Is Built and Checked
Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.
Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.
Certifications
- ISO 9001
- GJB9001C
- GB/T 19001-2008 / ISO 9001:2008
What Can Be Changed on This Build
- Circuit count, and the current and voltage rating of each ring
- Body diameter, overall length and mounting interface
- Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
- Sealing grade from IP51 to IP68, and housing material
- Lead length, lead specification, connector termination and outlet direction
- Quality grade S Standard, I Industrial or P Premium against the revolutions expected
Simple customisation 10–20 days. Complex customisation 15–40 days.
How It Compares With the Other Formats
The alternative formats are the capsule, the through bore and the separate rotor and brush assembly. Which one is right depends on whether anything has to pass through the centre of the axis and how much space is left around it.
Fitting and Commissioning
Mount the stator, not the load
Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.
Respect the lead route
Standard lead length is 500mm + 15mm Outline drawing of this item. Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.
Separate power and signal runs
Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.
Commission at low speed
Rated speed is 0~300rpm. Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.
