Ingiant Pancake Slip Rings 2 channels for Power and Signal Transmission. — through bore slip rings manufactured by INGIANT
Through Bore Slip Rings

Ingiant Pancake Slip Rings 2 channels for Power and Signal Transmission.

This is a through bore unit with the envelope you specify, carrying the circuit count you specify across a continuously rotating joint. Power and signals cross the joint through sliding precious metal contacts, so the moving assembly can turn indefinitely in…

Request A Quote Email The Specification
Ingiant Pancake Slip Rings 2 channels for Power and Signal Transmission. — through bore slip rings manufactured by INGIANT

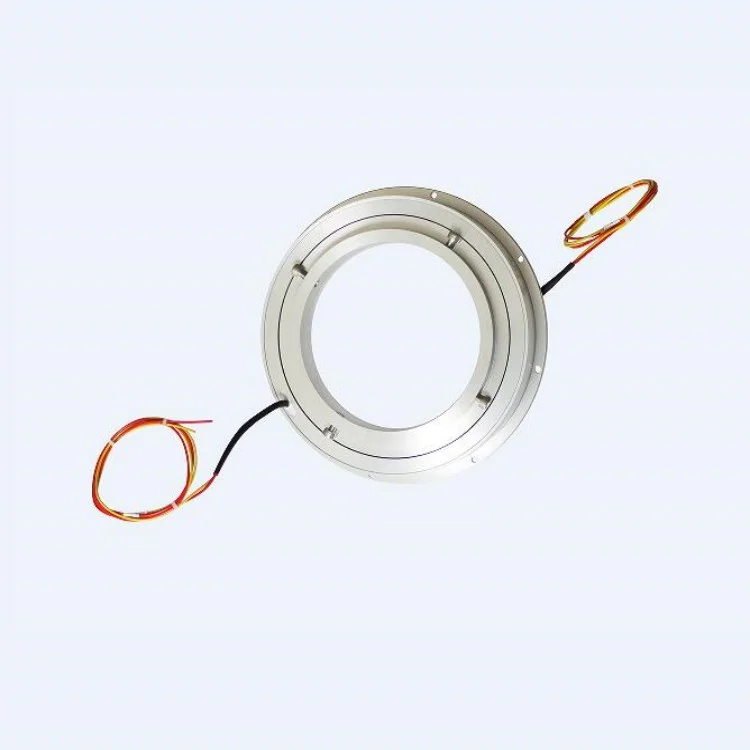

Ingiant Pancake Slip Rings 2 channels for Power and Signal Transmission., view 2

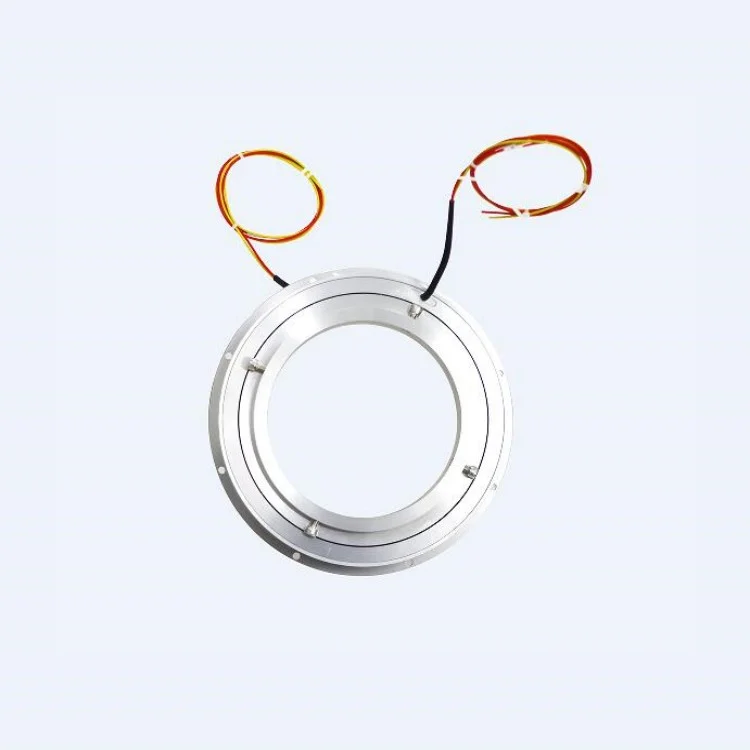

Ingiant Pancake Slip Rings 2 channels for Power and Signal Transmission., view 3

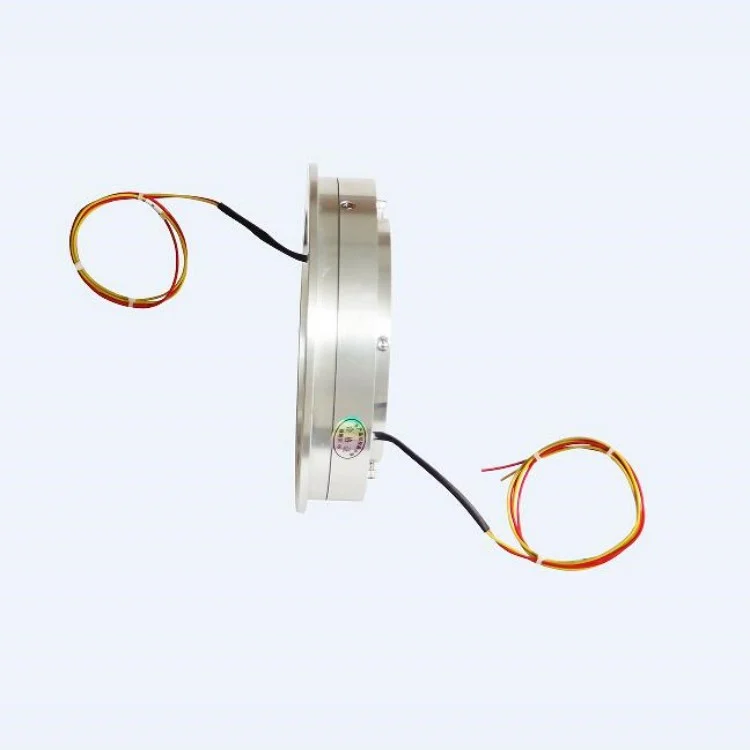

Ingiant Pancake Slip Rings 2 channels for Power and Signal Transmission., view 4
Product Overview

Ingiant at a Glance

This is a through bore unit with the envelope you specify, carrying the circuit count you specify across a continuously rotating joint. Power and signals cross the joint through sliding precious metal contacts, so the moving assembly can turn indefinitely in either direction. On this model sealing is rated IP54, rated speed is 0~600rpm.

  • IP54
  • 0~600rpm
  • -40℃~+65℃
Key Benefits

What This Model Gives the Machine

Unlimited rotation without cable wind-up

The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind. Rated speed is 0~600rpm.

Maintenance-free contact system

Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis. Dynamic resistance variation stays <10MΩ.

Built to your installation envelope

The mounting interface, lead exit and connector termination are set against your drawing.

Sealed to IP54

Housing and seals are matched to the environment so dust, splash or washdown does not reach the contact surfaces.

Backed by a 12 month warranty

12 months from date of sale; free repair or replacement for quality problems not caused by human damage

Who It Is For

Engineers Who Specify This Part

Designers of rotary tables, index drives, cable reels, packaging and filling machines, harbour and construction cranes, robot joints and pan-tilt heads.

Application scenarios

Problems It Solves

Three Failures It Removes

Failure 1

A twisted harness inside a rotating assembly chafes against the housing until an intermittent fault appears that nobody can reproduce.

Failure 2

A rotating joint that is not sealed for its environment lets dust or wash water reach the contact surfaces, and the symptom looks like an electrical fault.

Failure 3

Fitting a rotating connector after the mechanical design is frozen usually means cutting into the envelope somewhere it was not planned.

Technical Features

Materials Contacts and Construction

Contact system

Precious metal rings and brushes, selected for low contact resistance and long wear life.

Housing

Aluminum Alloy housing, machined in-house on a CNC centre.

Insulation

Insulation resistance ≥1000MΩ @500VDC. Insulation strength 1500 VAC@50Hz,60s,2mA.

Lead wire

Colored Teflon insulated & tinned stranded flexible wire, 500mm + 20mm All of the above can be customized except (Insulation resistance as standard.

Operating environment

Working temperature -40℃~+65℃. Working humidity <70%. Protection level IP54.

Specifications

Full Parameter Table

Values published for this model. Anything in this table can be changed on a customised build.

Product familyThrough Bore Slip Rings
ManufacturerJiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China
Standard lead time7–15 days
Warranty12 months from date of sale
Rated voltage0~240 VAC/VDC
Rated current2A.5A.10A.15A.20A
Rotating speed0~600rpm
Working temperature-40℃~+65℃
Working humidity<70%
Protection levelIP54
Insulation resistance≥1000MΩ @500VDC
Insulation strength1500 VAC@50Hz,60s,2mA
Dynamic resistance variation<10MΩ
Housing materialAluminum Alloy
Electrical contact materialPrecious metal
Lead wire specificationColored Teflon insulated & tinned stranded flexible wire
Lead wire length500mm + 20mm All of the above can be customized except (Insulation resistance
Manufacturing and Quality Control

How the Unit Is Built and Checked

Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.

Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.

Certifications

  • ISO 9001
  • GJB9001C
  • GB/T 19001-2008 / ISO 9001:2008
Customization Options

What Can Be Changed on This Build

  • Circuit count, and the current and voltage rating of each ring
  • Bore diameter, overall length and mounting interface
  • Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
  • Sealing grade from IP51 to IP68, and housing material
  • Lead length, lead specification, connector termination and outlet direction
  • Quality grade S Standard, I Industrial or P Premium against the revolutions expected

Simple customisation 10–20 days. Complex customisation 15–40 days.

Comparison

How It Compares With the Other Formats

A capsule unit is smaller but leaves nothing free at the centre of the axis. Choose the through bore format when a shaft, a cable bundle, an air line or a fibre has to pass straight through the joint.

Use Guide

Fitting and Commissioning

Mount the stator, not the load

Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.

Respect the lead route

Standard lead length is 500mm + 20mm All of the above can be customized except (Insulation resistance. Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.

Separate power and signal runs

Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.

Commission at low speed

Rated speed is 0~600rpm. Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.

Products

Related Models

Other models in the same family and nearby sizes.

Knowledge

Related Reading

FAQ

About Ingiant

Is IP54 enough for my application?

IP54 is the rating on this build. Tell INGIANT the real exposure — dust, splash, washdown, outdoor weather or immersion — and the sealing grade is set against it, with options available up to IP68.

How long does delivery take?

Standard products ship in 7–15 days. Simple customised products take 10–20 days and complex customised products take 15–40 days. The delivery port is Jiujiang, China Mainland.

Can this model be modified for my machine?

Yes. Send the rotating speed, the installation type and size, the circuit count, the voltage and current per ring, the signal types and their parameters, the operating temperature and the IP requirement, and the unit is redesigned around them.

Get a Price and Lead Time for Ingiant

Tell us the application and the quantity. A standard unit ships in 7–15 days; a modified build comes back with a drawing first.
