Ingiant 1.5MW Pitch control slip ring 31 channels of 400VAC/60A for Dongfang Turbine Co.,Ltd — customized slip rings manufactured by INGIANT
Customized Slip Rings

Ingiant 1.5MW Pitch control slip ring 31 channels of 400VAC/60A for Dongfang Turbine Co.,Ltd

This is a rotating unit with the envelope you specify, carrying the circuit count you specify across a continuously rotating joint. Power and signals cross the joint through sliding precious metal contacts, so the moving assembly can turn indefinitely in…

Request A Quote Email The Specification
Ingiant 1.5MW Pitch control slip ring 31 channels of 400VAC/60A for Dongfang Turbine Co.,Ltd — customized slip rings manufactured by INGIANT

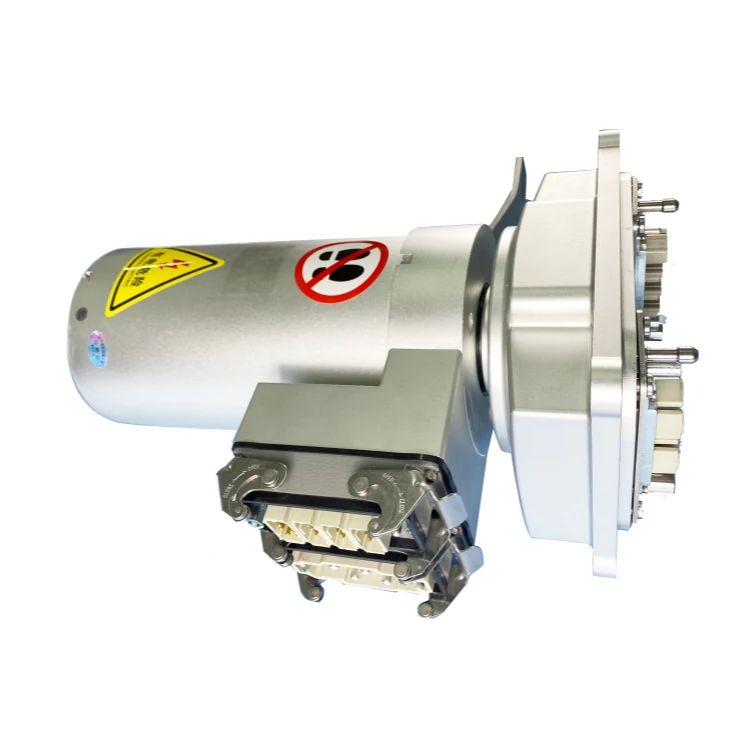

Ingiant 1.5MW Pitch control slip ring 31 channels of 400VAC/60A for Dongfang Turbine Co.,Ltd, view 2

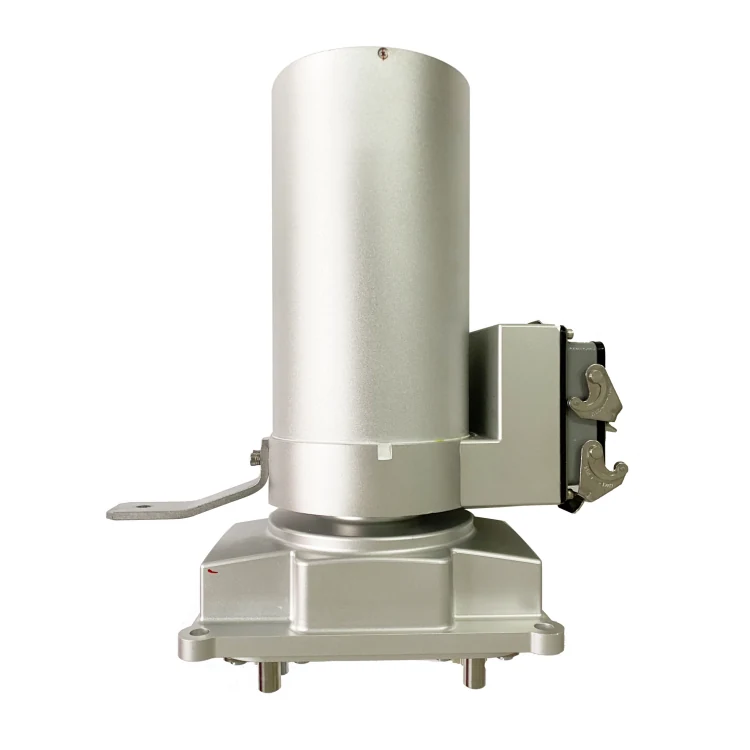

Ingiant 1.5MW Pitch control slip ring 31 channels of 400VAC/60A for Dongfang Turbine Co.,Ltd, view 3

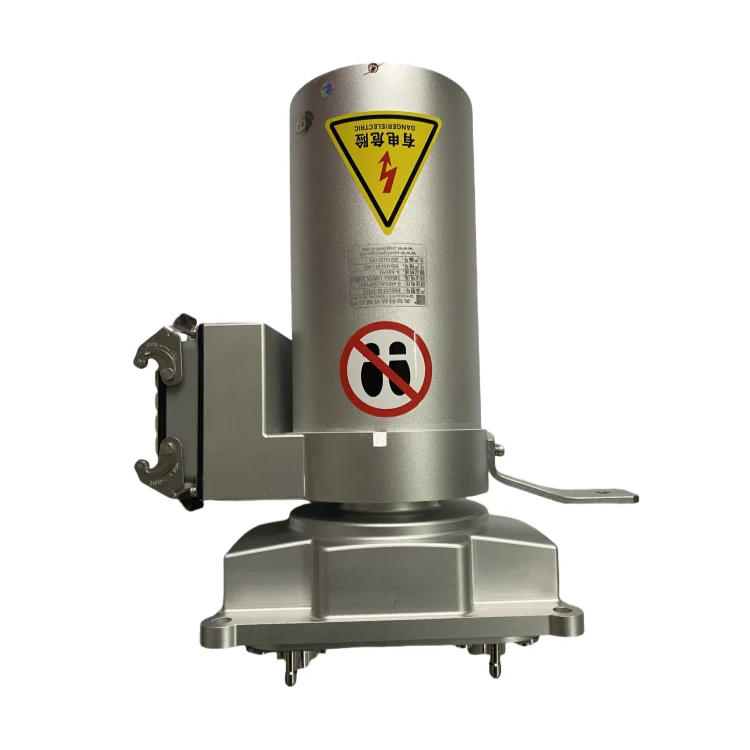

Ingiant 1.5MW Pitch control slip ring 31 channels of 400VAC/60A for Dongfang Turbine Co.,Ltd, view 4
Product Overview

Ingiant at a Glance

This is a rotating unit with the envelope you specify, carrying the circuit count you specify across a continuously rotating joint. Power and signals cross the joint through sliding precious metal contacts, so the moving assembly can turn indefinitely in either direction.

Key Benefits

What This Model Gives the Machine

Unlimited rotation without cable wind-up

The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind.

Maintenance-free contact system

Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis.

Built to your installation envelope

The mounting interface, lead exit and connector termination are set against your drawing.

Stable transmission under vibration

The contact geometry is designed so that shock and vibration do not translate into resistance variation on the signal rings.

Backed by a 12 month warranty

12 months from date of sale; free repair or replacement for quality problems not caused by human damage

Who It Is For

Engineers Who Specify This Part

OEM engineering teams, defence and research institutes, special machine builders and integrators who cannot design around a catalogue part.

Application scenarios

Problems It Solves

Three Failures It Removes

Failure 1

Rotation limited to ±180° forces an unwind move into every cycle, and that time is lost on every part the machine makes.

Failure 2

A rotating joint that is not sealed for its environment lets dust or wash water reach the contact surfaces, and the symptom looks like an electrical fault.

Failure 3

Fitting a rotating connector after the mechanical design is frozen usually means cutting into the envelope somewhere it was not planned.

Technical Features

Materials Contacts and Construction

Build

Specifications for this model are set against the customer's drawing. Send your requirement and the datasheet is issued with the quotation.

Specifications

Full Parameter Table

Values published for this model. Anything in this table can be changed on a customised build.

Product familyCustomized Slip Rings
ManufacturerJiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China
Standard lead time7–15 days
Warranty12 months from date of sale

The parameter table for this model is issued with the quotation because the build is set against the customer drawing. Send your requirement and the datasheet comes back with the price.

Manufacturing and Quality Control

How the Unit Is Built and Checked

Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.

Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.

Certifications

  • ISO 9001
  • GJB9001C
  • GB/T 19001-2008 / ISO 9001:2008
Customization Options

What Can Be Changed on This Build

  • Circuit count, and the current and voltage rating of each ring
  • Body diameter, overall length and mounting interface
  • Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
  • Sealing grade from IP51 to IP68, and housing material
  • Lead length, lead specification, connector termination and outlet direction
  • Quality grade S Standard, I Industrial or P Premium against the revolutions expected

Simple customisation 10–20 days. Complex customisation 15–40 days.

Comparison

How It Compares With the Other Formats

The alternative formats are the capsule, the through bore and the separate rotor and brush assembly. Which one is right depends on whether anything has to pass through the centre of the axis and how much space is left around it.

Use Guide

Fitting and Commissioning

Mount the stator, not the load

Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.

Respect the lead route

Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.

Separate power and signal runs

Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.

Commission at low speed

Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.

Products

Related Models

Other models in the same family and nearby sizes.

Knowledge

Related Reading

FAQ

About Ingiant

How long does delivery take?

Standard products ship in 7–15 days. Simple customised products take 10–20 days and complex customised products take 15–40 days. The delivery port is Jiujiang, China Mainland.

Can this model be modified for my machine?

Yes. Send the rotating speed, the installation type and size, the circuit count, the voltage and current per ring, the signal types and their parameters, the operating temperature and the IP requirement, and the unit is redesigned around them.

Get a Price and Lead Time for Ingiant

Tell us the application and the quantity. A standard unit ships in 7–15 days; a modified build comes back with a drawing first.

Request A Quote On WhatsApp Email An Engineer
