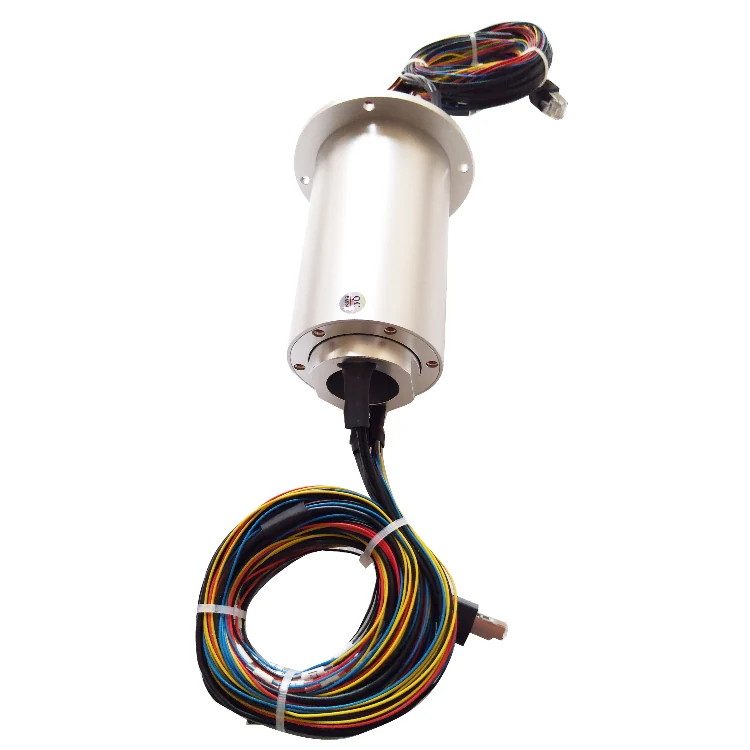

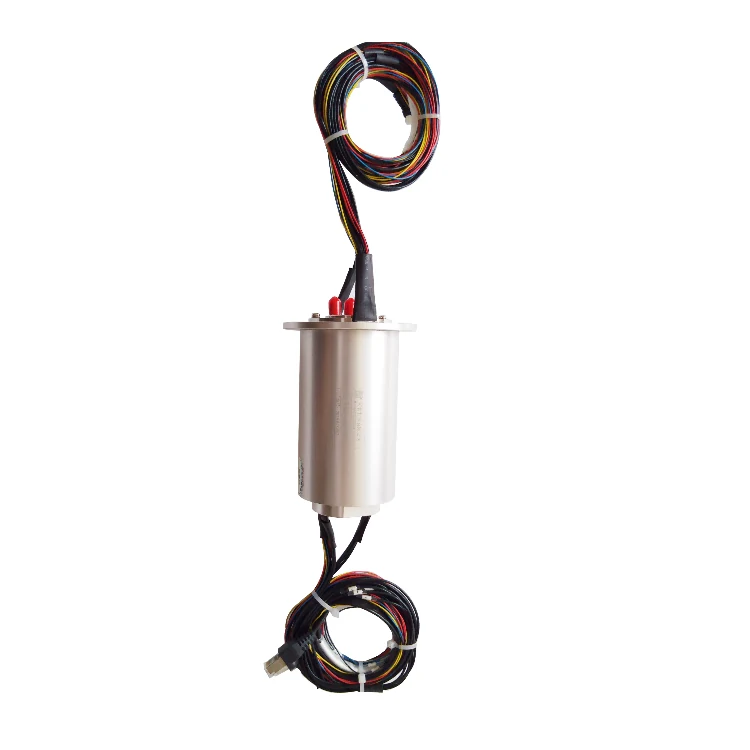

DHS064-25 RF rotary joints 64mm combination Dual-channel RF coaxial rotary joint and 25channels power signal.

DHS064-25 is a capsule slip ring built around a 64 mm body and 25 circuits. The stator stays with the frame and the rotor turns with the machine, so the wiring on the moving side keeps its connection through unlimited 360° rotation. On this model sealing is…

Request A Quote Email The Specification
DHS064-25 RF rotary joints 64mm combination Dual-channel RF coaxial rotary joint and 25channels power signal. — rf rotary joints and coax slip rings manufactured by INGIANT
DHS064-25 RF rotary joints 64mm combination Dual-channel RF coaxial rotary joint and 25channels power signal., view 2
DHS064-25 RF rotary joints 64mm combination Dual-channel RF coaxial rotary joint and 25channels power signal., view 3
Product Overview

DHS064-25 at a Glance

DHS064-25 is a capsule slip ring built around a 64 mm body and 25 circuits. The stator stays with the frame and the rotor turns with the machine, so the wiring on the moving side keeps its connection through unlimited 360° rotation. On this model sealing is rated IP54, rated speed is 0~600rpm.

  • 25 circuits
  • Ø64 mm
  • IP54
  • 0~600rpm
  • -40℃~+65℃
Key Benefits

What This Model Gives the Machine

Unlimited rotation without cable wind-up

The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind. Rated speed is 0~600rpm.

Maintenance-free contact system

Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis. Dynamic resistance variation stays <10MΩ.

Fits a 64 mm interface

The 64 mm envelope keeps the joint inside the space the assembly already has, so the surrounding design does not have to change.

Sealed to IP54

Housing and seals are matched to the environment so dust, splash or washdown does not reach the contact surfaces.

Backed by a 12 month warranty

12 months from date of sale; free repair or replacement for quality problems not caused by human damage

Who It Is For

Engineers Who Specify This Part

Radar and surveillance system builders, satellite and communications antenna manufacturers, defence electronics teams and test equipment designers.

Application scenarios

Problems It Solves

Three Failures It Removes

Failure 1

A twisted harness inside a rotating assembly chafes against the housing until an intermittent fault appears that nobody can reproduce.

Failure 2

Contact noise on a rotating joint shows up as sensor drift or dropped packets long before it shows up as a failed continuity test.

Failure 3

Fitting a rotating connector after the mechanical design is frozen usually means cutting into the envelope somewhere it was not planned.

Technical Features

Materials Contacts and Construction

Contact system

Precious metal rings and brushes, selected for low contact resistance and long wear life.

Housing

Aluminum Alloy housing, machined in-house on a CNC centre.

Insulation

Insulation resistance ≥1000MΩ @500VDC. Insulation strength 1500 VAC@50Hz,60s,2mA.

Lead wire

Colored Teflon insulated & tinned stranded flexible wire, 500mm + 20mm RF rotary joint parameters: RF joint parameters Channel 1 Channel 2 as standard.

Operating environment

Working temperature -40℃~+65℃. Working humidity <70%. Protection level IP54.

Specifications

Full Parameter Table

Values published for this model. Anything in this table can be changed on a customised build.

Model codeDHS064-25
Body diameter64 mm
Product familyRF Rotary Joints and Coax Slip Rings
ManufacturerJiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China
Standard lead time7–15 days
Warranty12 months from date of sale
Number of circuits25
Rated voltage0~240 VAC/VDC
Rated currentcan be customized
Rotating speed0~600rpm
Working temperature-40℃~+65℃
Working humidity<70%
Protection levelIP54
Insulation resistance≥1000MΩ @500VDC
Insulation strength1500 VAC@50Hz,60s,2mA
Dynamic resistance variation<10MΩ
Housing materialAluminum Alloy
Electrical contact materialPrecious metal
Lead wire specificationColored Teflon insulated & tinned stranded flexible wire
Lead wire length500mm + 20mm RF rotary joint parameters: RF joint parameters Channel 1 Channel 2
Manufacturing and Quality Control

How the Unit Is Built and Checked

Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.

Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.

Certifications

  • ISO 9001
  • GJB9001C
  • GB/T 19001-2008 / ISO 9001:2008
Customization Options

What Can Be Changed on This Build

  • Circuit count, and the current and voltage rating of each ring
  • Body diameter, overall length and mounting interface
  • Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
  • Sealing grade from IP51 to IP68, and housing material
  • Lead length, lead specification, connector termination and outlet direction
  • Quality grade S Standard, I Industrial or P Premium against the revolutions expected

Simple customisation 10–20 days. Complex customisation 15–40 days.

Comparison

How It Compares With the Other Formats

A through bore unit keeps the centre of the axis clear but needs more radial space and a flange. Choose the capsule format when nothing has to pass through the middle and the envelope is the binding constraint.

Use Guide

Fitting and Commissioning

Mount the stator, not the load

Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.

Respect the lead route

Standard lead length is 500mm + 20mm RF rotary joint parameters: RF joint parameters Channel 1 Channel 2. Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.

Separate power and signal runs

Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.

Commission at low speed

Rated speed is 0~600rpm. Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.
