DHS033-26 customized solid shaft slip ring low electrical noise 26 channels diameter 33mm

DHS033-26 is a capsule slip ring built around a 33 mm body and 26 circuits. It sits between the fixed and the rotating side of a machine so cables never wind up, and it is supplied by JiuJiang Ingiant Technology Co., Ltd as a standard or customised build. On…

Request A Quote Email The Specification
DHS033-26 customized solid shaft slip ring low electrical noise 26 channels diameter 33mm — customized slip rings manufactured by INGIANT

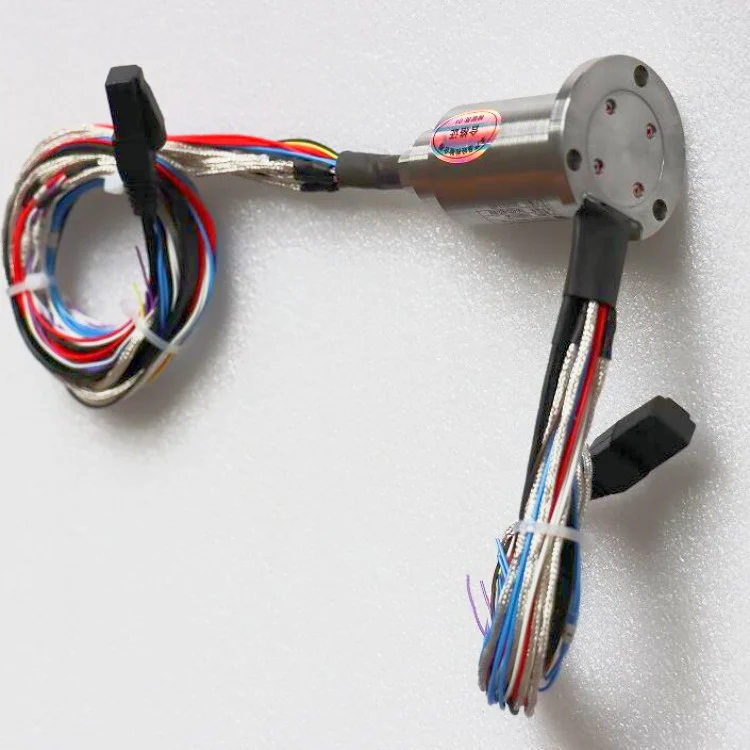

DHS033-26 customized solid shaft slip ring low electrical noise 26 channels diameter 33mm, view 2

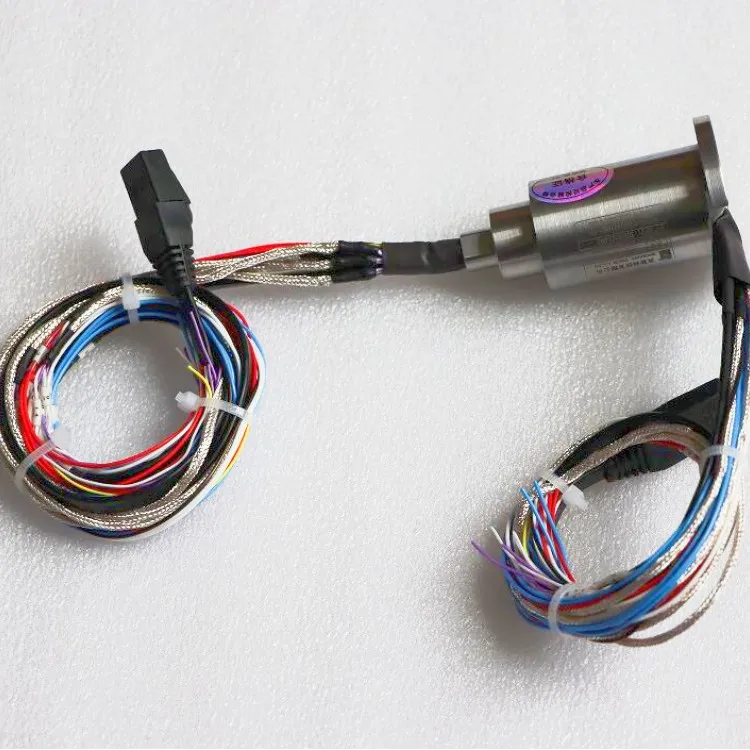

DHS033-26 customized solid shaft slip ring low electrical noise 26 channels diameter 33mm, view 3

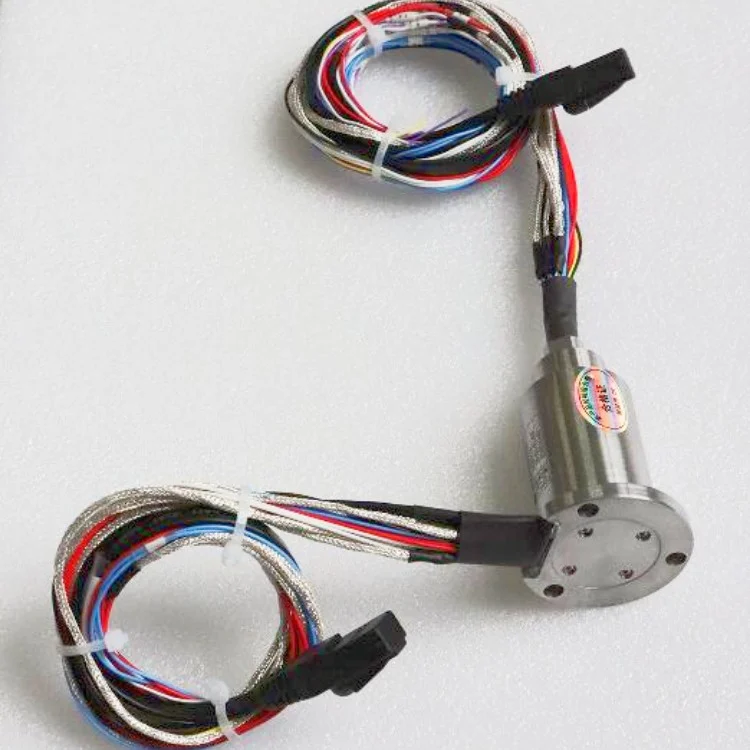

DHS033-26 customized solid shaft slip ring low electrical noise 26 channels diameter 33mm, view 4
Product Overview

DHS033-26 at a Glance

DHS033-26 is a capsule slip ring built around a 33 mm body and 26 circuits. It sits between the fixed and the rotating side of a machine so cables never wind up, and it is supplied by JiuJiang Ingiant Technology Co., Ltd as a standard or customised build. On this model sealing is rated IP54, rated speed is 0~600rpm.

  • 26 circuits
  • Ø33 mm
  • IP54
  • 0~600rpm
  • -40℃~+65℃
Key Benefits

What This Model Gives the Machine

Unlimited rotation without cable wind-up

The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind. Rated speed is 0~600rpm.

Maintenance-free contact system

Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis. Dynamic resistance variation stays <10MΩ.

Fits a 33 mm interface

The 33 mm envelope keeps the joint inside the space the assembly already has, so the surrounding design does not have to change.

Sealed to IP54

Housing and seals are matched to the environment so dust, splash or washdown does not reach the contact surfaces.

Backed by a 12 month warranty

12 months from date of sale; free repair or replacement for quality problems not caused by human damage

Who It Is For

Engineers Who Specify This Part

OEM engineering teams, defence and research institutes, special machine builders and integrators who cannot design around a catalogue part.

Application scenarios

Problems It Solves

Three Failures It Removes

Failure 1

A twisted harness inside a rotating assembly chafes against the housing until an intermittent fault appears that nobody can reproduce.

Failure 2

Contact noise on a rotating joint shows up as sensor drift or dropped packets long before it shows up as a failed continuity test.

Failure 3

Adding one more circuit late in a project means a new ring stack, which is why circuit headroom is worth specifying at the start.

Technical Features

Materials Contacts and Construction

Contact system

Precious metal rings and brushes, selected for low contact resistance and long wear life.

Housing

Aluminum Alloy housing, machined in-house on a CNC centre.

Insulation

Insulation resistance ≥1000MΩ @500VDC. Insulation strength 1500 VAC@50Hz,60s,2mA.

Lead wire

Colored Teflon insulated & tinned stranded flexible wire, 500mm + 20mm All of the above can be customized except (Insulation resistance as standard.

Operating environment

Working temperature -40℃~+65℃. Working humidity <70%. Protection level IP54.

Specifications

Full Parameter Table

Values published for this model. Anything in this table can be changed on a customised build.

Model codeDHS033-26
Body diameter33 mm
Product familyCustomized Slip Rings
ManufacturerJiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China
Standard lead time7–15 days
Warranty12 months from date of sale
Number of circuits26
Rated voltage0~240 VAC/VDC
Rated currentcan be customized
Rotating speed0~600rpm
Working temperature-40℃~+65℃
Working humidity<70%
Protection levelIP54
Insulation resistance≥1000MΩ @500VDC
Insulation strength1500 VAC@50Hz,60s,2mA
Dynamic resistance variation<10MΩ
Housing materialAluminum Alloy
Electrical contact materialPrecious metal
Lead wire specificationColored Teflon insulated & tinned stranded flexible wire
Lead wire length500mm + 20mm All of the above can be customized except (Insulation resistance
Manufacturing and Quality Control

How the Unit Is Built and Checked

Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.

Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.

Certifications

  • ISO 9001
  • GJB9001C
  • GB/T 19001-2008 / ISO 9001:2008
Customization Options

What Can Be Changed on This Build

  • Circuit count, and the current and voltage rating of each ring
  • Body diameter, overall length and mounting interface
  • Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
  • Sealing grade from IP51 to IP68, and housing material
  • Lead length, lead specification, connector termination and outlet direction
  • Quality grade S Standard, I Industrial or P Premium against the revolutions expected

Simple customisation 10–20 days. Complex customisation 15–40 days.

Comparison

How It Compares With the Other Formats

A through bore unit keeps the centre of the axis clear but needs more radial space and a flange. Choose the capsule format when nothing has to pass through the middle and the envelope is the binding constraint.

Use Guide

Fitting and Commissioning

Mount the stator, not the load

Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.

Respect the lead route

Standard lead length is 500mm + 20mm All of the above can be customized except (Insulation resistance. Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.

Separate power and signal runs

Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.

Commission at low speed

Rated speed is 0~600rpm. Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.

Products

Related Models

Other models in the same family and nearby sizes.

Knowledge

Related Reading

FAQ

About DHS033-26

How many circuits does DHS033-26 have?

This build has 26 circuits, rated 0~240 VAC/VDC at can be customized. The ring count can be changed on a customised build — send the number of single wires that have to cross the joint.

What does the 33 mm in the model number refer to?

It is the outside diameter of the body. In DHS033-26 the digits after the series letters give that dimension in millimetres, and the number after the dash is the circuit count.

Is IP54 enough for my application?

IP54 is the rating on this build. Tell INGIANT the real exposure — dust, splash, washdown, outdoor weather or immersion — and the sealing grade is set against it, with options available up to IP68.

How long does delivery take?

Standard products ship in 7–15 days. Simple customised products take 10–20 days and complex customised products take 15–40 days. The delivery port is Jiujiang, China Mainland.

Can this model be modified for my machine?

Yes. Send the rotating speed, the installation type and size, the circuit count, the voltage and current per ring, the signal types and their parameters, the operating temperature and the IP requirement, and the unit is redesigned around them.

Get a Price and Lead Time for DHS033-26

Tell us the application and the quantity. A standard unit ships in 7–15 days; a modified build comes back with a drawing first.
