DHK090-81 Inner diameter 90mm Ethernet slip ring 81-channel integral precision conductive slip ring — through bore slip rings manufactured by INGIANT
Through Bore Slip Rings

DHK090-81 Inner diameter 90mm Ethernet slip ring 81-channel integral precision conductive slip ring

This is a through bore unit with a 90 mm bore, carrying 81 circuits across a continuously rotating joint. It sits between the fixed and the rotating side of a machine so cables never wind up, and it is supplied by JiuJiang Ingiant Technology Co., Ltd as a…

Request A Quote Email The Specification
DHK090-81 Inner diameter 90mm Ethernet slip ring 81-channel integral precision conductive slip ring — through bore slip rings manufactured by INGIANT

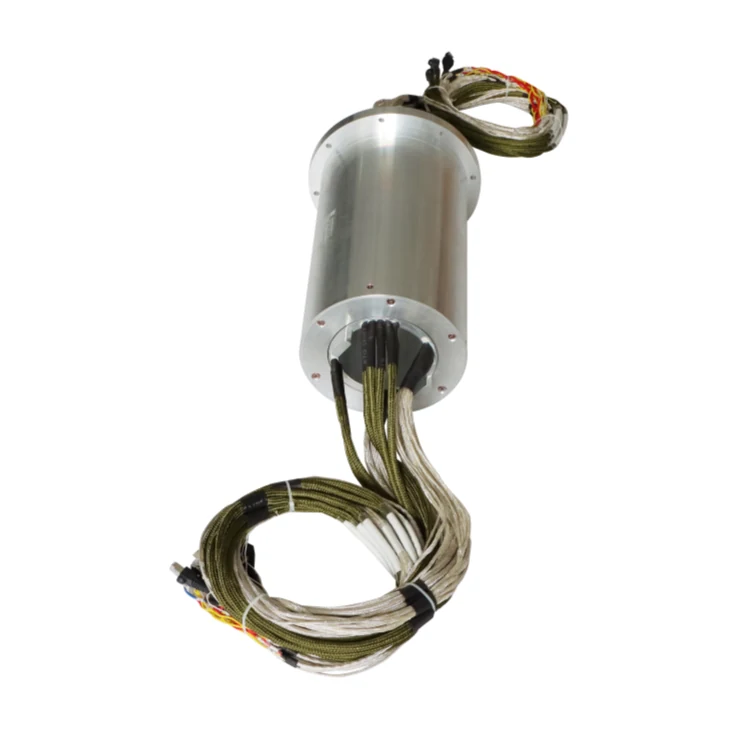

DHK090-81 Inner diameter 90mm Ethernet slip ring 81-channel integral precision conductive slip ring, view 2

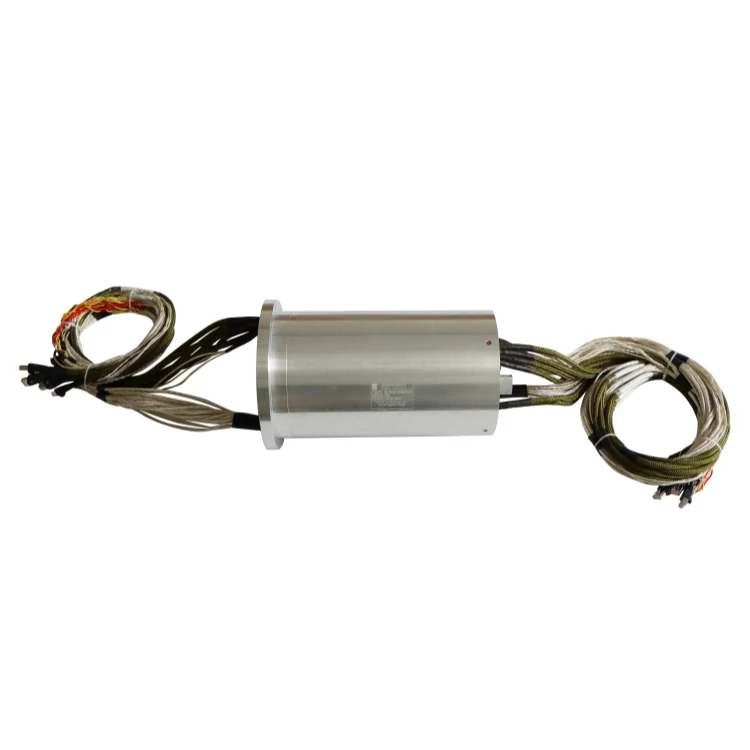

DHK090-81 Inner diameter 90mm Ethernet slip ring 81-channel integral precision conductive slip ring, view 3
Product Overview

DHK090-81 at a Glance

This is a through bore unit with a 90 mm bore, carrying 81 circuits across a continuously rotating joint. It sits between the fixed and the rotating side of a machine so cables never wind up, and it is supplied by JiuJiang Ingiant Technology Co., Ltd as a standard or customised build. On this model sealing is rated IP54, rated speed is 0~600rpm.

  • 81 circuits
  • Ø90 mm
  • IP54
  • 0~600rpm
  • -40℃~+65℃
Key Benefits

What This Model Gives the Machine

Unlimited rotation without cable wind-up

The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind. Rated speed is 0~600rpm.

Maintenance-free contact system

Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis. Dynamic resistance variation stays <10MΩ.

Fits a 90 mm interface

The 90 mm bore lets the shaft, cable bundle or air line pass straight through the axis, so the surrounding design does not have to change.

Sealed to IP54

Housing and seals are matched to the environment so dust, splash or washdown does not reach the contact surfaces.

Backed by a 12 month warranty

12 months from date of sale; free repair or replacement for quality problems not caused by human damage

Who It Is For

Engineers Who Specify This Part

Designers of rotary tables, index drives, cable reels, packaging and filling machines, harbour and construction cranes, robot joints and pan-tilt heads.

Application scenarios

Problems It Solves

Three Failures It Removes

Failure 1

A twisted harness inside a rotating assembly chafes against the housing until an intermittent fault appears that nobody can reproduce.

Failure 2

A rotating joint that is not sealed for its environment lets dust or wash water reach the contact surfaces, and the symptom looks like an electrical fault.

Failure 3

Adding one more circuit late in a project means a new ring stack, which is why circuit headroom is worth specifying at the start.

Technical Features

Materials Contacts and Construction

Contact system

Precious metal rings and brushes, selected for low contact resistance and long wear life.

Housing

Aluminum Alloy housing, machined in-house on a CNC centre.

Insulation

Insulation resistance ≥1000MΩ @500VDC. Insulation strength 1500 VAC@50Hz,60s,2mA.

Lead wire

Colored Teflon insulated & tinned stranded flexible wire, 500mm + 20mm Standard product outline drawing as standard.

Operating environment

Working temperature -40℃~+65℃. Working humidity <70%. Protection level IP54.

Specifications

Full Parameter Table

Values published for this model. Anything in this table can be changed on a customised build.

Model codeDHK090-81
Bore diameter90 mm
Product familyThrough Bore Slip Rings
ManufacturerJiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China
Standard lead time7–15 days
Warranty12 months from date of sale
Number of circuits81
Rated voltage0~240 VAC/VDC
Rated current2A.5A.10A.15A.20A
Rotating speed0~600rpm
Working temperature-40℃~+65℃
Working humidity<70%
Protection levelIP54
Insulation resistance≥1000MΩ @500VDC
Insulation strength1500 VAC@50Hz,60s,2mA
Dynamic resistance variation<10MΩ
Housing materialAluminum Alloy
Electrical contact materialPrecious metal
Lead wire specificationColored Teflon insulated & tinned stranded flexible wire
Lead wire length500mm + 20mm Standard product outline drawing
Manufacturing and Quality Control

How the Unit Is Built and Checked

Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.

Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.

Certifications

  • ISO 9001
  • GJB9001C
  • GB/T 19001-2008 / ISO 9001:2008
Customization Options

What Can Be Changed on This Build

  • Circuit count, and the current and voltage rating of each ring
  • Bore diameter, overall length and mounting interface
  • Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
  • Sealing grade from IP51 to IP68, and housing material
  • Lead length, lead specification, connector termination and outlet direction
  • Quality grade S Standard, I Industrial or P Premium against the revolutions expected

Simple customisation 10–20 days. Complex customisation 15–40 days.

Comparison

How It Compares With the Other Formats

A capsule unit is smaller but leaves nothing free at the centre of the axis. Choose the through bore format when a shaft, a cable bundle, an air line or a fibre has to pass straight through the joint.

Use Guide

Fitting and Commissioning

Mount the stator, not the load

Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.

Respect the lead route

Standard lead length is 500mm + 20mm Standard product outline drawing. Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.

Separate power and signal runs

Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.

Commission at low speed

Rated speed is 0~600rpm. Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.

Products

Related Models

Other models in the same family and nearby sizes.

Knowledge

Related Reading

FAQ

About DHK090-81

How many circuits does DHK090-81 have?

This build has 81 circuits, rated 0~240 VAC/VDC at 2A.5A.10A.15A.20A. The ring count can be changed on a customised build — send the number of single wires that have to cross the joint.

What does the 90 mm in the model number refer to?

It is the bore diameter. In DHK090-81 the digits after the series letters give that dimension in millimetres, and the number after the dash is the circuit count.

Is IP54 enough for my application?

IP54 is the rating on this build. Tell INGIANT the real exposure — dust, splash, washdown, outdoor weather or immersion — and the sealing grade is set against it, with options available up to IP68.

How long does delivery take?

Standard products ship in 7–15 days. Simple customised products take 10–20 days and complex customised products take 15–40 days. The delivery port is Jiujiang, China Mainland.

Can this model be modified for my machine?

Yes. Send the rotating speed, the installation type and size, the circuit count, the voltage and current per ring, the signal types and their parameters, the operating temperature and the IP requirement, and the unit is redesigned around them.

Get a Price and Lead Time for DHK090-81

Tell us the application and the quantity. A standard unit ships in 7–15 days; a modified build comes back with a drawing first.
