DHS095-27-4F 4 channels fiber optic and 27 channels electric hybrid slip ring

DHS095-27-4F is a capsule slip ring built around a 95 mm body and 27 circuits. The stator stays with the frame and the rotor turns with the machine, so the wiring on the moving side keeps its connection through unlimited 360° rotation. On this model it…

Request A Quote Email The Specification
DHS095-27-4F 4 channels fiber optic and 27 channels electric hybrid slip ring — fiber optic rotary joints manufactured by INGIANT

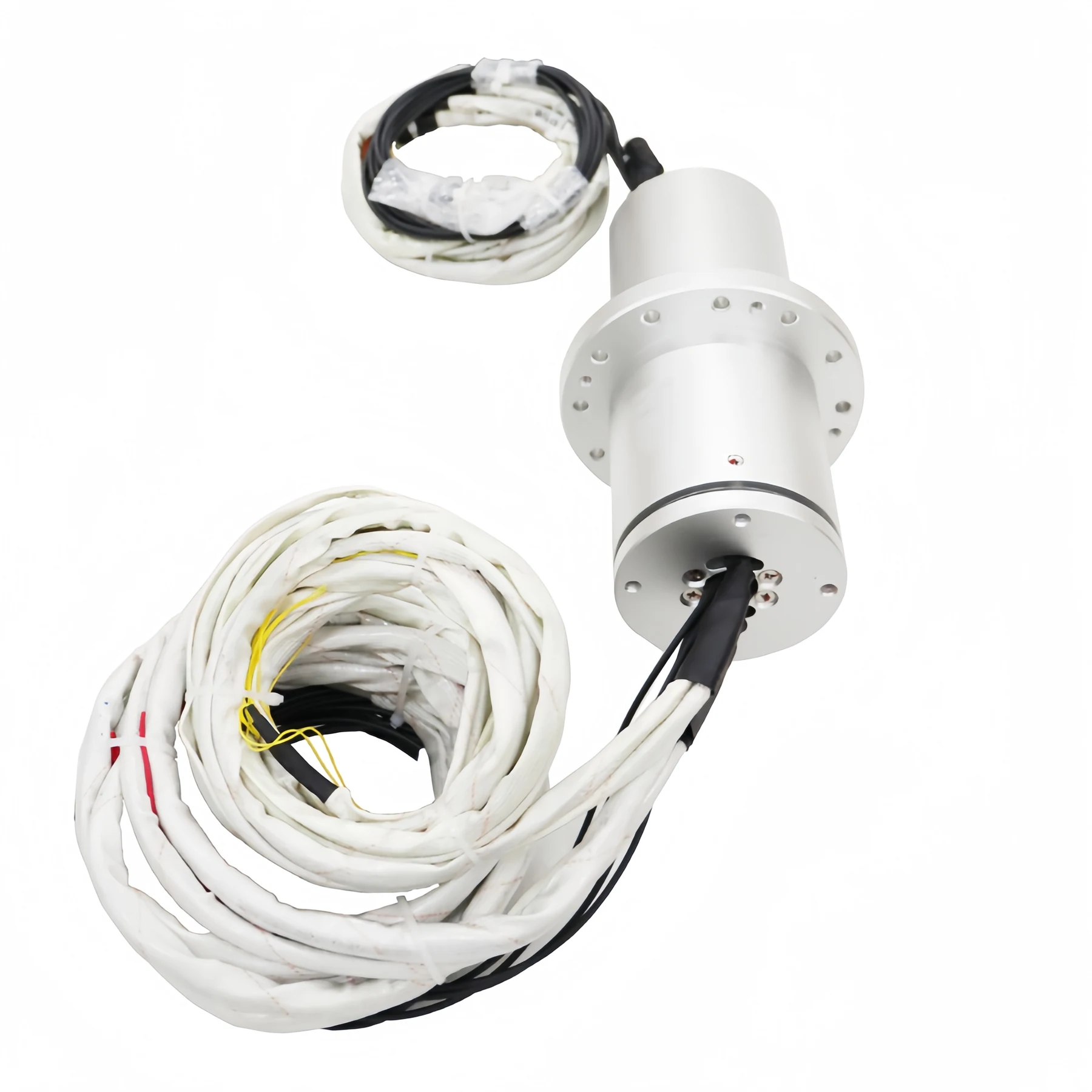

DHS095-27-4F 4 channels fiber optic and 27 channels electric hybrid slip ring, view 2

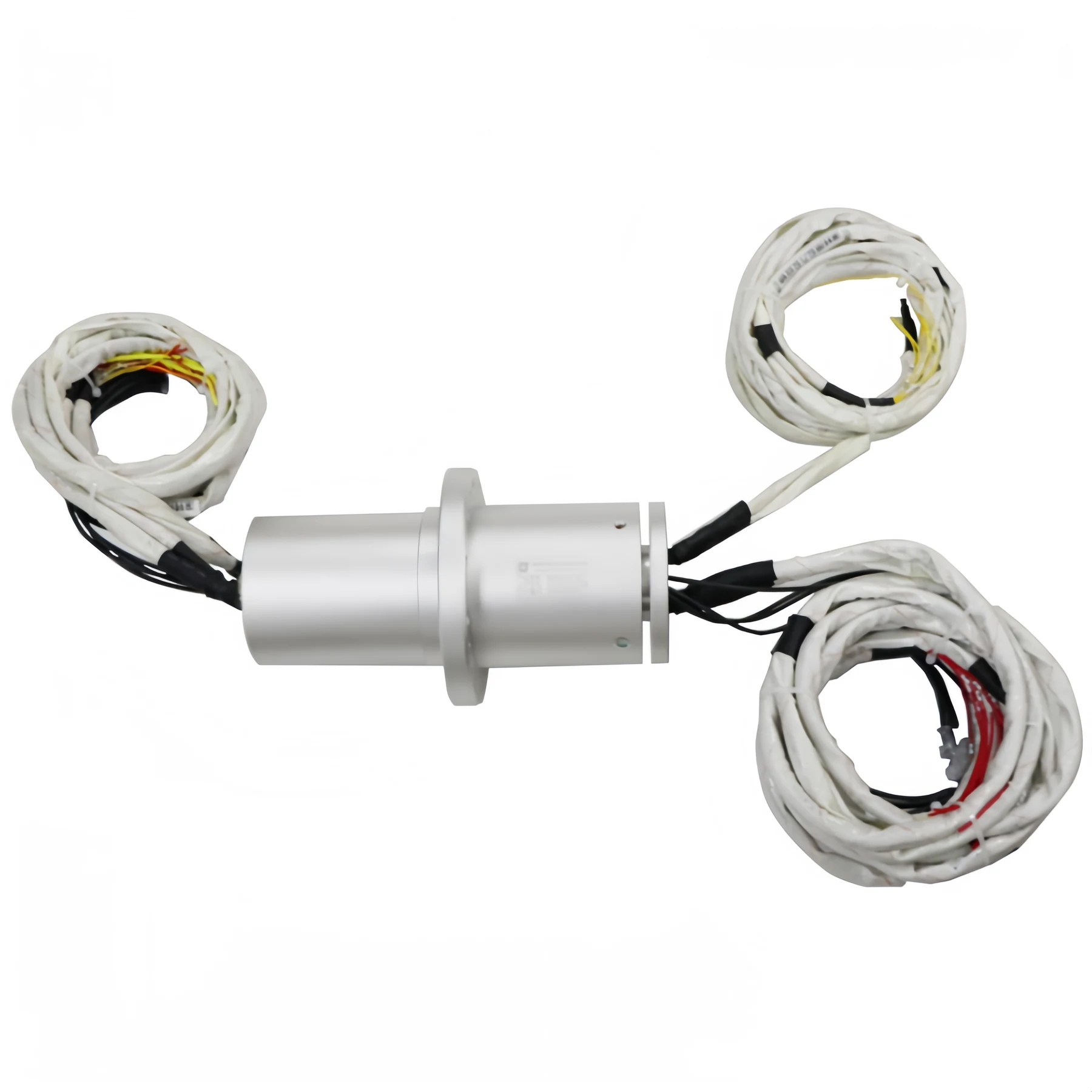

DHS095-27-4F 4 channels fiber optic and 27 channels electric hybrid slip ring, view 3
Product Overview

DHS095-27-4F at a Glance

DHS095-27-4F is a capsule slip ring built around a 95 mm body and 27 circuits. The stator stays with the frame and the rotor turns with the machine, so the wiring on the moving side keeps its connection through unlimited 360° rotation. On this model it combines 4 optical fiber channels with the electrical rings in one body, sealing is rated IP54, rated speed is 0~600rpm.

  • 27 circuits
  • Ø95 mm
  • IP54
  • 0~600rpm
  • -40℃~+65℃
Key Benefits

What This Model Gives the Machine

Unlimited rotation without cable wind-up

The rotating side keeps its electrical connection through continuous 360° turning, so the machine never has to stop and unwind. Rated speed is 0~600rpm.

Maintenance-free contact system

Precious metal contact pairs are designed to run without lubrication or servicing for the rated life, so there is nothing to schedule on this axis. Dynamic resistance variation stays <10MΩ.

Fits a 95 mm interface

The 95 mm envelope keeps the joint inside the space the assembly already has, so the surrounding design does not have to change.

One axis carries 4 optical fiber channels

Stacking separate rotary joints on one shaft costs length, alignment and reliability. Combining them in a single body removes those interfaces.

Backed by a 12 month warranty

12 months from date of sale; free repair or replacement for quality problems not caused by human damage

Who It Is For

Engineers Who Specify This Part

Designers of subsea ROV and winch systems, radar and communications antennas, drilling and logging tools, broadcast and surveillance platforms, and defence electro-optical systems.

Application scenarios

Problems It Solves

Three Failures It Removes

Failure 1

Rotation limited to ±180° forces an unwind move into every cycle, and that time is lost on every part the machine makes.

Failure 2

Contact noise on a rotating joint shows up as sensor drift or dropped packets long before it shows up as a failed continuity test.

Failure 3

Sourcing several rotating joints for one axis multiplies lead times and alignment tolerances.

Technical Features

Materials Contacts and Construction

Contact system

Precious metal rings and brushes, selected for low contact resistance and long wear life.

Housing

Aluminum Alloy housing, machined in-house on a CNC centre.

Insulation

Insulation resistance ≥1000MΩ @500VDC. Insulation strength 1500 VAC@50Hz,60s,2mA.

Lead wire

Colored Teflon insulated & tinned stranded flexible wire, 500mm + 20mm Standard product outline drawing as standard.

Operating environment

Working temperature -40℃~+65℃. Working humidity <70%. Protection level IP54.

Specifications

Full Parameter Table

Values published for this model. Anything in this table can be changed on a customised build.

Model codeDHS095-27-4F
Body diameter95 mm
Product familyFiber Optic Rotary Joints
ManufacturerJiuJiang Ingiant Technology Co., Ltd, Jiujiang, Jiangxi, China
Standard lead time7–15 days
Warranty12 months from date of sale
Number of circuits27
Rated voltage0~240 VAC/VDC
Rated currentcan be customized
Rotating speed0~600rpm
Working temperature-40℃~+65℃
Working humidity<70%
Protection levelIP54
Insulation resistance≥1000MΩ @500VDC
Insulation strength1500 VAC@50Hz,60s,2mA
Dynamic resistance variation<10MΩ
Housing materialAluminum Alloy
Electrical contact materialPrecious metal
Lead wire specificationColored Teflon insulated & tinned stranded flexible wire
Lead wire length500mm + 20mm Standard product outline drawing
Manufacturing and Quality Control

How the Unit Is Built and Checked

Machining runs on the in-house CNC centre across roughly 6000 m² of research and production space, and assembly is done by the production team in Jiujiang.

Before despatch each unit is checked for insulation resistance, insulation strength, dynamic resistance variation and functional signal performance, using the test equipment and procedures held under the ISO 9001 and GJB9001C quality systems.

Certifications

  • ISO 9001
  • GJB9001C
  • GB/T 19001-2008 / ISO 9001:2008
Customization Options

What Can Be Changed on This Build

  • Circuit count, and the current and voltage rating of each ring
  • Body diameter, overall length and mounting interface
  • Added channels — Ethernet, USB, HD-SDI, optical fibre, RF coaxial, pneumatic or hydraulic passages
  • Sealing grade from IP51 to IP68, and housing material
  • Lead length, lead specification, connector termination and outlet direction
  • Quality grade S Standard, I Industrial or P Premium against the revolutions expected

Simple customisation 10–20 days. Complex customisation 15–40 days.

Comparison

How It Compares With the Other Formats

A through bore unit keeps the centre of the axis clear but needs more radial space and a flange. Choose the capsule format when nothing has to pass through the middle and the envelope is the binding constraint. Against separate single-purpose joints, this hybrid build puts 4 optical fiber channels and the electrical rings on one axis, which removes an interface and a set of tolerances.

Use Guide

Fitting and Commissioning

Mount the stator, not the load

Fix the stator to the frame through the flange or the anti-rotation arm and couple the rotor to the rotating part. The slip ring must never be used as a bearing — the machine's own bearing carries the load.

Respect the lead route

Standard lead length is 500mm + 20mm Standard product outline drawing. Leave a service loop at both ends and keep the bend radius above the cable's own minimum. Most field failures start at a lead that was pulled straight.

Separate power and signal runs

Route the power leads and the signal leads apart from each other after they leave the unit, and ground the shield at one end only.

Commission at low speed

Rated speed is 0~600rpm. Turn the assembly by hand first, check continuity on every circuit, then run up to speed and confirm the signal quality before the machine goes into production.

Products

Related Models

Other models in the same family and nearby sizes.

Knowledge

Related Reading

FAQ

About DHS095-27-4F

How many circuits does DHS095-27-4F have?

This build has 27 circuits, rated 0~240 VAC/VDC at can be customized. The ring count can be changed on a customised build — send the number of single wires that have to cross the joint.

What does the 95 mm in the model number refer to?

It is the outside diameter of the body. In DHS095-27-4F the digits after the series letters give that dimension in millimetres, and the number after the dash is the circuit count.

Is IP54 enough for my application?

IP54 is the rating on this build. Tell INGIANT the real exposure — dust, splash, washdown, outdoor weather or immersion — and the sealing grade is set against it, with options available up to IP68.

How long does delivery take?

Standard products ship in 7–15 days. Simple customised products take 10–20 days and complex customised products take 15–40 days. The delivery port is Jiujiang, China Mainland.

Can this model be modified for my machine?

Yes. Send the rotating speed, the installation type and size, the circuit count, the voltage and current per ring, the signal types and their parameters, the operating temperature and the IP requirement, and the unit is redesigned around them.
