Grain Storage And Handling Terminals
A storage terminal earns its money in the weeks between harvest and sale. What it has to buy is not steel volume but a guarantee that the grain leaves in the same condition it arrived, and that it can be moved on the day the price is right.
Pain Points We Hear
- Harvest arrives faster than the intake can clean, dry and convey it.
- Grain heats in storage because moisture and temperature are not monitored.
- Flat warehouses tie up land, labour and constant turning of the heap.
- Discharging the last tonnes from a large bin means sending people inside.
- Freight on welded tanks eats the project budget before erection starts.
What The Plant Actually Needs
- Bolted galvanized silos that ship flat and erect on a prepared foundation
- Intake cleaning and drying matched to the daily receiving peak
- Bucket elevators and chain conveyors sized for the fill and empty rates
- Sweeper augers for complete discharge without manual entry
- Moisture and heat monitoring inside the silo
The Grain Storage And Handling Terminals Process Route
Machines Used In This Industry
Corrugated Flat Bottom Steel Silo With Elevator
A flat bottom silo with its own filling equipment, supplied as one package: corrugated galvanized shell, vertical stiffeners, roof, ladders...
View Specifications
Assembly Galvanized Flat Bottom Silos for Corn Maize Grain Storage
Large diameter bolted silos built for maize and corn storage, where the capacity per square metre of yard matters more than anything else.
View Specifications
Galvanized Steel Hopper Bottom Rice Paddy Grain Silo
A hopper bottom silo empties itself.
View Specifications
Cone Bottom Silo With Concrete Foundation
TITAN assembled hopper bottom grain storage silo is made of high quality hot dip galvanized steel plate pressed into a wavy shape by...
View Specifications
Flat Bottom Silos
Grain storage silos, also called grain storage bins, are the efficient and economical way to hold grain: they protect it from insects and...
View Specifications
Grain Silos
Grain storage silos, also called grain storage bins, are the efficient and economical facilities to handle grain: protection from insects...
View Specifications
Rotary Paddy Pre-cleaner
The TTLM100, 125, 160 and 200 series rotary paddy cleaning machines remove big, small and light impurities from grain in rice mills, feed...
View Specifications
5T Series Batch Circulating Grain Dryer
Drying reduces grain moisture to a safe level for storage, and delays or incomplete drying cost both quality and weight.
View Specifications
Bucket Elevators Conveyors And Gates
TITAN bucket elevators transport grain granules such as paddy, rice and wheat, and are also used for oil, food, feed and chemical elevation.
View SpecificationsTypical Project Scenarios
- Harvest intake and buffer storage at a trading yard
- Paddy storage feeding a rice mill through the year
- Maize and soybean storage at a feed plant
- Port side consolidation before onward shipment
Grain Storage And Handling Terminals Questions
How long does erection take?
Erection time depends on battery size, foundation readiness and local crew. TITAN supplies installation supervision for the mechanical and electrical work so the local crew follows one method.
What foundation do I need?
A cement cone base is normal under 12 m diameter where gravity discharge is wanted. Above 12 m a half cone or flat base is built and a sweeper finishes the discharge.
Can I add silos later?
Yes. Silos are built in linear, triangular, square, single row or multi row groups, so a battery can be laid out for extension from the start.
How is grain condition monitored?
Moisture and heat monitoring and control is available as part of the storage package, alongside broken grain reduction devices on the filling route.
Projects Solutions And Guides
Galvanized Flat Bottom Silo Battery With Elevator Tower

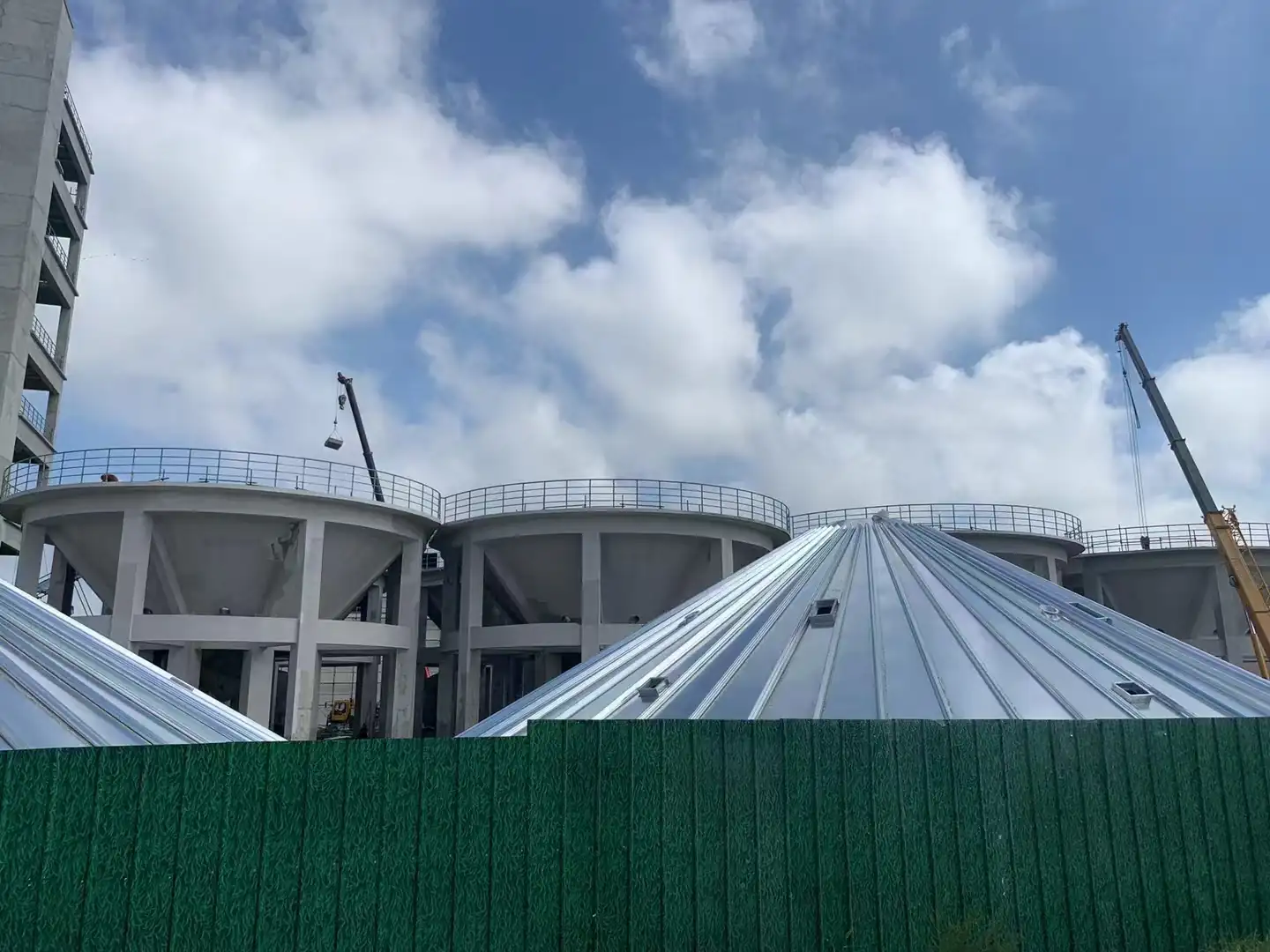

Read MoreCone Bottom Silos on Concrete Foundations Under Erection
Read MoreGrain Storage Silo Systems
Read MoreFlat Bottom or Hopper Bottom Silo Which One Fits Your Site
Read MoreSizing A Batch Grain Dryer For Your Harvest Intake
Read MorePlanning A Project In Grain Storage And Handling Terminals
Send your capacity target and the crop. We size the route from intake to bagging and tell you where the bottleneck will be.
