Cleaning, husking, separating, whitening, polishing and grading for paddy
The complete paddy route from intake cleaning to graded head rice, built from machines that are matched to one capacity so the line does not stall at one station.
Rice Milling Solution Machines In Production
Rotary Paddy Pre-cleaner
The TTLM100, 125, 160 and 200 series rotary paddy cleaning machines remove big, small and light impurities from grain in rice mills, feed...
View Specifications

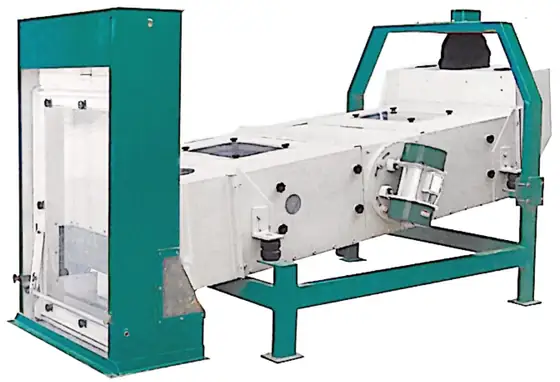

ZDQL Vibrating Cleaning Sieve
ZDQL is used in rice mills and in grain plants handling wheat, corn, soy, oat, buckwheat, spelt and sorghum, either as a cleaning stage in...
View Specifications
Gravity Destoner
The suction type gravity destoner removes stones and heavy impurities the same size as the grain, in grain processing plants and rice mills.
View Specifications
Pneumatic Rubber Roller Husker
The TITAN intelligent pneumatic husker measures roller diameter online with laser ranging and switches roller speed automatically to hold...
View Specifications
Gravity Paddy Separator
MGCZ and TIPS paddy separators separate pure brown rice from the paddy mixture using differences in specific gravity, granularity and...
View Specifications
TTSM Horizontal Emery Roller Whitener
The TTSM horizontal emery roller whitener is developed for milling and whitening in large and medium sized rice milling plants.
View Specifications
TTG And TIWP Rice Polisher
TTG and TIWP rice polishing machines finish the surface of milled rice.
View Specifications
MMJM Rotary Rice Grader
The MMJM(X) rotary rice grader shifts milled rice accurately into head rice, large broken, medium broken and small broken, and it separates...
View SpecificationsProblems This Range Solves
- Broken rice percentage climbs and the mill is paid for broken instead of head rice.
- Stones and mud reach the huller and wear the rubber rollers out in days.
- Roller gaps are set by feel, so every operator produces a different husking rate.
- Milled rice leaves the whitener hot, which shortens shelf life and dulls the grain.
Who It Is For
- Commercial rice mills from a few tonnes per hour upwards
- Paddy traders adding milling capacity at the warehouse
- Contract millers who must hit a fixed head rice specification
- Plant builders assembling complete rice lines for their own clients
Core Advantages
- Pneumatic husker with online laser ranging of roller diameter and automatic speed switching.
- Suction type whitening keeps rice temperature and bran content down and lowers broken increment.
- Gravity and suction destoners with adjustable air volume and double deck stone removal.
- Double body gravity paddy separators for high capacity brown rice separation.
- Rotary graders classify head rice, large, medium and small broken in one pass.
Application Scenarios
- Pre cleaning of freshly received paddy
- Husking and paddy separation ahead of whitening
- Two or three stage whitening and polishing for export grade rice
- Grading and colour sorting before packing
Where This Equipment Is Installed
Rice Milling Solution Questions
What capacity rice line can TITAN build?
Individual machines range from about 1.5 t/h separators up to huskers at 6 to 8 t/h and whiteners at 4.5 to 8.5 t/h per roller, so complete lines are normally configured between a few tonnes and roughly 15 t/h of paddy.
Single roller or double roller whitener?
Both are available. A double roller machine runs two whitening passes in series for higher capacity and a gentler removal per pass, which helps the head rice rate.
How long do rubber rollers last?
Roller life depends on paddy cleanliness and roller gap. TITAN rollers are supplied at 91 to 92 degrees hardness with shelling efficiency up to 95 percent, and a clean destoning stage in front of the husker is the single biggest factor in roller life.
Do you supply the whole line or single machines?
Both. TITAN supplies single machines and complete sections including design, fabrication, installation, commissioning and after sales service.
Which spare parts should I stock?
Rubber rollers, emery rollers, whitener and polisher screens, and drive belts are the parts that wear first. All of them are supplied from the Hefei factory.
Can the line handle long and round grain?
Yes. The whitener processes long or round rice, and husker rollers are selected for long grain or short grain throughput figures.
Get A Rice Milling Solution Proposal With Model Numbers
Send the capacity, the crop and the site conditions. You get a machine list you can check against your own layout.
