Permanent magnet screw compressors and oil free water lubricated compressors
The air supply behind the optical sorters and the packing scales, where oil carry over and electricity cost decide the running bill.
Compressed Air Supply Machines In Production
Permanent Magnet Screw Compressor
This rotary twin screw compressor is driven by a permanent magnet motor.
View Specifications

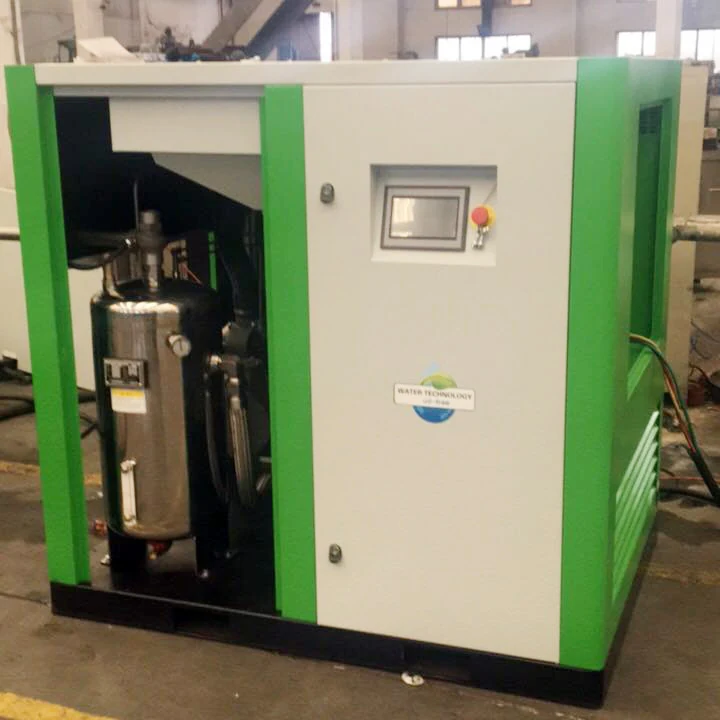

TTC Oil Free Water Lubricated Screw Compressor
The TTC series uses purified water instead of lubricating oil, so the compressed air is clean and free of oil.
View SpecificationsProblems This Range Solves
- Oil carry over from a lubricated compressor contaminates food product at the sorter ejectors.
- Compressors run at full speed all shift even when the sorter is between batches.
- Oil filters, separators and used oil disposal add a recurring cost nobody quoted for.
- A compressor sized by guesswork starves the ejectors and the sorting accuracy drops.
Who It Is For
- Rice and grain plants running optical sorters
- Food factories that cannot accept oil in the air stream
- Packing lines with pneumatic clamps and actuators
- Plants under pressure to cut electricity consumption
Core Advantages
- Permanent magnet motor keeps a high motor power at low speed, unlike an ordinary high frequency motor.
- Integrated permanent magnet motor is about one third the size of a conventional motor.
- Oil free machine uses purified water for sealing, cooling and lubrication, so the air is oil free.
- Air discharge per unit horsepower is 15 percent higher than an ordinary dry type compressor.
- No oil separator or oil filter to buy, service and dispose of.
Application Scenarios
- Air supply for optical sorter ejector banks
- Pneumatics on bagging and packing lines
- Food and pharmaceutical processes needing oil free air
- Plant air where energy consumption is under review
Where This Equipment Is Installed
Compressed Air Supply Questions
What sizes are available in the oil free range?
The TTC series runs from TTC08 at 1.15 m3/min and 7.5 kW up to TTC45 at 7.3 m3/min and 45 kW, all at 0.8 MPa, with noise from 58 to 68 dB(A).
Why water lubrication instead of oil?
Water seals, cools and lubricates the element and also washes dust out of the air, so the discharged air carries no oil and there is no separator or oil filter to maintain.
How much cooling water does it use?
Cooling water quantity is listed per model, from 2 t/h on the TTC08 up to larger flows on the bigger frames, with inlet and outlet pipe diameters given in the model table.
What does the permanent magnet motor change?
It holds high efficiency at part load, which is where a plant compressor spends most of its life, and the energy efficiency meets the GB19153-2009 energy saving product standard.
Which compressor suits my sorter?
Size the compressor from the sorter air consumption figure, which runs from under 2 m3/min to about 5 m3/min depending on channel count, and add a margin for the rest of the plant.
Can you supply dryers and receivers as well?
Tell us the full air demand when you ask for a quotation and the package will be quoted with the compressor.
Get A Compressed Air Supply Proposal With Model Numbers
Send the capacity, the crop and the site conditions. You get a machine list you can check against your own layout.
