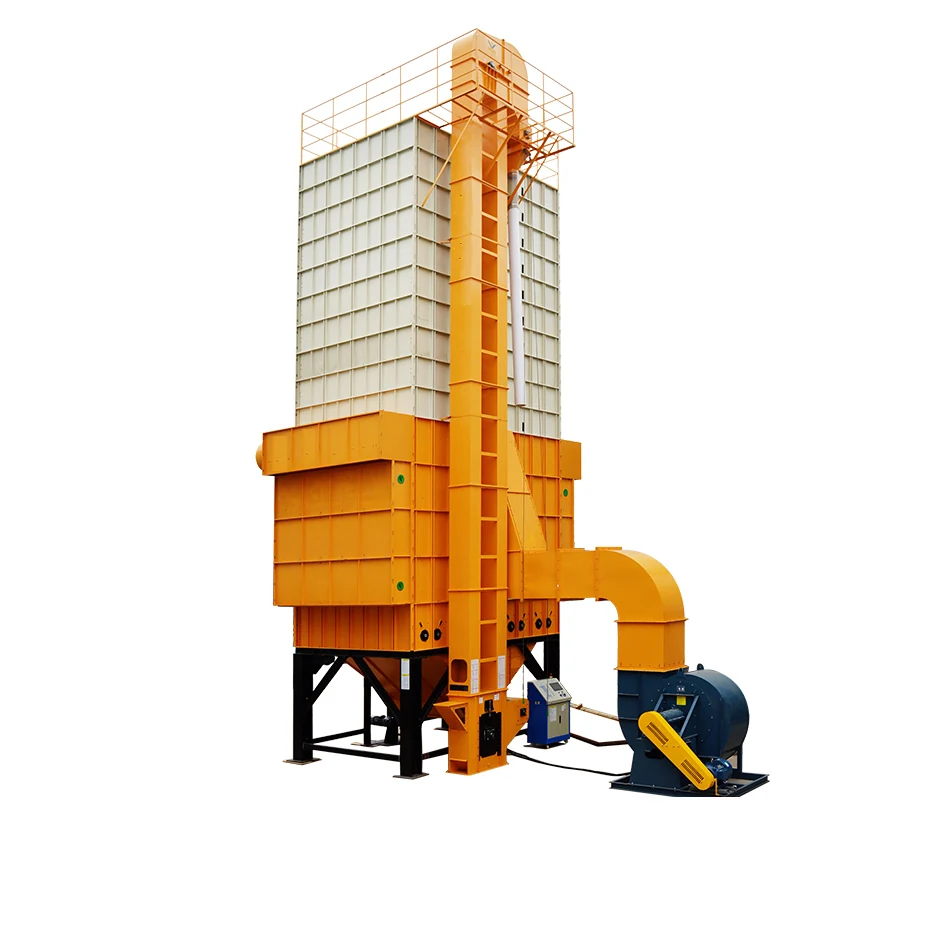

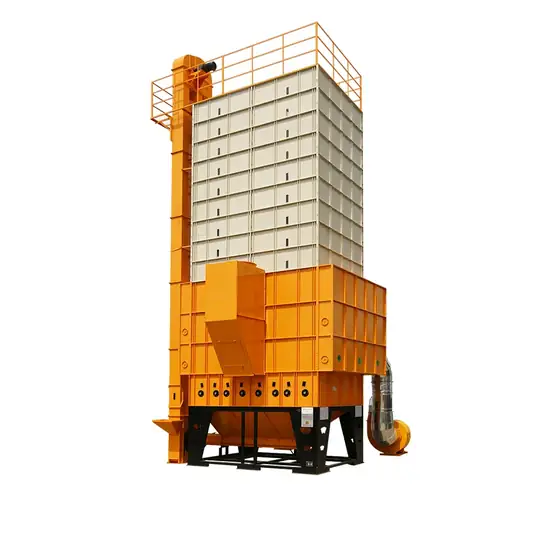

5T Series Batch Circulating Grain Dryer
Drying reduces grain moisture to a safe level for storage, and delays or incomplete drying cost both quality and weight.
What This Machine Does
Drying reduces grain moisture to a safe level for storage, and delays or incomplete drying cost both quality and weight. The TITAN 5T series is a fixed cycle batch circulating dryer built for renewable fuels, with loading capacities from 2300 kg up to 50000 kg of paddy.
Key Benefits
- Indirect heating with high thermal efficiency and no combustion products in the grain
- Removes dust from the grain while drying it
- Mixed flow circulated low temperature drying improves speed without raising breakage
- Multi functional across paddy, wheat, corn, soybean, rapeseed and other seeds
- Loading capacity from 2300 kg to 50000 kg across five models
Problems It Solves
- Delays in drying that reduce grain quality and create losses
- Incomplete or uneven drying leaving pockets of wet grain
- Dust carried into storage with the crop
- Drying cost when purchased fuel is the only heat source
Who It Is For
- Rice mills and grain processors
- Storage operators drying before the silo
- Seed producers
- Plants replacing sun drying with a controlled process
Application Scenarios
- Drying paddy at harvest intake
- Wheat, corn and soybean conditioning before storage
- Seed drying where crop quality decides the price
- Mills running renewable fuel from their own process residue
Technical Features
- Fixed cycle batch type circulating construction
- Indirect heating technology with high thermal efficiency
- Advanced mixed flow circulated low temperature drying
- Ventilation fans from 4-72-6A to 4-72-10C with rated air flow per model
- Machine weights from 2700 kg to 12000 kg
5T Series Batch Circulating Grain Dryer Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Model | Paddy loading (kg) | Wheat loading (kg) | Total weight (kg) | Dimensions L x W x H (mm) |
|---|---|---|---|---|
| 5T-10 | 2300 to 10000 | 2700 to 10000 | 2700 | 4320 x 2492 x 7970 |
| 5T-15H | 2300 to 15000 | 2700 to 15000 | 3000 | 4320 x 2492 x 10090 |
| 5T-21 cross flow | 5000 to 21000 | 6000 to 21000 | 4300 | 3757 x 4165 x 11437 |
| 5T-30 | 12000 to 30000 | 16000 to 30000 | 7500 | 5500 x 5250 x 11430 |
| 5T-50 | 25000 to 50000 | 30000 to 50000 | 12000 | 8000 x 5800 x 13300 |
How This Machine Is Built
Quality Control
- Air flow checked against the rated figure for the fan model
- Indirect heating circuit verified during commissioning
- Moisture uniformity checked across the first batches
Materials And Wear Parts
- Rubber components in the handling sections
Customisation Options
- Model selected from the batch size required
- Fuel and furnace type per site
- Cross flow or standard circulating configuration
Use Guide
- Dry to the safe storage moisture for the crop and climate, not to a fixed number
- Plan the batch size around the intake peak
- Keep the fan and ducting clean so rated air flow is maintained
- Check moisture at several points in the batch after commissioning
How It Compares With The Alternatives
| Direct fired drying | Indirect heating keeps combustion products out of the grain and removes dust in the same pass. |
|---|---|
| Flat bed drying | Circulating batch operation dries evenly instead of leaving a moisture gradient through the bed. |
5T Series Batch Circulating Grain Dryer Questions
What loading capacity is available?
From 2300 kg on the 5T-10 up to 50000 kg of paddy on the 5T-50.
Why indirect heating?
It gives high thermal efficiency without pollution of the grain, and it removes much of the dust from the crop during drying.
What crops does it dry?
Paddy, wheat, corn and soya bean among others, with settings adjusted per crop.
Which fan is fitted?
Fan models from 4-72-6A to 4-72-10C depending on dryer size, with rated air flow published per model.
Can it use renewable fuel?
Yes. TITAN offers the renewable fuels drying solution for this range.
