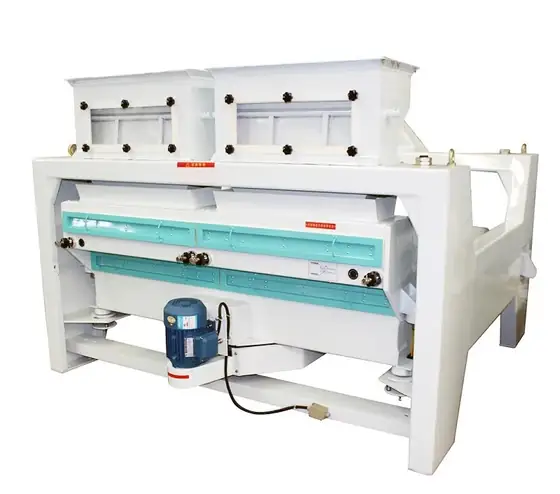

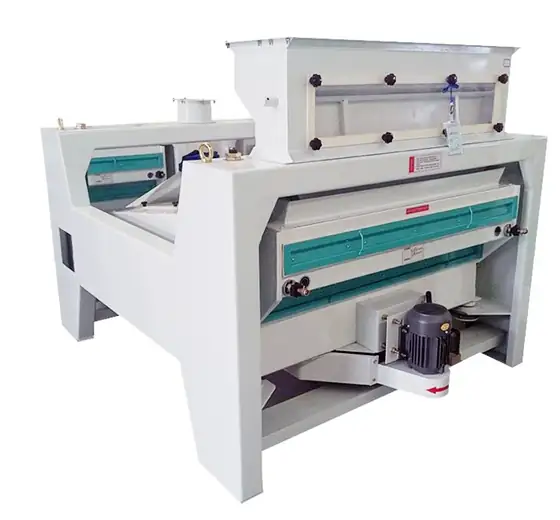

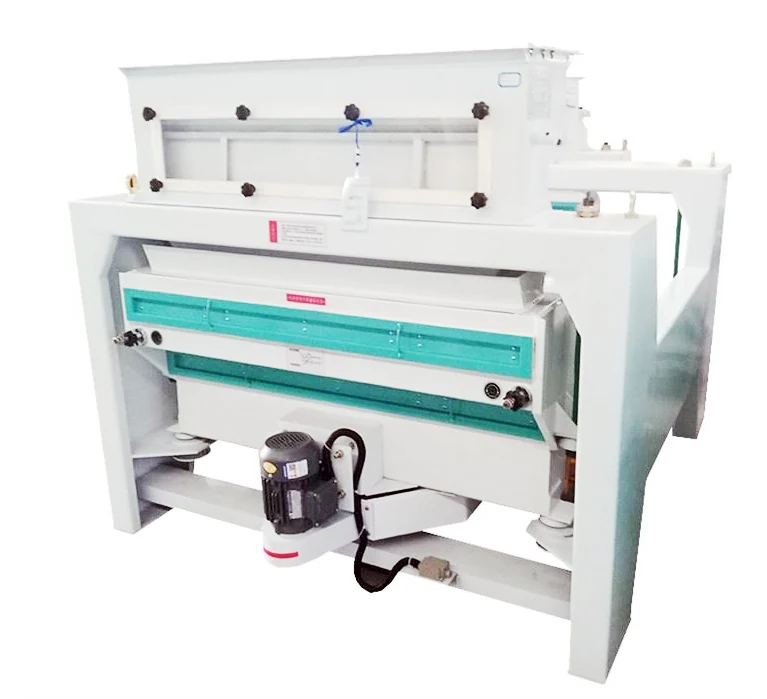

Rotary Paddy Pre-cleaner
The TTLM100, 125, 160 and 200 series rotary paddy cleaning machines remove big, small and light impurities from grain in rice mills, feed plants, food factories and wheat flour mills.
What This Machine Does
The TTLM100, 125, 160 and 200 series rotary paddy cleaning machines remove big, small and light impurities from grain in rice mills, feed plants, food factories and wheat flour mills. Rotary speed and balance weights are adjustable, which gives the sieve body three different running tracks.
Key Benefits
- Three motion tracks on the same sieve plate, combining vibrating and rotary screening
- High separation quality at low power draw because the motion does the work
- Stable running with low noise in a continuously loaded plant
- Adjustable rotary speed and balance weights for different crops
- Capacity from 4 t/h to 15 t/h across four frame sizes
Problems It Solves
- Straw and trash entering the dryer and the storage silo
- Downstream machines wearing out on impurities that should never have reached them
- Cleaning stages that draw more power than the milling machines they protect
- One fixed screening motion that suits one crop and no other
Who It Is For
- Rice mills receiving paddy straight from the field
- Feed plants cleaning incoming raw material
- Grain storage operators protecting the silo from trash
- Flour mills adding an intake cleaning stage
Application Scenarios
- Pre-cleaning of freshly received paddy before storage
- Intake cleaning at feed and food processing plants
- Cleaning ahead of a wheat flour milling section
- Removing straw, dust and light impurities before drying
Technical Features
- Sieve feed end swings side to side while the centre body follows a separate track
- Combination of vibrating sieve and rotary sieve running patterns
- Adjustable balance weight and rotary speed
- Air volume from 40+20 m3/min up to 90+40 m3/min depending on model
- Low noise and stable running with 0.75 kW to 1.1 kW drives
Rotary Paddy Pre-cleaner Model Table
Figures below are taken from the TITAN model sheets. Where a figure depends on the crop or the contamination level it is stated that way rather than averaged.
| Model | Capacity | Power | Air volume | Dimension L x W x H (mm) |
|---|---|---|---|---|
| TTLM100x2 | 4 to 7 t/h | 0.75 kW | 40+20 m3/min | 2140 x 1400 x 1470 |
| TTLM125x2 | 6 to 9 t/h | 0.75 kW | 55+25 m3/min | 2150 x 1650 x 1470 |
| TTLM160x2 | 8 to 12 t/h | 1.1 kW | 70+32 m3/min | 2150 x 2010 x 1470 |
| TTLM200x2 | 10 to 15 t/h | 1.1 kW | 90+40 m3/min | 2150 x 2460 x 1470 |
How This Machine Is Built
Quality Control
- Sieve motion checked on the assembled machine
- Drive and balance weight adjustment verified
- Machine run tested before packing
Customisation Options
- Model selected from the intake capacity
- Sieve perforation matched to the crop
- Aspiration connection sized with the plant dust system
Use Guide
- Select the model one size above the intake rate you actually receive at peak
- Adjust balance weights and rotary speed when changing crop
- Connect aspiration so light impurities leave the machine
- Clean the sieve decks between crops to prevent carry over
How It Compares With The Alternatives
| Single motion vibrating sieve | Three motion tracks on one sieve plate separate more effectively at lower power. |
|---|---|
| No pre-cleaning at intake | Protects the dryer, the silo and every machine downstream from trash and light impurities. |
Rotary Paddy Pre-cleaner Questions
Which model suits a 10 t/h intake?
The TTLM200x2 is rated 10 to 15 t/h, which leaves headroom when the paddy is dirtier than planned.
Can it clean crops other than paddy?
Yes. It is used across grain, feed, food and wheat flour milling plants.
How much power does it draw?
0.75 kW on the 100 and 125 frames and 1.1 kW on the 160 and 200 frames.
Does it need aspiration?
Yes. Air volume from 40+20 m3/min to 90+40 m3/min is listed per model, and it has to be provided for the machine to separate light impurities.
What space does it need?
Dimensions run from 2140 x 1400 x 1470 mm on the smallest frame to 2150 x 2460 x 1470 mm on the largest.
