Bucket elevators, chain conveyors, gates and batch circulating grain dryers
The equipment that moves grain between sections and brings it down to a safe storage moisture without cracking the kernel.
Conveying And Drying Solution Machines In Production

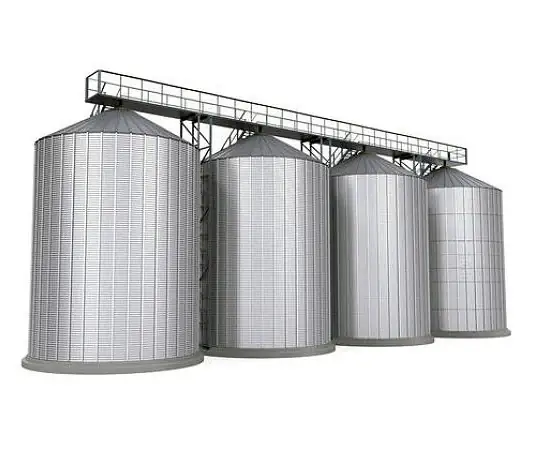

Grain Silos
Grain storage silos, also called grain storage bins, are the efficient and economical facilities to handle grain: protection from insects...
View Specifications
TT 5H Low Temperature Grain Dryer
The TT 5H dryer handles paddy, corn, wheat, rice, soybean, sorghum, rapeseed, cashew, barley and other agricultural products.
View Specifications
5T Series Batch Circulating Grain Dryer
Drying reduces grain moisture to a safe level for storage, and delays or incomplete drying cost both quality and weight.
View Specifications
Bucket Elevators Conveyors And Gates
TITAN bucket elevators transport grain granules such as paddy, rice and wheat, and are also used for oil, food, feed and chemical elevation.
View SpecificationsProblems This Range Solves
- Wet paddy left undried for a day loses grade and starts to heat in the heap.
- High temperature drying cracks the kernel and the breakage shows up later at the whitener.
- Fast running elevators crush grain between the buckets and the boot.
- Diesel or gas drying costs more than the margin on the grain in husk fired regions.
Who It Is For
- Rice mills drying paddy at harvest intake
- Grain traders conditioning maize, wheat and soybean before storage
- Feed plants moving raw material between intake, grinding and mixing
- Storage terminals building an intake to silo handling route
Core Advantages
- Low temperature circulating drying at roughly 40 to 60 C air temperature to hold breakage down.
- Indirect heating with high thermal efficiency that also removes dust from the grain.
- Fuel flexibility across husk, straw, wood, peanut stalk, corn cob, coal, diesel, gas and steam.
- Bucket elevators with shallow, deep or bottomless buckets and automatic belt tensioning.
- Low speed elevating to avoid broken rice, with an easily cleaned boot section.
Application Scenarios
- Harvest intake drying of paddy, maize, wheat and soybean
- Seed drying where germination must be protected
- Conveying between cleaning, milling and packing sections
- Filling and emptying silo batteries
Where This Equipment Is Installed
Conveying And Drying Solution Questions
How much moisture can the dryer remove per hour?
The low temperature range removes about 0.5 to 1 percent of moisture per hour, which is the rate that protects grain quality rather than the fastest possible rate.
What batch sizes are available?
Batch circulating dryers run from 5 to 10 t up to 10 to 30 t per batch in the TT 5H range, and the 5T series covers loading capacities from 2300 kg to 50000 kg of paddy.
Which fuels can I burn?
Husk, straw, wood, peanut stalk, corn cob and other biomass waste, or coal, diesel, kerosene, natural gas and steam.
Can the dryer handle crops other than paddy?
Yes. The same machine dries paddy, corn, wheat, soybean, sorghum, rapeseed, barley, cashew and coffee among others, with the settings changed per crop.
How do you keep breakage low in the elevators?
Elevators run at low speed with buckets selected for the material, and the belt carries an automatic tension device so the bucket line stays true.
Do you supply the gates and chain conveyors as well?
Yes. Bucket elevators, TISC scraper chain conveyors and gates are supplied as one conveying package.
Get A Conveying And Drying Solution Proposal With Model Numbers
Send the capacity, the crop and the site conditions. You get a machine list you can check against your own layout.
