Steel silos on raised concrete supports with a conveyor bridge under construction

Project Reference

Cone Bottom Silos on Concrete Foundations Under Erection

A processing plant that needed elevated discharge into trucks and into the process line below the silos. The client is not named at their request.

The Challenge

What The Site Needed

The site wanted complete gravity discharge without a sweeper, and the silos had to stand high enough for a truck to load underneath.

Customer Pain Points

Residual material left in flat bottom storage
Discharge height too low for direct truck loading
Foundation work and steel erection handled by different trades
Limited plot width for the required capacity

Our Solution

What Was Supplied

Cone bottom silos set on concrete supports, with the cone angle giving complete gravity discharge and enough clearance for outloading underneath. Erection sequenced with the civil contractor so that foundation curing and steel delivery did not collide.

On Site And In The Factory

Project Photographs

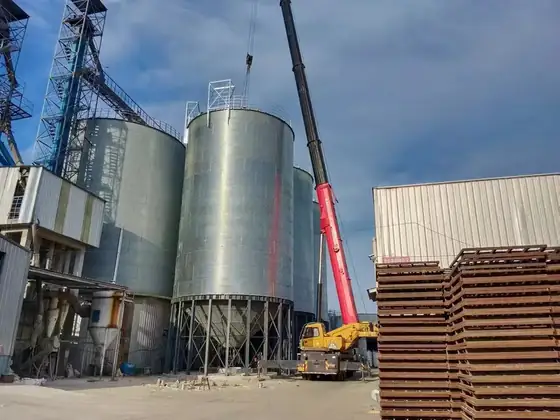

Crawler crane lifting silo sections during erection of a galvanized silo battery

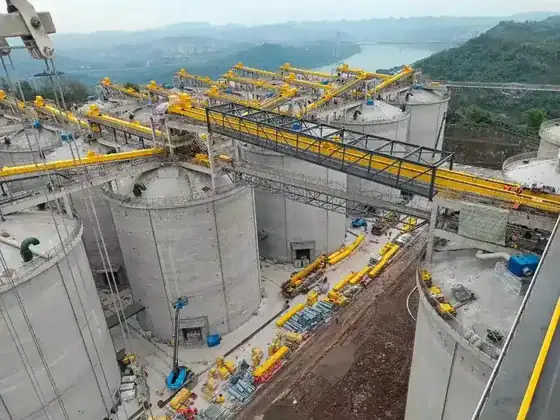

Concrete foundation and cone base prepared underneath a steel storage silo

Fabrication

Manufacturing Process

Corrugated galvanized sheets pressed to shape and punched with standard connecting holes
High strength bolts with galvanized washers used through the shell joints
Cone and support structure fabricated to the foundation drawing
Access ladders, guard rings and inspection doors fitted per silo

Supply Chain

Shipping And Sequencing

Steel delivered in erection sequence so the crane time on site was used on continuous lifts rather than on waiting for the next container.

Quality Control

Checks That Were Made

Foundation setting out checked against the shell drawing before the first ring was lifted, and the bolt pattern and sealing inspected ring by ring during erection.
