Flat bottom, hopper bottom, cone and welded silos from 1500 t to 20000 t
Bolted galvanized steel silos and the handling equipment around them, sized for grain traders, mills and feed plants that need safe storage without building a warehouse.
Storage Silo Machines In Production
Corrugated Flat Bottom Steel Silo With Elevator
A flat bottom silo with its own filling equipment, supplied as one package: corrugated galvanized shell, vertical stiffeners, roof, ladders...
View Specifications

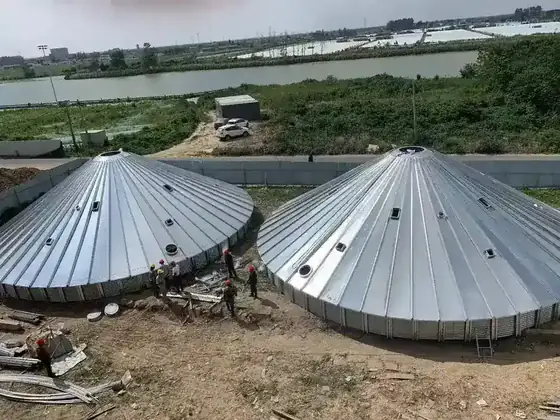

Assembly Galvanized Flat Bottom Silos for Corn Maize Grain Storage
Large diameter bolted silos built for maize and corn storage, where the capacity per square metre of yard matters more than anything else.
View Specifications

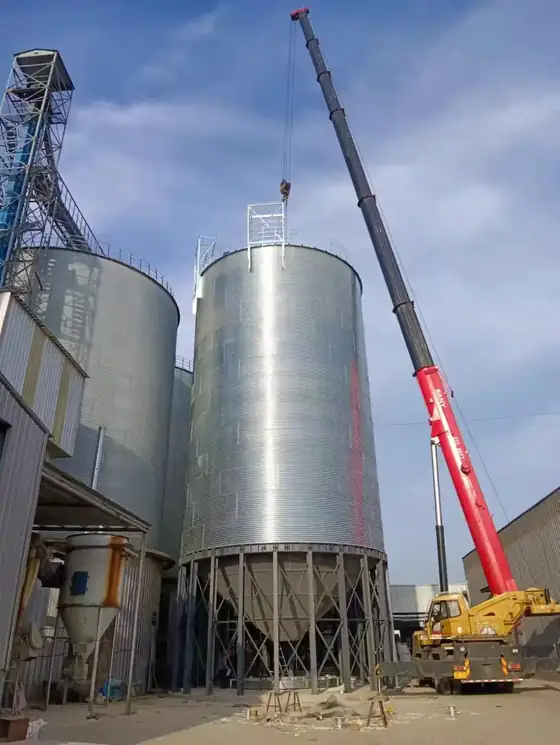

Galvanized Steel Hopper Bottom Rice Paddy Grain Silo
A hopper bottom silo empties itself.
View Specifications
Storage Silo for Wheat Flour Milling
Wheat storage built for a mill rather than for a trader.
View Specifications
Welding Type Silo for Liquid Material Storage
Not every stored material suits a bolted shell.
View Specifications

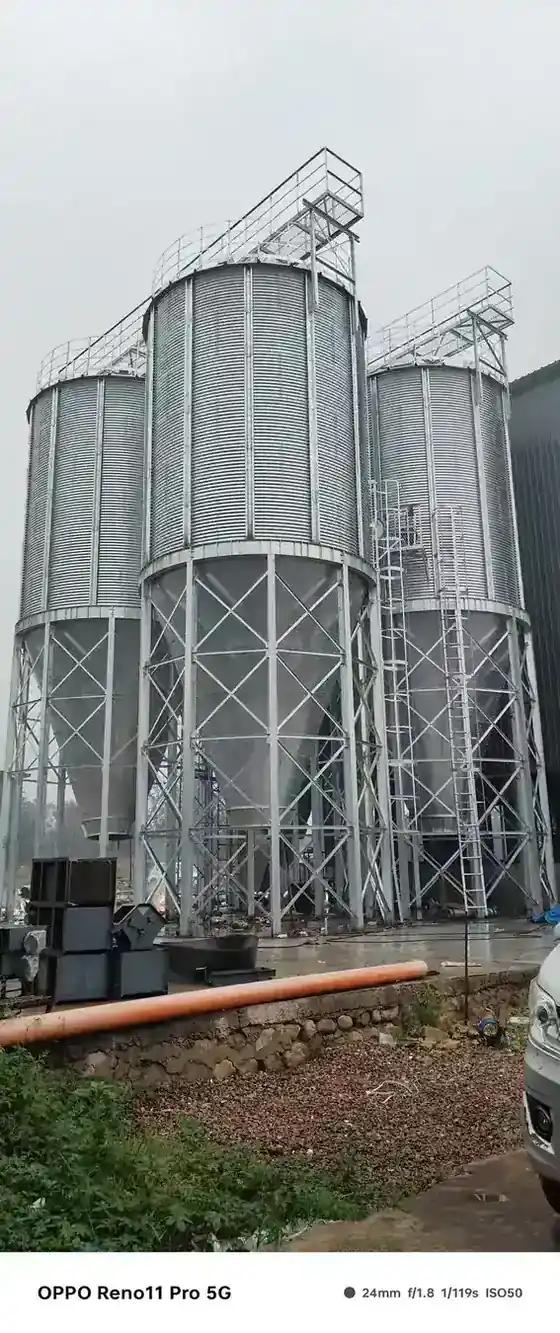

Poultry Feed Cone Granary
A cone bottom granary for finished feed and mash, sized for farms and feed plants that need the silo to empty completely between batches.
View Specifications

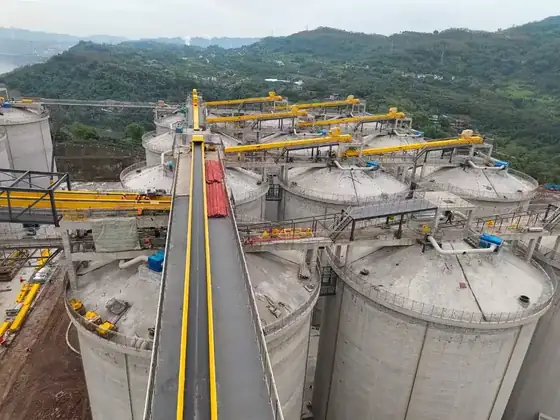

Concrete Silo Project
Some sites store in concrete and process in steel.
View Specifications

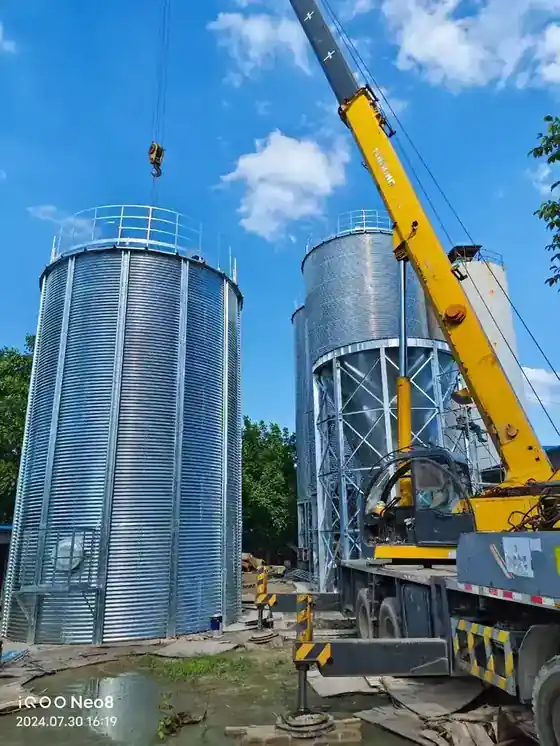

Cone Bottom Silo With Concrete Foundation
TITAN assembled hopper bottom grain storage silo is made of high quality hot dip galvanized steel plate pressed into a wavy shape by...
View Specifications
Flat Bottom Silos
Grain storage silos, also called grain storage bins, are the efficient and economical way to hold grain: they protect it from insects and...
View SpecificationsProblems This Range Solves
- Flat warehouse storage needs floor space, labour and constant turning to keep grain cool and dry.
- Grain stored in humid climates picks up moisture through the roof joints and the sidewall seams.
- Unloading the last tonnes from a flat bottom bin normally means sending people inside with shovels.
- Shipping a welded silo abroad costs more in freight than the steel is worth.
Who It Is For
- Grain traders and storage terminals receiving harvest peaks
- Rice and flour mills buffering paddy or wheat ahead of the cleaning section
- Feed mills holding maize, soybean meal and finished feed
- Ports and cooperatives consolidating grain before onward shipment
Core Advantages
- Hot dip galvanized plates from 275 g/m2 to 600 g/m2 of zinc, rolled into corrugation.
- Structural galvanized steel S350GD sidewall sheets with evenly spaced vertical stiffeners.
- Connecting holes sealed with age resistant and waterproof daub belts of aviation grade.
- Sweeper auger starts automatically when gravity flow ends and cleans the floor through 360 degrees.
- Bolted construction ships flat in containers, which keeps ocean freight per tonne of capacity low.
Application Scenarios
- Harvest intake buffer ahead of a dryer
- Long term paddy storage for rice mills
- Maize and soybean storage at feed plants
- Wheat storage feeding a flour milling section
- Finished feed and powder storage in welded or cone silos
Where This Equipment Is Installed
Storage Silo Questions
What silo capacity range can TITAN supply?
Flat bottom silos run from 1500 t to 20000 t per battery, and a single silo holds between 10 t and 15000 t depending on diameter and eave height. Larger volumes are built by combining silos into a group.
What diameters are available?
Silo diameters run from 2 m to 32 m and can be increased for special requirements. The ratio of height to diameter is normally kept between 1:1.1 and 1:2.
Do I need a concrete cone base or a flat base?
A cement cone base is used to unload by gravity when the capacity is large and the flat bin diameter is under 12 m. Above 12 m a half cone base or a flat base is built, and a spiral sweeper finishes the discharge.
How is the silo protected against rain and moisture?
Plates are hot dip galvanized, the roof uses a trapezoidal geometry sealed against the sidewall, and every bolt hole carries a waterproof daub belt with galvanized washers.
How does the silo ship?
Silos ship as flat packed corrugated sheets, stiffeners, bolts and accessories, which saves freight compared with a welded tank, and they are bolted together on your foundation.
Can the silo be insulated?
Yes. All TITAN steel silos can be designed and installed with a heat retaining layer for insulated grain storage.
Get A Storage Silo Proposal With Model Numbers
Send the capacity, the crop and the site conditions. You get a machine list you can check against your own layout.
