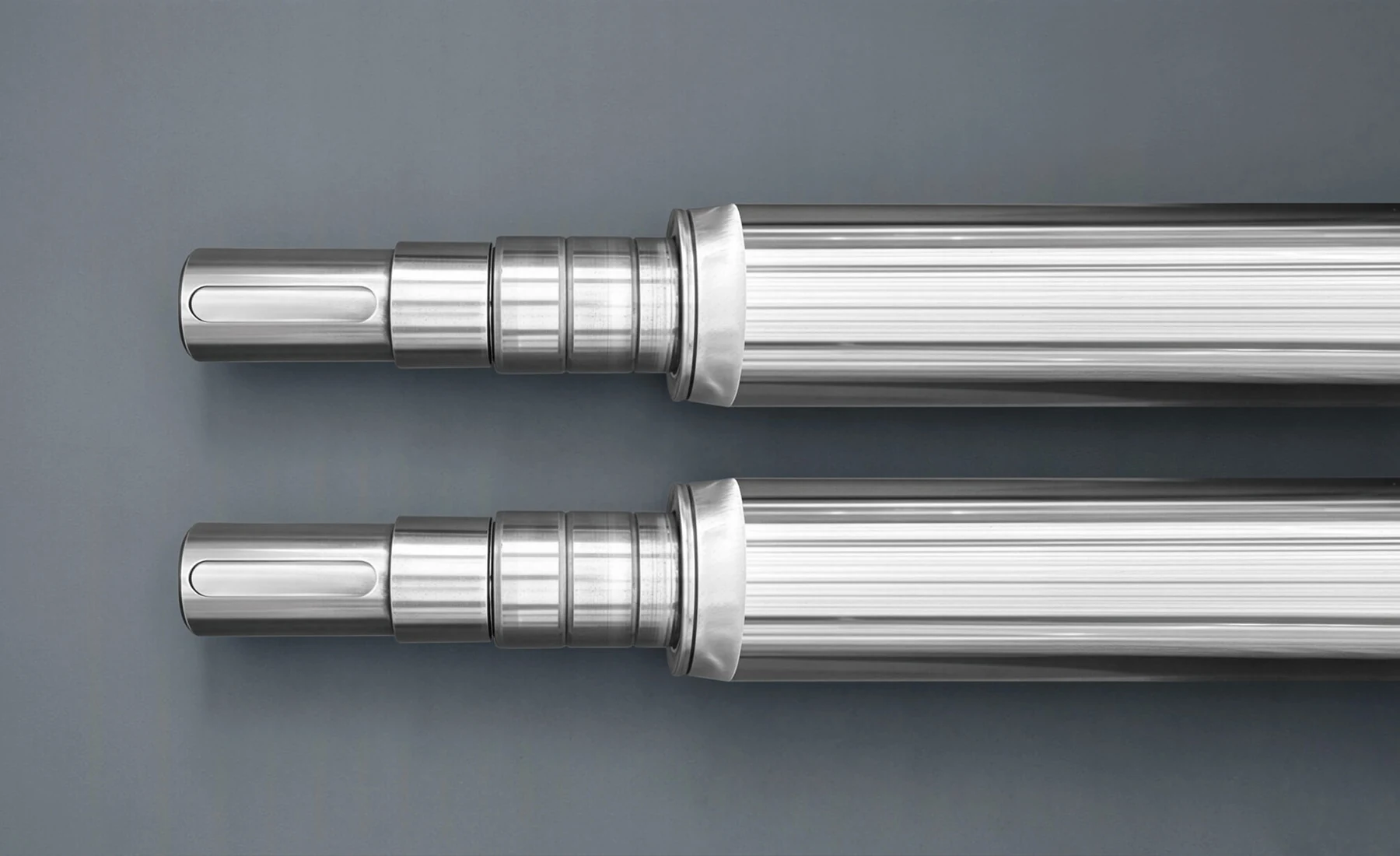

High Precision Straightening Rolls With Outstanding Wear Resistance
Straightening rolls take the repeated bending load that removes shape defects from strip. Made from high grade alloy steel and precision ground, they hold geometric accuracy over long runs, which is what keeps flatness and surface texture stable between roll changes.
- High grade alloy steel body
- Precision ground geometry
- Built for long continuous production runs
- Made to drawing for existing machines
Key Benefits
Where the value shows up.
Fewer Roll Replacements
Wear resistance lowers replacement frequency, which cuts unplanned shutdowns and the labour around them.
Stable Strip Quality
Dimensional precision holds the roll gap geometry, so flatness and surface texture stay consistent across a campaign.
More Running Time
Longer service cycles mean the machine spends more of the month producing rather than in roll change.
Where It Is Used
Applications.
- Straightening units in metal rolling processes
- Strip processing lines needing repeatable flatness
- Cut to length and slitting line levelling sections
- Lines handling carbon steel, stainless, copper and aluminum
Who It Is For
- Plants where roll change frequency drives downtime
- Maintenance teams standardising roll spares
- Machine builders sourcing roll sets
- Buyers replacing rolls that wear too fast
Problems It Solves
- Roll wear forcing frequent replacement
- Flatness drifting through a production campaign
- Surface texture changing as rolls wear
- Unplanned shutdowns for roll related issues
Technical Features
What makes the difference.
High Grade Alloy Steel
Material is selected for abrasion resistance under the repeated bending contact of straightening work.
Precision Grinding
Rolls are precision ground so geometric accuracy is held from the first tonne to the last.
Stable Dimensional Precision
Dimensional stability is what allows long continuous production runs without adjusting the machine.
Specifications
Roll dimensions are made to your machine drawing. Material and finish are specified below.
| Material | High grade alloy steel |
|---|---|
| Finishing | Precision grinding |
| Design Focus | Abrasion resistance and stable dimensional precision |
| Strip Materials Served | Carbon steel, stainless steel, copper, aluminum |
| Dimensions | Made to customer drawing |
| Supply | Individually or as matched sets |
Materials
- High grade alloy steel
- Heat treated working surface
- Precision ground finish
Manufacturing Process
Drawing Review
Roll dimensions, machine type and duty are confirmed before production.
Machining
The roll is turned and the neck and seat features cut to drawing.
Heat Treatment
Working surfaces are treated for the required hardness and wear resistance.
Precision Grinding
Barrel and journals are ground to final geometry and roughness.
Quality Control
- Material certificate on the alloy steel
- Hardness verification on the barrel
- Geometric inspection of diameter, straightness and runout
- Surface roughness check before packing
Customization Options
- Diameter, barrel and journal dimensions to drawing
- Hardness specification matched to strip material
- Surface finish adjusted for the product being straightened
- Matched sets with consistent diameters
Use Guide
- Install as a matched set so contact is even across the width
- Track tonnage per roll set to plan regrind intervals
- Regrind before the profile is lost, not after quality drops
- Protect ground surfaces during storage and handling
How It Compares
Against the usual alternatives.
| Standard carbon steel rolls | Alloy steel with precision grinding holds geometry far longer under abrasive strip contact. |
|---|---|
| Buying rolls from the machine OEM | Made to the same drawing with documented material and hardness, typically at shorter lead time. |
| Running rolls past the regrind limit | A fresh set restores flatness capability instead of accepting drifting quality. |
Related Products
Tension Leveler Working Rolls
Hard chrome plated working rolls with HRC 63-65 surface hardness for tension leveling lines.
View Details
Chrome Plated Working Roll for 1450 mm Tension Leveler
Consumable work roll for 1450 mm galvanizing line tension levelers, chrome plated 0.05 mm.
View DetailsLeveling Cassette Working Roll Sleeves
Roll sleeves in 30, 45 and 70 mm diameters at HRC 58-62 for cassette style levelling equipment.
View Details
Precision Leveling Line Rolls
Leveling line rolls with uniform high hardness and a deep integral hardened layer.
View Details
Related Technical Articles
Tension Leveler Spare Parts Planning For AHSS Galvanizing Lines
What to stock, when to replace and why advanced high strength steel changes the roll wear calculation.
Read More
How Hard Chrome Plated Working Rolls Improve Tension Leveler Stability
Wear resistance, friction and rigidity, and the numbers behind each of them on a 16 to 68 mm roll.
Read MoreThe Role Of Leveling Line Rolls In Finished Strip Qualification Rate
Roll deflection, hardness and bending adjustment are the three levers that decide how much of your output passes inspection.
Read MoreHigh Precision Straightening Rolls FAQ
Can you copy our existing straightening rolls?
Yes. Send the drawing or a worn roll with the machine details and we produce to those dimensions.
What material do you use?
High grade alloy steel with heat treated working surfaces and precision ground finish.
Which materials can the rolls straighten?
Carbon steel, stainless steel, copper and aluminum strip, within the capability of your machine.
Can rolls be supplied as a matched set?
Yes, and we recommend it so diameters stay consistent across the roll system.
Do you support regrinding?
We can advise the regrind allowance for the drawing we produce, so your workshop or ours can regrind within limit.
What information is needed to quote?
Roll drawing or sample dimensions, machine type, strip material and width, and quantity required.
Quote A Straightening Roll Set
Send your roll drawing or a photo of the worn roll and we come back with material, hardness and price.
