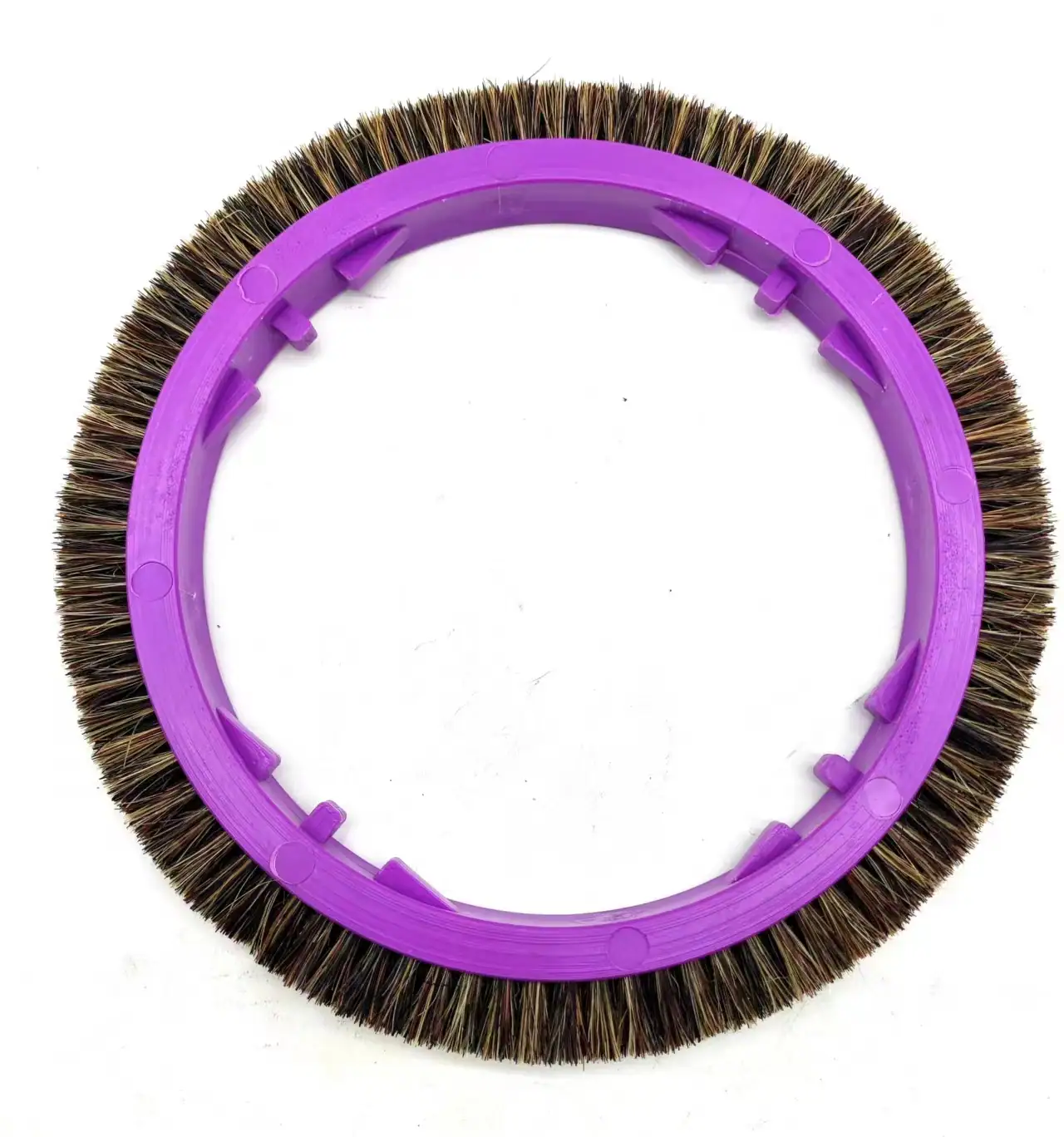

Brush Wheel F2 205 x 157
The F2 brush wheel size at 205 by 157.
Product Overview
The F2 brush wheel at 205 by 157. It is the widest wheel in the 205 diameter group, which puts it close to the Artos wheel at 205 by 145 without being interchangeable with it.
Bristle options are the standard five across our range: PP bristle, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue, in red, green or purple bodies.
Key Benefits
- F2 size at 205 by 157, held as running stock
- Five bristle options including nylon for high temperature
- Colour coded bodies for position identification
- Made in the same factory as the whole brush wheel range
Who It Is For
- Users of frames taking the F2 wheel size
- Maintenance stores separating the two 205 diameter sizes
- Engineers specifying bristle by position temperature
Problems It Solves
- F2 wheels being confused with Artos wheels because both are 205 diameter
- Cloth not seating on the pins as the brush wears
- Fibre build-up along the pin bed
Application Scenarios
- F2 pin beds due for brush wheel renewal
- Plants running F2 alongside Artos frames where the sizes are close
- Hot positions requiring nylon bristle
Technical Features
- Size 205 by 157
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Held as a running size
Specifications
| Size | 205 x 157 |
|---|---|
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Related size | Artos 205 x 145 |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Diameter and width measured on every wheel
- Bore concentricity checked
- Bristle pull test on a batch sample
Customisation Options
- Bristle type per position
- Wheel colour for coding
- Other sizes from a sample wheel
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
F2 at 205 by 157 and Artos at 205 by 145 share a diameter and differ by 12 mm in width. That is the kind of difference that does not show on a shelf but does show in the housing, so keep them marked separately.
Use Guide
Measure the width available in the housing before ordering
Mark F2 and Artos wheels separately in the store
Match bristle type to position temperature
Replace in matched sets across a position
Clear fibre at shift changes on dusty articles
FAQ
Questions About Brush Wheel F2 205 x 157
How does the F2 wheel differ from the Artos one?
Same 205 diameter, different width: 157 against 145. Mark them separately in the store, because they look alike.
Which bristle types are available?
PP, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue.
Can you make other sizes?
Yes, from a sample wheel.
What do the wheel colours mean?
Nothing fixed. Red, green and purple bodies are available so you can code positions or change intervals your own way.
Minimum order?
No fixed minimum.
Lead time?
Within 7 days for standard sizes.
