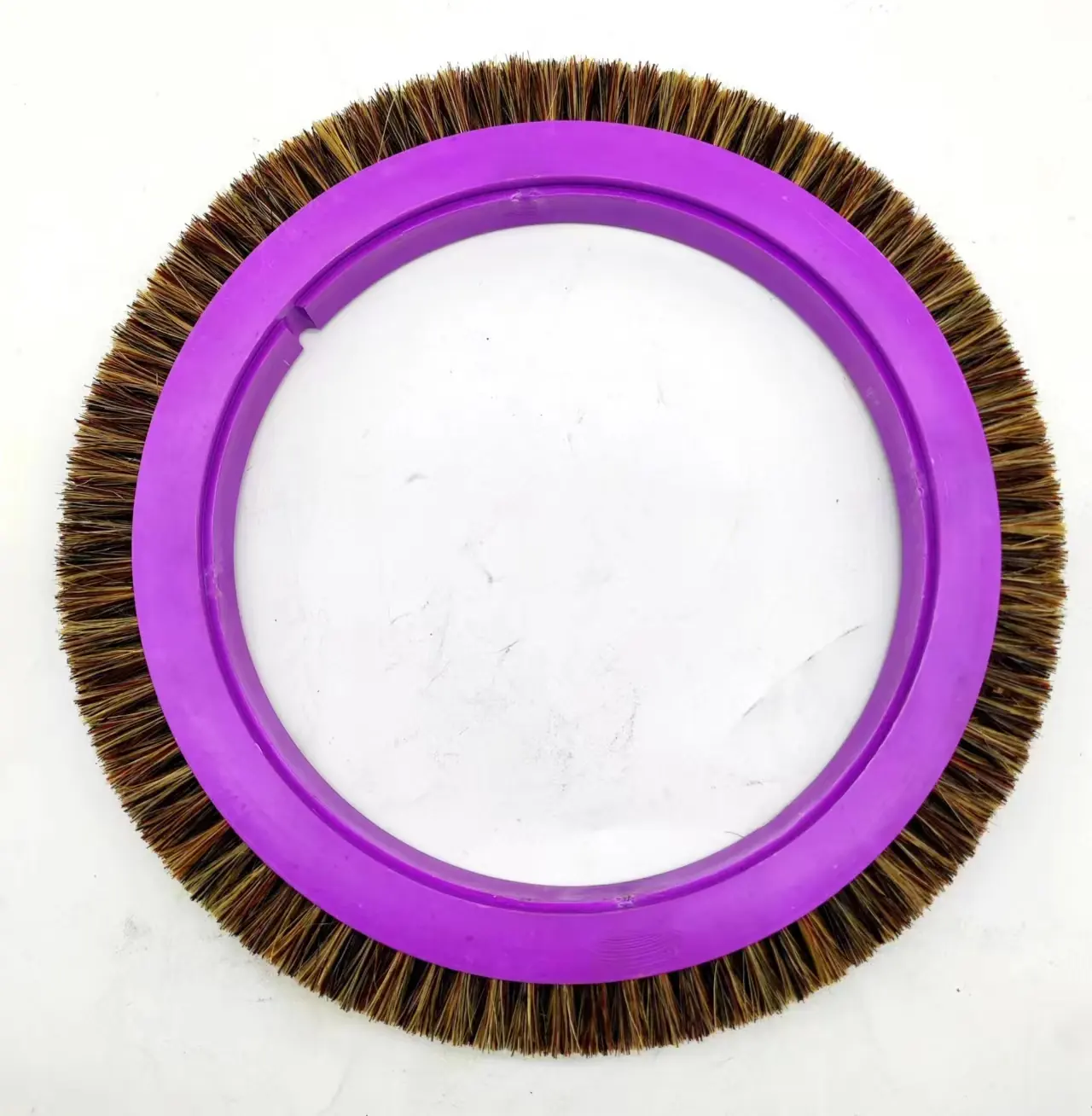

Brush Wheel For ACC Stenters 220 x 158
The large ACC brush wheel at 220 by 158.
Product Overview
The large ACC brush wheel at 220 by 158. It shares its dimensions with the large Bruckner wheel, which makes it one of the few cross-brand substitutions in the range that actually works on size, although the housing should still be checked.
Bristle options are the standard five: PP bristle, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue, in red, green or purple bodies.
Key Benefits
- Large ACC size at 220 by 158
- Dimensionally the same as the large Bruckner wheel we also hold
- Five bristle options including nylon for high temperature
- Colour coded bodies for position identification
Who It Is For
- ACC stenter users buying brush wheels as a consumable
- Mills with mixed ACC and Bruckner fleets
- Engineers specifying bristle by position
Problems It Solves
- ACC brush wheels being hard to find as a separate line
- Cloth not seating fully on the pins as the brush wears
- Fibre build-up in the pin bed
Application Scenarios
- ACC pin beds due for brush wheel renewal
- Plants running ACC alongside Bruckner frames
- Hot positions requiring nylon bristle
Technical Features
- Size 220 by 158
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Made for ACC stenter machines
Specifications
| Size | 220 x 158 |
|---|---|
| Machine | ACC stenter |
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Diameter and width measured on every wheel
- Bore concentricity checked
- Bristle pull test on a batch sample
Customisation Options
- Bristle type per position
- Wheel colour for coding
- Other sizes from a sample wheel
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
The ACC large wheel and the Bruckner large wheel share the 220 by 158 dimensions. The bore and mounting should still be confirmed against your housing rather than assumed from the outside dimensions alone.
Use Guide
Confirm bore and mounting against your housing, not only the outside dimensions
Match bristle type to position temperature
Set brush pressure so the cloth seats without the brush riding the plate
Replace in matched sets across a position
Clear fibre at shift changes on dusty articles
FAQ
Questions About Brush Wheel For ACC Stenters 220 x 158
Is the ACC wheel the same as the Bruckner one?
They share the 220 by 158 outside dimensions. Confirm the bore and mounting against your housing before treating them as interchangeable.
Do you make a small ACC wheel?
Yes, at 180 by 70.
Which bristle for a hot position?
Nylon, the high temperature option.
Can you make a size not listed?
Yes, from a sample wheel.
Minimum order?
No fixed minimum.
Lead time?
Within 7 days for standard sizes.
