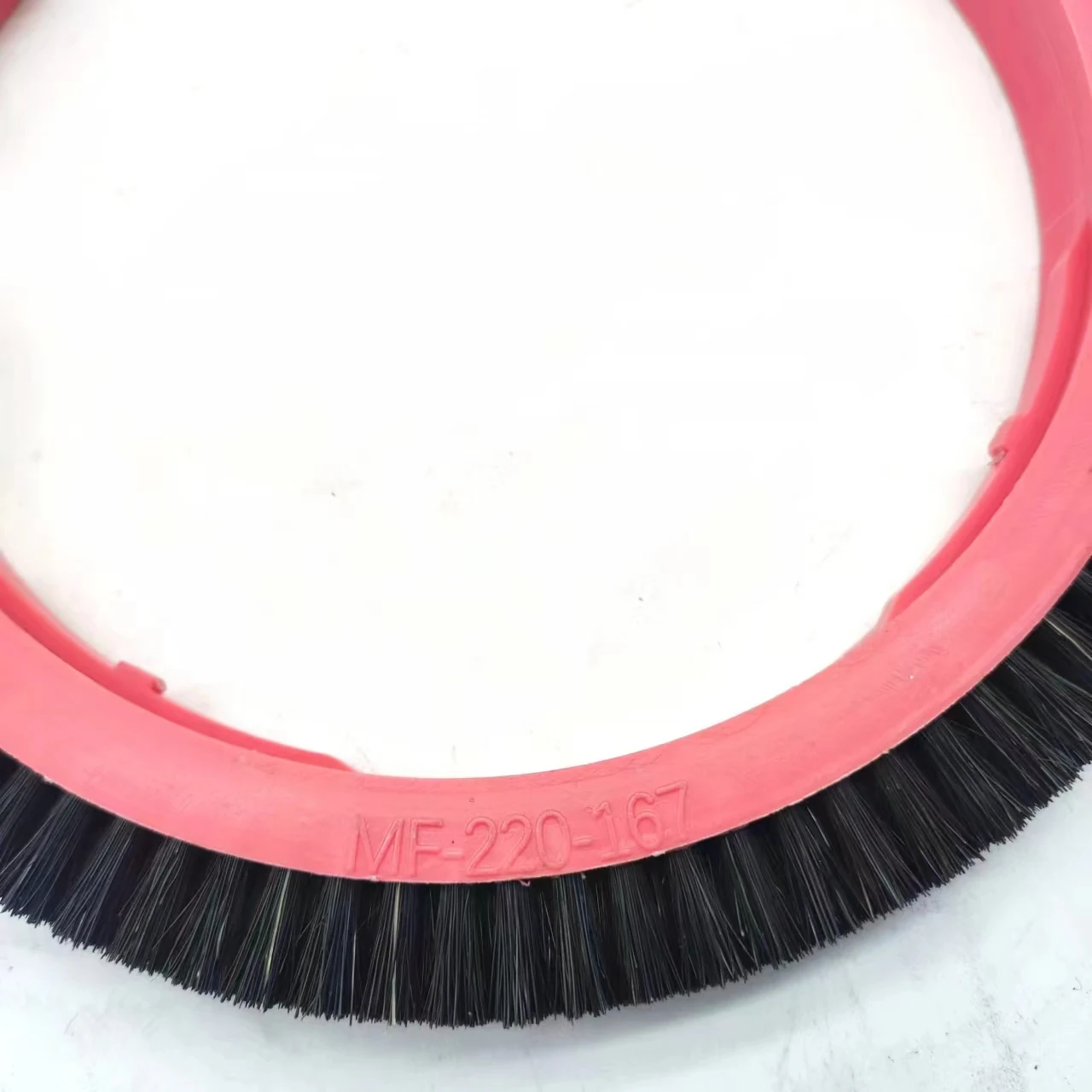

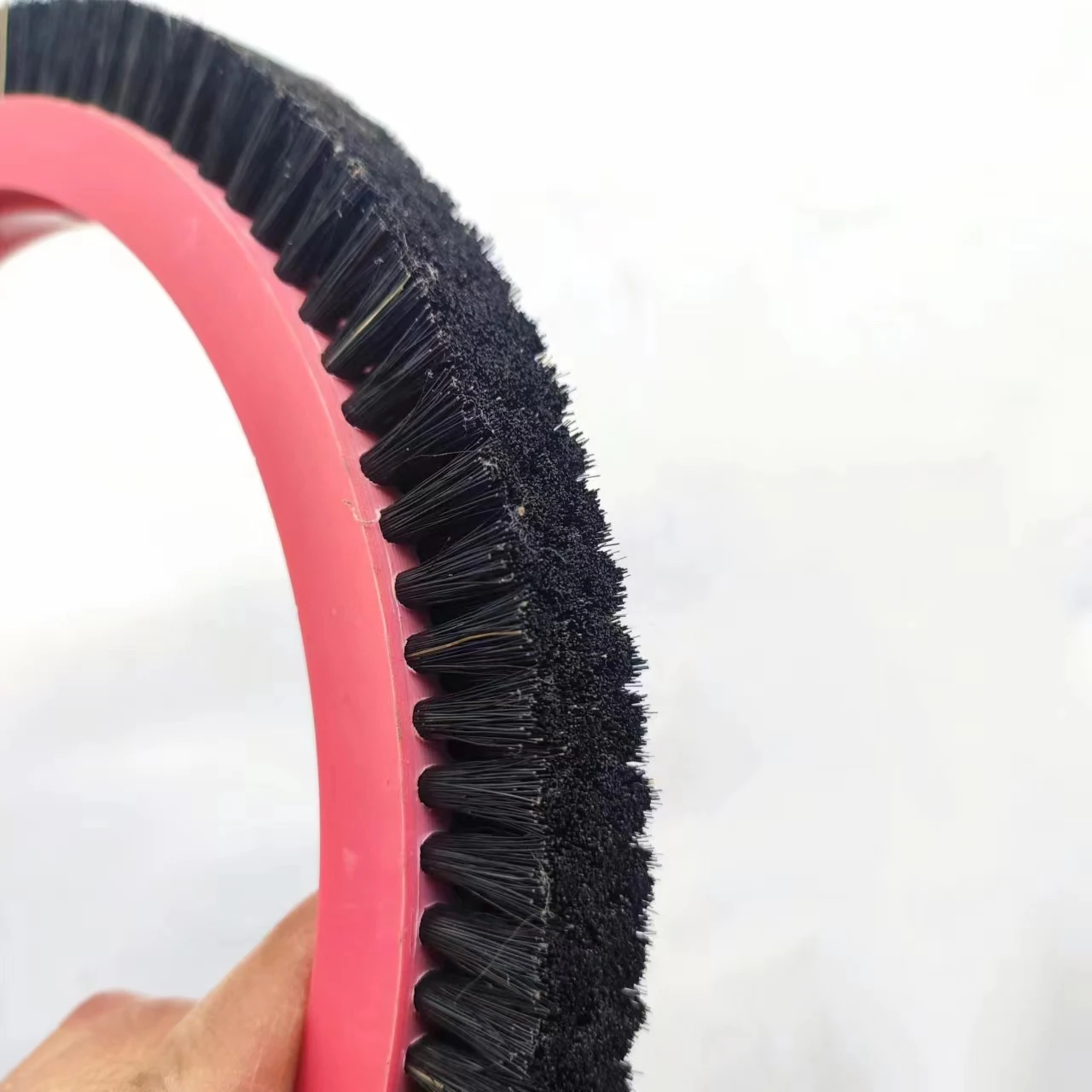

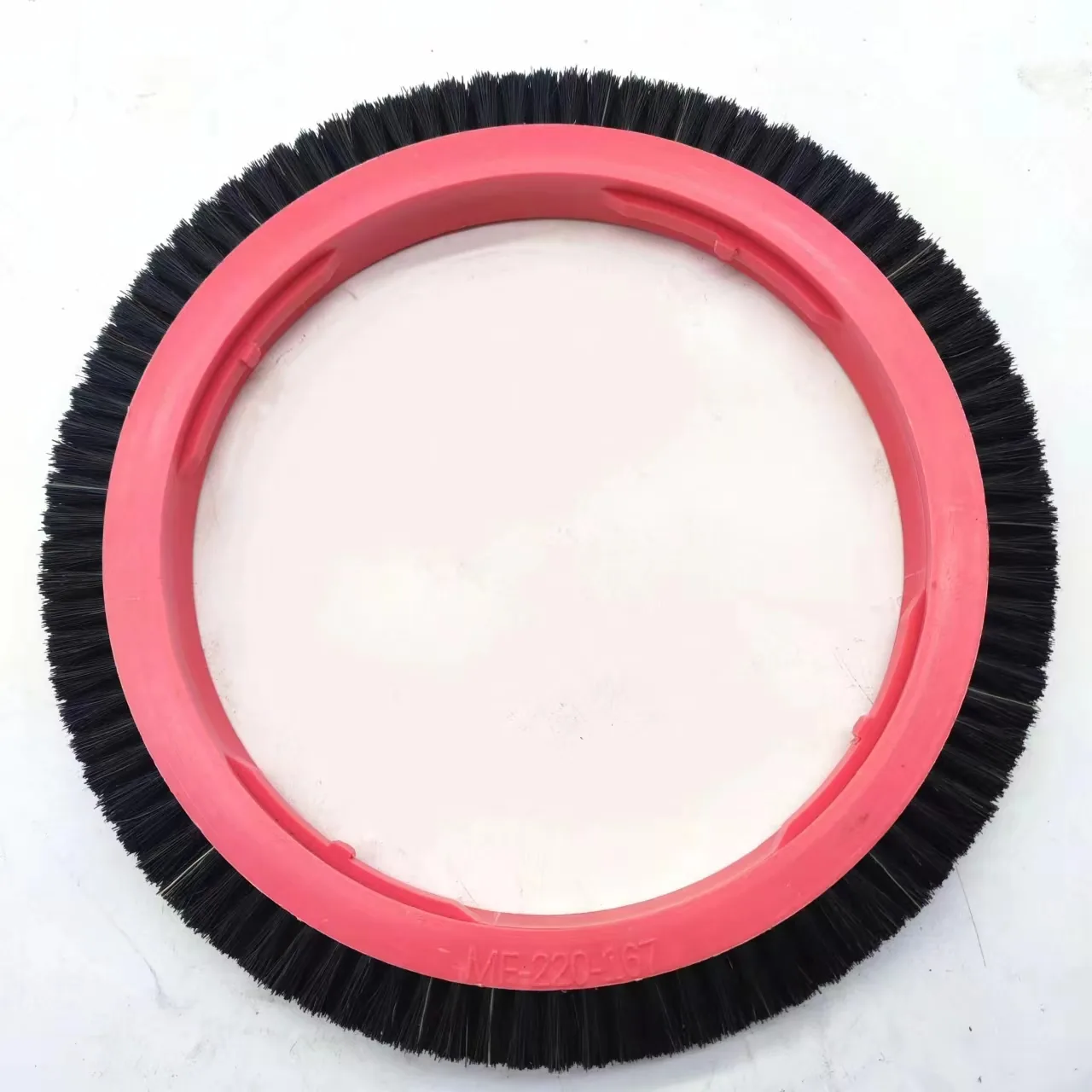

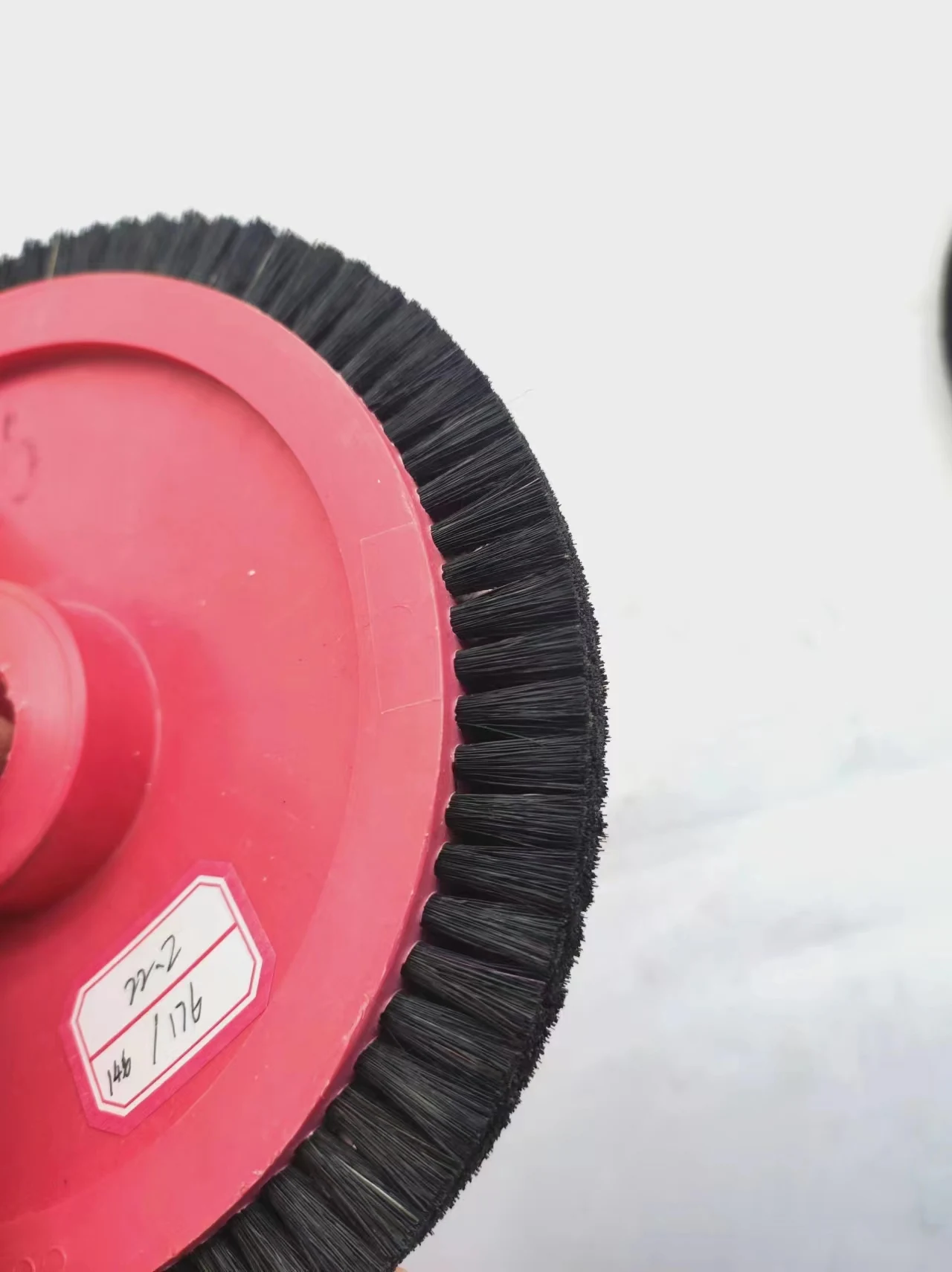

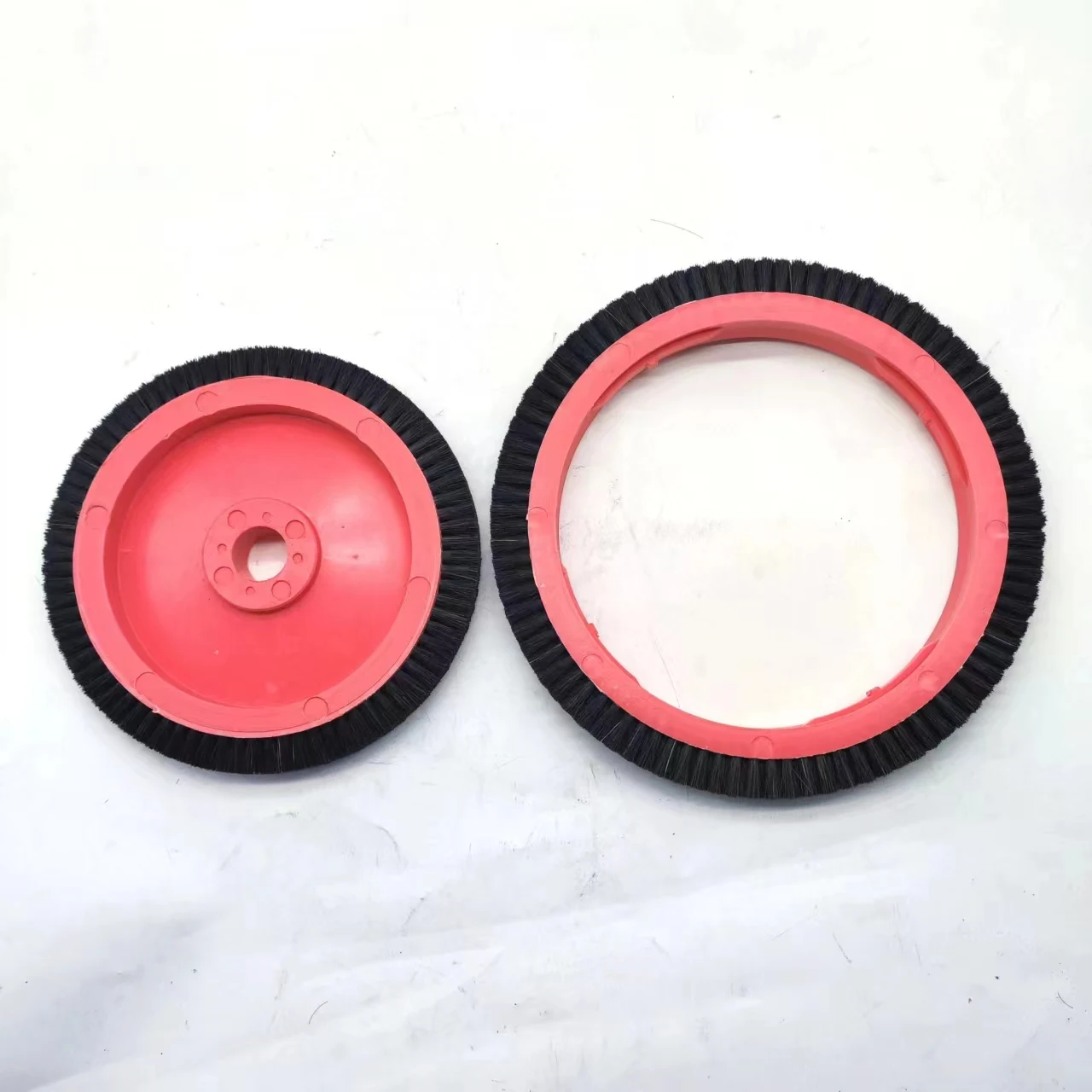

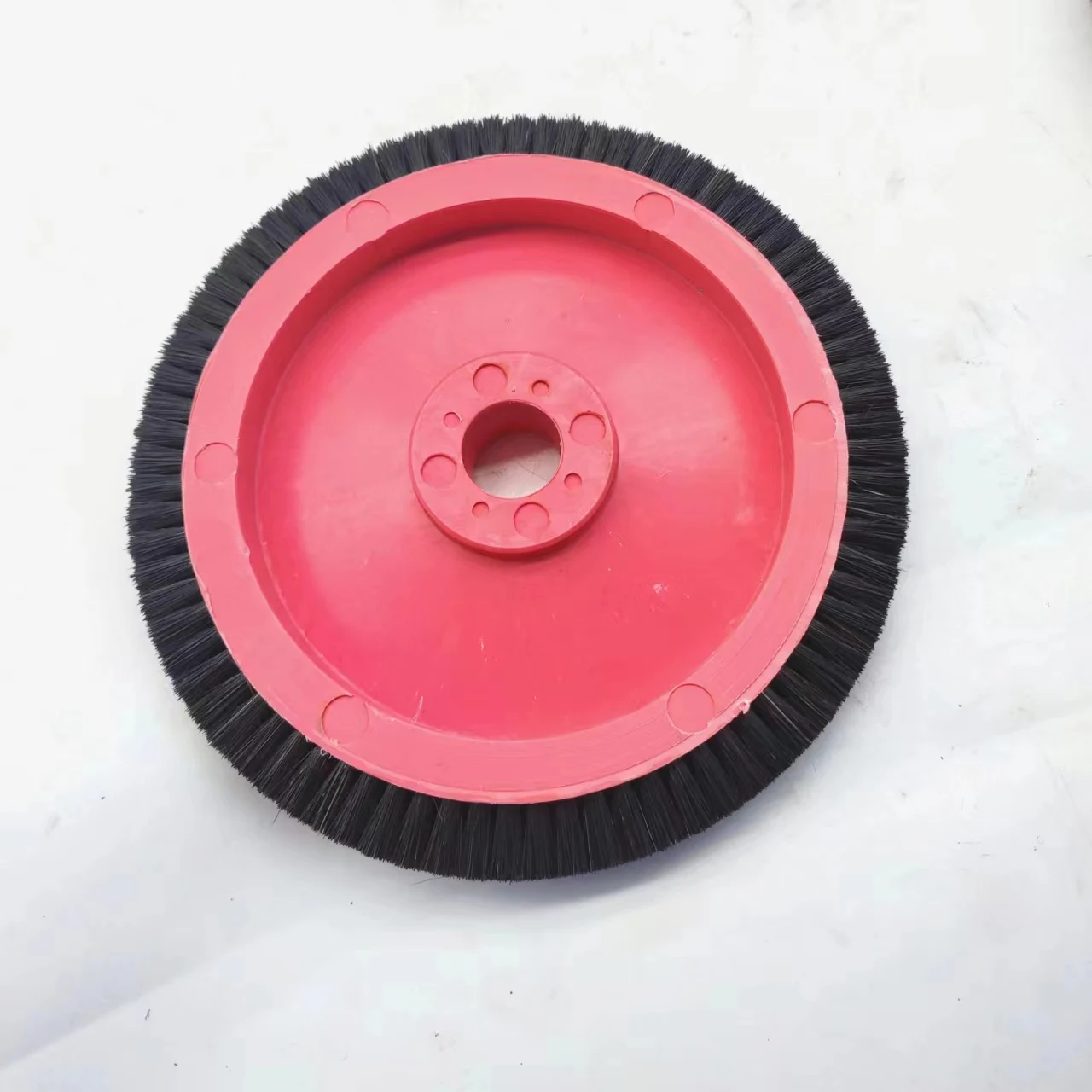

Monforts Brush Wheel 220 x 167 Nylon High Temperature
The 220 by 167 Monforts wheel specified with high temperature nylon bristle as standard.
Product Overview
This is the 220 by 167 Monforts brush wheel supplied with nylon bristle for high temperature service as the standing specification, rather than as an option to be chosen at order.
Mills buy it this way once they have established that a position runs hot enough for PP bristle to deform. Fixing the bristle type to the part number stops the wrong wheel being ordered by someone who was not there when the problem was diagnosed.
Key Benefits
- Nylon bristle for high temperature fixed to the specification, not chosen per order
- Standard large Monforts size at 220 by 167
- Removes the risk of a PP wheel being ordered for a hot position by mistake
- Wheel body available in red, green and purple for position coding
Who It Is For
- Monforts users who have already diagnosed a high temperature bristle problem
- Maintenance managers removing specification decisions from the ordering process
- Stores holding separate part numbers for hot and normal positions
Problems It Solves
- PP bristle deforming and losing pressing effect in hot positions
- Wrong bristle type ordered because the specification lived in someone's memory
- Repeat wheel failures at a single known position
Application Scenarios
- Hot chamber positions where PP bristle has previously failed
- Plants with several people raising purchase orders for the same consumable
- Standardising the hot positions across a fleet of Monforts frames
Technical Features
- Size 220 by 167
- Nylon bristle for high temperature as the standing specification
- Alternative bristles available: PP, brown pig hair, black pig hair, hard hair with glue
- Wheel body in red, green or purple
Specifications
| Size | 220 x 167 |
|---|---|
| Machine | Monforts stenter |
| Bristle | nylon for high temperature |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Bristle material verified as nylon on every batch
- Diameter and width measured on every wheel
- Bristle pull test on a batch sample
Customisation Options
- Alternative bristle type where a position turns out to be cooler than assumed
- Wheel colour for position coding
- Non-standard sizes from your sample
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the general purpose 220 by 167 wheel, the only difference is that the bristle choice is locked to nylon. Where the position is not hot, PP costs less and performs adequately, so this specification is worth paying for only where the temperature justifies it.
Use Guide
Identify which positions genuinely run hot before standardising on nylon there
Mark the position and the part number together in the maintenance system
Set brush pressure to seat the cloth without the brush touching the plate
Replace wheels in matched sets across the position
Review the specification annually in case the article mix has changed
FAQ
Questions About Monforts Brush Wheel 220 x 167 Nylon High Temperature
Why buy a fixed nylon specification?
So the hot position always gets the right bristle regardless of who raises the order. It removes a recurring failure mode that is procedural rather than technical.
How hot does a position have to be for nylon?
Hot enough that PP bristle softens and loses its pressing effect. If you have seen PP deform at a position, that position needs nylon.
Is the size the same as the general purpose wheel?
Yes, 220 by 167, the large Monforts size.
Can I still get PP in this size?
Yes. The general purpose wheel in the same size offers all five bristle options.
Do the wheel colours mean anything?
They are for your own position coding. Red, green and purple bodies are available and the choice is yours.
Lead time?
Within 7 days.
