Brush Wheel For Bruckner Stenters 155 x 85
The small Bruckner brush wheel at 155 by 85 for secondary and edge positions.
Product Overview
The small Bruckner brush wheel at 155 by 85. It is used at secondary and edge positions on a Bruckner frame, where the large 220 by 158 wheel is either too big to fit or more brush than the position needs.

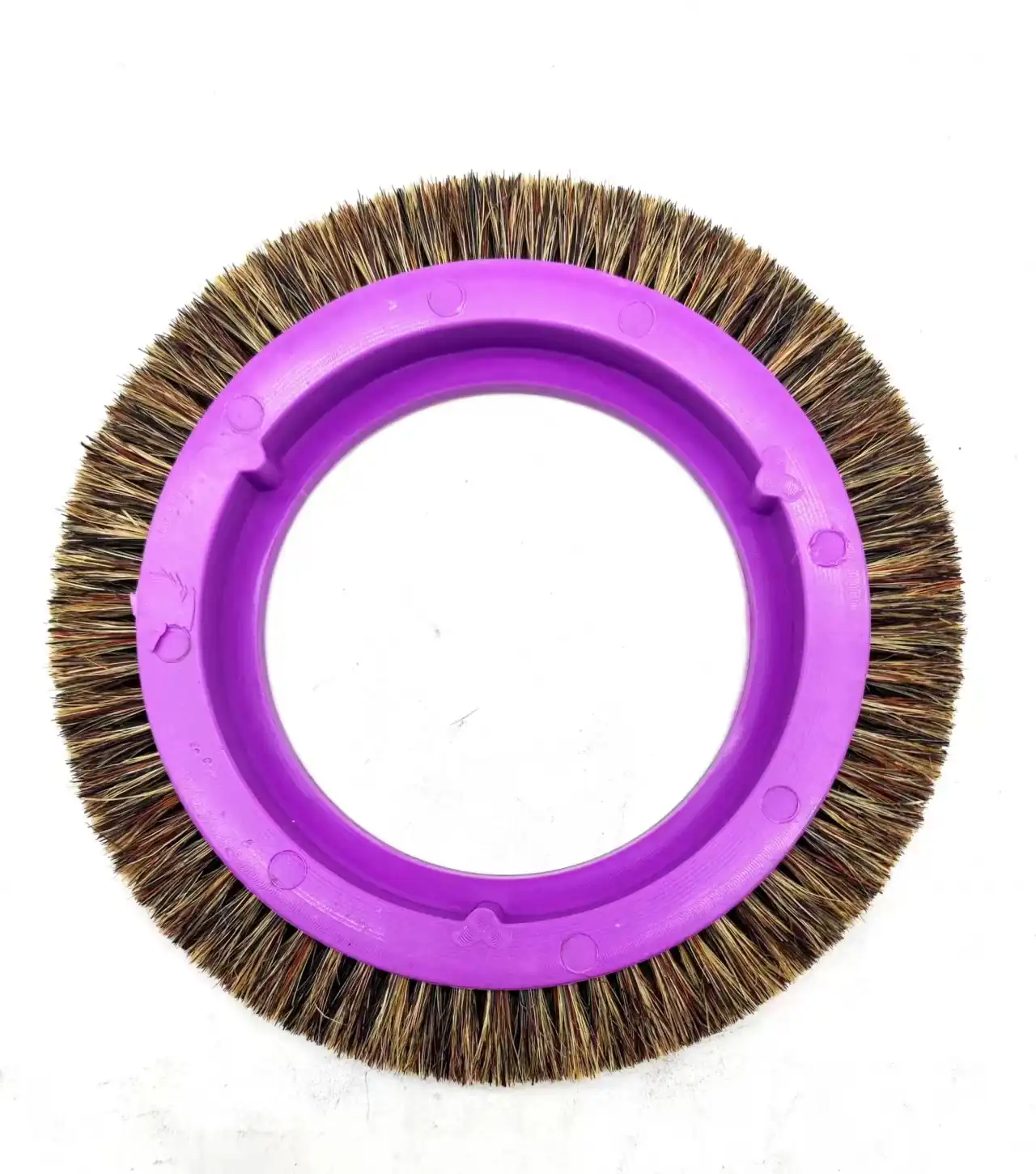

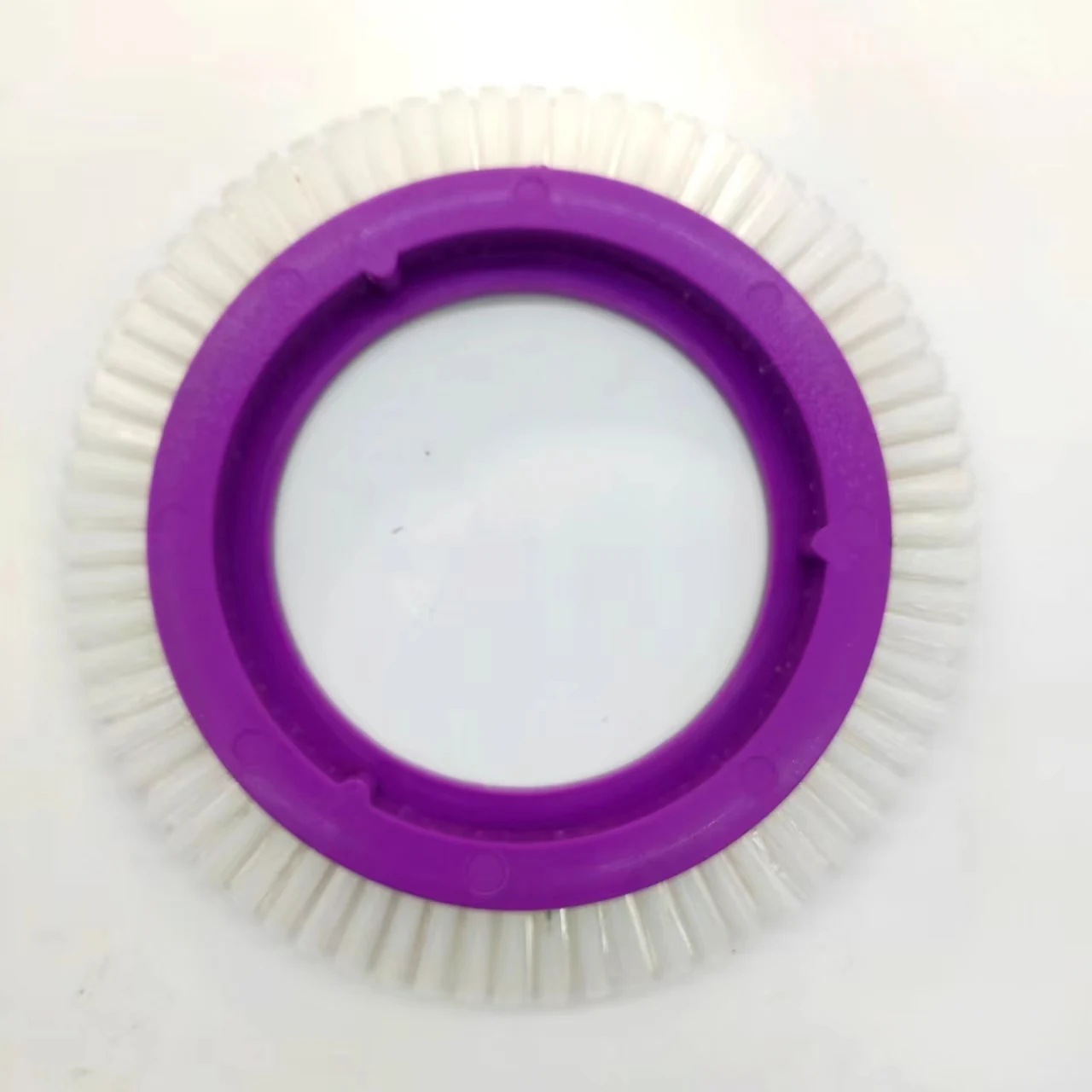

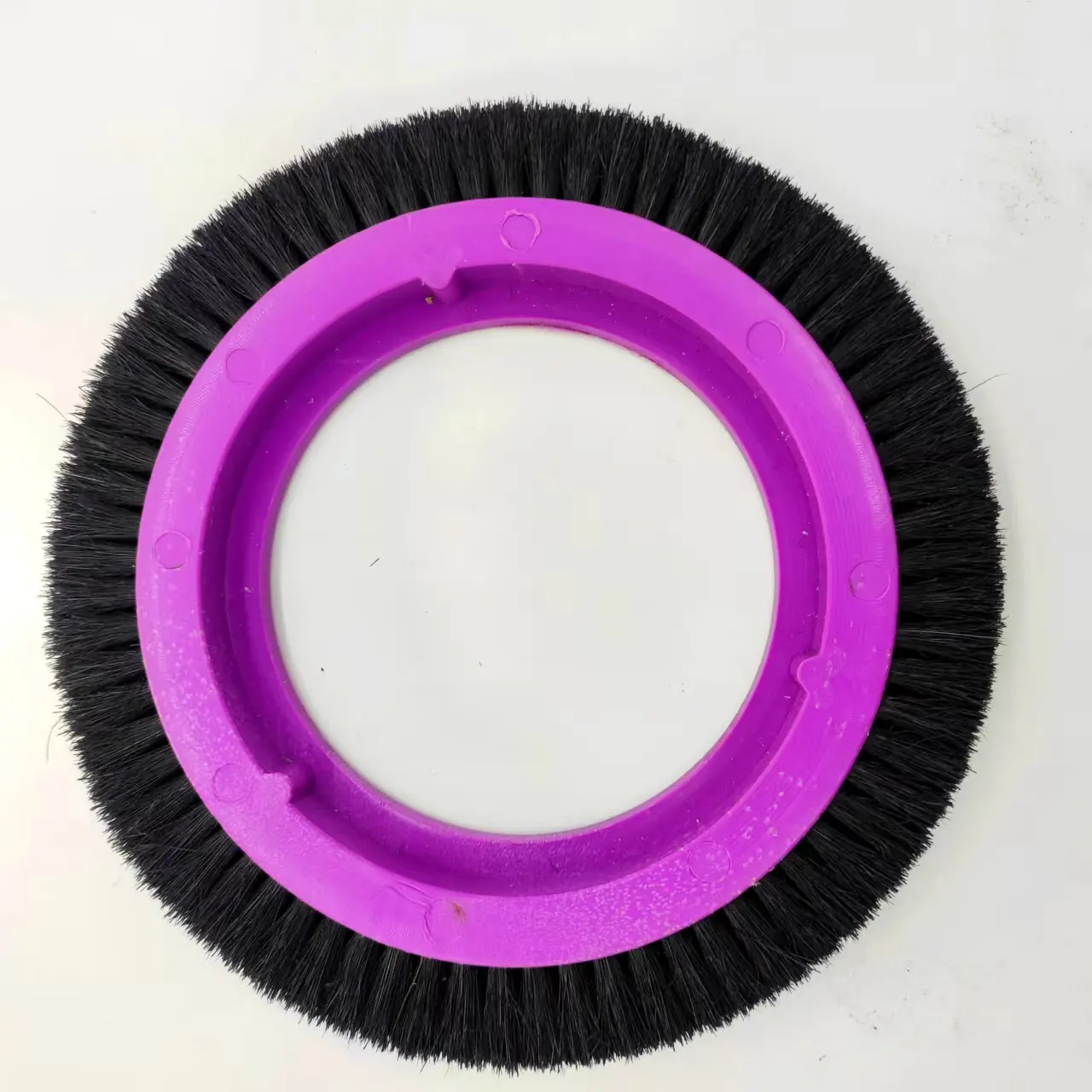

As with all our brush wheels, the bristle is specified rather than assumed: PP bristle, nylon for high temperature, brown pig hair, black pig hair or hard hair with glue, in a red, green or purple body.
Key Benefits
- Smaller Bruckner size for secondary and edge positions
- Same five bristle options as the large wheel
- Nylon bristle available for hot positions
- Colour coded bodies so positions can be identified at a glance
Who It Is For
- Bruckner users holding both wheel sizes
- Maintenance stores keeping a second Bruckner line item
- Engineers addressing a specific position rather than the whole bed
Problems It Solves
- A large wheel fouling hardware at an edge position
- Positions left unbrushed because only the large size was stocked
- Fibre build-up at secondary positions
Application Scenarios
- Bruckner edge positions where the large wheel will not fit
- Secondary pressing points along the pin bed
- Frames where the small wheel is the wear item and the large one is not
Technical Features
- Size 155 by 85
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Made for Bruckner stenter machines
Specifications
| Size | 155 x 85 |
|---|---|
| Machine | Bruckner stenter |
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Diameter and width measured on every wheel
- Bore concentricity checked so the wheel runs true
- Bristle pull test on a batch sample
Customisation Options
- Bristle type selected per position
- Wheel colour for coding
- Other small sizes from a sample
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the 220 by 158 Bruckner wheel, this is the secondary size. Fitting the small wheel where the large one belongs leaves most of the width unpressed, so check the position rather than substituting on availability.
Use Guide
Confirm the position and available space before ordering
Match bristle type to the position temperature
Check run-out after fitting
Replace in sets where several small wheels share a position
Clear fibre at shift changes on dusty articles
FAQ
Questions About Brush Wheel For Bruckner Stenters 155 x 85
Where is the small Bruckner wheel used?
At secondary and edge positions where the 220 by 158 wheel is too large or more brush than the position needs.
Can I substitute it for the large wheel?
No. It leaves most of the width unpressed. Order the size the position actually takes.
Which bristle should I pick?
PP for general positions, nylon where the position runs hot. Pig hair and hard glued hair are available where a different stiffness is wanted.
Can you make other small sizes?
Yes, from a sample wheel.
Minimum order?
No fixed minimum.
Lead time?
Within 7 days for standard sizes.
