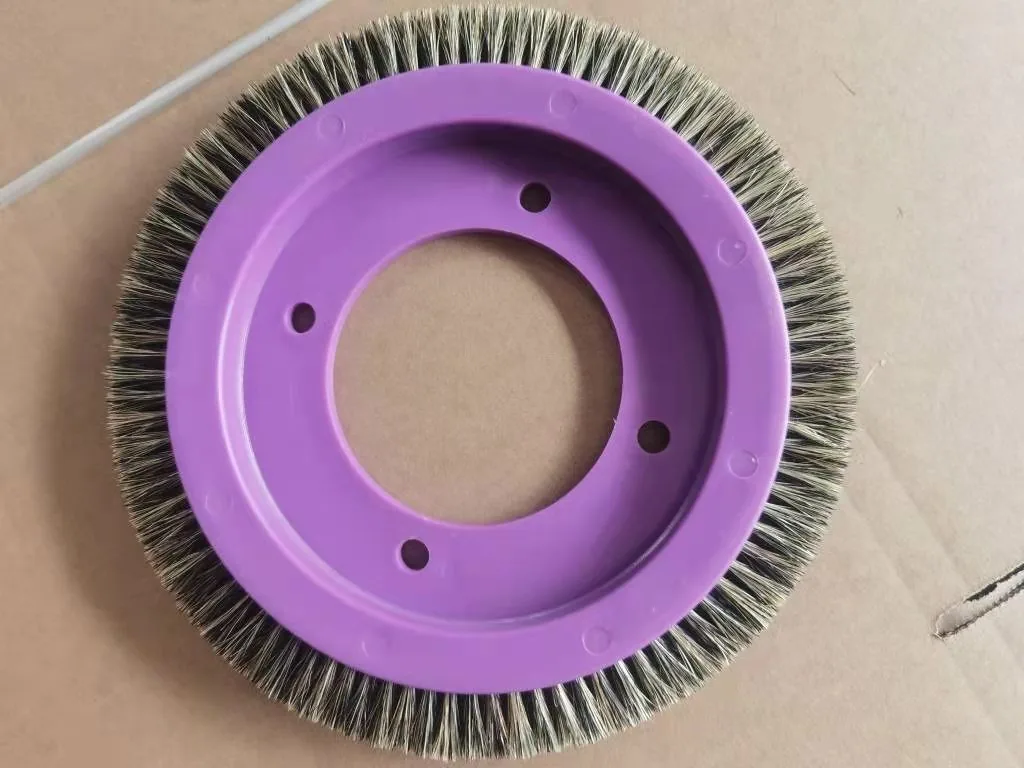

Brush Wheel For ALKAN Stenters 225 x 90
The ALKAN brush wheel size at 225 by 90, held alongside the LK range.
Product Overview
The brush wheel for ALKAN stenter frames at 225 by 90. It is the largest diameter in our brush range and one of the two narrower widths, which is the combination the ALKAN housing takes.
Bristle options are the same across our whole brush range: PP bristle, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue, in red, green or purple wheel bodies.
Key Benefits
- ALKAN size at 225 by 90, the largest diameter we hold
- Five bristle options including nylon for high temperature
- Held alongside the LK range, which uses similar narrow wheels
- Colour coded bodies for position identification
Who It Is For
- ALKAN stenter users buying brush wheels as a consumable
- Maintenance stores separating ALKAN from LK wheel sizes
- Engineers specifying bristle by position temperature
Problems It Solves
- ALKAN brush wheels being hard to source
- LK and ALKAN wheels being confused because both are narrow
- Cloth not seating fully as the brush wears down
Application Scenarios
- ALKAN pin beds due for brush wheel renewal
- Plants running ALKAN alongside LK frames
- Hot positions where PP bristle has deformed
Technical Features
- Size 225 by 90
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Held alongside the LK stenter parts range
Specifications
| Size | 225 x 90 |
|---|---|
| Machine | ALKAN stenter |
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Diameter and width measured on every wheel
- Bore concentricity checked
- Bristle pull test on a batch sample
Customisation Options
- Bristle type per position
- Wheel colour for coding
- Other sizes from a sample wheel
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
ALKAN at 225 by 90 and LK at 207 by 80 are the two narrow wheels we hold. Both dimensions differ between them, so they cannot be substituted for each other even though they look alike on a shelf.
Use Guide
Measure the housing before ordering; ALKAN and LK wheels are easy to confuse
Match bristle type to position temperature
Check run-out after fitting, since a narrow wheel shows it clearly
Replace in matched sets across a position
Clear fibre at shift changes on dusty articles
FAQ
Questions About Brush Wheel For ALKAN Stenters 225 x 90
How does this differ from the LK wheel?
ALKAN is 225 by 90, LK is 207 by 80. Both dimensions differ, so they are not interchangeable.
Which bristle types are available?
PP, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue.
Can you make a different size?
Yes, from a sample wheel.
Why do wheels come in different colours?
So you can code them by position or by change interval. Red, green and purple bodies are available.
Minimum order?
No fixed minimum.
Lead time?
Within 7 days for standard sizes.
