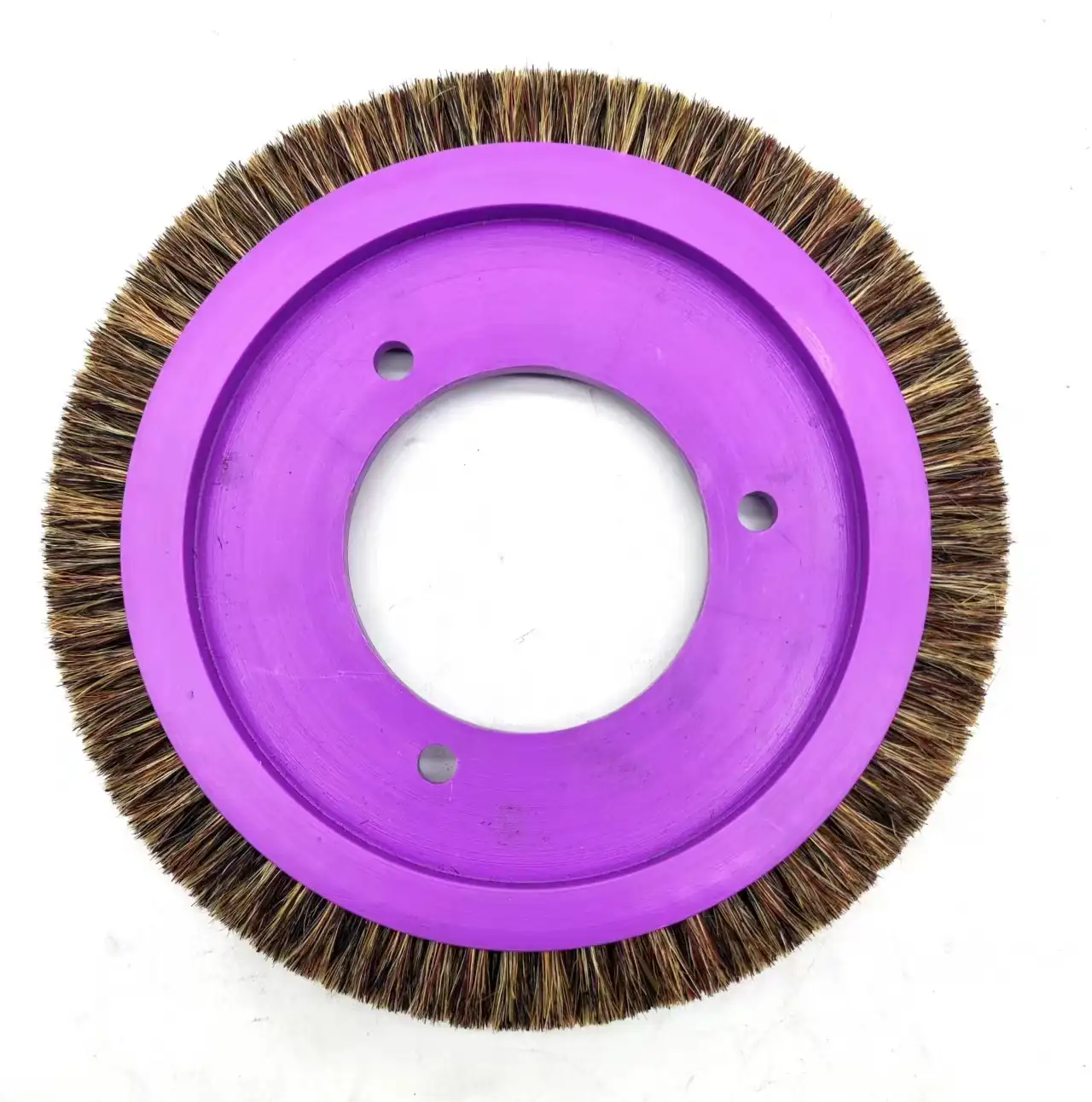

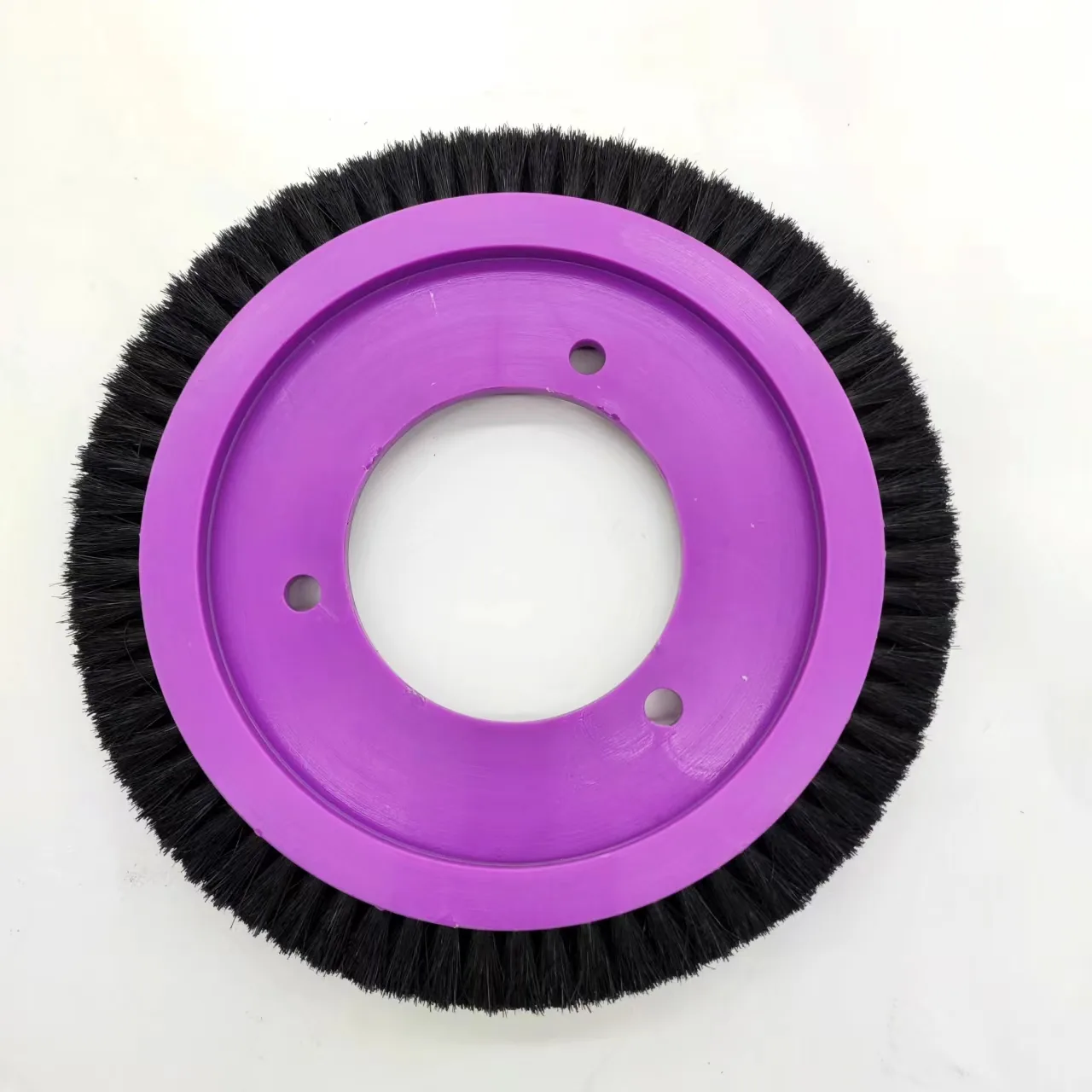

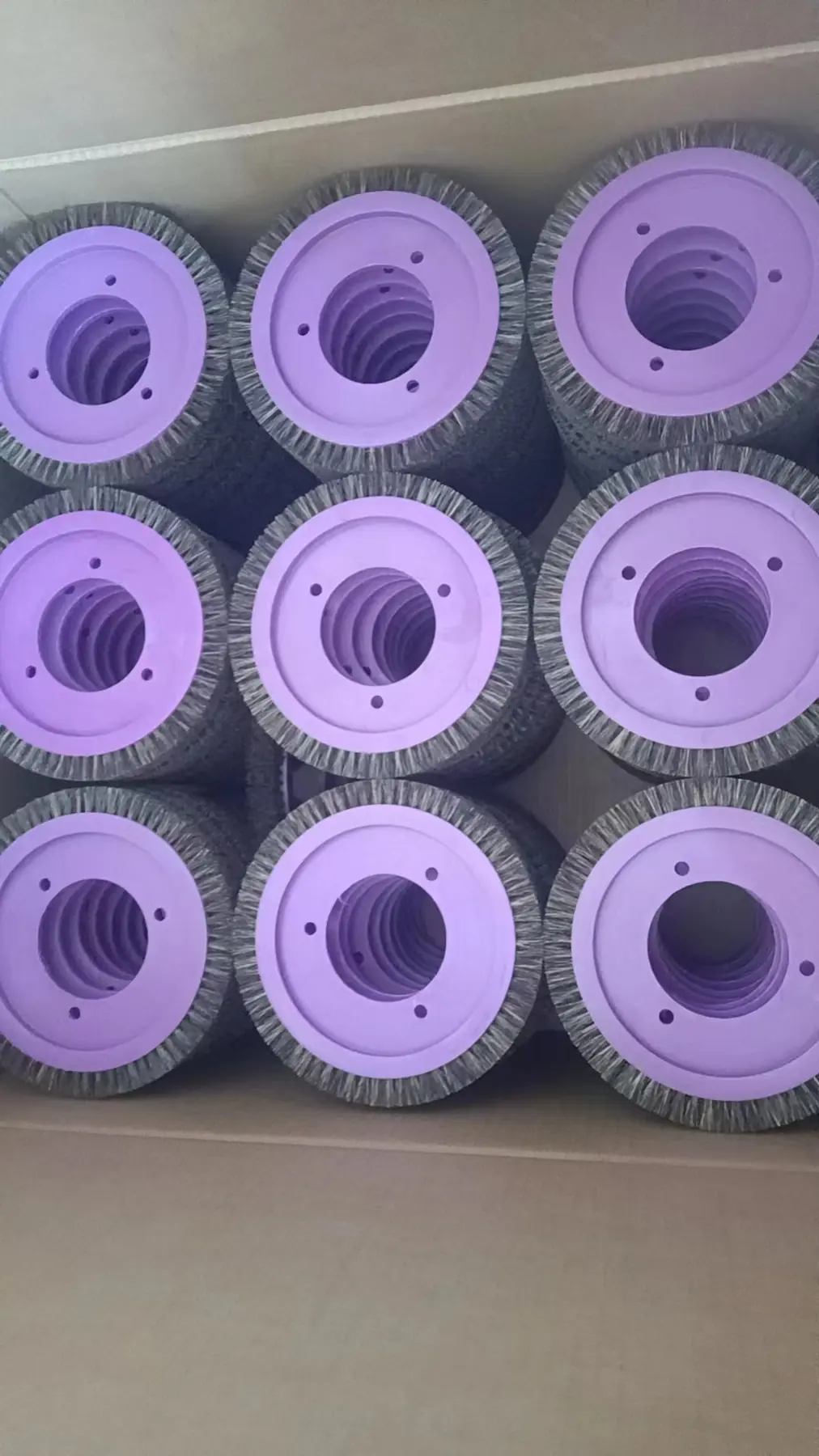

Brush Wheel For ACC Stenters 180 x 70
The small ACC brush wheel at 180 by 70 for secondary positions.
Product Overview
The small ACC brush wheel at 180 by 70, used at secondary positions where the large 220 by 158 wheel is more than the position requires or will not fit.
The bristle options are the same across the range: PP bristle, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue, with the wheel body in red, green or purple.
Key Benefits
- Smaller ACC size at 180 by 70 for secondary positions
- Same five bristle options as the large ACC wheel
- Nylon bristle for positions that run hot
- Colour coded bodies for position identification
Who It Is For
- ACC users holding both wheel sizes
- Maintenance stores keeping a second ACC line item
- Engineers addressing a specific position on the bed
Problems It Solves
- A large wheel fouling hardware at a tight position
- Positions left unbrushed because only one size was stocked
- Localised fibre build-up along the bed
Application Scenarios
- ACC secondary and edge positions
- Frames where the small wheel is the wear item
- Positions where a large wheel fouls adjacent hardware
Technical Features
- Size 180 by 70
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Made for ACC stenter machines
Specifications
| Size | 180 x 70 |
|---|---|
| Machine | ACC stenter |
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Diameter and width measured on every wheel
- Bore concentricity checked
- Bristle pull test on a batch sample
Customisation Options
- Bristle type per position
- Wheel colour for coding
- Other small sizes from a sample
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the ACC 220 by 158 wheel, this is the secondary size. It is close in diameter to the Monforts small wheel at 180 by 22 but far wider, so the two are not alternatives.
Use Guide
Confirm the position and available space before ordering
Match bristle type to position temperature
Check run-out after fitting
Replace in sets where several share a position
Clear fibre at shift changes on dusty articles
FAQ
Questions About Brush Wheel For ACC Stenters 180 x 70
Where is the small ACC wheel used?
At secondary and edge positions where the 220 by 158 wheel is too large or more than the position needs.
Is it the same as the small Monforts wheel?
No. Both are 180 diameter but the ACC wheel is 70 wide and the Monforts one is 22. They are not alternatives.
Which bristle should I choose?
PP for general positions, nylon where the position runs hot.
Can you make other sizes?
Yes, from a sample wheel.
Minimum order?
No fixed minimum.
Lead time?
Within 7 days for standard sizes.
