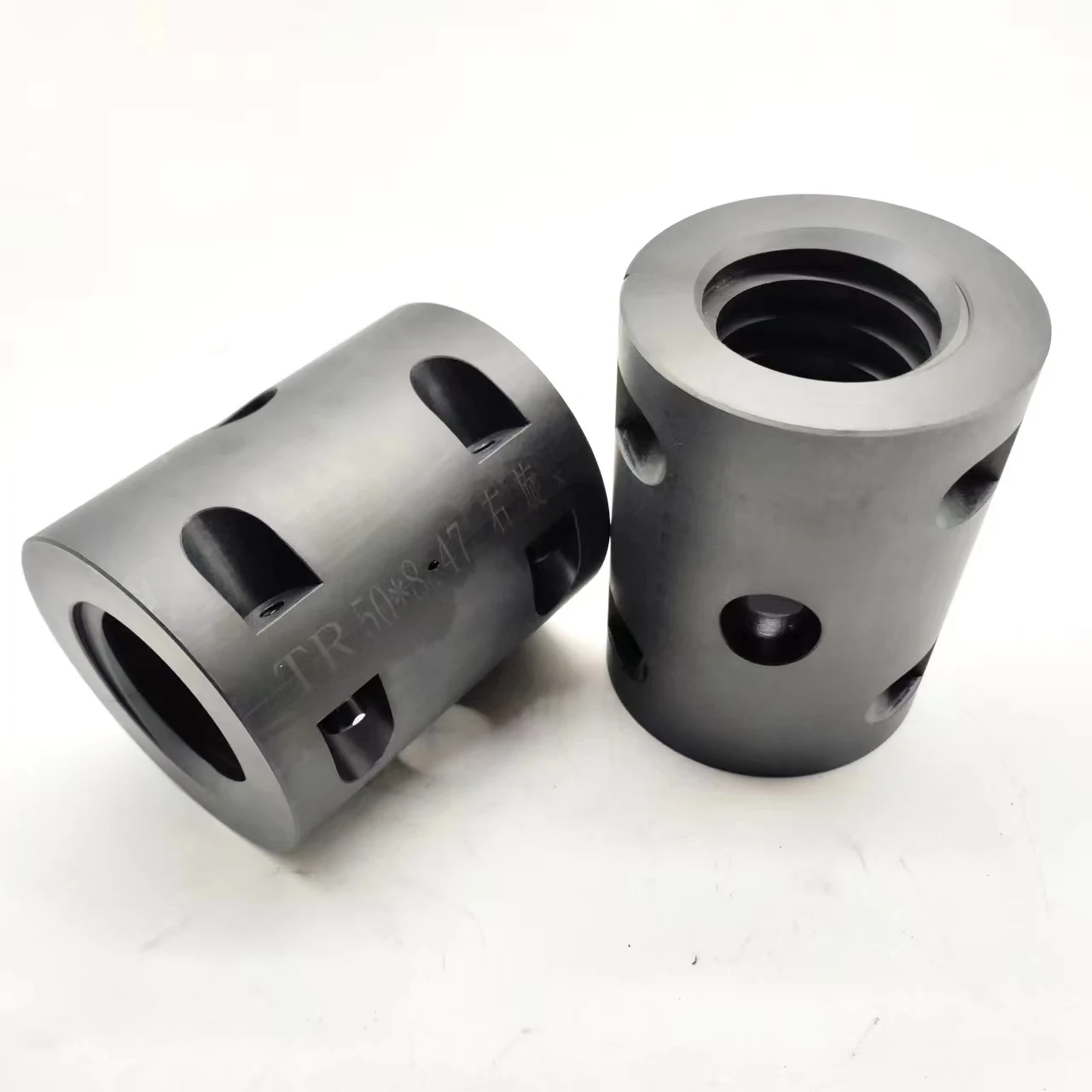

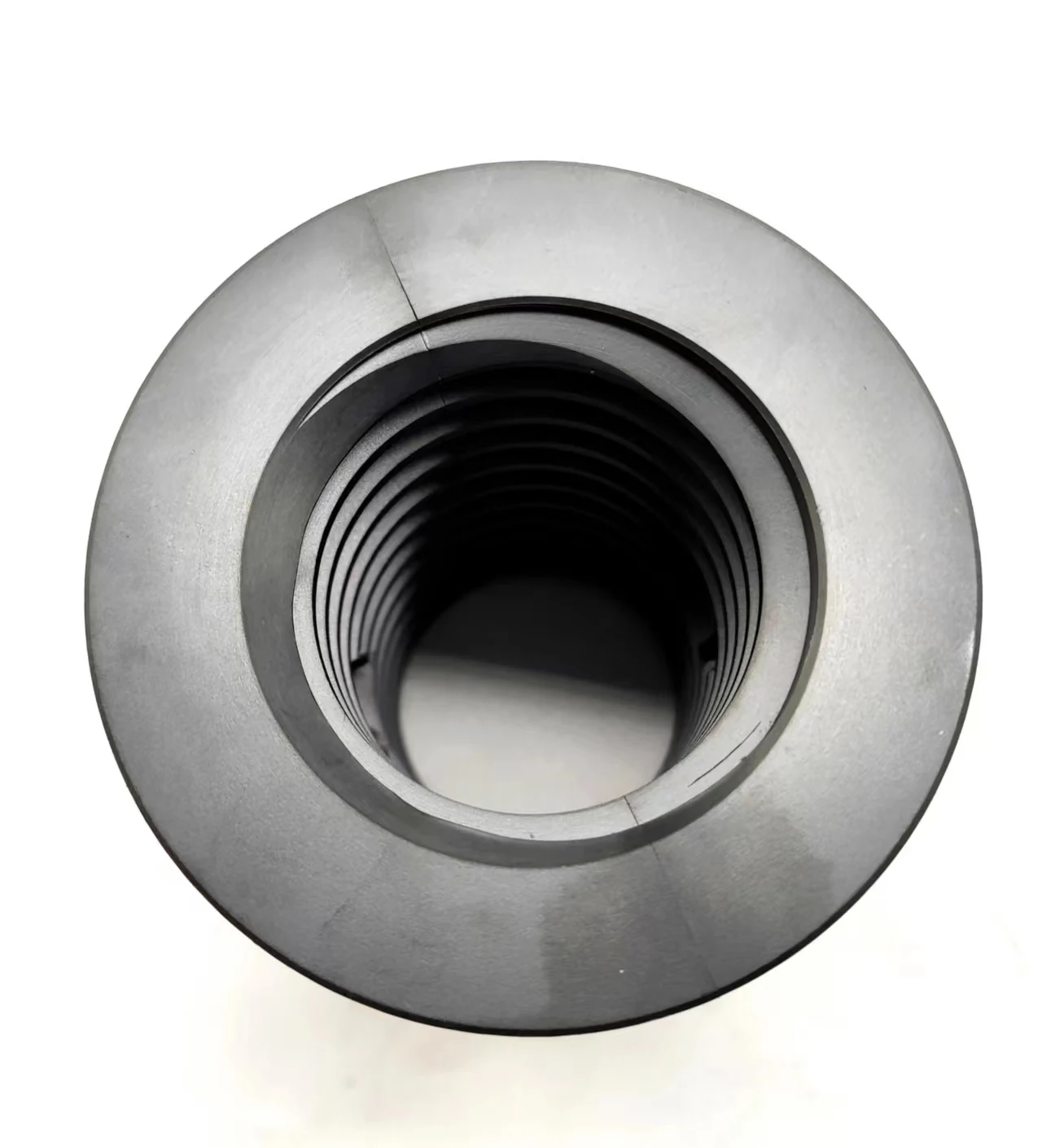

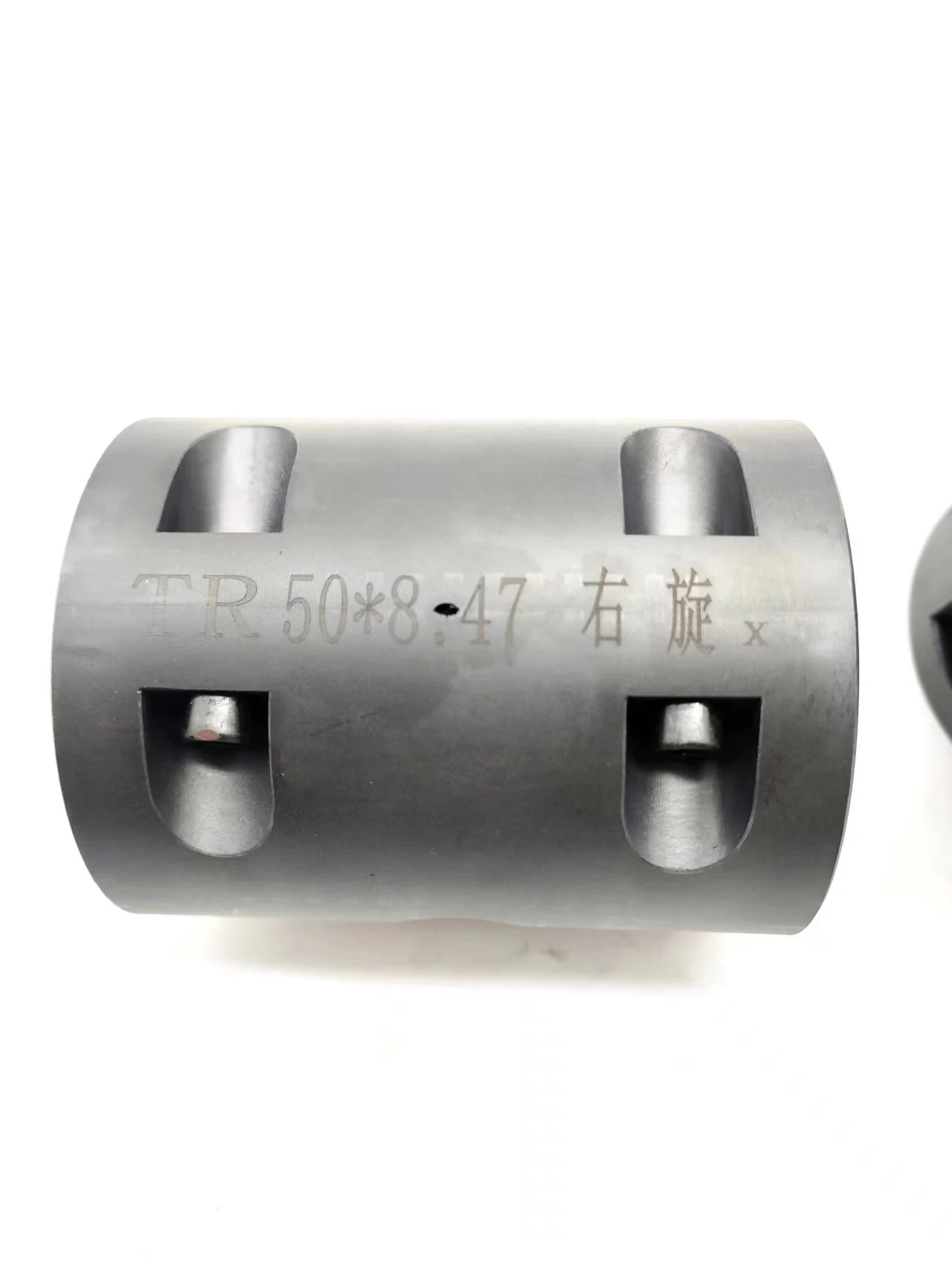

PEEK Nut For IL SUNG Stenters
Self-lubricating lead rod nut cut to the IL SUNG thread, for Korean-built frames.
Product Overview
The IL SUNG version of our PEEK lead rod nut. It is the adjustable nut of the setting machine lead rod, the part that helps the guide rail to be widened, machined to the IL SUNG thread rather than the Monforts one.
PEEK resin gives high temperature resistance, wear resistance, self-lubrication, low noise, corrosion resistance and high strength, which is why it is widely used in textile machinery. Self-lubrication means no molybdenum disulfide, and the nut is not easy to break and lasts longer than what it replaces.
Key Benefits
- Thread machined for IL SUNG lead rods, not adapted from another brand
- Self-lubricating, so molybdenum disulfide is not required
- High temperature and corrosion resistance in the chamber environment
- Supplied with IL SUNG pin plates from the same order
Who It Is For
- IL SUNG stenter users maintaining the rail widening mechanism
- Mills running IL SUNG alongside European frames wanting one supplier
- Engineers standardising on PEEK across the widening gear
Problems It Solves
- Widening gear binding on a worn nut
- IL SUNG spares taking too long to source
- Molybdenum disulfide still being used on a mechanism that no longer needs it
Application Scenarios
- IL SUNG frames where the widening gear has stiffened
- Korean-built machines where original spares are slow to reach the plant
- Widening mechanisms being renewed at a planned shutdown
Technical Features
- PEEK resin, self-lubricating and wear resistant
- Thread matched to the IL SUNG lead rod
- High temperature and corrosion resistance, low noise, high strength
- Black and yellow, approximate weight 0.238 kg
Specifications
| Machine | IL SUNG stenter |
|---|---|
| Material | PEEK (polyether ether ketone) |
| Function | adjustable nut on the setting machine lead rod |
| Colour | black and yellow |
| Weight | approx 0.238 kg |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Thread gauged against the IL SUNG reference
- PEEK grade verified on incoming stock
- Free-running test on a lead rod sample
Customisation Options
- Machined from your sample nut where the thread is non-standard
- Supplied in sets for the whole mechanism
- Quoted with IL SUNG pin plates and other chain-side parts
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
IL SUNG and Monforts nuts are not interchangeable because the lead rod threads differ. If you run both brands, mark the spares by machine; the parts look similar enough to be confused in a store.
Use Guide
Send a sample nut if you are unsure of the thread
Inspect the lead rod thread while the nut is off
Fit without molybdenum disulfide
Cycle the widening mechanism through full travel after fitting
Renew the whole set together so travel stays even
FAQ
Questions About PEEK Nut For IL SUNG Stenters
Will a Monforts PEEK nut fit an IL SUNG frame?
No. The lead rod threads differ, so the nuts are machined separately for each brand.
Does it need lubricating?
No. PEEK is self-lubricating and does not require the use of molybdenum disulfide.
What else do you supply for IL SUNG frames?
Pin plates cut to the IL SUNG seat profile, and chain-side parts. Send a sample for anything else and we will confirm honestly whether we make it.
Can you machine a non-standard thread?
Yes, from your sample nut.
Why is PEEK used so widely in textile machinery?
Because it combines high temperature resistance, wear resistance, self-lubrication, low noise, corrosion resistance and high strength in one material.
Lead time?
Within 7 days for standard items.
