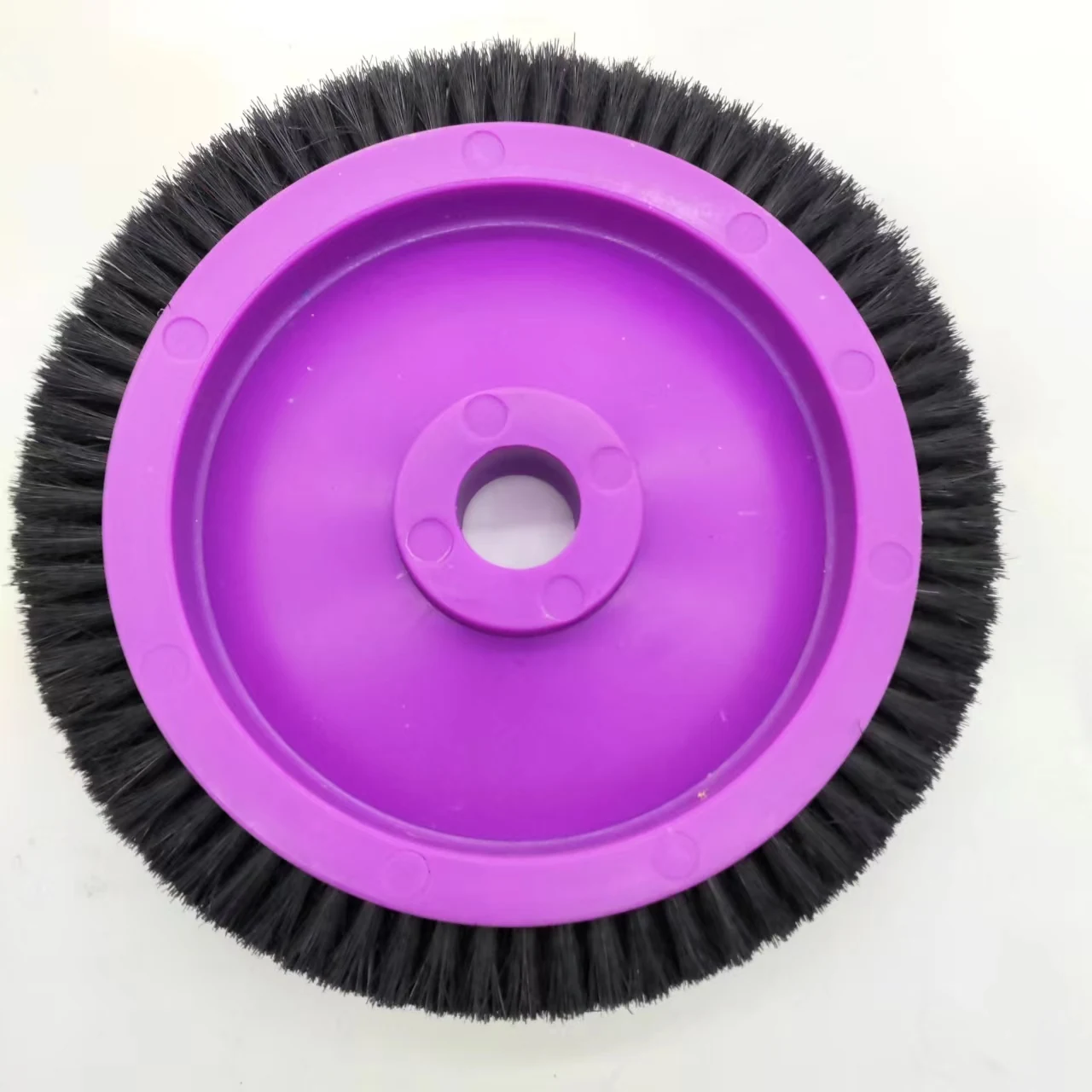

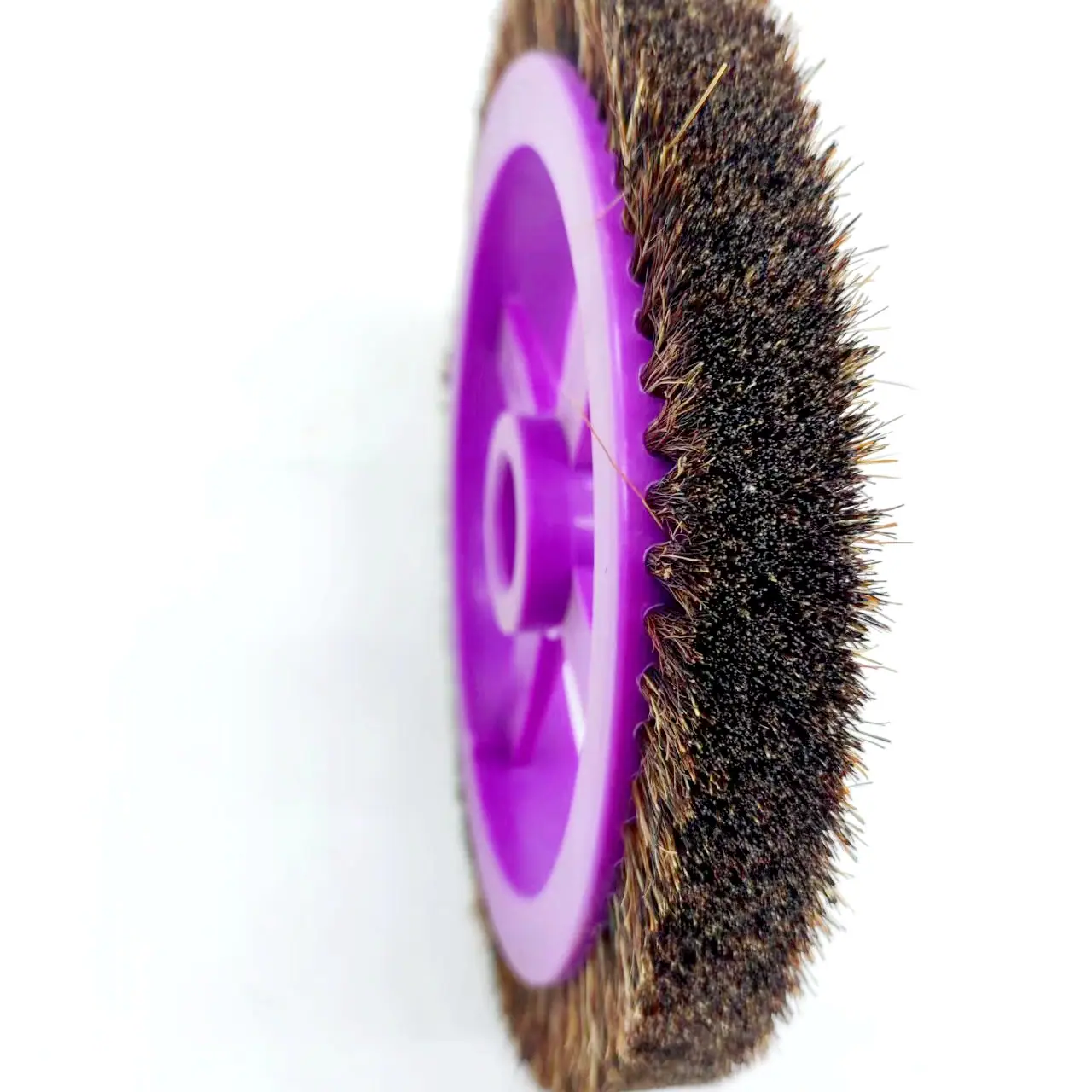

Brush Wheel For Monforts Stenters 180 x 22
The narrow 180 by 22 Monforts wheel for auxiliary and edge positions.
Product Overview
The small Monforts brush wheel at 180 by 22. At 22 mm wide it is a narrow wheel, used in auxiliary and edge positions rather than as the main pressing wheel across the pin bed.
Bristle options are the same as on the larger wheels: PP bristle, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue, with the wheel body in red, green or purple.
Key Benefits
- Narrow 22 mm width for auxiliary and edge positions
- Same five bristle options as the larger Monforts wheels
- Nylon bristle available where the position runs hot
- Colour coded bodies for position identification
Who It Is For
- Monforts users buying both the large and small wheel sizes
- Maintenance stores holding the narrow wheel as a separate line
- Engineers dealing with a specific edge position rather than the whole bed
Problems It Solves
- A wide wheel fouling adjacent hardware at an edge position
- Localised fibre build-up that the main wheel does not reach
- One wheel size being used everywhere because the narrow one was not stocked
Application Scenarios
- Edge positions on a Monforts frame where a wide wheel will not fit
- Auxiliary pressing points along the pin bed
- Positions where fibre build-up is localised rather than across the width
Technical Features
- Size 180 by 22
- Bristle options: PP, nylon for high temperature, brown pig hair, black pig hair, hard hair with glue
- Wheel body colours: red, green, purple
- Made for Monforts stenter machines
Specifications
| Size | 180 x 22 |
|---|---|
| Machine | Monforts stenter |
| Bristle options | PP, nylon (high temperature), brown pig hair, black pig hair, hard hair with glue |
| Wheel colours | red, green, purple |
| Origin | Zhejiang, China |
| Lead time | within 7 days for standard items |
| Origin | Shaoxing, Zhejiang, China |
Quality Control
- Width measured on every wheel, since 22 mm leaves little tolerance
- Bore concentricity checked so the narrow wheel runs true
- Bristle pull test on a batch sample
Customisation Options
- Bristle type per position
- Wheel colour for coding
- Other narrow widths made from a sample
Certifications. We make no certification claim for this part. The original company statement is that products comply with international quality standards; no certificate is named and none is asserted here. Ask us directly if your procurement process requires documentation.
Comparison With Other Options
Against the 220 by 167 wheel, this is a narrow auxiliary wheel rather than the main pressing wheel. Using a wide wheel where a narrow one belongs usually means it fouls something; using a narrow one where a wide one belongs leaves the cloth unpressed across most of the bed.
Use Guide
Confirm the width available at the position before ordering; 22 mm is tight
Check the wheel runs true after fitting, because a narrow wheel shows run-out clearly
Match bristle type to the position temperature
Clear fibre from the wheel at shift changes on dusty articles
Replace as a set where several narrow wheels share a position
FAQ
Questions About Brush Wheel For Monforts Stenters 180 x 22
When would I use the narrow wheel?
At edge and auxiliary positions where a wide wheel will not fit or is not needed. It is not a substitute for the main 220 by 167 pressing wheel.
Are the bristle options the same?
Yes: PP, nylon for high temperature, brown pig hair, black pig hair and hard hair with glue.
Can you make other narrow widths?
Yes, from a sample wheel.
Why does wheel colour vary?
Red, green and purple bodies are available so you can code wheels by position or change interval.
Minimum order?
No fixed minimum.
Lead time?
Within 7 days for standard sizes.
